2008 NISSAN FRONTIER warning

LOW TIRE PRESSURE WARNING LIGHTTRIP COMPUTERINSTRUMENT BRIGHTNESS CONTROL/
TRIP CHANGE BUTTONHEADLIGHT AND TURN SIGNAL CON-
TROL
WINDSHIELD WIPER/WASHER SWITCHSTEERING WHEEL SWITCH FOR AUDIO
CONTROL/BLUETOOTH CRUISE CONTROLMIRROR CONTROL SWITCH*
STEERING WHEEL TILT ADJUSTMENT*HOOD RELEASE*AUDIO SYSTEMFRONT-PASSENGER AIR BAG STATUS
LIGHT
CLIMATE CONTROLSFOUR-WHEEL DRIVE (4WD) SHIFT
SWITCHVEHICLE DYNAMIC CONTROL
(VDC) OFF SWITCH
*See your Owner’s Manual for more information.

TABLE OF CONTENTS
Remote Keyless Entry System (if so equipped)................2
Windshield Wiper/Washer Switch .......................2
Headlight and Turn Signal Control .......................3
Steering Wheel Switches for Audio Control/Bluetooth
(if so equipped) .................................4
Cruise Control (if so equipped) .........................4
Climate Control ..................................5
FM/AM/XM * Radio with CD Changer (if so equipped) ...........6
Clock Set/Adjustment ...............................8
Trip Computer (if so equipped) .........................8
Instrument Brightness Control/Trip Change Button .............8
Four-Wheel Drive (4WD) Shift Switch (if so equipped) ...........9
Vehicle Dynamic Control (VDC) Off Switch (if so equipped) ........9
E-Lock Switch (if so equipped) .........................9
Hill Descent Control Switch (if so equipped) ................10
Hill Start Assist (if so equipped) ........................10
Front-Passenger Air Bag Status Light ....................10
Tire Pressure Monitoring System (TPMS) ..................11
Seat Belt Warning Light and Chime ......................11
Child Safety Rear Door Lock (Crew Cab model only) ...........11
Moonroof Controls (if so equipped) ......................12
Front Seat Adjustments .............................12
Fold Flat Front Passenger Seat (if so equipped) ..............13
Folding the Rear Bench Seat (Crew Cab Model only) ...........13
Utility Bed With Spray-On Bed Liner and Utili-Track™ System (if so equipped) ................................13
Homelink Universal Transceiver (if so equipped) ..............14
Bluetooth Hands-Free Phone System (if so equipped) ..........15
This easy-to-use Quick Reference Guide is intended to help you more fully
appreciate some of the unique features and functions of your new vehicle.
However, it is not intended to replace your Owner’s Manual. The Owner’s
Manual contains more detailed information to help you better understand the
important safety warnings, features, operation, and maintenance of your
vehicle.

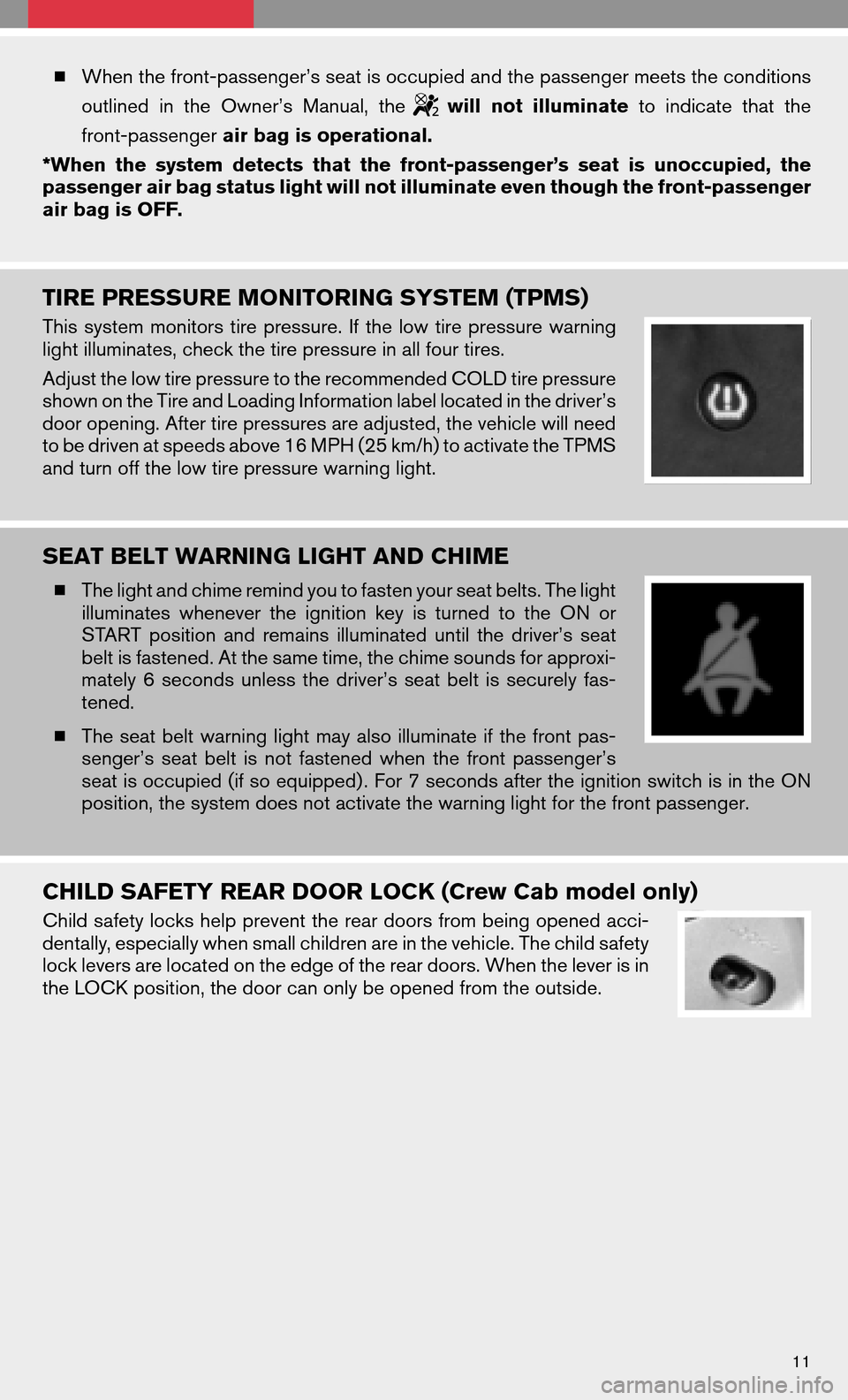

When the front-passenger’s seat is occupied and the passenger meets the conditions
outlined inthe Owner’s Manual,the
willnotilluminate toindicate thatthe
front-passenger air bag is operational.
*When thesystem detects thatthefront-passenger’s seatisunoccupied, the
passenger air bag status light will not illuminate even though the front-passenger
air bag is OFF.
TIRE PRESSURE MONITORING SYSTEM (TPMS)
This system monitors tirepressure. Ifthe low tirepressure warning
light illuminates, check the tire pressure in all four tires.
Adjust the low tire pressure to the recommended COLD tire pressure
shown on the Tire and Loading Information label located in the driver’s
door opening. After tire pressures are adjusted, the vehicle will need
to be driven at speeds above 16 MPH (25 km/h) to activate the TPMS
and turn off the low tire pressure warning light.
SEAT BELT WARNING LIGHT AND CHIME
 The light and chime remind you to fasten your seat belts. The light
illuminates whenevertheignition keyisturned tothe ON or
START position andremains illuminated untilthedriver’s seat
belt is fastened. At the same time, the chime sounds for approxi-
mately 6seconds unlessthedriver’s seatbeltissecurely fas-
tened.
 The seat beltwarning lightmayalso illuminate ifthe front pas-
senger’s seatbeltisnot fastened whenthefront passenger’s
seat is occupied (if so equipped) . For 7 seconds after the ignition switch is in the ON
position, the system does not activate the warning light for the front passenger.
CHILD SAFETY REAR DOOR LOCK (Crew Cab model only)
Child safety locks help prevent the rear doors from being opened acci-
dentally, especially when small children are in the vehicle. The child safety
lock levers are located on the edge of the rear doors. When the lever is in
the LOCK position, the door can only be opened from the outside.
11
