2008 NISSAN 350Z Owners Manual

1. Fuse/fusible link holder (P.8-21)
2. Battery (P.8-15)
3. Engine oil filler cap (P.8-9)
4. Brake fluid reservoir (P.8-13)
5. Clutch fluid reservoir (M/T models) (P.8-13)
6. Window washer fluid reservoir (P.8-14)
7. Power steering fluid reservoir (P.8-12)
8. Air cleaner (P.8-18)
9. Radiator filler cap (P.8-8)
10. Engine drive belts (P.8-17)
11. Engine coolant reservoir (P.8-8)
12. Engine oil dipstick (P.8-9)
Do not tamper with the strut tower bar
adjustment
A. The strut tower bar has
been adjusted to the most suitable posi-
tion at the factory.
SDI2050
ENGINE COMPARTMENT0-12
Illustrated table of contents


07.7.25/Z33-D/V5.0


1 Safety — Seats, seat belts and supple-
mental restraint systemSeats ........................................................................................ 1-2
Front manual seat adjustment
(for Coupe models) ........................................................ 1-3
Front power seat adjustment
(for Coupe models — if so equipped) ...................... 1-3
Front power seat adjustment
(for Roadster models) .................................................... 1-4
Seat lifter (for driver’s seat) ......................................... 1-6
Tilting and reclining passenger’s seat from driver’s
seat ..................................................................................... 1-7
Head restraint adjustment ............................................ 1-9
Front-seat Active Head Restraints (except for
ventilated net seats)...................................................... 1-10
Seat belts ............................................................................. 1-10
Precautions on seat belt usage ................................ 1-10
Child safety .................................................................... 1-12
Pregnant women .......................................................... 1-13
Injured persons ............................................................. 1-14Three-point type seat belt with retractor ............... 1-14
Seat belt extenders ...................................................... 1-16
Seat belt maintenance ................................................ 1-17
Child restraints ................................................................... 1-17
Precautions on child restraints ................................. 1-17
Child restraint installation on front passenger
seat (Coupe models only) .......................................... 1-20
Top tether strap child restraint
(Coupe models only) ................................................... 1-24
Booster seats ....................................................................... 1-25
Precautions on booster seats .................................... 1-25
Booster seat installation on front passenger
seat.................................................................................... 1-27
Supplemental restraint system ....................................... 1-28
Precautions on supplemental restraint system ..... 1-28
Supplemental air bag warning labels ...................... 1-42
Supplemental air bag warning light ......................... 1-43


07.7.25/Z33-D/V5.0

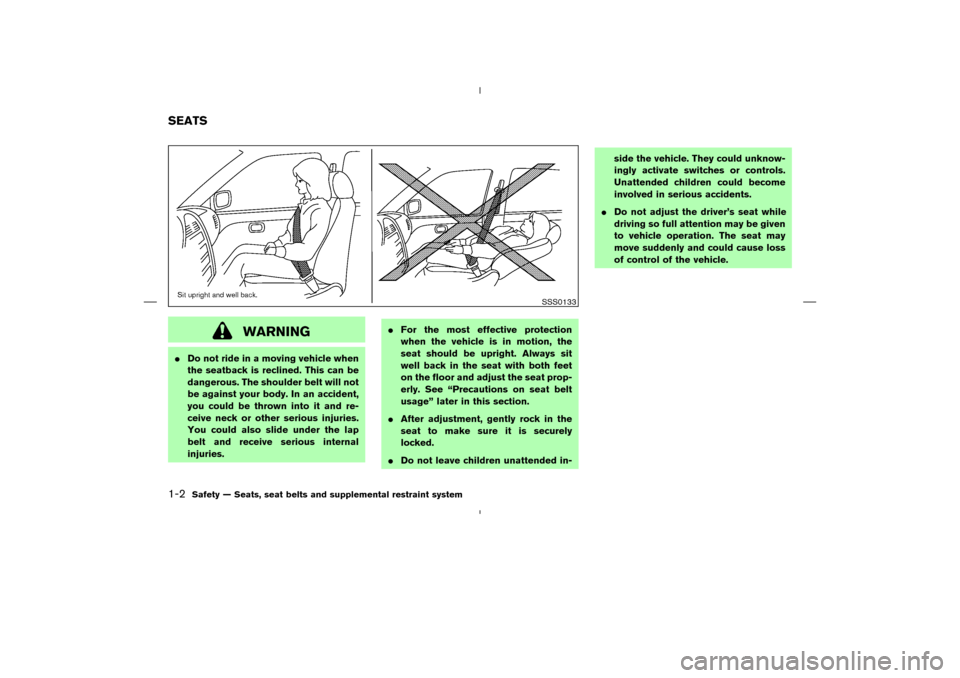

WARNING

Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal
injuries.
For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat with both feet
on the floor and adjust the seat prop-
erly. See “Precautions on seat belt
usage” later in this section.

After adjustment, gently rock in the
seat to make sure it is securely
locked.

Do not leave children unattended in-side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.

Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
SSS0133
SEATS1-2
Safety — Seats, seat belts and supplemental restraint system


07.7.25/Z33-D/V5.0


FRONT MANUAL SEAT
ADJUSTMENT (for Coupe models)1
Forward and backward
Pull the lever up while you slide the seat forward
or backward to the desired position. Release the
lever to lock the seat in position.
When sliding the passenger’s seat backward,
be careful not to crush items in the seatback
pocket against the rear floor box.
2
Reclining
To recline the seatback, pull the lever up and
lean back. To bring the seatback forward again,
pull the lever and move your body forward. The
seatback will move forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage”
later in this section. The seatback may also be
reclined to allow occupants to rest when the
vehicle is stopped and the transmission is in the
P (Park) position or N (Neutral) position with the
parking brake fully applied.
FRONT POWER SEAT
ADJUSTMENT (for Coupe models —
if so equipped)
Operating tips
The seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait 30 seconds, then reactivate
the switch.

Do not operate the power support seat
for a long period of time when the engine is
off. This will discharge the battery.
SSS0394
Safety — Seats, seat belts and supplemental restraint system
1-3


07.7.25/Z33-D/V5.0


1
Forward and backward
Moving the sliding switch forward or backward
will slide the seat forward or backward to the
desired position.
When sliding the passenger’s seat backward,
be careful not to crush items in the seatback
pocket against the rear floor box.2
Reclining (for driver’s seat)
Move the reclining switch backward until the
desired angle is obtained. To bring the seatback
forward, move the switch forward and move your
body forward. The seatback will move forward.
2
Reclining (for passenger’s seat)
The passenger’s seat is equipped with a manual
lever for reclining. See “Front manual seat ad-
justment” earlier in this section.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage”
later in this section. The seatback may also be
reclined to allow occupants to rest when the
vehicle is stopped and the transmission is in the
P (Park) or N (Neutral) position with the parking
brake fully applied.
FRONT POWER SEAT
ADJUSTMENT (for Roadster models)
Operating tips
The seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait 30 seconds, then reactivate
the switch.

Do not operate the power support seat
for a long period of time when the engine is
off. This will discharge the battery.
SPA1793
1-4
Safety — Seats, seat belts and supplemental restraint system


07.7.25/Z33-D/V5.0


1
Forward and backward
Moving the sliding switch forward or backward
will slide the seat forward or backward to the
desired position.
When sliding the passenger’s seat backward,
be careful not to crush items in the seatback
pocket against the rear floor box.2
Reclining
Move the reclining switch backward until the
desired angle is obtained. To bring the seatback
forward, move the switch forward and move your
body forward. The seatback will move forward.The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage”
later in this section. The seatback may also be
reclined to allow occupants to rest when the
vehicle is stopped and the transmission is in the
P (Park) or N (Neutral) position with the parking
brake fully applied.
Automatic passenger seatback tilt
functionThe passenger seatback will automatically tilt
forward and backward during the soft top
open/close operation. If you need to cancel thisfunction or when a child restraint is installed in
the passenger’s seat, push the seatback tilt
cancel switch to the CANCEL position. For more
information about operation conditions, see
“Soft top” in the “3. Pre-driving checks and
adjustments” section. For the cancel switch, see
“Tilting and reclining passenger’s seat from driv-
er’s seat” later in this section.
SSS0472
Safety — Seats, seat belts and supplemental restraint system
1-5


07.7.25/Z33-D/V5.0


Ventilated net seats (if so equipped)The ventilated net seats are designed for good
ventilation while driving. Net cloth is used on the
surface of the seatback and the cushion as
shown.

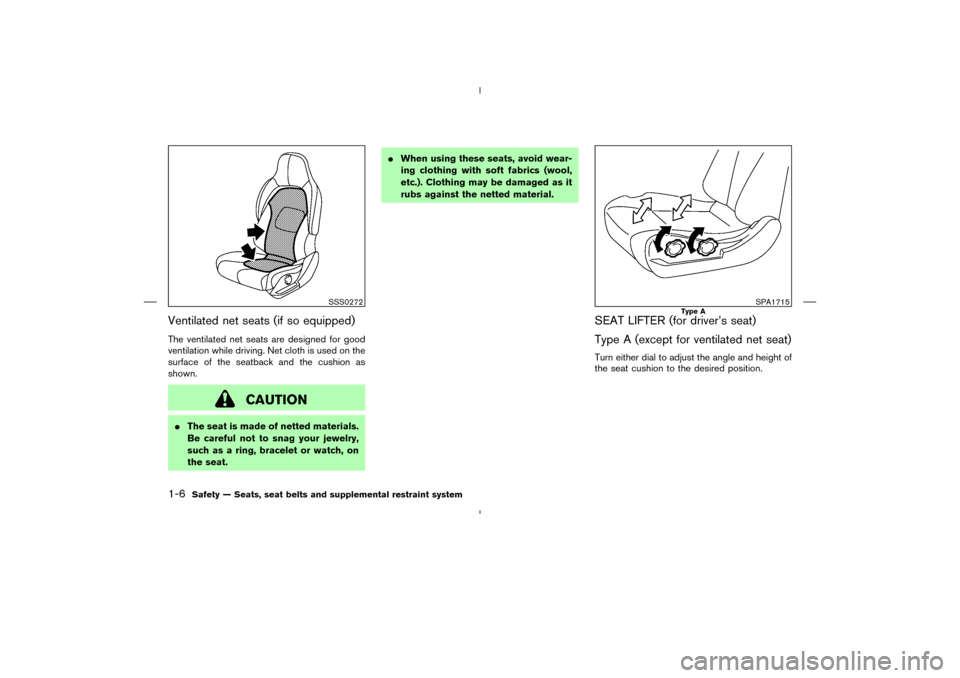

CAUTION

The seat is made of netted materials.
Be careful not to snag your jewelry,
such as a ring, bracelet or watch, on
the seat.
When using these seats, avoid wear-
ing clothing with soft fabrics (wool,
etc.). Clothing may be damaged as it
rubs against the netted material.
SEAT LIFTER (for driver’s seat)
Type A (except for ventilated net seat)Turn either dial to adjust the angle and height of
the seat cushion to the desired position.
SSS0272
SPA1715
Type A
1-6
Safety — Seats, seat belts and supplemental restraint system


07.7.25/Z33-D/V5.0


Type B (for ventilated net seat)Turn the dial and adjust the angle of the seat
cushion to the desired position.
TILTING AND RECLINING
PASSENGER’S SEAT FROM
DRIVER’S SEATThe passenger seatback can be adjusted from
the driver’s seat to make it easier for the driver to
use the rear parcel box or rear floor box, or to
help the passenger get in the vehicle.Coupe models (manual type)To tilt or recline the passenger seatback, pull up
the lever
A
located on the back side of it, and
move the seatback forward or backward.
Roadster models (power type)The power seatback tilt switch
B
and the
seatback tilt cancel switch
Care located on the
back side of the passenger seatback as shown.
Tilting/reclining operation:
To tilt the passenger seatback forward, push the
top (
side) of the power seatback tilt
switch
B
for more than 0.5 second. The seat-
back will automatically tilt forward. To stop the
movement, push the top or bottom of the switch.
To tilt or adjust the seatback backward, push
and hold the bottom (
side) of the power
SSS0202
Type B
SSS0203
Coupe models
SSS0273
Roadster models — Type A
Safety — Seats, seat belts and supplemental restraint system
1-7
