2008 MITSUBISHI SHOGUN engine

1-4 Locking and unlocking
1
NOTE●
In the following cases, the
vehicle may not be able to
receive the registered ID code
from the registered key and
the engine may not start. • When the key contacts a key ring or other metallic ormagnetic object (Type A) • When the key grip contacts metal of another key (Type B)• When the key contacts or is close to other immobilizing keys (including keys of other vehicles) (Type C) In cases like these, remove the object or additional key from the vehicle key. Then tr
y again to start the engine.
If the engine does not start, we recommend you to con- tact your MITSUBISHI MOTORS Authorized Service Point.
BK-BK2008E1ENUK.en-uk-Section4.fm Page 4 Wednesday, January 9, 2008 4:22 PM

Locking and unlocking
1-17
1
NOTE●
Repeated operation with the engine stopped will run down the battery. Operate the window switches only while the engine is running.
Driver’s switchesThe driver’s switches can be us
ed to operate a
ll door windows.
A window can be opened or closed by operating the corre- sponding switch. Press the switch down to open the window, and pull up theswitch to close it. If the switch is fully pressed down/pulled up, the door window automatically opens/closes completely.If you want to stop the window movement, operate the switch lightly.
Passenger’s switchesThe passenger’s switches can be used to operate the corre- sponding passenger’s door windows. Press the switch down for opening the window, and pull up the switch for closing.NOTE●
The rear door windows only open halfway.
Passenger’s switch
BK-BK2008E1ENUK.en-uk-Section4.fm Page
17 Wednesday, January 9, 2008 4:22 PM

Locking and unlocking
1-25
1
NOTE●
The sunroof stops just before
reaching the fully open posi-
tion. If the vehicle is driven with the sunroof in this position, wind throb is lower than with the sunroof fully open.
●
When leaving the vehicle un
attended, make sure you
close the sunroof and remove the ignition key.
●
Do not try to operate the su
nroof if it is frozen closed
(after snow fall or
during extr
eme cold).
●
Do not sit or place heavy lu
ggage on the sunroof or roof
opening edge.
●
Release the switch as soon as the sunroof reaches the fully open or fully closed position.
●
If the sunroof does not operat
e when the sunroof switch is
operated, release the switch
and check whether something
is trapped by the sunroof. If no
thing is trapped, we recom-
mend you to have the sunroof checked.
●
Depending on the model of ski carriers or roof carriers, the sunroof may make contact
with the carrier when the
sunroof is tilted up. Be careful when tilting up the sunroofif such a ski carrier or a
roof carrier is installed.
●
Be sure to close the sunroof completely when washing the vehicle or when leaving the vehicle.
●
Be careful, not to put any wa
x on the weatherstrip (black
rubber) around the sunroof ope
ning. If stained with wax,
the weatherstrip cannot maintain a weatherproof seal withthe sunroof.
●
After washing the vehicle or after it has rained, wipe off any water that is on the sunroof before operating it.
●
Operating the sunroof repeated
ly with the engine station-
ary will run down the battery
. Operate the sunroof while
the engine is running.
BK-BK2008E1ENUK.en-uk-Section4.fm Page
25 Wednesday, January 9, 2008 4:22 PM

2-6 Seat and seat belts
2
Front seats
E00400400100
To adjust forward or backward
E00400500055
Manual typePull the seat adjusting lever
and adjust the seat forward or
backward to the desired positi
on, and release the adjusting
lever.
Power typeAdjust the seat by operating
the switch as indicated by the
arrows.NOTE●
To prevent the battery from running down, operate the power seat with the engine running.
WARNING
!●
To ensure the seat is locked securely, try to move the seat forward or backward
without using the adjust-
ing lever.
1- Adjustment forward 2- Adjustment backward
BK-BK2008E1ENUK.en-uk-Section5.fm Page 6 Wednesday, January 9, 2008 4:28 PM

Seat and seat belts
2-7
2
To recline the seatback
E00400600056
Manual typeIn order to recline the seatback
, lean forward slightly, pull the
seatback lock lever up, and then
lean backward to the desired
position and release the lever. Th
e seatback will lock in that
position.
Power typeAdjust the seatback angle by
operating the switch as indicated
by the arrows.NOTE●
To prevent the battery from running down, operate the power seat with the engine running.
CAUTION
!●
The reclining mechanism of
the seatback is spring
loaded, causing it to return
to the vertical position
when the lock lever is operated. When using thelever, sit close to the seatback or hold it with your hand to control its return motion.
1- To move to forward direction 2- To recline rearward
BK-BK2008E1ENUK.en-uk-Section5.fm Page 7 Wednesday, January 9, 2008 4:28 PM

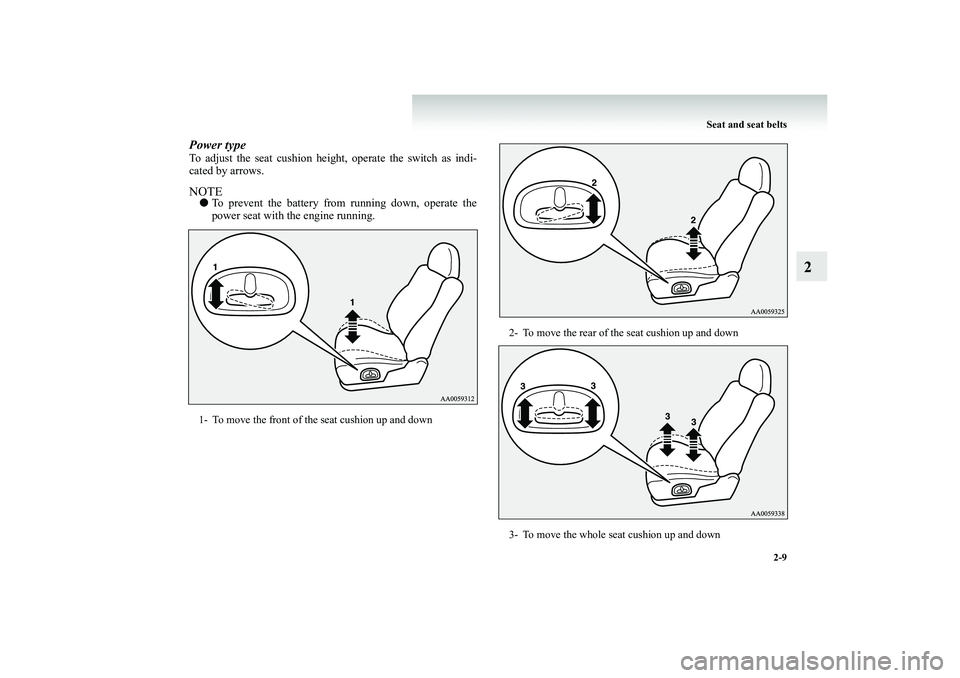

Seat and seat belts
2-9
2
Power typeTo adjust the seat cushion heig
ht, operate the switch as indi-
cated by arrows.NOTE●
To prevent the battery from running down, operate the power seat with the engine running.
1- To move the front of the seat cushion up and down
2- To move the rear of the seat cushion up and down 3- To move the whole seat cushion up and down
BK-BK2008E1ENUK.en-uk-Section5.fm Page 9 Wednesday, January 9, 2008 4:28 PM

2-10 Seat and seat belts
2
Lumbar support adjustment (Power type, driver’s seat)
E00400800032
A lumbar support adjustment is located in the seatback of the driver’s seat. To adjust the lu
mbar support, operate the switch
as indicated by arrows.NOTE●
To prevent the battery from running down, operate the power seat with the engine running.
Armrest
E00400900118
Slide forward the centre consol
e lid while pressing the right
upper lever (A).
1- Strong 2- Weak
BK-BK2008E1ENUK.en-uk-Section5.fm Page
10 Wednesday, January 9, 2008 4:28 PM

3-2 Instruments and controls
3
Instruments
E00500100241
Tachometer
E00500300458
The tachometer indicates the
engine speed (r/min). The
tachometer helps you to obtain more economical driving and also warns you of excessive engine speeds (Red zone).
1- Speedometer (km/h or mph + km/h) 2- Tachometer 3- Tripmeter reset button/Daytime dipper button 4- Fuel gauge5- Odometer/Tripmeter/Service reminder 6- Water temperature gauge
CAUTION
!●
When driving, watch the
tachometer to make sure
that the engine speed indi
cation does not rise into
the red zone (excessive engine rpm).
