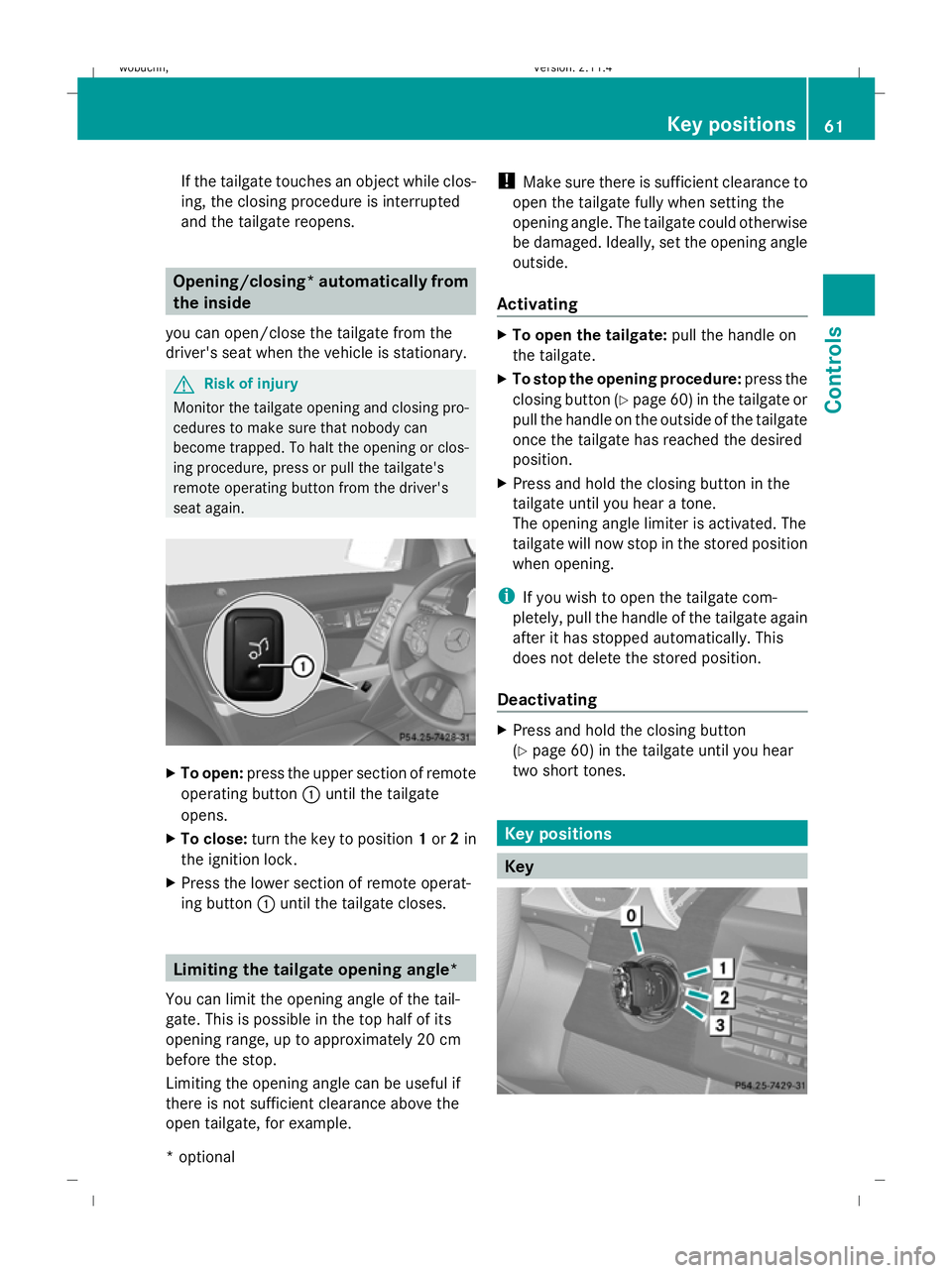

If the tailgate touches an object while clos-
ing, the closing procedure is interrupted
and the tailgate reopens.
Opening/closing* automatically from
the inside
you can open/close the tailgate from the
driver's seat when the vehicle is stationary. G
Risk of injury
Monitor the tailgate opening and closing pro-
cedures to make sure that nobody can
become trapped. To halt the opening or clos-
ing procedure, press or pull the tailgate's
remote operating button from the driver's
seat again. X
To open: press the upper section of remote
operating button :until the tailgate
opens.
X To close: turn the key to position 1or 2in
the ignition lock.
X Press the lower section of remote operat-
ing button :until the tailgate closes. Limiting the tailgate opening angle*
You can limit the opening angle of the tail-
gate. This is possible in the top half of its
opening range, up to approximately 20 cm
before the stop.
Limiting the opening angle can be useful if
there is not sufficient clearance above the
open tailgate, for example. !
Make sure there is sufficient clearance to
open the tailgate fully when setting the
opening angle. The tailgate could otherwise
be damaged. Ideally, set the opening angle
outside.
Activating X
To open the tailgate: pull the handle on
the tailgate.
X To stop the opening procedure: press the
closing button (Y page 60) in the tailgate or
pull the handle on the outside of the tailgate
once the tailgate has reached the desired
position.
X Press and hold the closing button in the
tailgate until you hear a tone.
The opening angle limiter is activated. The
tailgate will now stop in the stored position
when opening.
i If you wish to open the tailgate com-
pletely, pull the handle of the tailgate again
after it has stopped automatically. This
does not delete the stored position.
Deactivating X
Press and hold the closing button
(Y page 60) in the tailgate until you hear
two short tones. Key positions
Key Key positions
61Controls
* optional
