2008 MERCEDES-BENZ E-CLASS SALOON Owners Manual

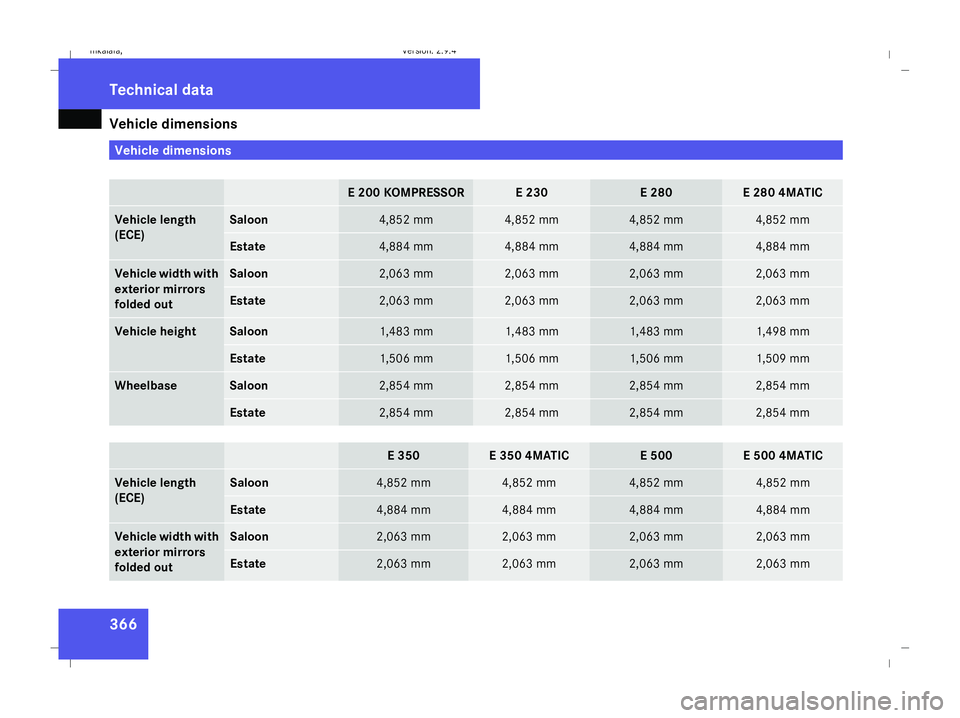

Vehicle dimensions
366 Vehicle dimensions
E 200 KOMPRESSOR E 230 E 280 E 280 4MATIC
Vehicle length
(ECE) Saloon 4,852 mm 4,852 mm 4,852 mm 4,852 mm
Estate 4,884 mm 4,884 mm 4,884 mm 4,884 mm
Vehicle width with
exterior mirrors
folded out Saloon 2,063 mm 2,063 mm 2,063 mm 2,063 mm
Estate 2,063 mm 2,063 mm 2,063 mm 2,063 mm
Vehicle height Saloon 1,483 mm 1,483 mm 1,483 mm 1,498 mm
Estate 1,506 mm 1,506 mm 1,506 mm 1,509 mm
Wheelbase Saloon 2,854 mm 2,854 mm 2,854 mm 2,854 mm
Estate 2,854 mm 2,854 mm 2,854 mm 2,854 mm
E 350 E 350 4MATIC E 500 E 500 4MATIC
Vehicle length
(ECE) Saloon 4,852 mm 4,852 mm 4,852 mm 4,852 mm
Estate 4,884 mm 4,884 mm 4,884 mm 4,884 mm
Vehicle width with
exterior mirrors
folded out Saloon 2,063 mm 2,063 mm 2,063 mm 2,063 mm
Estate 2,063 mm 2,063 mm 2,063 mm 2,063 mmTechnical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 366Dateiname: 6515_3416_02_buchblock.pdf; preflight

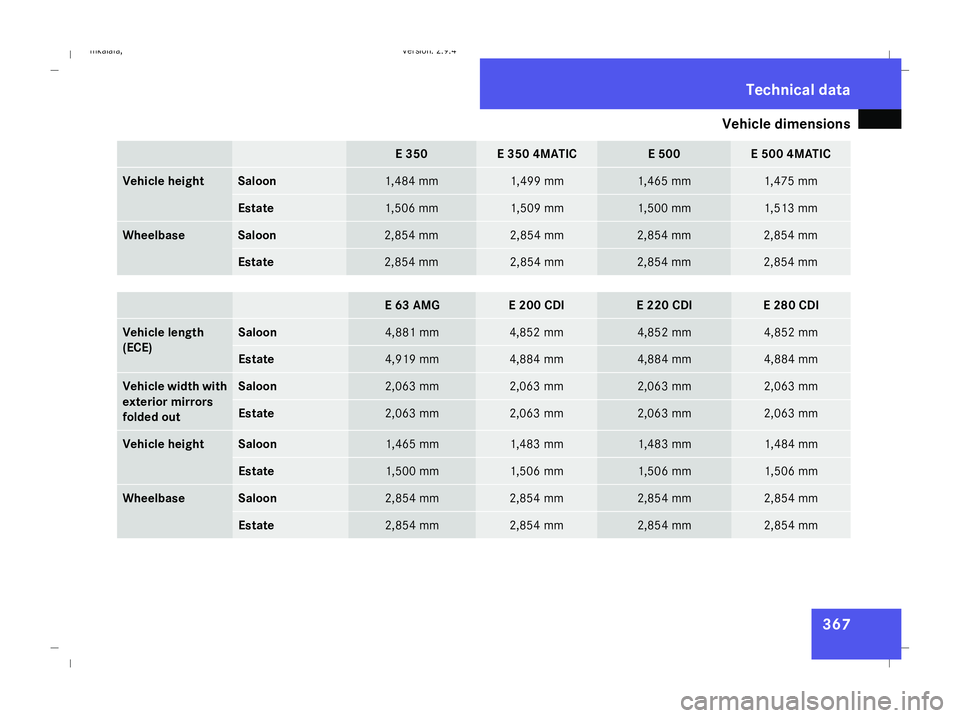

Vehicle dimensions
367E 350 E 350 4MATIC E 500 E 500 4MATIC
Vehicle height Saloon 1,484 mm 1,499 mm 1,465 mm 1,475 mm
Estate 1,506 mm 1,509 mm 1,500 mm 1,513 mm
Wheelbase Saloon 2,854 mm 2,854 mm 2,854 mm 2,854 mm
Estate 2,854 mm 2,854 mm 2,854 mm 2,854 mm
E 63 AMG E 200 CDI E 220 CDI E 280 CDI
Vehicle length
(ECE) Saloon 4,881 mm 4,852 mm 4,852 mm 4,852 mm
Estate 4,919 mm 4,884 mm 4,884 mm 4,884 mm
Vehicle width with
exterior mirrors
folded out Saloon 2,063 mm 2,063 mm 2,063 mm 2,063 mm
Estate 2,063 mm 2,063 mm 2,063 mm 2,063 mm
Vehicle height Saloon 1,465 mm 1,483 mm 1,483 mm 1,484 mm
Estate 1,500 mm 1,506 mm 1,506 mm 1,506 mm
Wheelbase Saloon 2,854 mm 2,854 mm 2,854 mm 2,854 mm
Estate 2,854 mm 2,854 mm 2,854 mm 2,854 mmTechnical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 367 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

Vehicle dimensions
368 E 280 CDI 4MATIC E 320 CDI E 320 CDI 4MATIC E 420 CDI
Vehicle length
(ECE) Saloon 4,852 mm 4,852 mm 4,852 mm 4,852 mm
Estate 4,884 mm 4,884 mm 4,884 mm –
Vehicle width with
exterior mirrors
folded out Saloon 2,063 mm 2,063 mm 2,063 mm 2,063 mm
Estate 2,063 mm 2,063 mm 2,063 mm –
Vehicle height Saloon 1,499 mm 1,484 mm 1,499 mm 1,465 mm
Estate 1,509 mm 1,506 mm 1,509 mm –
Wheelbase Saloon 2,854 mm 2,854 mm 2,854 mm 2,854 mm
Estate 2,854 mm 2,854 mm 2,854 mm –
E 350 CGI E 300 Bluetec
Vehicle length
(ECE) Saloon 4,852 mm 4,852 mm
Estate 4,884 mm –
Vehicle width with
exterior mirrors
folded out Saloon 2,063 mm 2,063 mm
Estate 2,063 mm –Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 368Dateiname: 6515_3416_02_buchblock.pdf; preflight

Vehicle weights
369E 350 CGI E 300 Bluetec
Vehicle height Saloon 1,484 mm 1,484 mm
Estate 1,506 mm –
Wheelbase Saloon 2,854 mm 2,854 mm
Estate 2,854 mm –
Vehicle weights
The unladen weight includes the driver (68 kg), luggage (7 kg) and all fluids (fuel tank 90% full). Items of optional equipment increase the
unladen weight and reduce the maximum payload. Specific data on weight is to be found on the vehicle identification plate (Y page 346).E 200
KOMPRESSOR E 230 E 280 E 280 4MATIC
Unladen weight
(in accordance
with EC direc-
tive) Saloon 1,580 kg 1,650 kg 1,660 kg 1,780 kg
Estate 1,720 kg 1,775 kg 1,785 kg 1,905 kg
Maximum per-
missible gross
vehicle weight Saloon 2,105 kg 2,175 kg 2,185 kg 2,305 kg
Estate 2,295 kg 2,350 kg 2,360 kg 2,480 kgTechnical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 369 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

Vehicle weights
370 E 200
KOMPRESSOR E 230 E 280 E 280 4MATIC
Maximum per-
missible front
axle load Saloon 1,005 kg 1,045 kg 1,045 kg 1,150 kg
Estate 975 kg 1,005 kg 1,005 kg 1,110 kg
Maximum per-
missible rear
axle load Saloon 1,145 kg 1,175 kg 1,185 kg 1,200 kg
Estate 1,320 kg 1,345 kg 1,355 kg 1,370 kg
Towing a trailer Saloon 1,195 kg 1,225 kg 1,235 kg 1,250 kg
Estate 1,395 kg 1,420 kg 1,430 kg 1,430 kg
Maximum roof
load 100 kg 100 kg 100 kg 100 kg
Maximum boot
load
57 100 kg 100 kg 100 kg 100 kg
E 350 E 350 4MATIC E 500 E 500 4MATIC
Unladen weight
(in accordance
with EC direc-
tive) Saloon 1,690 kg 1,785 kg 1,785 kg 1,880 kg
Estate 1,810 kg 1,910 kg 1,895 kg 1,990 kg
57
On vehicles with AIRMATIC and on the Estate it is important to observe the maximum permissible rear axle load. Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 370Dateiname: 6515_3416_02_buchblock.pdf; preflight

Vehicle weights
371E 350 E 350 4MATIC E 500 E 500 4MATIC
Maximum per-
missible gross
vehicle weight Saloon 2,215 kg 2,310 kg 2,310 kg 2,405 kg
Estate 2,385 kg 2,485 kg 2,460 kg 2,535 kg
Maximum per-
missible front
axle load Saloon 1,060 kg 1,145 kg 1,115 kg 1,200 kg
Estate 1,010 kg 1,110 kg 1,080 kg 1,155 kg
Maximum per-
missible rear
axle load Saloon 1,200 kg 1,210 kg 1,240 kg 1,250 kg
Estate 1,375 kg 1,375 kg 1,380 kg 1,380 kg
Towing a trailer Saloon 1,250 kg 1,260 kg 1,290 kg 1,300 kg
Estate 1,430 kg 1,430 kg 1,430 kg 1,430 kg
Maximum roof
load 100 kg 100 kg 100 kg 100 kg
Maximum boot
load 58 100 kg 100 kg 100 kg 100 kg
58
On vehicles with AIRMATIC and on the Estate it is important to observe the maximum permissible rear axle load. Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 371 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

Vehicle weights
372 E 63 AMG E 200 CDI E 220 CDI E 280 CDI
Unladen weight
(in accordance
with EC direc-
tive) Saloon 1,840 kg 1,615 kg 1,615 kg 1,715 kg
Estate 1,955 kg 1,785 kg 1,785 kg 1,845 kg
Maximum per-
missible gross
vehicle weight Saloon 2,365 kg 2,140 kg 2,140 kg 2,240 kg
Estate 2,460 kg 2,360 kg 2,360 kg 2,420 kg
Maximum per-
missible front
axle load Saloon 1,165 kg 1,040 kg 1,040 kg 1,105 kg
Estate 1,110 kg 1,025 kg 1,025 kg 1,060 kg
Maximum per-
missible rear
axle load Saloon 1,245 kg 1,145 kg 1,145 kg 1,180 kg
Estate 1,350 kg 1,335 kg 1,335 kg 1,360 kg
Towing a trailer Saloon – 1,195 kg 1,195 kg 1,230 kg
Estate – 1,385 kg 1,385 kg 1,410 kg
Maximum roof
load 100 kg 100 kg 100 kg 100 kg
Maximum boot
load
59 100 kg 100 kg 100 kg 100 kg
59
On vehicles with AIRMATIC and on the Estate it is important to observe the maximum permissible rear axle load. Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 372Dateiname: 6515_3416_02_buchblock.pdf; preflight

Vehicle weights
373E 280 CDI 4MATIC E 320 CDI E 320 CDI 4MATIC E 420 CDI
Unladen weight
(in accordance
with EC direc-
tive) Saloon 1,840 kg 1,750 kg 1,845 kg 1,910 kg
Estate 1,965 kg 1,885 kg 1,980 kg –
Maximum per-
missible gross
vehicle weight Saloon 2,365 kg 2,275 kg 2,370 kg 2,435 kg
Estate 2,540 kg 2,460 kg 2,555 kg –
Maximum per-
missible front
axle load Saloon 1,210 kg 1,125 kg 1,210 kg 1,225 kg
Estate 1,170 kg 1,080 kg 1,175 kg –
Maximum per-
missible rear
axle load Saloon 1,200 kg 1,195 kg 1,205 kg 1,255 kg
Estate 1,370 kg 1,380 kg 1,380 kg –
Towing a trailer Saloon 1,250 kg 1,245 kg 1,255 kg 1,305 kg
Estate 1,430 kg 1,430 kg 1,430 kg –
Maximum roof
load 100 kg 100 kg 100 kg 100 kg
Maximum boot
load 60 100 kg 100 kg 100 kg 100 kg
60
On vehicles with AIRMATIC and on the Estate it is important to observe the maximum permissible rear axle load. Technical data
