Air conditioning
166 Function Recommendation/Notes
d ,
Activates/deactivates Thermatic i
Only use this operating mode for a short time, e.g. in
a tunnel. Otherwise, the windows can mist up due to
lack of fresh air. (Y
page 175) e U
Controls the air conditioning automatically i
Activate automatic air conditioning. AUTOappears in
the display. (Y
page 170) 4-zone Thermotronic*Cont
rols
* optional
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 166 Dateiname: 6515_3416_02_buchblock.pdf; preflight

Air conditioning
167Function Recommendation/Notes
1 Sets the air distribution, left (Y
page 173) 2 y
Demists the windscreen i
Only use the "demisting" function until the wind-
screen is clear again. (Y
page 174) 3 $
Increases the temperature, left i
Set the temperature to 22 †. (Y
page 170) 4 Display
5 $
Increases the temperature, right i
Set the temperature to 22 †. (Y
page 170) 6 ¯
Switches the rear window heating on/off i
At very low temperatures, the rear window heating is
only switched on once the vehicle interior has warmed
up. (Y
page 175) 7 Sets the air distribution, right (Y
page 173) 8 U
Controls the air conditioning automatically, right i
Activate the automatic air conditioning. The indicator
lamp in the Ubutton comes on. (Y
page 170) 9 2
Activates/deactivates cooling with air dehumidifi-
cation i
Switch on the air conditioning with air-dehumidifica-
tion function. The indicator lamp in the 2button
comes on. (Y
page 169) a %
Reduces the temperature, right i
Set the temperature to 22 †. (Y
page 170) Cont
rols
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 167 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

Air conditioning

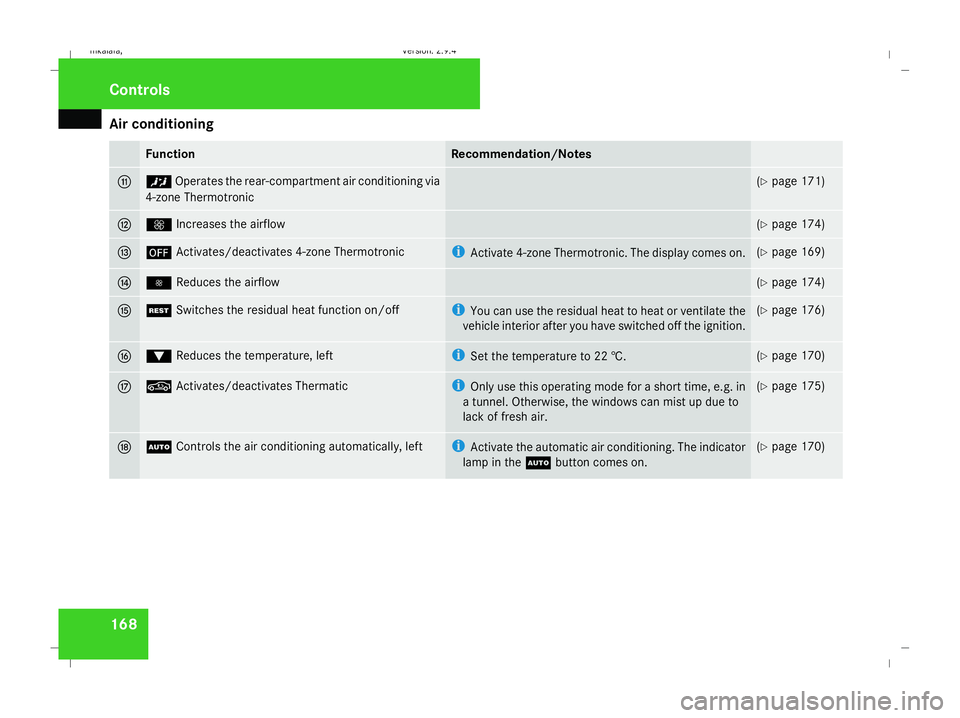

168 Function Recommendation/Notes
b ™
Operates the rear-compartment air conditioning via
4-zone Thermotronic (Y
page 171) c Q
Increases the airflow (Y
page 174) d ´
Activates/deactivates 4-zone Thermotronic i
Activate 4-zone Thermotronic. The display comes on. (Y
page 169) e ·
Reduces the airflow (Y
page 174) f T
Switches the residual heat function on/off i
You can use the residual heat to heat or ventilate the
vehicle interior after you have switched off the ignition. (Y
page 176) g %
Reduces the temperature, left i
Set the temperature to 22 †. (Y
page 170) h ,
Activates/deactivates Thermatic i
Only use this operating mode for a short time, e.g. in
a tunnel. Otherwise, the windows can mist up due to
lack of fresh air. (Y
page 175) j U
Controls the air conditioning automatically, left i
Activate the automatic air conditioning. The indicator
lamp in the Ubutton comes on. (Y
page 170) Cont
rols
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 168 Dateiname: 6515_3416_02_buchblock.pdf; preflight

Air conditioning
169
Rear-compartment air conditioning*
1
$ Increases the temperature, left
2 Display
3 $ Increases the temperature, right
4 % Reduces the temperature, right
5 % Reduces the temperature, left Switching the air conditioning on/off
i When the air conditioning is switched off,
the air supply and air circulation are also
switched off. Only select this setting briefly,
otherwise the windows may mist up.
i Switch the air conditioning on preferably
using the Ubutton.
X Make sure that the key is in position 2in
the ignition lock.
X To activate: press the´button.
The display comes on. The previously selec-
ted settings come into effect again.
X To deactivate: press the´button.
The display shows 025
/OFF 26
.
i You can also press another button (apart
from the ¯andT buttons) to acti-
vate Thermatic. Switching cooling with air-dehumidi-
fication on/off
The "cooling with dehumidification" function
is only available when the engine is running.
The air inside the vehicle is cooled and dehu-
midified according to the temperature selec-
ted. This prevents the windows from misting
up. G
Risk of accident
If the "cooling with air dehumidification"
function is deactivated, the air inside the
vehicle will not be cooled (during warm
weather) or dehumidified. The windows
could mist up more quickly. This may pre-
vent you from observing the traffic condi-
tions, thereby causing an accident. H
Environmental note
The cooling system uses the refrigerant
R134A. This refrigerant does not damage
the earth's ozone layer.
i Condensation may drip from the under-
side of the vehicle when Thermatic is in
cooling mode.
25 Vehicles with 2-zone Thermatic.
26 Vehicles with 4-zone Thermotronic*. Cont
rols
* optional
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 169 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

Air conditioning
170
X
To switch on: press theœbutton.
The indicator lamp in the œbutton
comes on.
X To deactivate: press theœbutton.
The indicator lamp in the œbutton goes
out. The cooling with air dehumidification
function has a delayed switch-off feature.
i The cooling with air dehumidification
function in the rear compartment is only
operative if the 4-zone Thermotronic cool-
ing with air dehumidification function* is
switched on. Controlling the air conditioning auto-
matically
In automatic mode, the set temperature is
maintained at a constant level fully automat-
ically. To do so, the system automatically
regulates the temperature of the dispensed
air, the airflow and the air distribution.
The automatic air conditioning will achieve
optimal operation if "cooling with air dehu-
midification" is also activated. If necessary,
cooling with air dehumidification can be deac-
tivated. X
Make sure that the key is in position 2in
the ignition lock.
X Set the desired temperature.
X To activate: press theUbutton.
The AUTO display for the air distribution and
airflow comes on. The indicator lamp 27
on
the U button lights up. Airflow and air
distribution are set to automatic mode.
X To deactivate: press theQor·
button.
The AUTO display for the airflow goes out.
The automatic control is deactivated and
the airflow is controlled according to the
selected setting. Automatic air distribution
remains activated.
or
X 2-zone Thermatic only: press the©or
ª air distribution button.
The AUTO display for the air distribution
goes out. The automatic control is deacti-
vated and the air distribution is controlled
according to the selected setting. Auto-
matic airflow remains activated. or
X
4-zone Thermotronic only*: turn air dis-
tribution thumbwheel 1or7 to the
desired symbol ( Ypage 166).
The indicator lamp in the Ubutton goes
out. The automatic control is deactivated
and the air distribution is controlled
according to the selected setting. Auto-
matic airflow remains activated. Setting the temperature
2-zone Thermatic: the temperature for the
driver's and front-passenger side can be set
individually. Air-conditioning zones for 4-zone Thermotronic*
27 Vehicles with 4-zone Thermotronic*. Controls
* optional
211_AKB; 2; 5, en-GB
mkalafa
, Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 170Dateiname: 6515_3416_02_buchblock.pdf; preflight

Air conditioning
171
4-zone Thermotronic*: the temperature for
each of the four air-conditioning zones can be
set individually. You can set the temperature
separately for the driver's and front-
passenger sides as well as for the left and
right sides of the rear compartment.
Setting the temperature in the front
compartment using 2-zone Thermatic X
Make sure that the key is in position 2in
the ignition lock.
X To increase/reduce: turn thumbwheels
1 and 7clockwise or anti-clockwise
(Y page 164). Only change the temperature
setting in small increments. Start at 22 †.
Setting the temperature in the front
compartment via 4-zone
Thermotronic* X
Make sure that the key is in position 2in
the ignition lock.
X To increase/reduce: press the$or
% button. Only change the temperature
setting in small increments. Start at 22 †.
The set temperature is shown in the 4-zone
Thermotronic* display. Setting the temperature in the rear
compartment via 4-zone
Thermotronic* X
Make sure that the key is in position 2in
the ignition lock.
X Press the ™button.
The 4-zone Thermotronic* display switches
to the rear-compartment air-conditioning
settings.
X To increase/reduce: press the$or
% button. Only change the temperature
setting in small increments. Start at 22 †.
The set temperature is shown in the 4-zone
Thermotronic* display. The 4-zone
Thermotronic* display changes back to the
standard display about five seconds after a
button is pressed.
i You can also return to the standard dis-
play by pressing the ™button again. Setting the rear-compartment temper-
ature via the rear-compartment air con-
ditioning* X
Make sure that the key is in position 2in
the ignition lock.
X To increase/reduce: press the$or
% button. Only change the temperature
setting in small increments. Start at 22 †. Adjusting the air vents
G
Risk of injury
Very hot or very cold air can flow from the
air vents. This could cause burns or frost-
bite to bare skin in the immediate vicinity
of the vents. Keep bare skin away from
these air outlets. If necessary, direct the
airflow away to a different area of the vehi-
cle interior.
Please observe the following notes to ensure
that the air can flow freely through the air
vents:
R Keep the air inlet between the windscreen
and the bonnet free of deposits, such as ice Cont
rols
* optional
211_AKB; 2; 5, en-GB
mkalafa ,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 171 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

Air conditioning
172and snow, to guarantee the supply of fresh
air into the vehicle interior.
R Never cover the vents or air inlet and outlet
grilles in the vehicle interior.
i Position the sliders for the centre air
vents in the central position to provide vir-
tually draught-free ventilation.

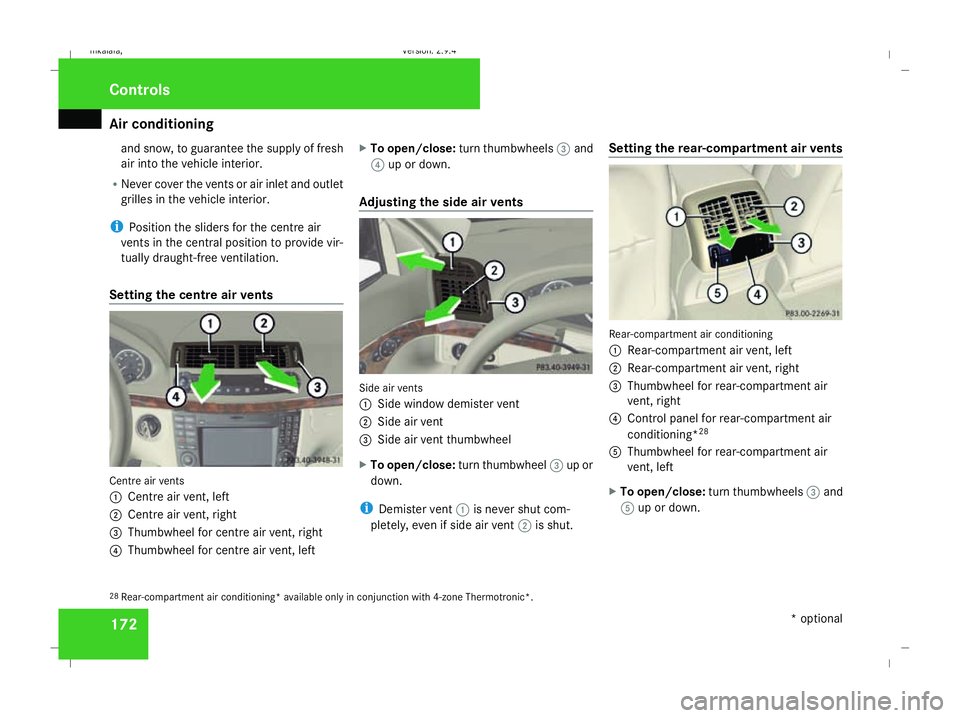

Setting the centre air vents Centre air vents
1
Centre air vent, left
2 Centre air vent, right
3 Thumbwheel for centre air vent, right
4 Thumbwheel for centre air vent, left X
To open/close: turn thumbwheels 3and
4 up or down.
Adjusting the side air vents Side air vents
1
Side window demister vent
2 Side air vent
3 Side air vent thumbwheel
X To open/close: turn thumbwheel 3up or
down.
i Demister vent 1is never shut com-
pletely, even if side air vent 2is shut. Setting the rear-compartment air vents Rear-compartment air conditioning
1
Rear-compartment air vent, left
2 Rear-compartment air vent, right
3 Thumbwheel for rear-compartment air
vent, right
4 Control panel for rear-compartment air
conditioning* 28
5 Thumbwheel for rear-compartment air
vent, left
X To open/close: turn thumbwheels 3and
5 up or down.
28 Rear-compartment air conditioning* available only in conjunction with 4-zone Thermotronic*. Cont
rols
* optional
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 172 Dateiname: 6515_3416_02_buchblock.pdf; preflight

Air conditioning
173

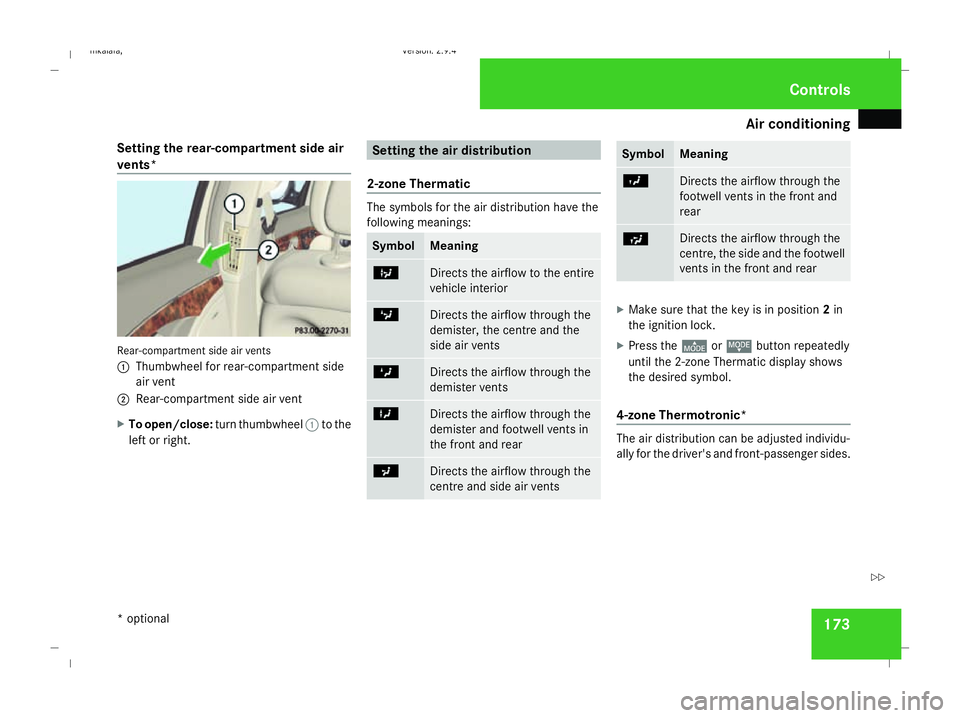

Setting the rear-compartment side air
vents* Rear-compartment side air vents
1
Thumbwheel for rear-compartment side
air vent
2 Rear-compartment side air vent
X To open/close: turn thumbwheel 1to the
left or right. Setting the air distribution
2-zone Thermatic The symbols for the air distribution have the
following meanings: Symbol Meaning
b
Directs the airflow to the entire
vehicle interior c
Directs the airflow through the
demister, the centre and the
side air vents Z
Directs the airflow through the
demister vents X
Directs the airflow through the
demister and footwell vents in
the front and rear a
Directs the airflow through the
centre and side air vents Symbol Meaning
Y
Directs the airflow through the
footwell vents in the front and
rear
Ú Directs the airflow through the
centre, the side and the footwell
vents in the front and rear
X
Make sure that the key is in position 2in
the ignition lock.
X Press the ©orª button repeatedly
until the 2-zone Thermatic display shows
the desired symbol.
4-zone Thermotronic* The air distribution can be adjusted individu-
ally for the driver's and front-passenger sides. Cont
rols
* optional
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 173 ZDateiname: 6515_3416_02_buchblock.pdf; preflight
