2008 MAZDA MODEL RX 8 Owners Manual (in English)

Black plate (89,1)
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
qLocking, Unlocking with Request
Switch (with Advanced Key)
The doors can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-13).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-22).
qLocking, Unlocking with Door-
Lock Knob
To lock either front door from the inside,
push the door-lock knob.
To unlock, pull it out.
Door-lock knob
Lock
Unlock
To lock either front door with the door-
lock knob from the outside, push the
door-lock knob to the lock position and
close the door.
Door-lock knob
Knowing Your Mazda
Doors and Locks
3-27
RX-8_8X44-EA-07G_Edition1 Page89
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (90,1)
NOTEl(With advanced key)
The driver's door cannot be locked using
the door-lock knob from the outside.
l(Without advanced key)
The driver's door cannot be locked using
the door-lock knob from the outside if the
key is in the ignition switch.
lWhen locking the doors this way, be careful
not to leave the key inside the vehicle.
qPower Door Locks
Vehicle lock-out prevention
(With advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. All doors will automatically
unlock if they are locked using the power
door locks with any door open.
(Without advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors will automatically unlock
if they are locked using the power door
locks with any door open.
Locking, unlocking with key
All doors lock automatically when the
driver's door is locked with the key. All
doors unlock when the driver's door is
unlocked and the key is held in the unlock
position for one second or longer.
Unlock
Lock
NOTE
Holding the key in the unlocked position in the
driver's door lock for about a second unlocks
all doors. To unlock only the driver's door,
insert the key into the driver's door lock and
turn the key briefly to the unlock position and
then immediately return it to the center
position.
Locking, unlocking with door-lock
switch
All doors lock automatically when LOCK
is pushed. They all unlock when the
unmarked part of the door-lock switch is
pushed.
3-28
Knowing Your Mazda
Doors and Locks
RX-8_8X44-EA-07G_Edition1 Page90
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (91,1)
Driver's door
UnlockLock
Passenger's door
Unlock
Lock
Locking, unlocking with request switch
(with advanced key)
All doors can be locked/unlocked by
operating the request switch on the front
doors while carrying the advanced key
outside the vehicle, refer to Operations
Using Advanced Keyless Functions (page
3-7).
Locking, unlocking with transmitter
(with advanced key)
All doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-13).
Locking, unlocking with transmitter
(with retractable type key)
All doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-22).
q Freestyle Doors
The pillarless freestyle doors are front and
rear-hinged for ease of ingress and egress
to the rear seat.
Opening the freestyle doors
1. Open the front door first.
Front door
2. Pull the rear door handle and open the
rear door.
Rear door handle
Knowing Your Mazda
Doors and Locks
3-29
RX-8_8X44-EA-07G_Edition1 Page91
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (92,1)
CAUTION
Before closing a front door make sure
other passengers are not operating a
rear door and a rear passenger's
head or hands are away from the
rear door. If the front door is closed
while a passenger is operating the
rear door handle, a hand or fingers
could be injured if the handle is
forced back. Also, a rear passenger
could hit their head against the door
during access to the rear seat.
NOTE
lThe rear door cannot be opened while the
front door is closed.
lMake sure the front seatbelt is unfastened
before the rear door is opened. The rear
door can't be opened with the front seatbelt
fastened because the front seatbelt may
lock.
lIf any door is left open for more than about
an hour, the front seatbelt will lock, and the
rear door cannot be opened. If this
happens, close all doors and open the rear
door again.
lThis vehicle is not equipped with child
safety locks due to the design of the front
and rear doors. The rear doors must be
closed before the front doors, and the rear
doors cannot be opened until the front
doors are opened.
Closing the freestyle doors
1. Close the rear door first, and then close the front door.
Front door
Rear door
CAUTION
Before closing a front door make sure
other passengers are not operating a
rear door and a rear passenger's
head or hands are away from the
rear door. If the front door is closed
while a passenger is operating the
rear door handle, a hand or fingers
could be injured if the handle is
forced back. Also, a rear passenger
could hit their head against the door
during access to the rear seat.
NOTE
The front door cannot latch or lock while the
rear door is opened.
2. Make sure the freestyle doors are securely closed.
3-30
Knowing Your Mazda
Doors and Locks
RX-8_8X44-EA-07G_Edition1 Page92
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (93,1)
WARNING
Make sure the rear door is closed
securely before closing the front door:Driving with the doors not securely
closed is dangerous. If the rear door
is not completely closed, the front
door will not be securely closed. This
could cause the front door to open
unexpectedly while driving and may
result in an accident.
Trunk Lid
WARNING
Never allow a person to ride in the
trunk:Allowing a person to ride in the trunk
is dangerous. In addition, the person
in the trunk could be seriously
injured or killed during sudden
braking or a collision.
Keep the trunk closed when driving: Exhaust gas entering the cabin of a
vehicle through an open trunk is
dangerous. This gas contains CO
(carbon monoxide), which is
colorless, odorless, and highly
poisonous. If inhaled, it can cause
loss of consciousness and death.
Knowing Your Mazda
Doors and Locks
3-31
RX-8_8X44-EA-07G_Edition1 Page93
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (94,1)

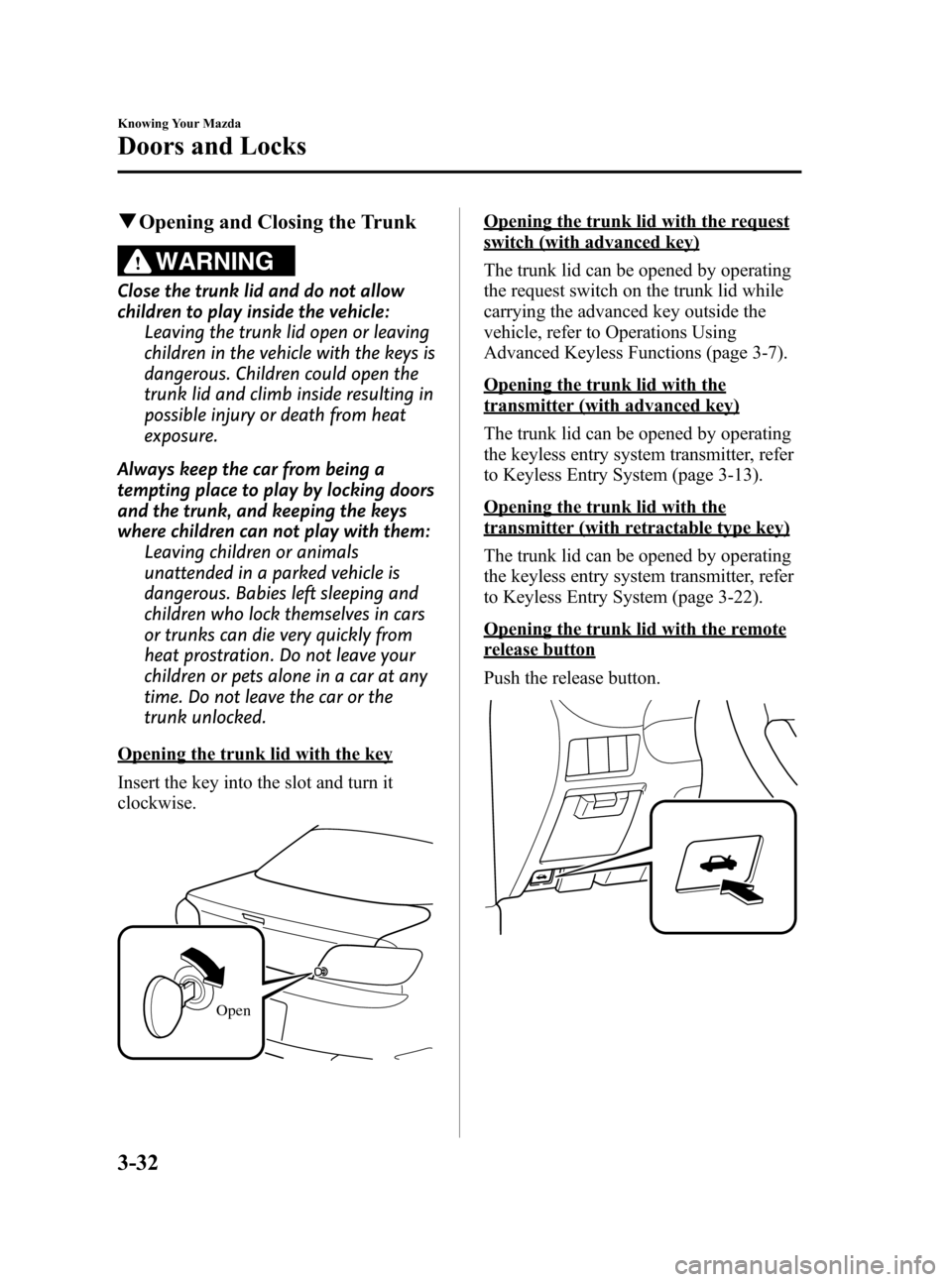

qOpening and Closing the Trunk
WARNING
Close the trunk lid and do not allow
children to play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by locking doors
and the trunk, and keeping the keys
where children can not play with them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car or the
trunk unlocked.
Opening the trunk lid with the key
Insert the key into the slot and turn it
clockwise.
Open
Opening the trunk lid with the request
switch (with advanced key)
The trunk lid can be opened by operating
the request switch on the trunk lid while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
Opening the trunk lid with the
transmitter (with advanced key)
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-13).
Opening the trunk lid with the
transmitter (with retractable type key)
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-22).
Opening the trunk lid with the remote
release button
Push the release button.
3-32
Knowing Your Mazda
Doors and Locks
RX-8_8X44-EA-07G_Edition1 Page94
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (95,1)
Closing the trunk lid
Grasp the inner handle and pull the trunk
lid down, then push the trunk lid down
until it locks securely. Be careful not to
slam it. Pull up on the trunk lid to make
sure it is secured.
Handle
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being discharged,
do not leave the trunk open for a long period
when the engine is not running.
Inside Trunk Release Lever
Your vehicle is equipped with an inside
trunk release lever that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release lever
so that all children can be told about it in
an appropriate way, keeping in mind that
most vehicles don't have such levers.
WARNING
Close the trunk lid and do not allow
children to play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by locking doors
and the trunk, and keeping the keys
where children can not play with them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car or the
trunk unlocked.
Knowing Your Mazda
Doors and Locks
3-33
RX-8_8X44-EA-07G_Edition1 Page95
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (96,1)
qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk end trim.
Power Windows
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Always lock all passenger power
windows with the power window lock
switch on the driver's side while
children are in the vehicle, and never
allow children to play with power
window switches: Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child's
hands, head or neck becomes caught
by the window.
3-34
Knowing Your Mazda
Doors and Locks
RX-8_8X44-EA-07G_Edition1 Page96
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G
