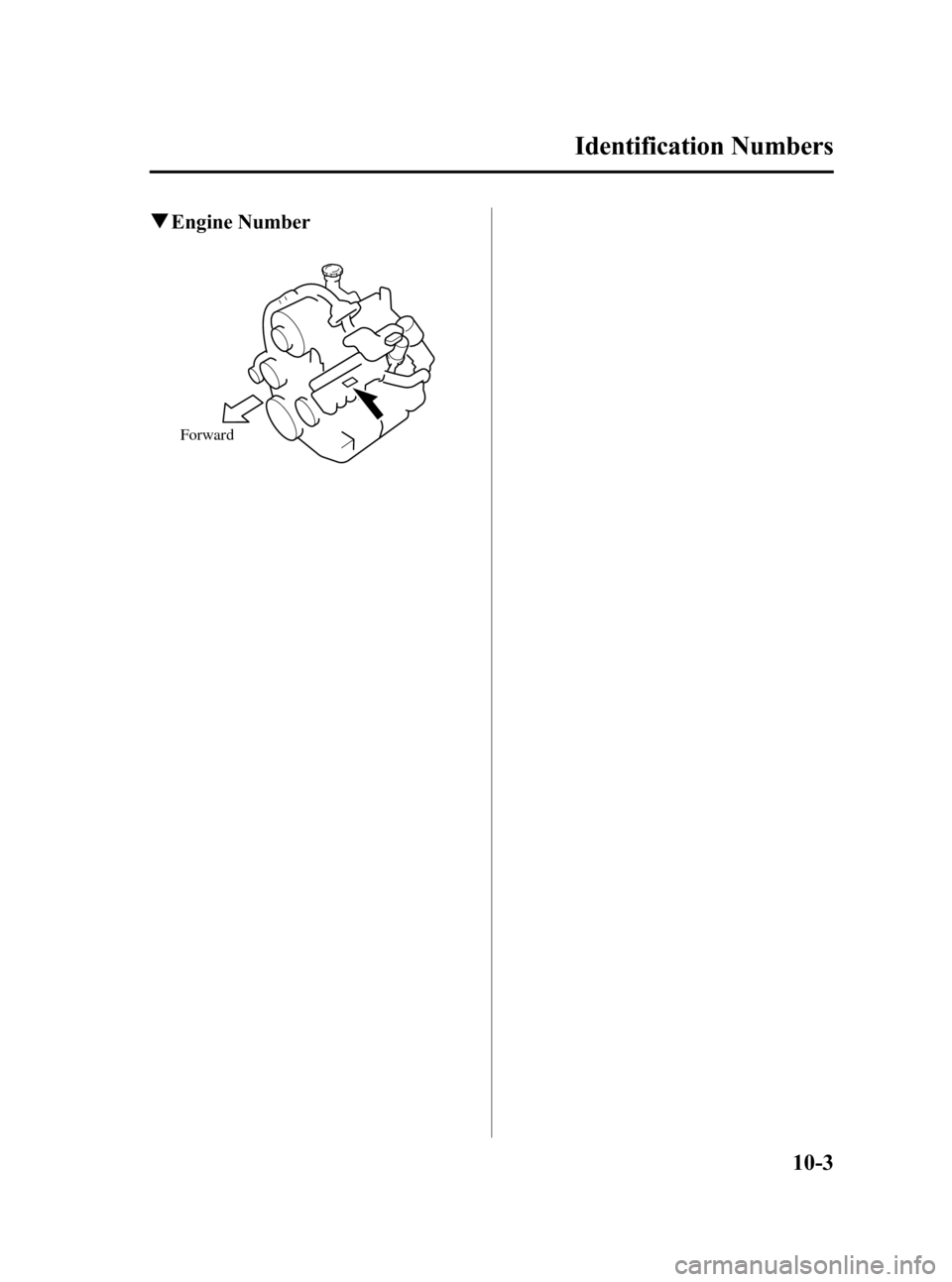

qEngine Number
Forward
Identification Numbers
10-3
RX-8_8X44-EA-07G_Edition1 Page361
Friday, May 11 2007 5:5 PM
Form No.8X44-EA-07G

Black plate (362,1)
Specifications
qEngine
Item Model
Type Rotary engine
Displacement 654 ml × 2 (654 cc × 2, 40.0 cu in × 2)
Compression ratio 10.0
qElectrical System
Item Classification
Battery 12V-52AH/5HR
Spark-plug number Trailing side
N3Y1 18 110A, N3H1 18 110D
*1
Leading sideN3Y8 18 110A, N3Y9 18 110A, N3H5 18 110A*1
Spark-plug gap 1.15―1.25 mm (0.046 ―0.049 in)
*1 ex factory
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
q Lubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers on page 8-11.
Manual transmission oil API Service GL-4 (SAE 75W-90)
Automatic transmission fluid JWS3309
Rear differential oil API Service GL-5 (SAE 90)
API Service GL-5 (SAE 80W-90)
API Service GL-5 (SAE 75W-90)
*
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
* Not available from Mazda
10-4
Specifications
RX-8_8X44-EA-07G_Edition1 Page362
Friday, May 11 2007 5:5 PM
Form No.8X44-EA-07G

Black plate (363,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter replacement
3.5 L (3.7 US qt, 3.1 Imp qt)
Without oil filter replacement 3.3 L (3.5 US qt, 2.9 Imp qt)
Coolant 9.8 L (10.4 US qt, 8.6 Imp qt)
Manual transmission oil 1.75 L (1.85 US qt, 1.54 Imp qt)
Automatic transmission fluid 7.9 L (8.4 US qt, 7.0 Imp qt)
Rear differential oil 1.3 L (1.4 US qt, 1.1 Imp qt)
Fuel tank 60 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Model
Overall length 4,425 mm (174.2 in), 4,430 mm*(174.4 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,340 mm (52.8 in)
Front tread 1,500 mm (59.1 in)
Rear tread 1,505 mm (59.3 in)
Wheelbase 2,700 mm (106.3 in)
*With license plate holder
qWeights
Item Weight
Manual transmission Automatic transmission
GVWR (Gross Vehicle Weight Rating) 1,728 kg (3,810 lbs) 1,748 kg (3,854 lbs)
GAWR (Gross Axle Weight Rating) Front 827 kg (1,823 lbs) 846 kg (1,865 lbs)
Rear 901 kg (1,986 lbs) 907 kg (2,000 lbs)
q
Air Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-5
RX-8_8X44-EA-07G_Edition1 Page363
Friday, May 11 2007 5:5 PM
Form No.8X44-EA-07G

Black plate (364,1)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights High beam
65H9 (―)
Low beam Halogen
55H7 (―)
Xenon fusion 35D2S (―)
Front turn signal lights 21WY21W (―)
Parking lights 5W5W (―)
Fog lights
í55 H11 (―)
Front side-marker lights 3.8―(#194)
High-mount brake light 21W21W (#7440)
Rear turn signal lights 21WY21W (―)
Brake lights/Taillights 21/5 W21/5W (#7743)
Reverse lights 21W21W (#7440)
License plate lights 5W5W (―)
Rear side-marker lights 0.57―(― )
The rear side-marker light bulbs cannot be replaced because they are an LED-type bulb.
The rear combination component must be replaced.
Interior light
Light bulb Category
Wattage ECE R
Trunk light 5W5W
Overhead light/Map lights (Front) 5W5W
Overhead light (Rear) 10―
Courtesy lights 5W5W
Vanity mirror lights 2―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
10-6íSome models.
Specifications
RX-8_8X44-EA-07G_Edition1 Page364
Friday, May 11 2007 5:5 PM
Form No.8X44-EA-07G

Black plate (365,1)
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-22.
Tire sizeInflation pressure
Front Rear
225/55R16 94V 220 kPa (32 psi)220 kPa (32 psi)
225/45R18 91W
Vehicle capacity weight: 308 kg (680 lbs)
q Fuses
Refer to the fuse rating on page 8-34.
Specifications
10-7
RX-8_8X44-EA-07G_Edition1 Page365
Friday, May 11 2007 5:5 PM
Form No.8X44-EA-07G

Black plate (366,1)
10-8
RX-8_8X44-EA-07G_Edition1 Page366
Friday, May 11 2007 5:5 PM
Form No.8X44-EA-07G

Black plate (367,1)
