Black plate (345,1)
3.Prompt:“This operation must be
performed in a quiet environment while
the vehicle is stopped. See the owner's
manual for the list of required training
phrases. Press and release the phone
button when you are ready to begin.
Press and hold the phone button to
cancel at any time.”
4. Press the phone button (Short press).
5. The voice guidance reads out the voice
input command (refer to the voice
input command list for voice
recognition learning). (Ex.“Please read
phrase 1”)
6.Say:[Beep]“#790”(Say the voice
input command for voice recognition
learning (1 to 45) according to the
voice guidance.)
7.Prompt:“Speaker enrollment is
complete, returning to main menu.”
Voice input command list for voice
recognition learning
When reading out, the following points
must be observed:
lRead out the numbers one at a time
correctly and naturally.
(For example,“1234”must be read out
“one, two, three, four”, not“twelve, thirty
four”.)
l“#”Must be read out“Pound”.l“”Must be read out“Star”.lDo not read out parentheses.“(”and
hyphens“-”are used for separating
numbers in a phone number.
Ex.“(888) 555-1212”must be called out
“Eight, eight, eight, five, five, five, one,
two, one, two.”
Explanation Command
1 #790
2
671
3 212-4903
4 235-3494
5 315-5657
6 456-7930
7 793-5462
8 794-1826
9 826-3145
10 962-7305
11 (531) 742-9860
12 (632) 807-4591
13 (800) 222-5015
14 (888) 555-1212
15 0123456789
16 55 66 77 88 99
17 44 33 22 11 00
18 Call 293-5804
19 Call
350
20 Call 1 (234) 567-8901
21 Dial 639-1542
22 Dial #780
23 Dial (987) 654-3210
24 1058# 3794# Send
25 27643# 4321# Send
26 Cancel
27 Continue
28 Emergency
29 Erase All
30 Help
31 Home, Work, Mobile, Pager
32 List Names
33 No
34 Phonebook: Delete
35 Phonebook: New Entry
36 Previous
37 Phonebook: Erase All
38 Redial
Interior Comfort
Bluetooth Hands-Free
6-117
CX-9_8Z28-EA-07J_Edition2 Page345
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (346,1)

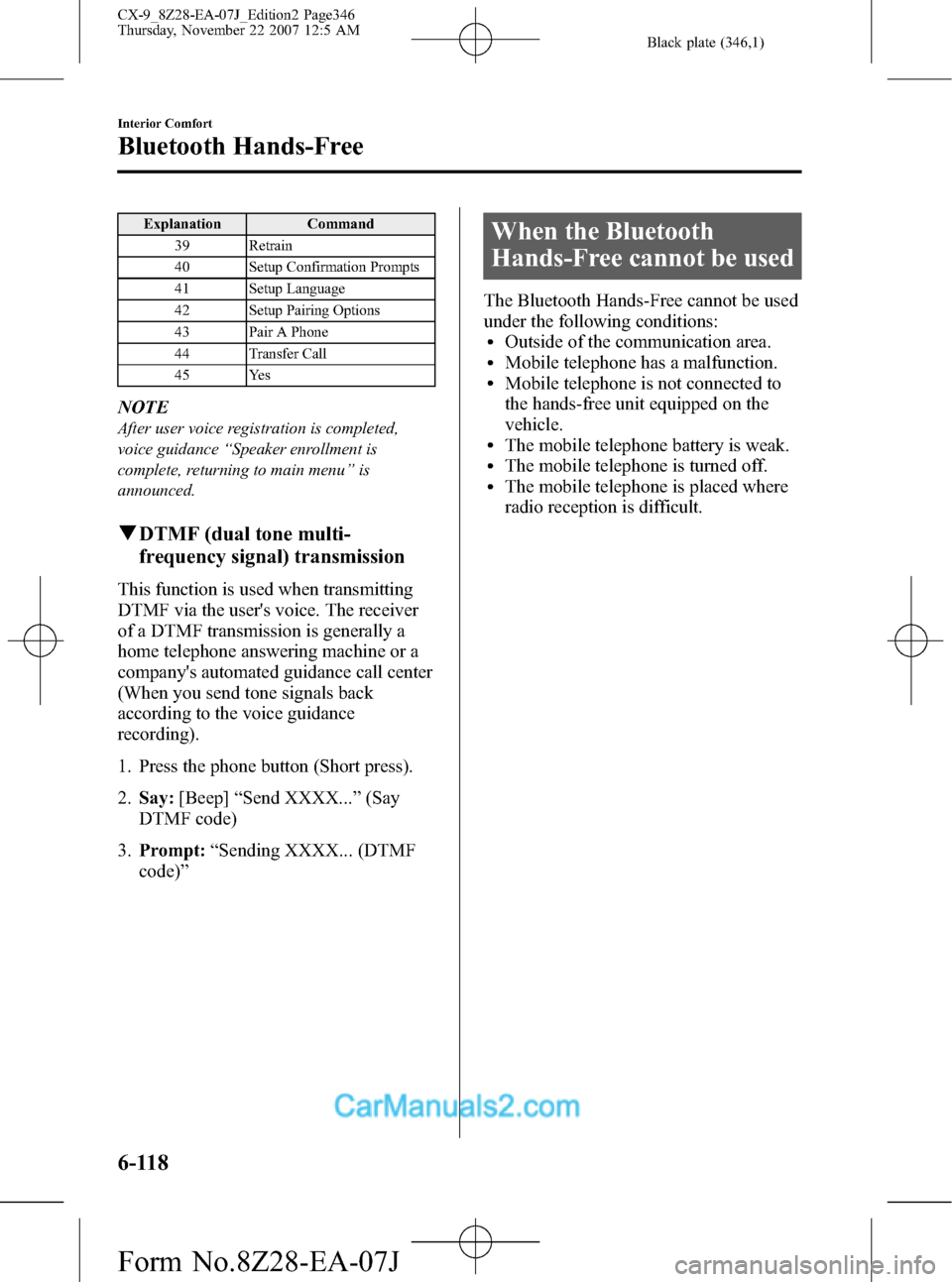

Explanation Command
39 Retrain
40 Setup Confirmation Prompts
41 Setup Language
42 Setup Pairing Options
43 Pair A Phone
44 Transfer Call
45 Yes
NOTE
After user voice registration is completed,
voice guidance“Speaker enrollment is
complete, returning to main menu”is
announced.
qDTMF (dual tone multi-
frequency signal) transmission
This function is used when transmitting
DTMF via the user's voice. The receiver
of a DTMF transmission is generally a
home telephone answering machine or a
company's automated guidance call center
(When you send tone signals back
according to the voice guidance
recording).
1. Press the phone button (Short press).
2.Say:[Beep]“Send XXXX...”(Say
DTMF code)
3.Prompt:“Sending XXXX... (DTMF
code)”
When the Bluetooth
Hands-Free cannot be used
The Bluetooth Hands-Free cannot be used
under the following conditions:
lOutside of the communication area.lMobile telephone has a malfunction.lMobile telephone is not connected to
the hands-free unit equipped on the
vehicle.
lThe mobile telephone battery is weak.lThe mobile telephone is turned off.lThe mobile telephone is placed where
radio reception is difficult.
6-118
Interior Comfort
Bluetooth Hands-Free
CX-9_8Z28-EA-07J_Edition2 Page346
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (347,1)
Safety Certification
FCC ID: CB2MBLUEC07 IC:279B-
MBLUEC07
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any
interference received, including
interference that may cause undesired
operation.
WARNING
Changes or modifications not
expressively approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
The term“IC:”before the radio
certification number only signifies that
Industry Canada technical specifications
were met.
The antenna used for this transmitter must
not be co-located or operating in
conjunction with any other antenna or
transmitter. End-users and installers must
be provided with installation instructions
and transmitter operating conditions for
satisfying RF exposure compliance.
Interior Comfort
Bluetooth Hands-Free
6-119
CX-9_8Z28-EA-07J_Edition2 Page347
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (348,1)
Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Sunvisor
qSide Extension Sunvisors
The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.
CAUTION
When moving the sunvisor, reinsert
the visor extender, otherwise the
visor extender could hit the rearview
mirror.
qVanity Mirrors
To use the vanity mirror, lower the
sunvisor.
The vanity mirror light will illuminate
when you open the cover.
6-120
Interior Comfort
Interior Equipment
CX-9_8Z28-EA-07J_Edition2 Page348
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (349,1)
Interior Lights
qIlluminated Entry System
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) and the courtesy
lights turn on for:
lAbout 30 seconds after the driver's
door is unlocked and the ignition
switch is in the LOCK position (with
the ignition key removed).
lAbout 15 seconds after all doors are
closed (If your vehicle is equipped with
the advanced key, the overhead light
turns on for about 5 seconds when the
advanced key is outside of the vehicle).
lAbout 15 seconds after the ignition
switch is in the LOCK position (with
the ignition key removed) with all
doors closed.
The light also turns off when:
lThe ignition switch is turned to the ON
position and all doors are closed.
lThe driver's door is locked.
NOTE
Battery saver
If any door is left opened, the light goes out
after about 30 minutes to save the battery.
The light turns on again when the ignition
switch is turned to the ON position, or when
any door is opened after all doors have been
closed.
qOverhead Lights
When the center/rear overhead light
switch is in the DOOR position, the
center/rear overhead light can be turned
on or off using the front overhead light
switch.
Front
Switch
PositionOverhead Lights
lLight offlAll overhead lights are off when
the center/rear overhead light
switch is in the DOOR position
lLight is on when any door is openlLight is on or off when the
illuminated entry system is on
lLight onlAll overhead lights are on when
the center/rear overhead light
switch is in the DOOR position
Interior Comfort
Interior Equipment
6-121
CX-9_8Z28-EA-07J_Edition2 Page349
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (350,1)
Center/Rear
Switch
PositionOverhead Lights
Light off
Light on or off in accordance with the
operation of front overhead light
switch
Light on
qMap Lights
The map lights are switched on or off by
pressing the switches.
qLuggage Compartment Light
Switch
PositionLuggage Compartment Light
Light off
Light on when the liftgate is open
qCourtesy Lights
Turns on when any door is open or the
illuminated entry system is on.
Courtesy Light
6-122
Interior Comfort
Interior Equipment
CX-9_8Z28-EA-07J_Edition2 Page350
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (351,1)
Information Display
Climate control display
(Driver)Audio display Clock
Without
navigation systemClimate control display (Front
passenger)/ Ambient temperature
display
qInformation Display Functions
The information display has the following functions:lClockí
lAmbient Temperature Display (Outside Temperature Display)lClimate Control DisplaylAudio Display
Interior Comfort
Interior Equipment
6-123íSome models. CX-9_8Z28-EA-07J_Edition2 Page351
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (352,1)
qClock
NOTE
When the trip computer is displayed, press the
CLOCK button to change the display to the
time.
When the ignition switch is in the ACC or
ON position, the time is displayed.
Without navigation system
Time setting
1. Press the CLOCK button until the beep
sounds and the displayed time flashes.
2. Press the H switch to set the hour.
3. Press the M switch to set the minutes,
then press the CLOCK button.
Switching between 12 and 24-hour
clock time
1. Press the audio control dial several
times until 12Hr and 24Hr clock time
are displayed.
2. Turn the audio control dial in either
direction, select the desired clock
setting, and press the audio control
dial. Press the dial while the preferred
clock time is flashing.
With navigation system
Refer to the separate manual
“NAVIGATION SYSTEM”.
NOTE
Minutes and seconds are adjusted by the GPS,
however, it is necessary to adjust hours under
the following conditions:
lDriving across different time zoneslDaylight saving time start and end
qAmbient Temperature Display
When the ignition switch is in the ON
position, press the OUTSIDE switch
(page 6-6) to display the ambient
temperature.
NOTElUnder the following conditions, the ambient
temperature display may differ from the
actual ambient temperature depending on
the surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in ambient temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.lPress the OUTSIDE switch a few seconds
or more to switch the display from
Fahrenheit to Centigrade or vice versa.
lPress the OUTSIDE switch again to switch
the display from ambient temperature to the
temperature set for the air conditioner.
6-124
Interior Comfort
Interior Equipment
CX-9_8Z28-EA-07J_Edition2 Page352
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J
