2008 MAZDA MODEL CX-9 Owners Manual (in English)

Black plate (225,1)
NOTElSwitching the auto-wiper lever from the
OFF to the AUTO position while driving at
a vehicle speed of 4 km/h (2 mph) or higher
(or after driving the vehicle) activates the
windshield wipers once, after which they
operate according to the rainfall amount.
lThe auto-wiper control may not operate
when the rain sensor temperature is about
_
10 °C(14 °F) or lower, or about 85 °C
(185 °F) or higher.
lIf the windshield is coated with water
repellent, the rain sensor may not be able to
sense the amount of rainfall correctly and
auto-wiper control may not operate
properly.
lIf dirt or foreign matter (e.g. ice or matter
containing salt water) adheres to the
windshield above the rain sensor or if the
windshield is iced, it could cause the wipers
to move automatically. However, if the
wipers cannot remove this ice, dirt or
foreign matter, the auto-wiper control will
stop operation. In this case, pull the wiper
lever to the low speed or high speed
position for manual operation, or remove
the ice, dirt or foreign matter by hand to
restore the auto-wiper operation.
qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
OFF
Washer
NOTE
With the wiper lever in the OFF or INT
position, the wipers will operate continuously
until the lever is released.
If the washer doesn't work, inspect the
fluid level (page 8-26). If it's OK, consult
an Authorized Mazda Dealer.
Driving Your Mazda
Switches and Controls
5-65
CX-9_8Z28-EA-07J_Edition2 Page225
Thursday, November 22 2007 12:3 AM
Form No.8Z28-EA-07J

Black plate (226,1)
Rear Window Wiper and
Washer
The ignition switch must be in the ON
position.
qRear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
ON―Normal
INT―Intermittent
qRear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to the
position. After
the switch is released, the washer will
stop.
If the washer doesn't work, inspect the
fluid level (page 8-26). If it's OK and the
washer still doesn't work, consult an
Authorized Mazda Dealer.
Rear Window Defroster
The rear window defroster clears frost,
fog, and thin ice from the rear window.
The ignition switch must be in the ON
position.
Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 15 minutes
and turns off automatically.
The indicator light illuminates during
operation.
The defroster operation can be confirmed
by the indicator in the display.
To turn off the rear window defroster
before the 15 minutes has elapsed, press
the switch again.
Indicator light
CAUTION
Don't use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
5-66
Driving Your Mazda
Switches and Controls
CX-9_8Z28-EA-07J_Edition2 Page226
Thursday, November 22 2007 12:3 AM
Form No.8Z28-EA-07J

Black plate (227,1)
NOTE
This defroster is not designed for melting snow.
If there is an accumulation of snow on the rear
window, remove it before using the defroster.Horn
To sound the horn, press themark on
the steering wheel.
Driving Your Mazda
Switches and Controls
5-67
CX-9_8Z28-EA-07J_Edition2 Page227
Thursday, November 22 2007 12:3 AM
Form No.8Z28-EA-07J

Black plate (228,1)

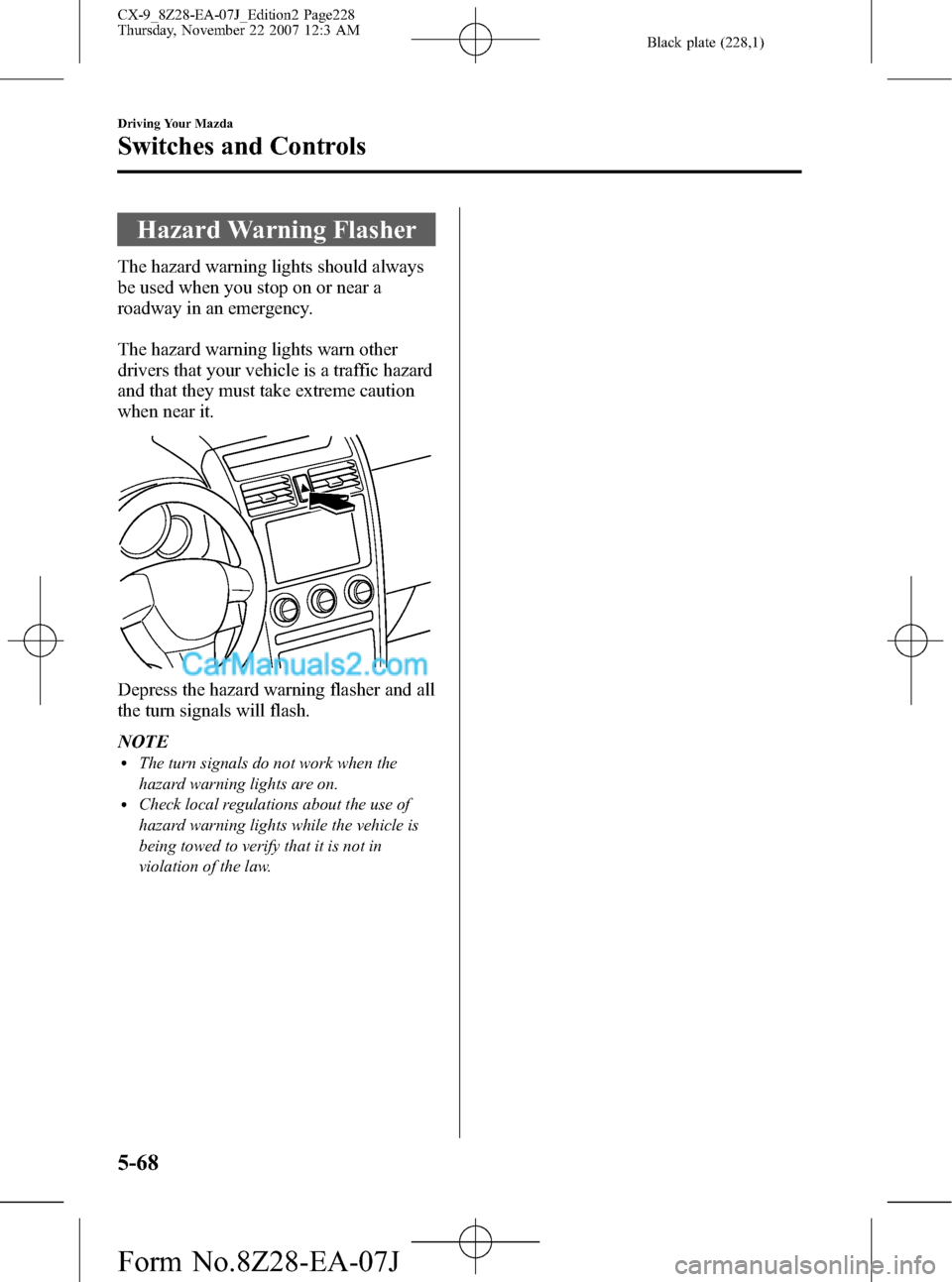

Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
5-68
Driving Your Mazda
Switches and Controls
CX-9_8Z28-EA-07J_Edition2 Page228
Thursday, November 22 2007 12:3 AM
Form No.8Z28-EA-07J

Black plate (229,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System .......................... 6-2
Operating Tips .................................... 6-2
Vent Operation (Front) ........................ 6-4
Fully Automatic Type ......................... 6-6
Vent Operation (Rear) ....................... 6-12
Control Panel (Rear) ......................... 6-14
Audio System ......................................... 6-17
Antenna ............................................. 6-17
Operating Tips for Audio System ..... 6-17
Audio Set .......................................... 6-27
Audio Control Switch Operation (Steering
Wheel) ............................................... 6-46
Auxiliary Input (AUX mode) ............ 6-48
Safety Certification ........................... 6-50
Rear Entertainment System ................. 6-51
Rear Entertainment System
í............ 6-51
Part Names ........................................ 6-60
Before Operation ............................... 6-63
Sound Output .................................... 6-69
Rear Entertainment System
Functions ........................................... 6-73
DVD video, DVD audio, Video CD, Audio
CD and MP3/WMA CD Playback (Disc
Mode) ................................................ 6-74
Auxiliary Input (AUX mode) ............ 6-88
Language Code List .......................... 6-92
Country Code List ............................. 6-94
Error Message ................................... 6-98
Symptoms and Actions ................... 6-100Bluetooth Hands-Free ......................... 6-103
Bluetooth Hands-Free
í.................. 6-103
Basic Bluetooth Hands-Free
Operation ........................................ 6-106
Convenient Use of the Hands-Free
System ............................................. 6-109
Hands-Free Telephone Setting ........ 6-113
When the Bluetooth Hands-Free cannot be
used ................................................. 6-118
Safety Certification ......................... 6-119
Interior Equipment ............................. 6-120
Sunvisors ......................................... 6-120
Interior Lights ................................. 6-121
Information Display ........................ 6-123
Cup Holder ...................................... 6-125
Bottle Holder ................................... 6-127
Storage Compartments .................... 6-127
Accessory Sockets .......................... 6-131
Power Outlet
í................................ 6-132
6-1íSome models.
CX-9_8Z28-EA-07J_Edition2 Page229
Thursday, November 22 2007 12:3 AM
Form No.8Z28-EA-07J

Black plate (230,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switch in the
ACC position when the engine is not running.
qClearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowl grille to improve the system
efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along with the
heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
qReplacement of the Cabin Air Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
6-2
Interior Comfort
Climate Control System
CX-9_8Z28-EA-07J_Edition2 Page230
Thursday, November 22 2007 12:3 AM
Form No.8Z28-EA-07J

Black plate (231,1)
qSunlight/Temperature Sensor
The fully automatic air conditioner
function measures inside and outside
temperatures, and the intensity of direct
sunlight. It then sets temperatures inside
the passenger compartment accordingly.
CAUTION
Do not obstruct either sensor,
otherwise the automatic air
conditioner will not operate properly.
Sunlight sensor
Interior temperature sensor
Interior Comfort
Climate Control System
6-3
CX-9_8Z28-EA-07J_Edition2 Page231
Thursday, November 22 2007 12:3 AM
Form No.8Z28-EA-07J

Black plate (232,1)
Vent Operation (Front)
Open
Close
qAdjusting the Vents
Directing airflow
You can direct air flow by moving the adjustment knob.
Opening/closing vents
The two outside vents can be opened and closed with wheel.
NOTE
When using the air conditioner, mist may come out from the vents. This is not a sign of trouble but a
result of humid air being suddenly cooled.
6-4
Interior Comfort
Climate Control System
CX-9_8Z28-EA-07J_Edition2 Page232
Thursday, November 22 2007 12:3 AM
Form No.8Z28-EA-07J
