2008 Lexus IS F Owner's Manual

400
6-1. Specifications
08_IS F_U_(L/O_0711)■
Engine number
The engine number is stamped on the engine block as shown.

401
6-1. Specifications
6
Vehicle specifications
08_IS F_U_(L/O_0711)
Engine
Fuel
Model2UR-GSE
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.52 in. (94.0 × 89.5 mm)
Displacement 303.2 cu.in. (4969 cm3)
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating91 (Research octane number 96) or higher
Fuel tank capacity16.9 gal. (64 L, 14.0 lmp.gal)

402
6-1. Specifications
08_IS F_U_(L/O_0711)
Lubrication system
*: 5W-30 is an oil that provides optimal levels of fuel efficiency.
Oil viscosity
● The 5W portion of the oil viscosity rating indicates the characteristic of
the oil which allows cold startability. Oils with a lower value before the W
allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the
vehicle is operated at high speeds, or under extreme load condition.
Oil capacity
(drain and refill)
with filter 9.8 qt. (9.3 L, 8.2 lmp.qt.)
without filter8.7 qt. (8.2 L, 7.2 lmp.qt.)
Oil gradeILSAC multi-grade engine oil
Recommended oil
viscosity
Use Lexus approved “Toyota Genuine Motor Oil” or
equivalent to satisfy the grade and viscosity shown
below.
Outside temperature

403
6-1. Specifications
6
Vehicle specifications
08_IS F_U_(L/O_0711)
Cooling system
Ignition system
Capacity12.6 qt. (11.9 L, 10.5 lmp.qt.)
Coolant type
Use either of the following.• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make
GapDENSO FK20HBR11
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

404
6-1. Specifications
08_IS F_U_(L/O_0711)
Electrical system
Differential
*: “Toyota Genuine Differential Gear Oil” is filled in your Lexus vehicle at factory
fill. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equiva-
lent of matching quality to satisfy the above specification. Please contact your
Lexus dealer for further details.
Battery
Open voltage* at
68 °F (20 °C):12.6  12.8 V Fully charged
12.2 
12.4 V Half charged
11.8 
12.0 V Discharged
(*: Voltage checked 20 minutes after
the engine and all the lights are turned
off)
Charging rates5 A max.
Oil capacity1.42 qt. (1.35 L, 1.19 lmp.qt.)
Oil type and viscosity*“Toyota Genuine Differential Gear Oil
LT 75W-85 GL-5” or equivalent

405
6-1. Specifications
6
Vehicle specifications
08_IS F_U_(L/O_0711)
Automatic transmission
*: The fluid capacity is provided as a reference. If replacement is necessary, con-
tact your Lexus dealer.
Fluid capacity*11.1 qt. (10.5 L, 9.2 lmp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
Using automatic transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by vibra-
tion, and ultimately damage the automatic transmission of your vehicle.

406
6-1. Specifications
08_IS F_U_(L/O_0711)

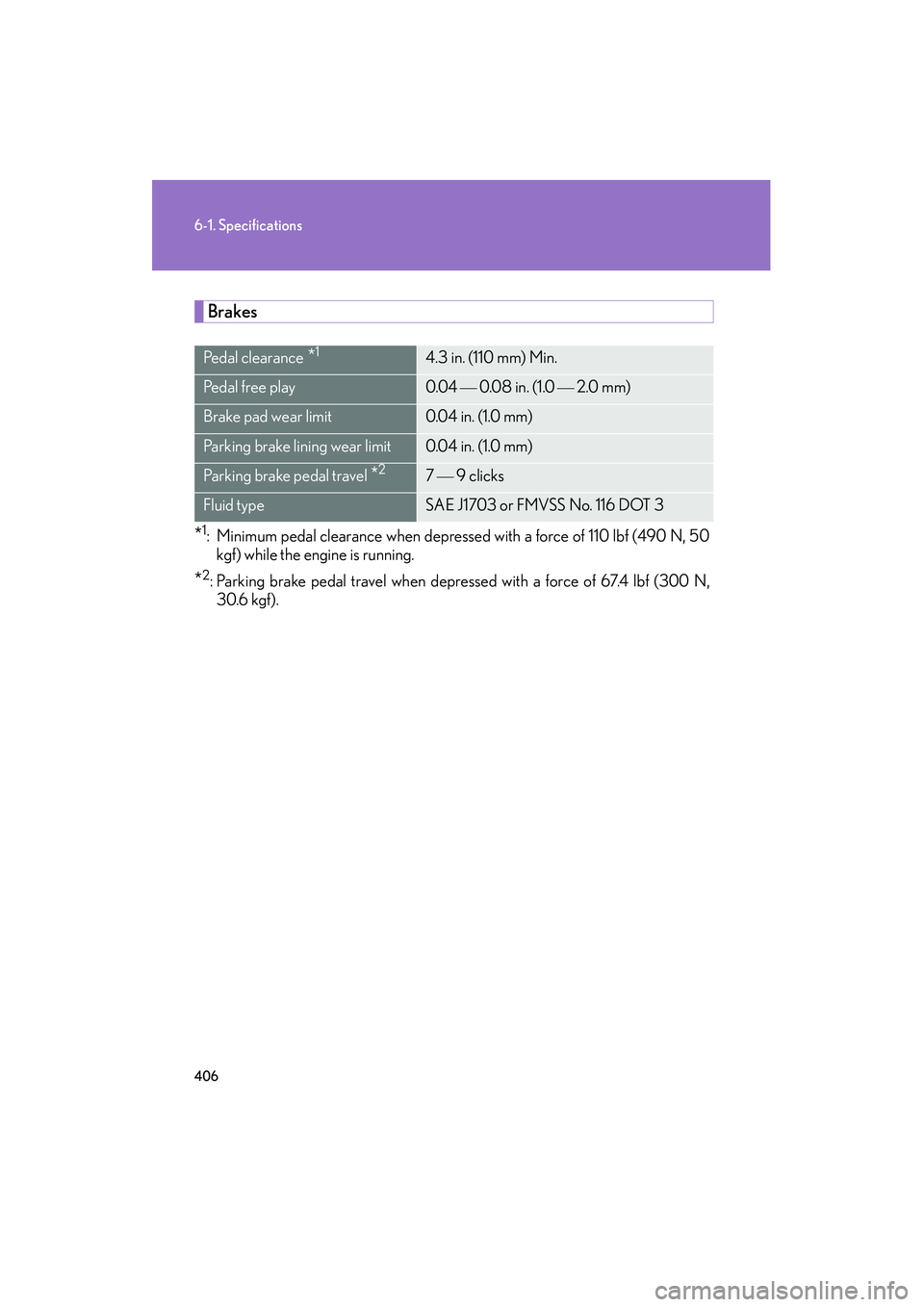

Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50
kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,30.6 kgf).
Pe d a l c l e a r a n c e *14.3 in. (110 mm) Min.
Pedal free play0.04  0.08 in. (1.0  2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel *27  9 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3

407
6-1. Specifications
6
Vehicle specifications
08_IS F_U_(L/O_0711)
Steering
Tires and wheels
Free playLess than 1.2 in. (30 mm)
Ti r e s i z e
Front: 225/40R19 93Y
Rear: 255/ 35R19 96Y
Spare: T135/70R18 103M
Front and rear tire inflation pres-
sure
(Recommended cold tire inflation
pressure)
Front:
36 psi (250 kPa, 2.5 kgf/cm2 or bar)*
Rear:
36 psi (250 kPa, 2.5 kgf/cm
2 or bar)*
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
*: When driving at high speeds above 100 mph
(160 km/h), in countries where such speeds are
permitted by law, add 9.0 psi (60 kPa, 0.6 kgf/
cm
2 or bar) to the front tires and rear tires.
Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size
Front wheels: 19 × 8J
Rear wheels: 19 × 9J
Spare wheel: 18 × 4T
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
