2008 Lexus IS F Owner's Manual

184
2-5. Driving information
08_IS F_U_(L/O_0711)

Interior features3
185
08_IS F_U_(L/O_0711)
3-1. Using the air conditioning system and defogger ... 186
Automatic air conditioning system............. 186
Rear window and outside rear
view mirror defoggers ........ 194
3-2. Using the audio system ............................ 195
Audio system types................. 195
Using the radio......................... 198
Using the CD player ............ 205
Playing back MP3 and WMA discs.............................. 211
Optimal use of the audio system ...................................... 217
Using the AUX adapter ...... 220
Using the steering wheel audio switches ....................... 221
3-3. Using the interior lights ............................. 223
Interior lights list .................... 223
• Interior lights ........................ 225
• Personal lights ...................... 225
3-4. Using the storage features ........................ 227
List of storage features ......... 227 • Glove box .............................. 227
• Console box ......................... 228
• Overhead console.............. 229
• Cup holders .......................... 230
• Bottle holders/
door pockets ........................ 232
3-5. Other interior features ........................ 233
Sun visors ................................. 233
Vanity mirror ........................... 234
Clock ......................................... 235
Satellite switches ................... 236
Ashtrays.................................... 239
Cigarette lighter .................... 240
Power outlet ............................. 241
Seat heaters ............................ 242
Seat heaters and ventilators ............................. 244
Armrest .................................... 246
Trunk storage extension ....... 247
Coat hooks .............................. 249
Floor mat .................................. 250
Trunk features .......................... 251
Garage door opener ............ 254
Compass .................................. 259

186
08_IS F_U_(L/O_0711)
3-1. Using the air conditioning system and defogger
Automatic air conditioning system
Using the automatic modePress .The air conditioning system begins to operate. Air outlets and
fan speed are automatically adjusted according to the tem-
perature setting.
Press to switch to automatic mode.
The air conditioning system automatically switches between
outside air and recirculated air modes.
Airflow and outlets are automatically adjusted according to the tempera-
ture setting.
With navigation system
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner's Manual”.
Without navigation system
Automatic mode
Driver’s side temperature
setting display Changes the air outlets used
Off Fan speed
Airflow display
Fan speed display
Passenger’s side temperature
setting display
Micro dust and pollen filter
Driver's side
temperature control
Air conditioning on/off button Outside air or recirculated air modeWindshield defoggerPa ss e n g e r ’s s i d e
temperature control
Dual operation button
STEP1
STEP2

187
3-1. Using the air conditioning system and defogger
3
Interior features
08_IS F_U_(L/O_0711)Press “
∧” on to increase the temperature and “ ∨” to
decrease the temperature.
The temperature for the driver and passenger seats can be set sepa-
rately.
Adjusting the settings ■ Adjusting the temperature setting
Press “ ∧” on to increase the temperature and “∨ ” to decrease
the temperature.
The air conditioning system switches between individual and simultaneous
modes each time is pressed.
Dual mode (the indicator on is on.): The temperature for the
left-hand seat and right-hand seat can be adjusted separately. Operat-
ing the passenger's side temperature control will enter dual mode.
Simultaneous mode (the indicator on is off.): Only (driver’s
side) can be used to adjust the temperature for all seats.
■ Adjusting the fan speed
Press “ ∧” (increase) or “∨ ” (decrease) on .
Press to turn the fan off.
STEP3

188
3-1. Using the air conditioning system and defogger
08_IS F_U_(L/O_0711)■
Changing the air outlets
Press .
The air outlets switch each time the is pressed.
Air flows as shown below according to the mode selected.
Upper body
Upper body and feet

189
3-1. Using the air conditioning system and defogger
3
Interior features

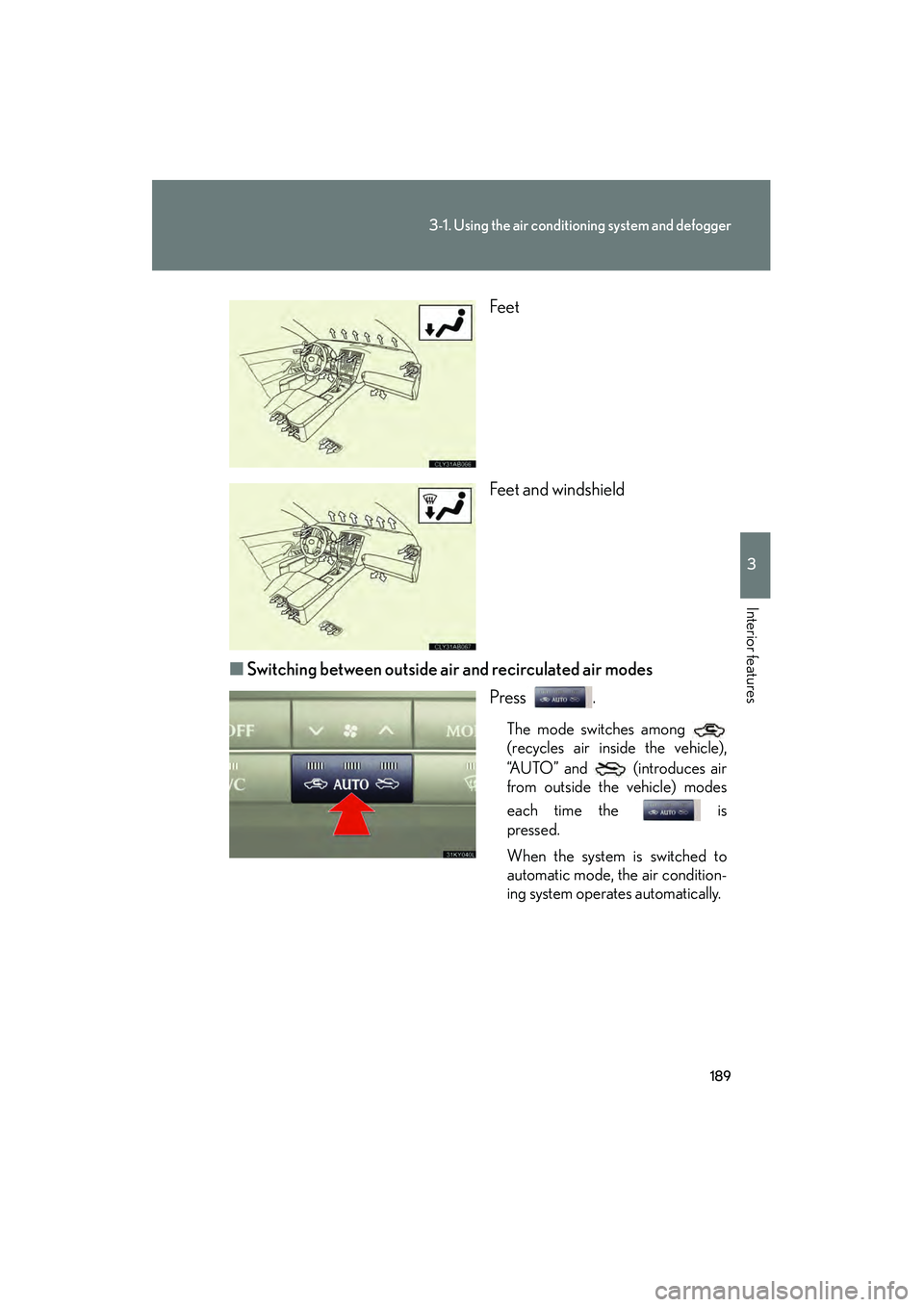

08_IS F_U_(L/O_0711) Feet
Feet and windshield
■ Switching between outside air and recirculated air modes
Press .
The mode switches among
(recycles air inside the vehicle),
“AUTO” and (introduces air
from outside the vehicle) modes
each time the is
pressed.
When the system is switched to
automatic mode, the air condition-
ing system operates automatically.

190
3-1. Using the air conditioning system and defogger
08_IS F_U_(L/O_0711)

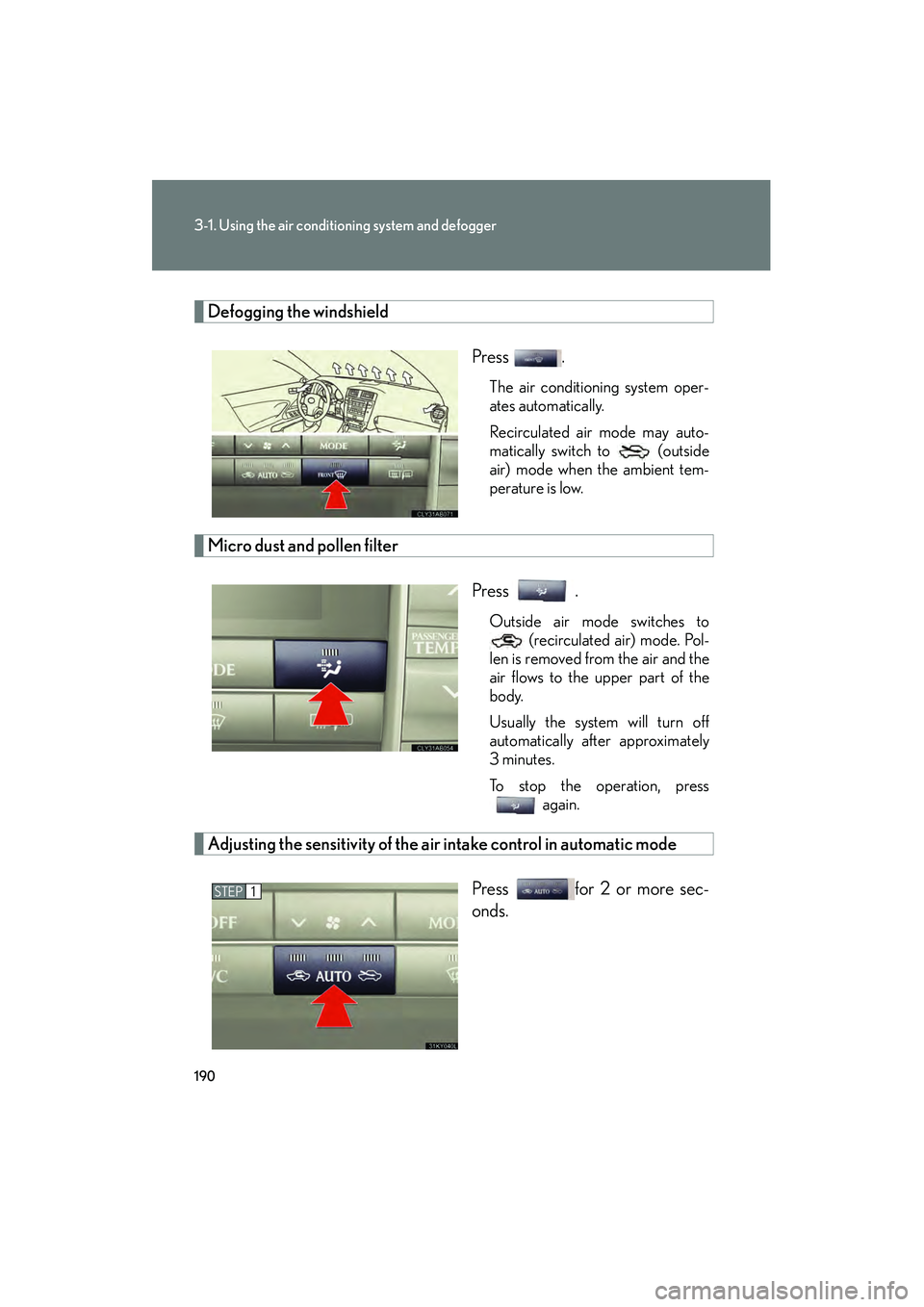

Defogging the windshieldPress .
The air conditioning system oper-
ates automatically.
Recirculated air mode may auto-
matically switch to (outside
air) mode when the ambient tem-
perature is low.
Micro dust and pollen filter
Press .
Outside air mode switches to (recirculated air) mode. Pol-
len is removed from the air and the
air flows to the upper part of the
body.
Usually the system will turn off
automatically after approximately
3 minutes.
To stop the operation, press again.
Adjusting the sensitivity of the air intake control in automatic mode
Press for 2 or more sec-
onds.
STEP1

191
3-1. Using the air conditioning system and defogger
3
Interior features
08_IS F_U_(L/O_0711) Press “
∧” (increase) or “ ∨”
(decrease) on .
From -3 (low) to 3 (high) can be
set.
Adjusting the position of and op ening and closing the air outlets
Front outlets (center) Direct air flow to the left or right,
up or down
Turn the knob to open or close
the vent
Front outlets (right and left side) Direct air flow to the left or right,
up or down
Turn the knob to open or close
the vent
STEP2
