2008 Lexus IS F Owner's Manual

112
2-1. Driving procedures
08_IS F_U_(L/O_0711)
NOTICE
■When driving the vehicle
Do not use the accelerator pedal or depress accelerator and brake pedals together
to hold the vehicle on a hill.
■Avoiding damage to vehicle parts
●Do not turn the steering wheel fully in either direction and hold it there for a long
time.
Doing so may damage the power steering motor.
●When driving over bumps in the road, drive as slowly as possible to avoid damag-
ing the wheels, underside of the vehicle, etc.
■If you hear a squealing or scraping noise (brake pad wear limit indicators)
Have your Lexus dealer check and replace the brake pads as soon as possible.
The rotor damage can result if the pads are not replaced when needed.
Moderate levels of the brake pad and disc wear allow enhanced front braking
power. As a result, the discs may wear more quickly than conventional brake discs.
Therefore, when replacing the brake pads, Lexus recommends that you also have
the thickness of the discs measured.
It is dangerous to drive the vehicle when the wear limits of the brake pads and/or
that of the brake discs are exceeded.
■If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering wheel
firmly and gradually press the brake pedal to slow down the vehicle.
●It may be difficult to control your vehicle.
●The vehicle will make abnormal sounds.
●The vehicle will behave abnormally.
Replace a flat tire with a new one. ( →P. 3 76 )

113
2-1. Driving procedures
2
When driving
08_IS F_U_(L/O_0711)
NOTICE
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may cause the
following serious damage to the vehicle.
●Engine stalling
●Short in electrical components
●Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be sure to
have your Lexus dealer check the following.
●Brake function
●Changes in quantity and quality of oil and fluid used for the engine, transmission,
differential, etc.
●Lubricant condition for the propeller shaft, bearings and suspension joints (where
possible) and the function of all joints, bearings, etc.

114
2-1. Driving procedures
08_IS F_U_(L/O_0711)
Engine (ignition) switch
Modes can be switched by pressing the “ENGINE START STOP” switch
when carrying the electronic key on your person. (The engine can be
started in any mode by operating the switch at the same time as depressing
the brake pedal.)
■Starting the engine
Check that the parking brake is set.
Check that the shift lever is set in P.
Sit in the driver’s seat and firmly depress the brake pedal.
The “ENGINE START STOP” switch indicator turns green.
Press the “ENGINE START
STOP” switch.
STEP1
STEP2
STEP3
STEP4

115
2-1. Driving procedures
2
When driving
08_IS F_U_(L/O_0711)
■Changing “ENGINE STAR T STOP” switch mode
OFF*
Emergency flashers can be
used.
ACCESSORY mode
Some electrical components
such as the audio system can be
used.
The “ENGINE START STOP”
switch indicator turns amber.
IGNITION ON mode
All electrical components can
be used.
The “ENGINE START STOP”
switch indicator turns amber.
*: If the shift lever is in a position other than “P” when turning off
the engine, the “ENGINE
START STOP” switch will be
switched to ACCESSORY
mode, not to OFF.

116
2-1. Driving procedures
08_IS F_U_(L/O_0711)
■If the engine does not start
The engine immobilizer system may not have been deactivated. (→P. 7 0 )
■When the steering lock cannot be released
■When the “ENGINE START STOP” switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your Lexus
dealer immediately.
■Auto power off function
If the vehicle is left in ACCESSORY mode for more than an hour with the shift lever
in P, the “ENGINE START STOP” switch will automatically turn OFF.
■Electronic key battery depletion
→P. 2 8
■When the electronic key battery is discharged
→P. 3 1 6
■Conditions affecting operation
→P. 2 6
■Note for the entry function
→P. 2 9 The “ENGINE START STOP” switch indica-
tor will flash in green and a message will be
shown on the multi-information display. Press
the “ENGINE START STOP” switch again
while turning the steering wheel left and right.

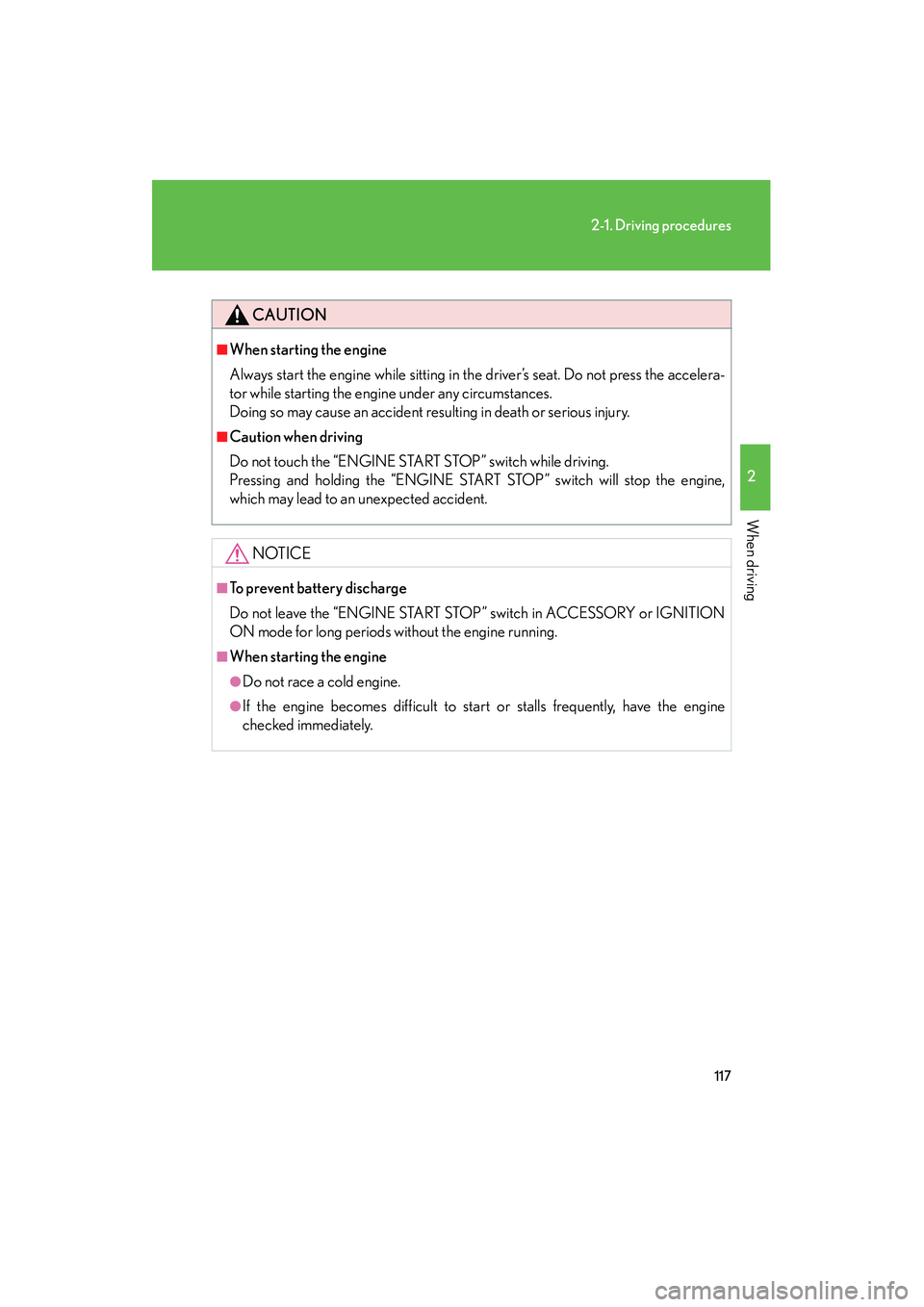

117
2-1. Driving procedures
2
When driving
08_IS F_U_(L/O_0711)
CAUTION
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not press the accelera-
tor while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■Caution when driving
Do not touch the “ENGINE START STOP” switch while driving.
Pressing and holding the “ENGINE START STOP” switch will stop the engine,
which may lead to an unexpected accident.
NOTICE
■To prevent battery discharge
Do not leave the “ENGINE START STOP” switch in ACCESSORY or IGNITION
ON mode for long periods without the engine running.
■When starting the engine
●Do not race a cold engine.
●If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.

118
2-1. Driving procedures
08_IS F_U_(L/O_0711)
Automatic transmission
Select a shift position appropriate for the driving conditions.
■Shifting the shift lever an d selecting a shift position
While the “ENGINE
START STOP” switch is
in IGNITION ON
mode, depress the brake
pedal and move the shift
lever.
*: To improve fuel efficiency andreduce noises, set the shift lever
in the D position for normal driv-
ing.
Shift
positionFunction
PPa r k i n g t h e v e h i c l e / starting the engine
RReversing
NNeutral
DNormal driving*
MM mode driving (→ P. 1 2 2 )

119
2-1. Driving procedures
2
When driving
08_IS F_U_(L/O_0711)
■Shift position uses
Shift positionDisplayFunctionPurpose
Normal D
position driv-
ing
Gears
between 1 and
8 are auto-
matically
selected
according to
driving condi-
tions
(paddle shift
switches activated)
Shift range
selection
(→ P. 1 2 0 )Allows opti-
mum use of
engine brak-
ing
Individual gear
selection
(→ P. 1 2 2 )Allows the
driver to select
gears for
sporty driving
