1
Introduction
Thank you for your purchase of the Navigation System. Please read
this manual carefully to ensure proper use. Keep this manual in your
vehicle at all times.
The Navigation System is one of the most technologically advanced
vehicle accessories ever developed. The system receives satellite sig-
nals from the Global Positioning System (GPS) operated by the U.S.
Department of Defense. Using these signals and other vehicle sen-
sors, the system indicates your present position and assists in locating
a desired destination.
The navigation system is designed to select efficient routes from your
present starting location to your destination. The system is also designed
to direct you to a destination that is unfamiliar to you in an efficient manner.
The system uses DENSO maps. The calculated routes may not be the
shortest nor the least traffic congested. Your own personal local knowl-
edge or “short cut” may at times be faster than the calculated routes.
The navigation system’s database includes about 75 Point of Interest
categories to allow you to easily select destinations such as restaurants
and banks. If a destination is not in the database, you can enter the street
address or a major intersection close to it and the system will guide you
there.
The system will provide both a visual map and audio instructions. The au-
dio instructions will announce the distance remaining and the direction to
turn in approaching an intersection. These voice instructions will help you
keep your eyes on the road and are timed to provide enough time to allow
you to maneuver, change lanes or slow down.

Finish
IS F/350/250_Navi_U
(L/O 0712)
2
Please be aware that all current vehicle navigation systems have
certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite con-
dition, road configuration, vehicle condition or other circumstan-
ces. For more information on the limitations of the system, refer to
pages 294 through 295.

Finish
IS F/350/250_Navi_U
(L/O 0712)
3
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or must
not do in order to reduce the risk of
injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in or-
der to avoid or reduce the risk of dam-
age to your vehicle and its equip-
ment.
INFORMATION
This provides additional information.
To use this system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist in reach-
ing the destination and, if used properly,
can do so. The driver is solely responsible
for the safe operation of your vehicle and
the safety of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and pre-
vents safe driving. The first priority while
driving should always be the safe opera-
tion of the vehicle. While driving, be sure
to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire Navigation Sys-
tem Owner’s Manual to make sure you un-
derstand the system. Do not allow other
people to use this system until they have
read and understood the instructions in
this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able touch−screen buttons are dimmed.
Only when the vehicle is not moving, can
the destination be set and route be se-
lected.
Important information about
this manual Safety Instruction

Finish
IS F/350/250_Navi_U
(L/O 0712)
4
CAUTION
DFor safety, the driver should not
operate the navigation system
while he/she is driving.
Insufficient attention to the road
and traffic may cause an accident.
D While driving, be sure to obey the
traffic regulations and maintain
awareness of the road conditions.
If a traffic sign on the road has
been changed, route guidance
may provide wrong information
such as the direction of a one way
street.
While driving, listen to the voice instruc-
tions as much as possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice guid-
ance. Use it just for reference. If the sys-
tem cannot determine the current vehicle
position correctly, there is a possibility of
incorrect, late, or non −voice guidance.
The data in the system may occasionally
be incomplete. Road conditions, including
driving restrictions (no left turns, street clo-
sures, etc.) frequently change. Therefore,
before following any instruction from the
system, look to see whether the instruction
can be done safely and legally.
This system cannot warn about such
things as the safety of an area, condition of
streets, and availability of emergency ser-
vices. If unsure about the safety of an
area, do not drive into it. Under no cir-
cumstances is this system a substitute
for the driver’s personal judgement.
Use this system only in locations where it
is legal to do so. Some states/provinces
may have laws prohibiting the use of video
and navigation screens next to the driver.

Finish
IS F/350/250_Navi_U
(L/O 0712)
5
Table of Contents
Quick guide —
— Overview buttons and guidance screen10
...........
— Registering home 12
................................
— Registering preset memory points (Quick access) 14
..................................
— Operation flow: guiding the route 16
.................
— Setting home as the destination 17
..................
Navigation system function index 18
...................
1 Basic Functions

Basic information before operation
Initial screen 22
..............................................
Touch screen operation 23
....................................
Inputting letters and numbers/List screen operation 24
............

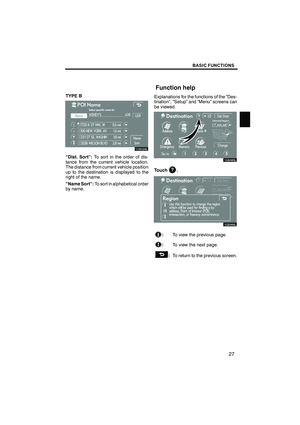

Function help 27
.............................................
Map screen operation 28
.....................................
Current position display 28
.................................
Screen scroll operation 28
..................................
Switching the screens 32
...................................
Map scale 34
.............................................
Foot print map 35
.........................................
Orientation of the map 36
...................................
Quick
Guide
1
2
3
4
5
6
7
8
9
10
Index

Finish
IS F/350/250_Navi_U
(L/O 0712)
6
2 Destination Search
Quick reference (“Destination” screen)38
.......................
Destination search 39
.......................................
Selecting the region to search 40 ............................
Destination search by Home 42 .............................
Destination search by Quick access 42 .......................
Destination search by “Address” 43 ..........................
Destination search by “POI

”4 7
.............................
Destination search by “Phone #” 54
..........................
Destination search by “Emergency” 54
.......................
Destination search by “Memory” 55
..........................
Destination search by “Previous” 55
..........................
Destination search by “Map” 56
.............................
Destination search by “Intersection” 57
.......................
Destination search by “Freeway Ent./Exit” 58
..................

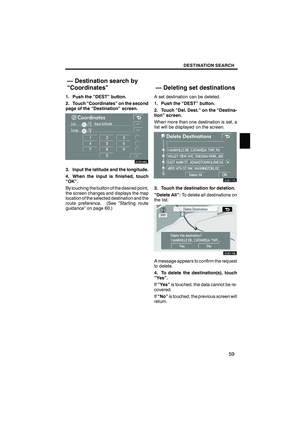

Destination search by “Coordinates” 59
.......................
Deleting set destinations 59
.................................

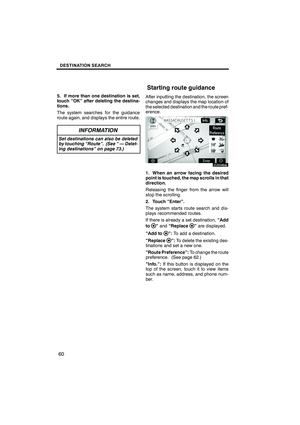

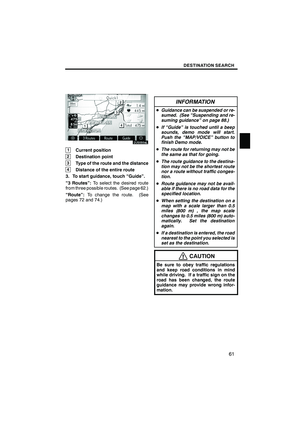

Starting route guidance 60
....................................
3 Route Guidance
Route guidance screen 66
.....................................

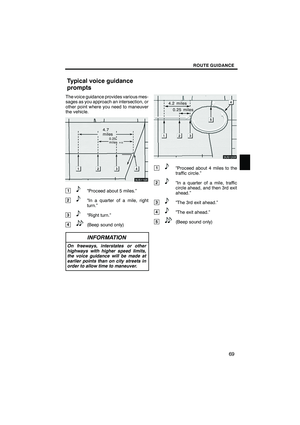

Typical voice guidance prompts 69
.............................
Distance and time to destination 71
.............................
Setting and deleting destination 72
...........................
Adding destinations 72
.....................................
Reordering destinations 72
.................................
Deleting destinations 73
....................................
Setting route 74
.............................................
Search condition 74
.......................................
Detour setting 75
..........................................
Route preference 77
.......................................
Starting route from adjacent road 77
.........................
Map view 78
................................................
Display POI

icons 78
......................................
Route overview 81 .........................................
Route preview 82 ..........................................
Route trace 83 ............................................

: Point of Interest

Finish
IS F/350/250_Navi_U
(L/O 0712)
7
4 Advanced Functions

Descriptions of functions for more effective use
Quick reference (“Menu” screen) 86 ............................
Quick reference (“Setup” screen) 87 ............................

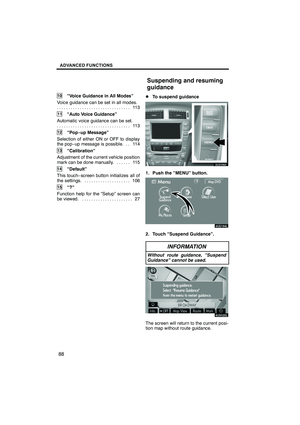

Suspending and resuming guidance 88
.........................
Volume 89
..................................................
User selection 90
............................................

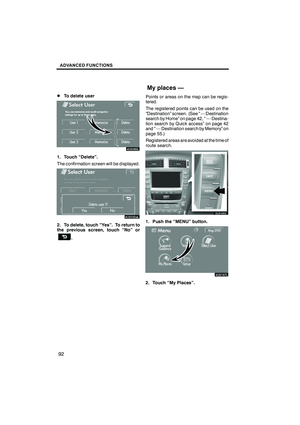

My places 92
................................................
Registering memory points 93
...............................
Editing memory points 94
...................................
Deleting memory points 99
.................................
Registering home 100
......................................
Deleting home 101
........................................
Registering area to avoid 101
...............................
Editing area to avoid 102
...................................
Deleting area to avoid 105
..................................

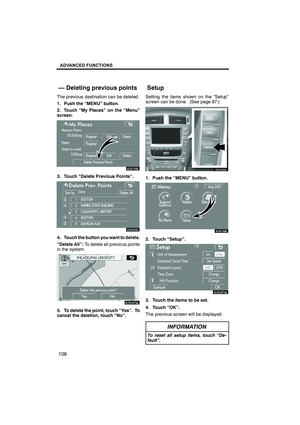

Deleting previous points 106
................................
Setup 106
...................................................
5 Other Functions

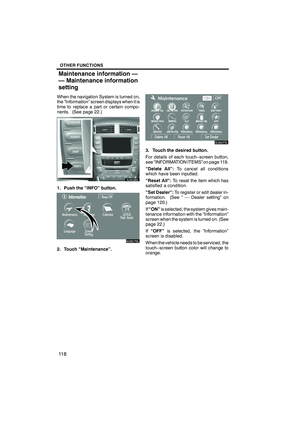

Maintenance information 11 8
.................................
Maintenance information setting 118 .........................
Dealer setting 120 ........................................
Calendar with memo 122
.....................................
Adding a memo 124 .......................................
Editing a memo 125 .......................................
Memo list 125 .............................................
Hands −free system (for cellular phone) 127 ......................
Speech command system 174 .................................

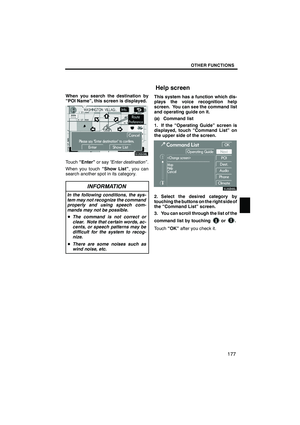

Help screen 177 .............................................
Screen adjustment 178 .......................................
Screen setting 180 ...........................................
Beep setting 183 .............................................
Selecting a language 183 .....................................
