Page 1 of 72
SECTION 6
AUDIO/VIDEO SYSTEM
185
AUDIO/VIDEO SYSTEM
Audio/video system
Quick reference 186
Using your audio/video system 188
Some basics188 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio operation195 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cassette tape player operation207 . . . . . . . . . . . . . . . . . . . . . . . .
CD changer operation210 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DVD changer operation224 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video remote controls 246
Audio/video system operating hints 248
Page 2 of 72
AUDIO/VIDEO SYSTEM
186

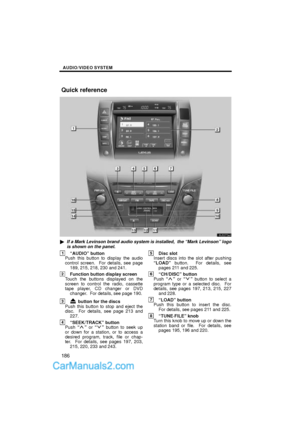

If a Mark Levinson brand audio system is installed, the Mark Levinsonº logo
is shown on the panel.
1AUDIOº button
Push this button to display the audio
control screen. For details, see page
189, 215, 218, 230 and 241.
2Function button display screen
Touch the buttons displayed on the
screen to control the radio, cassette
tape player, CD changer or DVD
changer. For details, see page 190.
3 button for the discs
Push this button to stop and eject the
disc. For details, see page 213 and
227.
4SEEK/TRACKº button
Push º or º button to seek up
or down for a station, or to access a
desired program, track, file or chap-
ter. For details, see pages 197, 203,
215, 220, 233 and 243.
5Disc slot
Insert discs into the slot after pushing
LOADº button. For details, see
pages 211 and 225.
6CH/DISCº button
Push º or º button to select a
program type or a selected disc. For
details, see pages 197, 213, 215, 227
and 228.
7LOADº button
Push this button to insert the disc.
For details, see pages 211 and 225.
8TUNE´FILEº knob
Turn this knob to move up or down the
station band or file. For details, see
pages 195, 196 and 220.
Quick reference
Page 3 of 72
AUDIO/VIDEO SYSTEM
187
9DISC´AUXº button
Push this button to turn the CD
changer, DVD changer or AUX on.
For details, see pages 189, 214, 215
and 228.
10TAPEº button
Push this button to turn the cassette
tape player on. For details, see
pages 189 and 207.
11SCANº button
Push this button to scan radio sta-
tions or scan the tracks,discs, files or
folders. For details, see page 197.
12Cassette tape slot
Insert a cassette tape into the slot.
For details, see page 207.
13 button for the cassette tape
Push this button to stop and eject the
cassette tape. For details, see page
207.
14FMº button
Push this button to choose an FM sta-
tion. For details, see pages 189 and
195.
15AM´SATº button
Push this button to choose either an
AM or SAT station. For details, see
pages 189, 195 and 201.
16PWR´VOLº knob
Push this knob to turn the audio sys-
tem on and off, and turn it to adjust the
volume. For details, see page 189.
Page 4 of 72
AUDIO/VIDEO SYSTEM
188
This section describes some of the basic
features on Lexus audio/video systems.
Some information may not pertain to your
system.
Your audio/video system works when the
ENGINE START STOPº switch is in the
ACCESSORY or IGNITION ON mode.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio/video
system on longer than necessary
when the engine is not running.
CAUTION
For vehicles sold in U.S.A. and
Canada:
Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or
modifications to this equipment
will void the user's authority to op-
erate this device.
Laser products
Do not take this unit apart or at-
tempt to make any changes
yourself. This is an intricate unit
that uses a laser pickup to re-
trieve information from the sur-
face of compact discs. The laser
is carefully shielded so that its
rays remain inside the cabinet.
Therefore, never try to disas-
semble the player or alter any of
its parts since you may be ex-
posed to laser rays and danger-
ous voltages.
This product utilizes a laser. Use
of controls or adjustments or
performance of procedures oth-
er than those specified herein
may result in hazardous radi-
ation exposure.
Using your audio/video
system Ð
Ð Some basics
Page 5 of 72
AUDIO/VIDEO SYSTEM
189
Turning the system on and off
PWR´VOLº: Push this knob to turn the
audio system on and off. Turn this knob to
adjust the volume. The system turns on in
the last mode used.
AUDIOº: Push this button to display
touch-screen buttons for audio system
(audio control mode).
You can select the function that enables
automatic return to the previous screen
from the audio screen. See (a) Automatic
transitionº on page 181 for details.
Switching between functions
Push AM´SATº, FMº, TAPEº or
DISC´AUXº button to turn on the de-
sired mode. The selected mode turns
on immediately.
Push these buttons if you want to switch
from one mode to another.
If the tape or disc is not set, the cassette
tape player, CD changer or DVD changer
does not turn on.
You can turn off each player by ejecting the
cassette tape or disc. If the audio system
was previously off, then the entire audio
system will be turned off when you eject
the cassette tape or disc. If another func-
tion was previously playing, it will come on
again.
Page 6 of 72
AUDIO/VIDEO SYSTEM
190
The buttons for radio, cassette tape player,
CD changer and DVD changer operation
are displayed on the function button dis-
play screen when the audio control mode
is selected.
Touch them lightly and directly on the
screen.
The selected button is highlighted.
Page 7 of 72
AUDIO/VIDEO SYSTEM
191
INFORMATION
If the system does not respond to
a touch of a touch-screen button,
move your finger away from the
screen and then touch it again.
You cannot operate dimmed
touch-screen buttons.
Wipe off fingerprints on the sur-
face of the display using a glass
cleaning cloth.
Tone and balance
How good an audio program sounds to you
is largely determined by the mix of the
treble, midrange, and bass levels. In fact,
different kinds of music and vocal pro-
grams usually sound better with different
levels of treble, midrange, and bass.
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to a
stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
1. Push the AUDIOº button.
2. Touch SOUNDº.
Page 8 of 72
AUDIO/VIDEO SYSTEM
192
3. Touch the desired button.
TREBº +º or ±º: Adjusts high-pitched
tones.
MIDº +º or ±º: Adjusts mid-pitched
tones.
BASSº +º or ±º: Adjusts low-pitched
tones.
FRONTº or REARº: Adjusts sound bal-
ance between the front and rear speakers.
Lº or Rº: Adjusts sound balance be-
tween the left and right speakers.
4. Touch OKº.
The tone of each mode (for such as AM,
FM and DVD changer) can be adjusted.
DSP control
You can change the listening position or
turn on/off the surround function and the
automatic sound levelizer.
1. Push the AUDIOº button.
2. Touch DSPº.
With CD changer
With DVD changer
