Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Driver’s airbag
2. Light control / Turn signals
3. Instrument cluster
4. Wiper/Washer
5. Ignition switch
6. Steering wheel
7. Digital clock
8. Hazard
9. Audio controls (if equipped)
10. Climate control system (if equipped)
11. Passenger’s airbag
12. Vent controls
13. Glove box
14. Ashtray
15. Cigar lighter
16. Shift lever
17. Auto cruise controls (if equipped)
18. PASSENGER AIR BAG OFF
indicator
1KMA0003

Knowing your vehicle
2 3
1
2
3
4
5
6
7
8
9

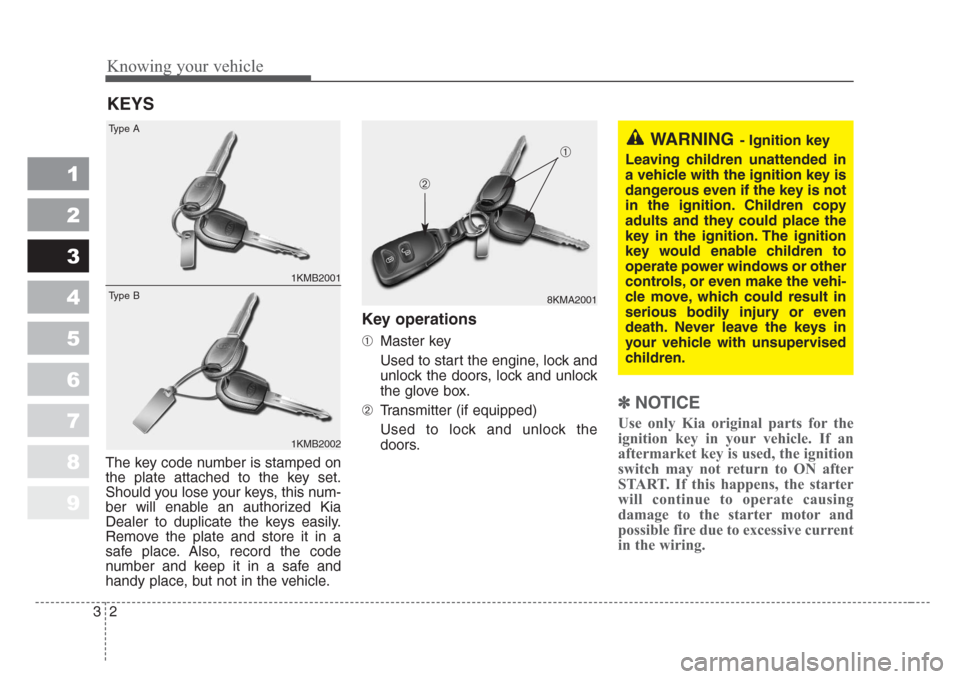

The key code number is stamped on
the plate attached to the key set.
Should you lose your keys, this num-
ber will enable an authorized Kia
Dealer to duplicate the keys easily.
Remove the plate and store it in a
safe place. Also, record the code
number and keep it in a safe and
handy place, but not in the vehicle.
Key operations
➀Master key
Used to start the engine, lock and
unlock the doors, lock and unlock
the glove box.
➁Transmitter (if equipped)
Used to lock and unlock the
doors.
✽
NOTICE
Use only Kia original parts for the
ignition key in your vehicle. If an
aftermarket key is used, the ignition
switch may not return to ON after
START. If this happens, the starter
will continue to operate causing
damage to the starter motor and
possible fire due to excessive current
in the wiring.
KEYS
1KMB2001
1KMB2002
8KMA2001
WARNING- Ignition key
Leaving children unattended in
a vehicle with the ignition key is
dangerous even if the key is not
in the ignition.Children copy
adults and they could place the
key in the ignition.The ignition
key would enable children to
operate power windows or other
controls, or even make the vehi-
cle move, which could result in
serious bodily injury or even
death.Never leave the keys i
n
your vehicle with unsupervised
children.
➀
➁
Type A
Type B

Knowing your vehicle
60 3
1
2
3
4
5
6
7
8
9

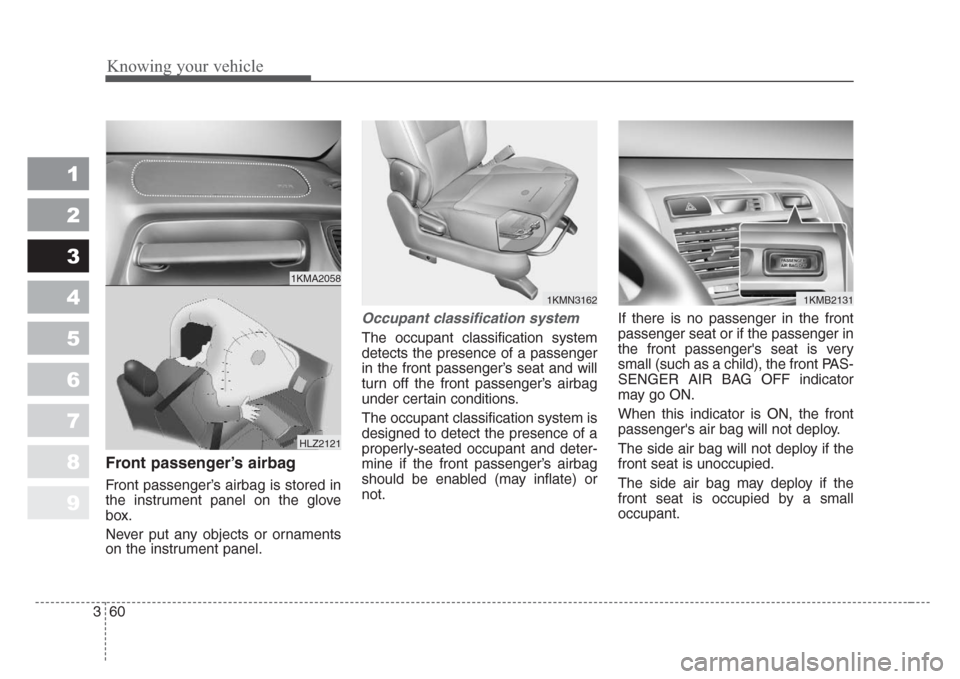

Front passenger’s airbag
Front passenger’s airbag is stored in
the instrument panel on the glove
box.
Never put any objects or ornaments
on the instrument panel.
Occupant classification system
The occupant classification system
detects the presence of a passenger
in the front passenger’s seat and will
turn off the front passenger’s airbag
under certain conditions.
The occupant classification system is
designed to detect the presence of a
properly-seated occupant and deter-
mine if the front passenger’s airbag
should be enabled (may inflate) or
not.If there is no passenger in the front
passenger seat or if the passenger in
the front passenger's seat is very
small (such as a child), the front PAS-
SENGER AIR BAG OFF indicator
may go ON.
When this indicator is ON, the front
passenger's air bag will not deploy.
The side air bag will not deploy if the
front seat is unoccupied.
The side air bag may deploy if the
front seat is occupied by a small
occupant.
1KMB21311KMN3162
1KMA2058
HLZ2121

Knowing your vehicle
90 3
1
2
3
4
5
6
7
8
9

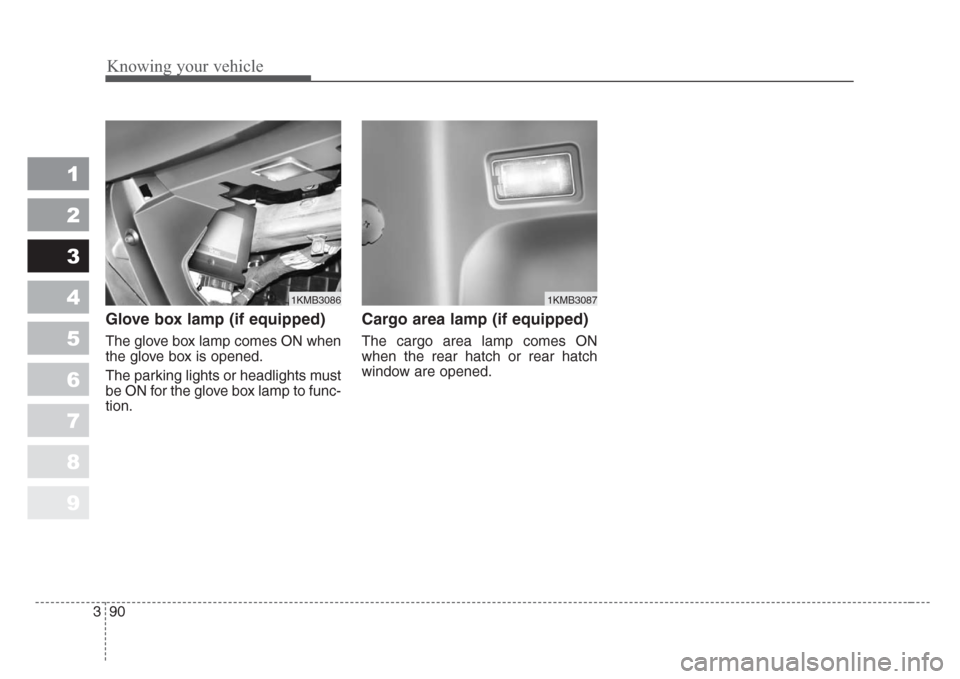

Glove box lamp (if equipped)
The glove box lamp comes ON when
the glove box is opened.
The parking lights or headlights must
be ON for the glove box lamp to func-
tion.
Cargo area lamp (if equipped)
The cargo area lamp comes ON
when the rear hatch or rear hatch
window are opened.
1KMB30861KMB3087

393
1
2
3
4
5
6
7
8
9
Knowing your vehicle

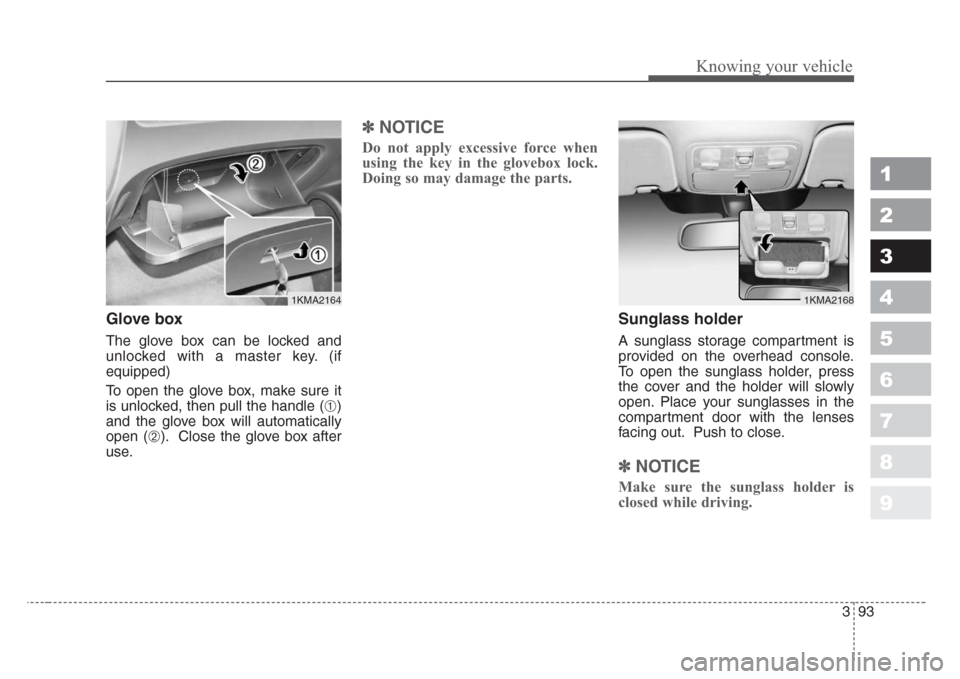

Glove box
The glove box can be locked and
unlocked with a master key. (if
equipped)
To open the glove box, make sure it
is unlocked, then pull the handle (
➀)
and the glove box will automatically
open (
➁). Close the glove box after
use.
✽
NOTICE
Do not apply excessive force when
using the key in the glovebox lock.
Doing so may damage the parts.
Sunglass holder
A sunglass storage compartment is
provided on the overhead console.
To open the sunglass holder, press
the cover and the holder will slowly
open. Place your sunglasses in the
compartment door with the lenses
facing out. Push to close.
✽
NOTICE
Make sure the sunglass holder is
closed while driving.
1KMA21681KMA2164

Maintenance
28 7
1
2
3
4
5
6
7
8
9

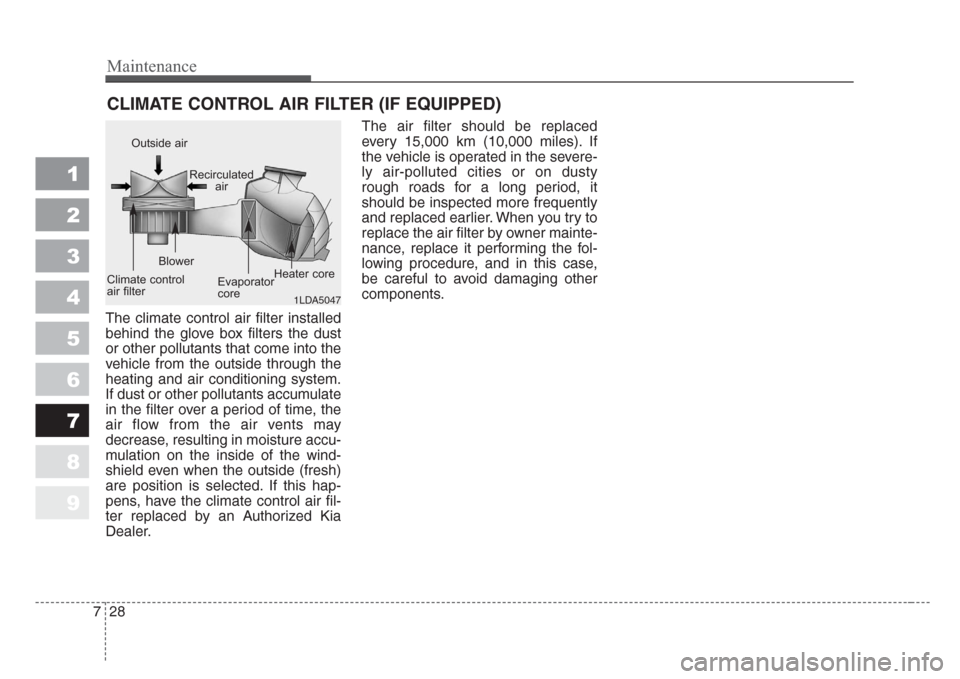

CLIMATE CONTROL AIR FILTER (IF EQUIPPED)
The climate control air filter installed
behind the glove box filters the dust
or other pollutants that come into the
vehicle from the outside through the
heating and air conditioning system.
If dust or other pollutants accumulate
in the filter over a period of time, the
air flow from the air vents may
decrease, resulting in moisture accu-
mulation on the inside of the wind-
shield even when the outside (fresh)
are position is selected. If this hap-
pens, have the climate control air fil-
ter replaced by an Authorized Kia
Dealer.The air filter should be replaced
every 15,000 km (10,000 miles). If
the vehicle is operated in the severe-
ly air-polluted cities or on dusty
rough roads for a long period, it
should be inspected more frequently
and replaced earlier. When you try to
replace the air filter by owner mainte-
nance, replace it performing the fol-
lowing procedure, and in this case,
be careful to avoid damaging other
components.
1LDA5047
Outside air
Recirculated
air
Climate control
air filterBlower
Evaporator
coreHeater core

Specifications
6 8
1
2
3
4
5
6
7
8
9
Light Bulb Wattage
Headlights (Low/High) 55/60
Front turn signal lights 27
Position lights 5
Front fog lights (if equipped) 35
Stop and tail lights 28/8
Rear turn signal lights 27
Back-up lights 17
Rear side mark light 5
High mounted stop light LED
*1
License plate lights 5
Front map lamp 10
Center dome lamp 10
Rear dome lamp 10
Door courtesy lamps (if equipped) 5
Cargo area lamp (if equipped) 5
Glove box lamp (if equipped) 5
Light bulbs
*1LED : Light-emitting diode
