2008 KIA Sportage brake

13
1
2
3
4
5
6
7
8
9
Introduction
VEHICLE HANDLING
INSTRUCTIONS
As with other vehicles of this type,
failure to operate this vehicle correct-
ly may result in loss of control, an
accident or vehicle rollover.
Specific design characteristics (high-
er ground clearance, track, etc.) give
this vehicle a higher center of gravity
than other types of vehicles. In other
words they are not designed for cor-
nering at the same speeds as con-
ventional 2-wheel drive vehicles.
Avoid sharp turns or abrupt maneu-
vers. Again, failure to operate this
vehicle correctly may result in loss of
control, an accident or vehicle
rollover.Be sure to read the “on-
pavement” and “off-road” driving
guidelines, in section 5 of this
manual.
VEHICLE BREAK-IN
PROCESS
No special break-in period is needed.
By following a few simple precautions
for the first 1,000 km (600 miles) you
may add to the performance, econo-
my and life of your vehicle.
• Do not race the engine.
• Do not maintain a single speed for
long periods of time, either fast or
slow. Varying engine speed is
needed to properly break-in the
engine.
• Avoid hard stops, except in emer-
gencies, to allow the brakes to seat
properly.
• Avoid full-throttle starts.

Your vehicle at a glance
2 2
1
2
3
4
5
6
7
8
9
INTERIOR OVERVIEW
1. Door lock/unlock button
2. Power window switches
3. Outside rearview mirror control switch
(if equipped)
4. Hood release lever
5. Instrument panel illumination
(if equipped)
6. Traction control system (if equipped)/
Electronic stability program
(if equipped)
7. 4WD LOCK button (if equipped)
8. Steering wheel tilt
9. Brake pedal
10. Accelerator pedal
11. Seat
12. Parking brake lever
13. Fuel filler lid release lever
1KMB0004/1KMA2019A

39
Knowing your vehicle
1
2
3
4
5
6
7
8
9
Operating door locks from
outside the vehicle
• Turn the key toward rear of vehicle
to unlock and toward front of vehi-
cle to lock.
• Turn the key toward front of vehicle
to lock all doors.
• Turn the key to the right once to
unlock the driver’s door and to the
right twice within 4 seconds to
unlock all doors. (if equipped)
• Turn the key to the left once to
unlock the passenger’s door and to
the left twice within 4 seconds to
unlock all doors. (if equipped)• Doors can also be locked and
unlocked with the transmitter key (if
equipped).
• Once the doors are unlocked, it
may be opened by pulling the door
handle.
• When closing the door, push the
door by hand. Make sure that
doors are closed securely.
To lock a door without the key, push
the inside door lock button (
➀) or
door lock switch (
➁, if equipped) to
the “Lock” position and close the
door (
➂).
✽
NOTICE
Always remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
DOOR LOCKS
1KMA2004
LockUnlock
1KMB2005

Knowing your vehicle
12 3
1
2
3
4
5
6
7
8
9
Impact sensing door unlock
system (if equipped)
All doors will be automatically
unlocked when the Supplemental
Restraint System (SRS) detects a
collision while the ignition switch is
ON.
However, the doors may not be
unlocked, if electrical power in the
vehicle should fail.
WARNING-Unlocked
vehicles
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle while you
are gone.Always remove the
ignition key, engage the parking
brake, close all windows and
lock all doors when leaving your
vehicle unattended.WARNING- Unattended
children
An enclosed vehicle can
become extremely hot, causing
death or severe injury to unat-
tended children or animals who
cannot escape the vehicle.
Furthermore, children might
operate features of the vehicle
that could injure them, or they
could encounter other harm,
possibly from someone gaining
entry to the vehicle.Never leave
children or animals unattended
in your vehicle.

Knowing your vehicle
28 3
1
2
3
4
5
6
7
8
9
To unfold the rear seat;
1. Pull the lock release lever located
on the top of the seatback.
2. Lift and push the seatback back-
ward firmly until it clicks into place.
Make sure the seatback is locked
in place.
3. Return the rear safety belt to the
proper position.
WARNING- Cargo
Cargo should always be
secured to prevent it from being
thrown about the vehicle in a
collision and causing injury to
the vehicle occupants.Special
care should be taken of objects
placed in the rear seats,since
those may hit the front seat
occupants in a frontal collision.CAUTION - Cargo loading
Make sure the engine is off, the
transaxle is in P and the parking
brake is applied whenever load-
ing or unloading cargo.Failure
to take these steps may allow
the vehicle to move if shift lever
is inadvertently moved to anoth-
er position.
CAUTION - Rear floor
Do not remove the floor carpet
in your vehicle.Emission con-
trol system components in the
area of the rear seats cause
high exhaust temperatures
under the floor.

Knowing your vehicle
66 3
1
2
3
4
5
6
7
8
9
(Continued)
• If the driver brakes the vehicle
heavily in an urgent situa-
tions, occupants will be
thrown forward.If front pas-
sengers are not wearing the
safety belts, they will be
directly in front of the storage
compartment when inflation
occurs.In that situation,seri-
ous injury or death is possi-
ble.
• Never allow front passenger
to put their hands or feet on
the instrument panel or put
their face close to the instru-
ment panel.The airbag will
impact the front passenger
when it inflates.
(Continued)
(Continued)
• Never allow children/old
and feeble persons/pregnant
women to sit on the front pas-
senger’s seat.Do not put child
restraint systems on the front
passenger’s seat either.They
may be seriously injured by
the airbag inflation when
airbag deploys.
• Do not put objects or stickers
on the instrument panel.Do
not apply any accessory on
the front windshield glass or
do not i
nstall aftermarket mir-
rors or accessories on the fac-
tory installed rearview mirror.
These may interfere with the
deployment of airbag inflation
or could hit your body at high
speed and cause severe bodi-
ly injury and even death.
WARNING
• The front seat passenger’s
airbag is much larger than the
steering wheel airbag and
inflates with considerably
more force.It can seriously
hurt or kill a passenger who is
not in the proper position and
wearing the safety belt proper-
ly.The front passengers
should always move their seat
as far back as practical and sit
back in their seat.
• It is essential that the front
passengers always wear their
safety belt
s, even when the
vehicle is moving in a parking
lot or up a driveway into
garage.
(Continued)

373
1
2
3
4
5
6
7
8
9
Knowing your vehicle

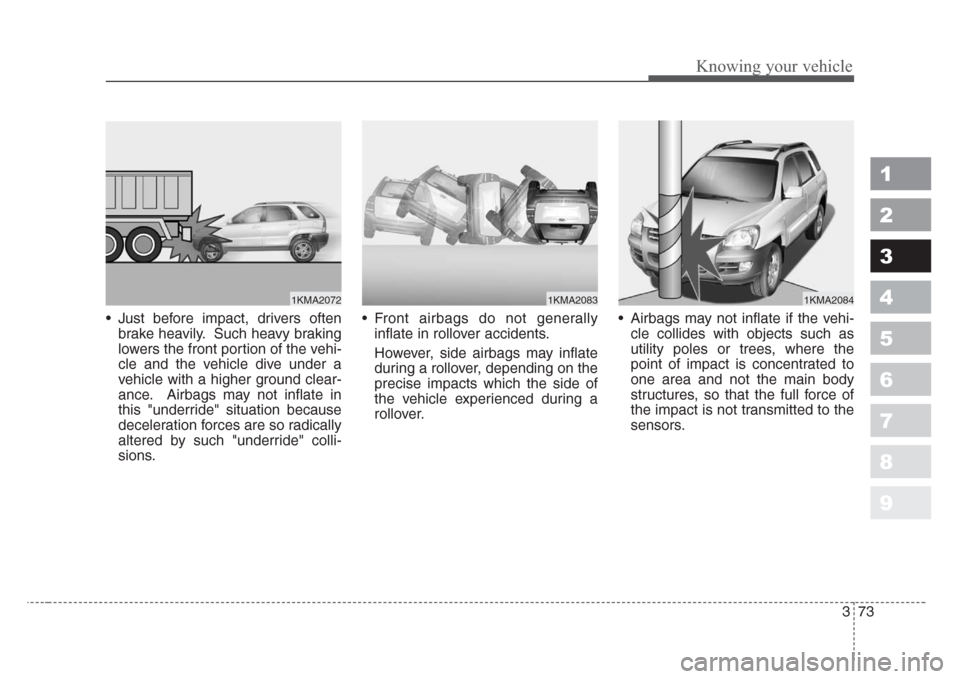

• Just before impact, drivers often
brake heavily. Such heavy braking
lowers the front portion of the vehi-
cle and the vehicle dive under a
vehicle with a higher ground clear-
ance. Airbags may not inflate in
this "underride" situation because
deceleration forces are so radically
altered by such "underride" colli-
sions.• Front airbags do not generally
inflate in rollover accidents.
However, side airbags may inflate
during a rollover, depending on the
precise impacts which the side of
the vehicle experienced during a
rollover.• Airbags may not inflate if the vehi-
cle collides with objects such as
utility poles or trees, where the
point of impact is concentrated to
one area and not the main body
structures, so that the full force of
the impact is not transmitted to the
sensors.
1KMA20721KMA20831KMA2084

1
2
3
4
5
6
7
8
9Ignition switch / 4-2
Starting the engine / 4-4
Manual transaxle / 4-5
Automatic transaxle / 4-6
Four wheel drive (4WD) / 4-12
Brake system / 4-18
Steering wheel / 4-25
Cruise control system / 4-28
Traction control system / 4-33
Electronic stability control / 4-36
Instrument cluster / 4-39
Gauges / 4-40
Warnings and indicators / 4-46
Compass / 4-54
Lighting / 4-57
Wipers and washers / 4-61
Defroster / 4-64
Hazard warning flasher / 4-65
Manual climate control system / 4-66
Automatic climate control system / 4-75
Windshield defrosting and defogging / 4-88
Driving your vehicle
