DLK-32
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR OPENER FUNCTION
INTELLIGENT KEY : Component Description
INFOID:0000000001538925
ALKIA0579ZZ
1. Horn E3 (view with hood open) 2. IPDM E/R E122, E124
(view with cover removed) 3. Horn relay H-1
4. Remote keyless entry receiver M25 (view with instrume nt panel RH removed) 5. Intelligent key warning buzzer E25 6. Combination meter M23, M24
7. Intelligent Key unit M70 (view with instrument panel LH removed) 8. BCM M18, M19, M20
(view with instrument panel LH removed) 9. Steering lock solenoid M15
(view with steering column removed)
10. Key switch and ignition knob switch M12 11. A/T shift selector (park position switch) M203
(view with center console removed)12. Inside key antenna 3 (front of center
console) M210
(view with center console removed)
13. Inside key antenna 1 (rear of center con- sole) M209 14. Inside key antenna 4 (overhead console
area) R210
(view with overhead console removed) 15. Inside key antenna 2 (luggage com-
partment) B76
(view with rear carpet removed)
16. Rear bumper antenna C7 (view with rear bumper removed) 17. Back door latch D503
18. Front outside antenna LH D15
Front outside antenna RH D115
19. Front door request switch LH D16 Front door request switch RH D116 20. Front door lock assembly LH (door un-
lock sensor) D14 21. Front door switch LH B8
RH B108
22. Rear door switch LH B18 RH B116
Revision: March 2010 2008 QX56

WARNING FUNCTIONDLK-39
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O PALKIA0579ZZ
1. Horn E3 (view with hood open) 2. IPDM E/R E122, E124
(view with co ver removed) 3. Horn relay H-1
4. Remote keyless entry receiver M25 (view with instrume nt panel RH removed) 5. Intelligent key warning buzzer E25 6. Combination meter M23, M24
7. Intelligent Key unit M70 (view with instrument panel LH removed) 8. BCM M18, M19, M20
(view with instrument panel LH removed) 9. Steering lock solenoid M15
(view with steering column removed)
10. Key switch and ignition knob switch M12 11. A/T shift selector (park position switch) M203
(view with center console removed)12. Inside key antenna 3 (front of center
console) M210
(view with center console removed)
13. Inside key antenna 1 (rear of center con- sole) M209 14. Inside key antenna 4 (overhead console
area) R210
(view with overhead console removed) 15. Inside key antenna 2 (luggage com-
partment) B76
(view with rear carpet removed)
16. Rear bumper antenna C7 (view with rear bumper removed) 17. Back door latch D503
18. Front outside antenna LH D15
Front outside antenna RH D115
19. Front door request switch LH D16 Front door request switch RH D116 20. Front door lock assembly LH (door un-
lock sensor) D14 21. Front door switch LH B8
RH B108
22. Rear door switch LH B18 RH B116
Revision: March 2010 2008 QX56

DLK-42
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
KEY REMINDER FUNCTION
ALKIA0579ZZ
1. Horn E3
(view with hood open) 2. IPDM E/R E122, E124
(view with cover removed) 3. Horn relay H-1
4. Remote keyless entry receiver M25 (view with instrume nt panel RH removed) 5. Intelligent key warning buzzer E25 6. Combination meter M23, M24
7. Intelligent Key unit M70 (view with instrument panel LH removed) 8. BCM M18, M19, M20
(view with instrument panel LH removed) 9. Steering lock solenoid M15
(view with steering column removed)
10. Key switch and ignition knob switch M12 11. A/T shift selector (park position switch) M203
(view with center console removed)12. Inside key antenna 3 (front of center
console) M210
(view with center console removed)
13. Inside key antenna 1 (rear of center con- sole) M209 14. Inside key antenna 4 (overhead console
area) R210
(view with overhead console removed) 15. Inside key antenna 2 (luggage com-
partment) B76
(view with rear carpet removed)
16. Rear bumper antenna C7 (view with rear bumper removed) 17. Back door latch D503
18. Front outside antenna LH D15
Front outside antenna RH D115
19. Front door request switch LH D16 Front door request switch RH D116 20. Front door lock assembly LH (door un-
lock sensor) D14 21. Front door switch LH B8
RH B108
22. Rear door switch LH B18 RH B116
Revision: March 2010 2008 QX56

HAZARD AND BUZZER REMINDER FUNCTIONDLK-45
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O PALKIA0579ZZ
1. Horn E3 (view with hood open) 2. IPDM E/R E122, E124
(view with co ver removed) 3. Horn relay H-1
4. Remote keyless entry receiver M25 (view with instrume nt panel RH removed) 5. Intelligent key warning buzzer E25 6. Combination meter M23, M24
7. Intelligent Key unit M70 (view with instrument panel LH removed) 8. BCM M18, M19, M20
(view with instrument panel LH removed) 9. Steering lock solenoid M15
(view with steering column removed)
10. Key switch and ignition knob switch M12 11. A/T shift selector (park position switch) M203
(view with center console removed)12. Inside key antenna 3 (front of center
console) M210
(view with center console removed)
13. Inside key antenna 1 (rear of center con- sole) M209 14. Inside key antenna 4 (overhead console
area) R210
(view with overhead console removed) 15. Inside key antenna 2 (luggage com-
partment) B76
(view with rear carpet removed)
16. Rear bumper antenna C7 (view with rear bumper removed) 17. Back door latch D503
18. Front outside antenna LH D15
Front outside antenna RH D115
19. Front door request switch LH D16 Front door request switch RH D116 20. Front door lock assembly LH (door un-
lock sensor) D14 21. Front door switch LH B8
RH B108
22. Rear door switch LH B18 RH B116
Revision: March 2010 2008 QX56

DOOR LOCK ACTUATORDLK-85
< COMPONENT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
2. Check voltage between BCM connector M20 terminals 65, 66 and ground.
Is the inspection result normal?
YES >> GO TO 2
NO >> GO TO 3
2.CHECK DOOR LOCK ACTUATOR HARNESS
1. Disconnect BCM and rear door lock actuator LH.
2. Check continuity between BCM connector (A) M20 terminals 65, 66 and rear door lock actuator LH connector (B) D205 terminals
2, 3.
Is the inspection result normal?
YES >> Replace rear door lock actuator LH.
NO >> Repair or replace harness or passenger select unlock relay.
3.CHECK DOOR LOCK ACTUATOR HARNESS
1. Disconnect BCM and each door lock actuator.
2. Check continuity between BCM connector M20 terminals 65, 66 and ground.
Is the inspection result normal?
YES >> Replace BCM. Refer to BCS-55, "Removal and Installation".
NO >> Repair or replace harness or passenger select unlock relay.
REAR RH
REAR RH : DescriptionINFOID:0000000001538990
Locks/unlocks the door with the signal from BCM.
Connector Te r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
M20 65
Ground Door lock/unlock switch
is turned to LOCK
0
→ Battery voltage
for 300 ms
66 Door lock/unlock switch
is turned to UNLOCK 0
→ Battery voltage
for 300 ms
LIIA1048E
Terminals Continuity
65 3 Yes
66 2 Yes
ALKIA0629ZZ
Terminals Continuity
65 Ground No
66 No
ALKIA0631ZZ
Revision: March 2010 2008 QX56

DLK-86
< COMPONENT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
DOOR LOCK ACTUATOR

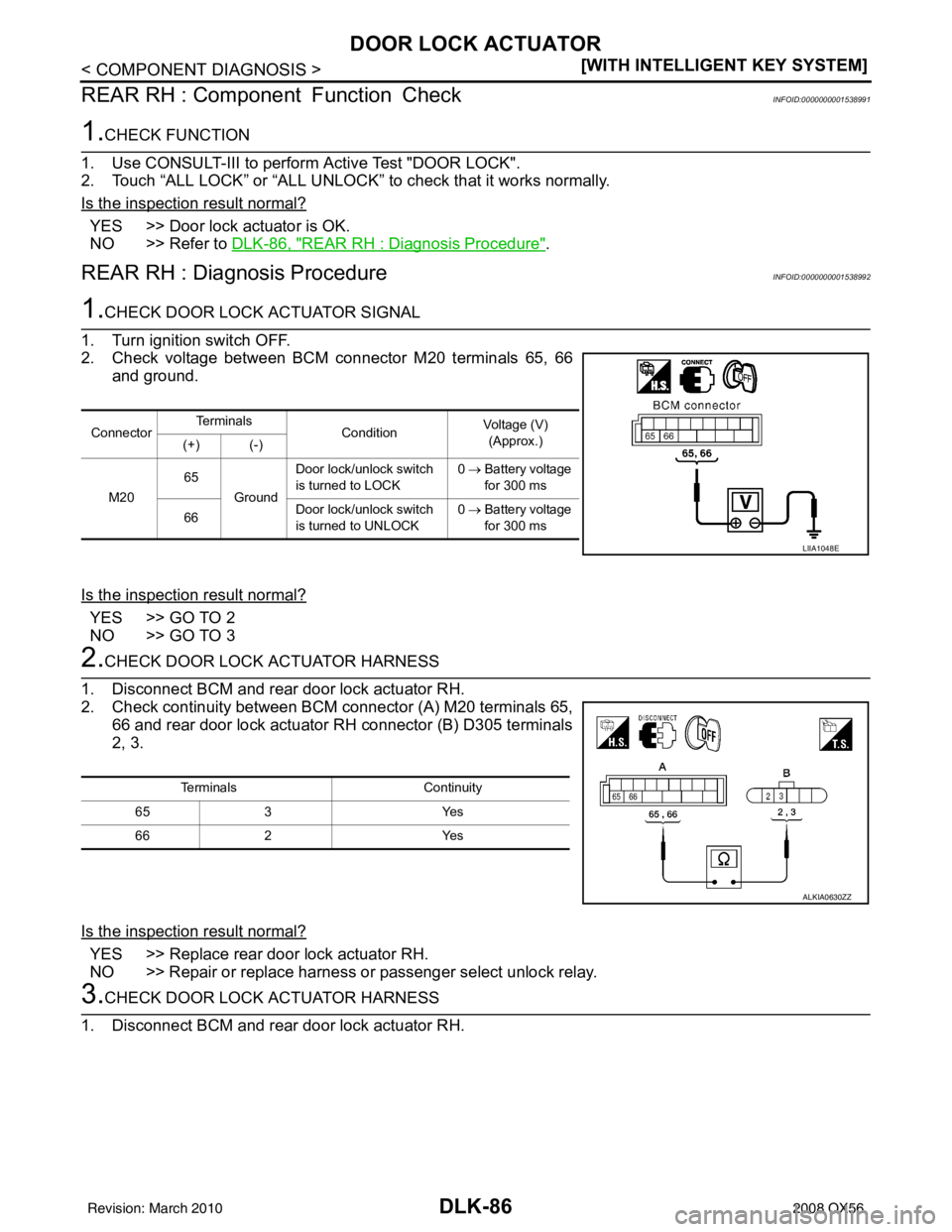

REAR RH : Component Function Check
INFOID:0000000001538991
1.CHECK FUNCTION
1. Use CONSULT-III to perform Active Test "DOOR LOCK".
2. Touch “ALL LOCK” or “ALL UNLOCK” to check that it works normally.
Is the inspection result normal?
YES >> Door lock actuator is OK.
NO >> Refer to DLK-86, "
REAR RH : Diagnosis Procedure".
REAR RH : Diagnosis ProcedureINFOID:0000000001538992
1.CHECK DOOR LOCK ACTUATOR SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between BCM connector M20 terminals 65, 66 and ground.
Is the inspection result normal?
YES >> GO TO 2
NO >> GO TO 3
2.CHECK DOOR LOCK ACTUATOR HARNESS
1. Disconnect BCM and rear door lock actuator RH.
2. Check continuity between BCM connector (A) M20 terminals 65, 66 and rear door lock actuator RH connector (B) D305 terminals
2, 3.
Is the inspection result normal?
YES >> Replace rear door lock actuator RH.
NO >> Repair or replace harness or passenger select unlock relay.
3.CHECK DOOR LOCK ACTUATOR HARNESS
1. Disconnect BCM and rear door lock actuator RH.
Connector Te r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
M20 65
Ground Door lock/unlock switch
is turned to LOCK
0
→ Battery voltage
for 300 ms
66 Door lock/unlock switch
is turned to UNLOCK 0
→ Battery voltage
for 300 ms
LIIA1048E
Terminals Continuity
65 3 Yes
66 2 Yes
ALKIA0630ZZ
Revision: March 2010 2008 QX56

DOOR LOCK ACTUATORDLK-87
< COMPONENT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
2. Check continuity between BCM connector (A) M20 terminals 65, 66 and ground.
Is the inspection result normal?
YES >> Replace BCM. Refer to BCS-55, "Removal and Installation".
NO >> Repair or replace harness or passenger select unlock relay.
BACK DOOR
BACK DOOR : DescriptionINFOID:0000000001538993
All vehicles equipped with an automatic back door syste m are not equipped with a back door actuator. Open-
ing and closing the back door is accomplished through the back door control unit assembly. Refer to DLK-119,
"Self-Diagnosis Procedure".
TerminalsContinuity
65 Ground No
66 No
ALKIA0631ZZ
Revision: March 2010 2008 QX56

PASSENGER SELECT UNLOCK RELAYDLK-89
< COMPONENT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
PASSENGER SELECT UNLOCK RELAY
DescriptionINFOID:0000000001538994
Controls the operation of bot h rear door lock actuators.
Component Function CheckINFOID:0000000001538995
1.CHECK FUNCTION
1. Ensure "SELECTIVE UNLOCK FUNCTION" in WORK SUPPORT is enabled.
2. Use CONSULT-III to perform Active Test "DOOR LOCK".
3. Touch “ALL LOCK” or “ALL UNLOCK” to c heck that both rear doors work normally.
Is the inspection result normal?
YES >> Passenger select unlock relay is OK.
NO >> Refer to DLK-89, "
Component Function Check".
Diagnosis ProcedureINFOID:0000000001538996
1.CHECK PASSENGER SELECT UNLOCK RELAY CIRCUIT
NOTE:
Passenger select unlock relay must remain connected during this step.
1. Turn ignition switch OFF.
2. Disconnect BCM and inoperative rear door lock actuator.
3. Check continuity between BCM connector (A) M20 terminal 66 and rear door lock actuator LH connector (B) D205 terminal 2 or
rear door lock actuator RH connector (C) D305 Terminal 2.
4. Check continuity between BCM connector M20 terminal 66 and body ground.
Is the inspection result normal?
YES >> GO TO 4
NO >> GO TO 2
2.CHECK PASSENGER SELECT UNLOCK RELAY INPUT
1. Disconnect passenger select unlock relay.
2. Check continuity between BCM connector (A) M20 terminal 66 and passenger select unlock relay connector (B) M7 terminal 3.
3. Check continuity between BCM connector (A) M20 terminal 66 and body ground.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace harness between BCM and relay.
3.CHECK PASSENGER SELECT UNLOCK RELAY OUTPUT 66 - 2 : Continuity should exist.
66 - Ground
: Continuity should not exist.
ALKIA1634ZZ
66 - 3 : Continuity should exist.
66 - Ground : Continuity should not exist.
ALKIA1635ZZ
