DLN-50
< COMPONENT DIAGNOSIS >[ATX14B]
P1819 TRANSFER CONTROL DEVICE
4. Turn ignition switch ON. (Do not start engine.)
5. Check voltage between transfer shift high relay harness connec-
tor E46 terminal 5 (A), transfer shift low relay harness connector
E47 terminal 5 (B) and ground.
Are the inspection results normal?
YES >> GO TO 4.
NO >> Check the following. If any items are damaged, repair or replace damaged parts. • 20A fuse (No. 57 located in the fuse and relay box).
• Harness for short or open between battery, transfer shift high relay harness connector E46 ter-minal 5 and transfer shift low relay harness connector E47 terminal 5.
4.CHECK HARNESS BETWEEN TRANSFER CONT ROL UNIT AND TRANSFER SHIFT RELAY
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and transfer control device (actuator motor) harness
connector.
3. Remove transfer shift high relay and transfer shift low relay.
4. Check continuity between the following terminals.
- Transfer control unit harness connector E143 terminal 33 and transfer shift high relay harness connector E46 terminal 3.
- Transfer control unit harness connector E143 terminal 42 and
transfer shift low relay harness connector E47 terminal 3.
Also check harness for short to ground and short to power.
Are the inspection results normal?
YES >> GO TO 5.
NO >> Repair or replace damaged parts.
5.CHECK TRANSFER SHIFT RELAY GROUND CIRCUIT
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Remove transfer shift high relay and transfer shift low relay.
3. Check continuity between transfer shift high relay harness con- nector E46 terminals 2, 4, transfer shift low relay harness con-
nector E47 terminals 2, 4 and ground.
Also check harness for short to ground and short to power.
Are the inspection results normal?
YES >> GO TO 6.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to DLN-80, "
Reference Value".
Are the inspection results normal?
YES-1 >> With CONSULT-III: GO TO 7.
YES-2 >> Without CONSULT-III: GO TO 8.
NO >> Check transfer control unit pin terminals fo r damage or loose connection with harness connector.
If any items are damaged, repair or replace damaged parts.
7.PERFORM SELF-DIAGNOSIS (WITH CONSULT-III)
Connector Terminal Voltage (Approx.)
A: E46 5 - Ground
Battery voltage
B: E47 5 - Ground
WDIA0311E
Continuity should exist.
WDIA0315E
Continuity should exist.
WDIA0312E
Revision: March 2010 2008 QX56

P1824 TRANSFER MOTORDLN-61
< COMPONENT DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
P1824 TRANSFER MOTOR
DescriptionINFOID:0000000001737151
Motor does not operate properly due to open or short circuit in transfer motor or transfer motor relay.
DTC LogicINFOID:0000000001737152
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Perform self-diagnosis.
Is DTC P1824 displayed?
YES >> Perform diagnosis procedure. Refer to DLN-61, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000001737153
1.CHECK TRANSFER MOTOR RELAY SIGNAL
With CONSULT-III1. Start engine.
2. Select DATA MONITOR mode for ALL MODE AWD/4WD with CONSULT-III.
3. Read out the value of MOTOR RELAY and MOTOR RELAY MON.
DTC CONSULT-III Diagnostic item is detected when... Reference
[P1824] MOTOR RELAY Motor does not operate properly due to
open or short circuit in transfer motor or
transfer motor relay.Refer to DLN-61
.
Monitored
item Condition Display value
(Approx.)
MOTOR
RELAY • Accelerator ped-
al depressed
• Vehicle stopped
• Engine running
• Brake pedal de- pressed 4WD shift switch: 2WD OFF
4WD shift switch: AUTO or
4LO (A/T selector lever P or N
position)
OFF
(ON for approx.
2 sec. after
shifting to P and
N.)
4WD shift switch: AUTO or
4LO (Except for A/T selector
lever P or N position) ON
4WD shift switch: 4H (A/T se-
lector lever P position) OFF
(ON for approx.
2 sec. after
shifting to P.)
4WD shift switch: 4H (Except
for A/T selector lever P posi-
tion) ON
Revision: March 2010
2008 QX56

DLN-62
< COMPONENT DIAGNOSIS >[ATX14B]
P1824 TRANSFER MOTOR

Without CONSULT-III
1. Start engine.
2. Check voltage between transfer control unit harness connector
terminal and ground.
MOTOR
RELAY
MON • Accelerator ped-
al depressed
• Vehicle stopped
• Engine running
• Brake pedal de- pressed 4WD shift switch: 2WD OFF
4WD shift switch: AUTO or
4LO (A/T selector lever P or N
position)
OFF
(ON for approx.
2 sec. after
shifting to P and
N.)
4WD shift switch: AUTO or
4LO (Except for A/T selector
lever P or N position) ON
4WD shift switch: 4H (A/T se-
lector lever P position) OFF
(ON for approx.
2 sec. after
shifting to P.)
4WD shift switch: 4H (Except
for A/T selector lever P posi-
tion) ON
Monitored
item Condition Display value
(Approx.)
Connector Terminal ConditionVoltage (Approx.)
E142 14 -
Ground • Accelera-
tor pedal
depressed
• Vehicle
stopped
•Engine running
•Brake pedal de-
pressed 4WD shift switch:
2WD
Battery voltage
4WD shift switch:
AUTO or 4LO (A/T
selector lever P or N
position) Battery voltage
(0V for approx. 2
sec. after shifting
to P and N.)
4WD shift switch:
AUTO or 4LO (Ex-
cept for A/T selector
lever P or N position) 0V
4WD shift switch: 4H
(A/T selector lever P
position) Battery voltage
(0V for approx. 2
sec. after shifting
to P.)
4WD shift switch: 4H
(Except for A/T se-
lector lever P posi-
tion) 0V
SDIA2735E
Revision: March 2010
2008 QX56

P1824 TRANSFER MOTORDLN-63
< COMPONENT DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
Are the inspection results normal?
YES >> GO TO 7.
NO >> GO TO 2.
2.CHECK TRANSFER MOTOR RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Connect transfer control unit harness connector.
3. Disconnect transfer motor relay.
4. Check voltage between transfer motor relay harness connector terminals and ground.
5. Turn ignition switch ON. (Do not start engine.)
6. Check voltage between transfer motor relay harness connector terminals and ground.
Are the inspection results normal?
YES >> GO TO 3.
NO >> Check the following. If any items are damaged, repair or replace damaged parts.
• 20A fuse (No. 58 located in the fuse and relay box).
• 10A fuse (No. 26 located in the fuse and fusible link box).
• Harness for short or open between battery and transfer motor relay harness connector E154 ter- minal 5.
• Harness for short or open between transfer shut off relay harness connector E69 terminal 5 and transfer motor relay harness connector E153 terminal 2.
E143 41 -
Ground • Accelera-
tor pedal
depressed
• Vehicle
stopped
•Engine running
•Brake pedal de-
pressed 4WD shift switch:
2WD
0V
4WD shift switch:
AUTO or 4LO (A/T
selector lever P or N
position) 0V
(Battery voltage
for approx. 2 sec.
after shifting to P
and N.)
4WD shift switch:
AUTO or 4LO (Ex-
cept for A/T selector
lever P or N position) Battery voltage
4WD shift switch: 4H
(A/T selector lever P
position) 0V
(Battery voltage
for approx. 2 sec.
after shifting to P.)
4WD shift switch: 4H
(Except for A/T se-
lector lever P posi-
tion) Battery voltage
Connector Terminal
ConditionVoltage (Approx.)
Connector Terminal Voltage (Approx.)
E153 2 - Ground 0V
E154 5 - Ground Battery voltage
WDIA0169E
ConnectorTerminal Voltage (Approx.)
E153 2 - Ground
Battery voltage
E154 5 - Ground
WDIA0170E
Revision: March 2010 2008 QX56

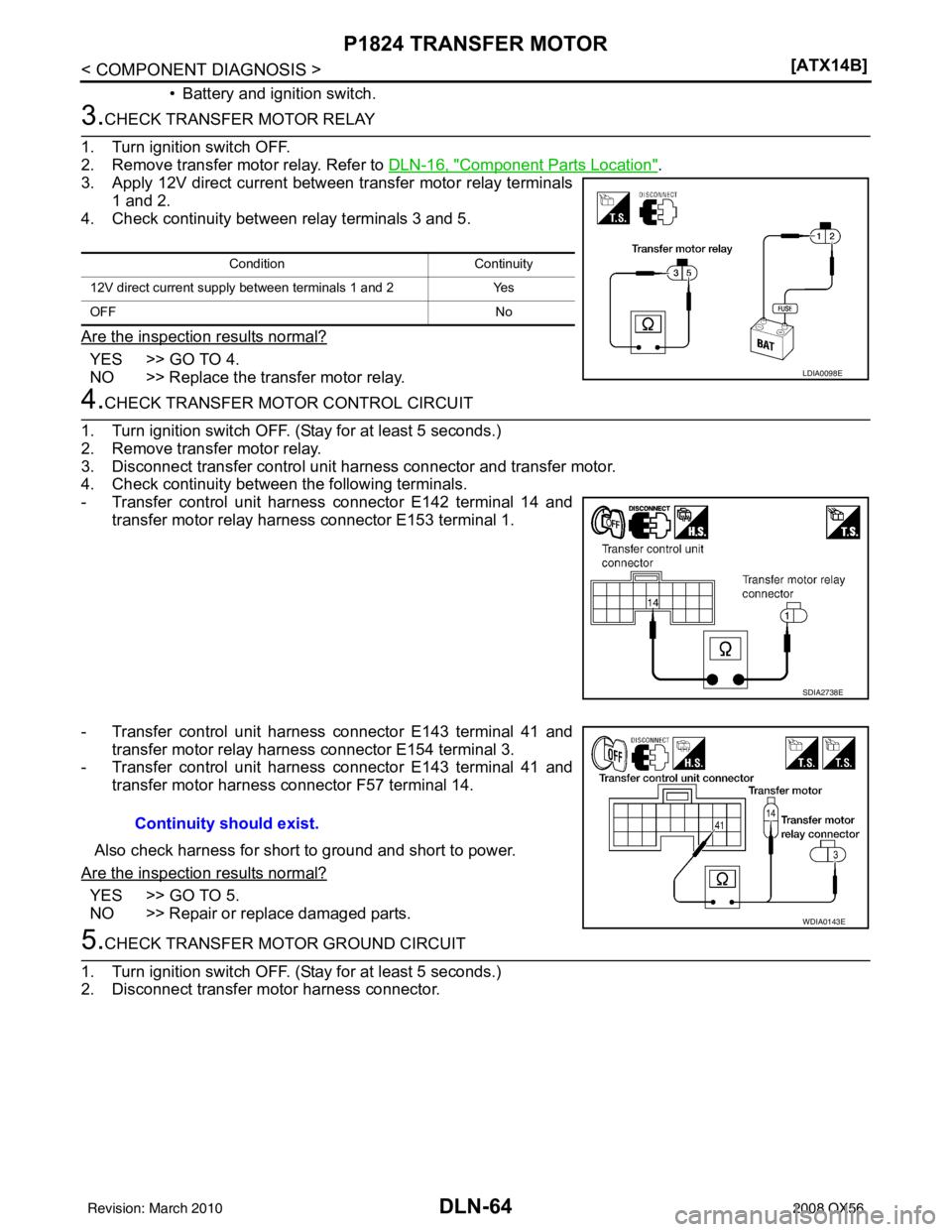

DLN-64
< COMPONENT DIAGNOSIS >[ATX14B]
P1824 TRANSFER MOTOR
• Battery and ignition switch.
3.CHECK TRANSFER MOTOR RELAY
1. Turn ignition switch OFF.
2. Remove transfer motor relay. Refer to DLN-16, "
Component Parts Location".
3. Apply 12V direct current between transfer motor relay terminals 1 and 2.
4. Check continuity between relay terminals 3 and 5.
Are the inspection results normal?
YES >> GO TO 4.
NO >> Replace the transfer motor relay.
4.CHECK TRANSFER MOTOR CONTROL CIRCUIT
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Remove transfer motor relay.
3. Disconnect transfer control unit harness connector and transfer motor.
4. Check continuity between the following terminals.
- Transfer control unit harness connector E142 terminal 14 and transfer motor relay harness connector E153 terminal 1.
- Transfer control unit harness connector E143 terminal 41 and transfer motor relay harness connector E154 terminal 3.
- Transfer control unit harness connector E143 terminal 41 and
transfer motor harness connector F57 terminal 14.
Also check harness for short to ground and short to power.
Are the inspection results normal?
YES >> GO TO 5.
NO >> Repair or replace damaged parts.
5.CHECK TRANSFER MOTOR GROUND CIRCUIT
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer motor harness connector.
Condition Continuity
12V direct current supply between terminals 1 and 2 Yes
OFF No
LDIA0098E
SDIA2738E
Continuity should exist.
WDIA0143E
Revision: March 2010 2008 QX56

P1824 TRANSFER MOTORDLN-65
< COMPONENT DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
3. Check continuity between transfer motor harness connector F57 terminal 15 and ground.
Also check harness for short to ground and short to power.
Are the inspection results normal?
YES >> GO TO 6.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK TRANSFER MOTOR
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer motor harness connector.
3. Apply 12V direct current between transfer motor terminals 14 and 15.
Does transfer motor operate?
YES >> GO TO 7.
NO >> Replace transfer motor. Refer to DLN-138, "
Removal
and Installation".
7.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to DLN-80, "
Reference Value".
Are the inspection results normal?
YES >> GO TO 8.
NO >> Check transfer control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts.
8.CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
Are the inspection results normal?
YES >> Inspection End.
NO >> Replace transfer control unit. Refer to DLN-128, "
Removal and Installation".
Component InspectionINFOID:0000000001737154
TRANSFER MOTOR RELAY
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Remove transfer motor relay. Refer to DLN-16, "
Component Parts Location".
3. Apply 12V direct current between transfer motor relay terminals 1 and 2.
4. Check continuity between relay terminals 3 and 5.
5. If inspection results are abnormal replace transfer motor relay.
TRANSFER MOTOR
Continuity should exist.
SDIA2740E
LDIA0097E
Condition Continuity
12V direct current supply between terminals 1 and 2 Yes
OFF No
LDIA0098E
Revision: March 2010 2008 QX56

DLN-82
< ECU DIAGNOSIS >[ATX14B]
TRANSFER CONTROL UNIT
VHCL/S COMP [km/h] or
[mph]Vehicle speed Vehicle stopped
0 km/h (0 mph)
Vehicle running
CAUTION:
Check air pressure of tire under standard condition. Approximately
equal to the indica-
tion on speedome-
ter (Inside of
±
10%)
COMP CL TORQ [kgm] Condition of control
torque • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 2WD 0 kg-m
4WD shift switch: AUTO
39 - 1,353 N·m
(4 - 138 kg-m, 29 - 998 ft-lb)
4WD shift switch: 4H or
4LO 1,353 N·m
(138 kg-m, 998 ft-
lb)
DUTY SOLENOID [%] Condition of clutch pres-
sure solenoid • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 2WD
4%
4WD shift switch: AUTO 96 - 4%
4WD shift switch: 4H or
4LO 4%
2-4WD SOL [ON/OFF] Condition of 2-4WD shift
solenoid valve • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 2WD
OFF
4WD shift switch: AUTO ON
4WD shift switch: 4H
4WD shift switch: 4LO
4WD shift switch: AUTO
(Wait function is operat-
ing.) OFF
4WD shift switch: 4H
(Wait function is operat-
ing.) OFF
2-4WD SOL MON [ON/
OFF] Check signal for transfer
control unit signal output • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 2WD
OFF
4WD shift switch: AUTO ON
4WD shift switch: 4H
4WD shift switch: 4LO
4WD shift switch: AUTO
(Wait function is operat-
ing.) OFF
4WD shift switch: 4H
(Wait function is operat-
ing.) OFF
MOTOR RELAY [ON/
OFF] Condition of transfer mo-
tor relay • Accelerator pedal de-
pressed
• Vehicle stopped
• Engine running
• Brake pedal depressed 4WD shift switch: 2WD
OFF
4WD shift switch: AUTO
or 4LO (A/T selector lever
P or N position) OFF
(ON for approx. 2 sec. after shifting to P and N.)
4WD shift switch: AUTO
or 4LO (Except for A/T se-
lector lever P or N posi-
tion) ON
4WD shift switch: 4H (A/T
selector lever P position) OFF
(ON fo r appro
x
. 2
sec. after shifting to P.)
4WD shift switch: 4H (Ex-
cept for A/T selector lever
P position) ON
Monitored item [Unit]
Content ConditionDisplay value
Revision: March 2010 2008 QX56

TRANSFER CONTROL UNITDLN-83
< ECU DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
MOTOR RELAY MON
[ON/OFF] Check signal for transfer
control unit signal output • Accelerator pedal de-
pressed
• Vehicle stopped
• Engine running
• Brake pedal depressed 4WD shift switch: 2WD
OFF
4WD shift switch: AUTO
or 4LO (A/T selector lever
P or N position) OFF
(ON for approx. 2
sec. after shifting to P and N.)
4WD shift switch: AUTO
or 4LO (Except for A/T se-
lector lever P or N posi-
tion) ON
4WD shift switch: 4H (A/T
selector lever P position) OFF
(ON for approx. 2
sec. after shifting to P.)
4WD shift switch: 4H (Ex-
cept for A/T selector lever
P position) ON
4WD FAIL LAMP [ON/
OFF] Condition of 4WD warn-
ing lamp 4WD warning lamp: ON
ON
4WD warning lamp: OFF OFF
2WD IND [ON/OFF] Condition of 4WD shift in-
dicator lamp (2WD indi-
cator lamp) 2WD indicator lamp of 4WD shift indicator lamp: OFF
OFF
2WD indicator lamp of 4WD shift indicator lamp: ON ON
AUTO IND [ON/OFF] Condition of 4WD shift in-
dicator lamp (AUTO indi-
cator lamp) AUTO indicator lamp of 4WD shift indicator lamp: OFF
OFF
AUTO indicator lamp of 4WD shift indicator lamp: ON ON
LOCK IND [ON/OFF] Condition of 4WD shift in-
dicator lamp
(Lock indi-
cator lamp) Lock indicator lamp of 4WD shift indicator lamp: OFF
OFF
Lock indicator lamp of 4WD shift indicator lamp: ON ON
4L IND [ON/OFF] Condition of 4LO indica-
tor lamp condition 4LO indicator lamp: OFF
OFF
4LO indicator lamp: ON ON
ATP IND [ON/OFF] Condition of ATP indica-
tor lamp ATP indicator lamp: ON
ON
ATP indicator lamp: OFF OFF
SHIFT POS SW1 [ON/
OFF] Condition of actuator po-
sition switch 1
(Low) • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 4LO
ON
4WD shift switch: 2WD,
AUTO or 4H OFF
SHIFT POS SW2 [ON/
OFF] Condition of actuator po-
sition switch 2
(High) • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 4H,
AUTO or 2WD
ON
4WD shift switch: 4LO OFF
SHIFT ACT1 [ON/OFF] Output condition to actu-
ator motor (High) • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 4H to
4LO (Wait function is op-
era
ti
ng.

) ON
Except the above OFF
SHIFT AC MON1 [ON/
OFF] Check signal for transfer
control unit signal output • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 4H to
4LO (Wait function is op-
erating.)
ON
Except the above OFF
SHIFT ACT2 [ON/OFF] Output condition to actu-
ator motor (Low) • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 4LO to
4H (Wait function is oper-
ating.)
ON
Except the above OFF
Monitored item [Unit]
Content ConditionDisplay value
Revision: March 2010 2008 QX56
