ICC BRAKE SWITCHEC-407
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

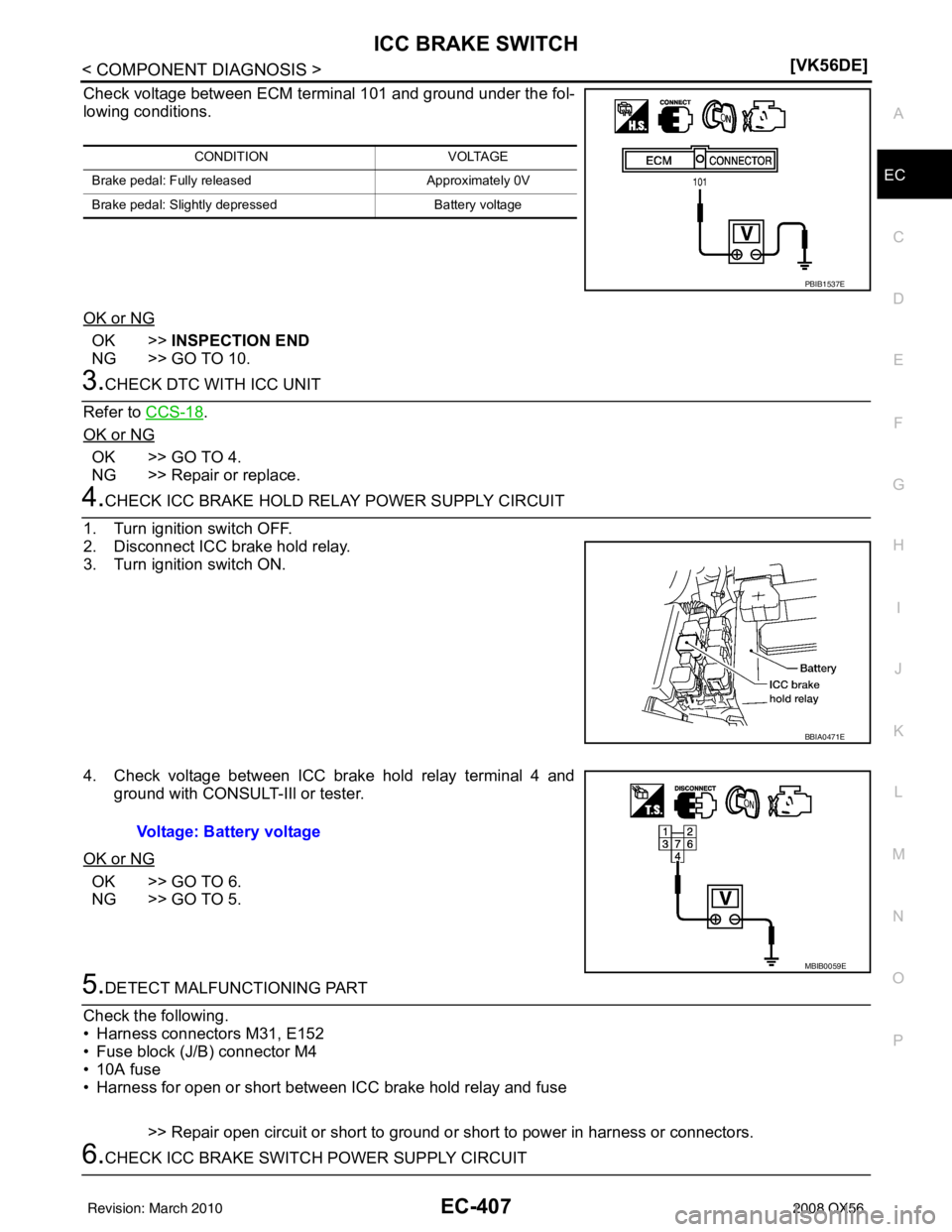

Check voltage between ECM terminal 101 and ground under the fol-
lowing conditions.
OK or NG
OK >>
INSPECTION END
NG >> GO TO 10.
3.CHECK DTC WITH ICC UNIT
Refer to CCS-18
.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace.
4.CHECK ICC BRAKE HOLD RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ICC brake hold relay.
3. Turn ignition switch ON.
4. Check voltage between ICC brake hold relay terminal 4 and ground with CONSULT-IIl or tester.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M31, E152
• Fuse block (J/B) connector M4
• 10A fuse
• Harness for open or short between ICC brake hold relay and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK ICC BRAKE SWITCH POWER SUPPLY CIRCUIT
CONDITION VOLTAGE
Brake pedal: Fully released Approximately 0V
Brake pedal: Slightly depressed Battery voltage
PBIB1537E
BBIA0471E
Voltage: Battery voltage
MBIB0059E
Revision: March 2010 2008 QX56

EC-408
< COMPONENT DIAGNOSIS >[VK56DE]
ICC BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector.
3. Check harness continuity between ICC brake hold relay terminal
3 and ICC brake switch terminal 1.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ICC brake switch terminal 2 and ECM terminal 108. Refer Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK ICC BRAKE HOLD RELAY
Refer to EC-409, "
Component Inspection".
OK >> GO TO 9.
NG >> Replace ICC brake hold relay.
9.CHECK ICC BRAKE SWITCH
Refer to EC-409, "
Component Inspection".
OK or NG
OK >> GO TO 14.
NG >> Replace ICC brake switch.

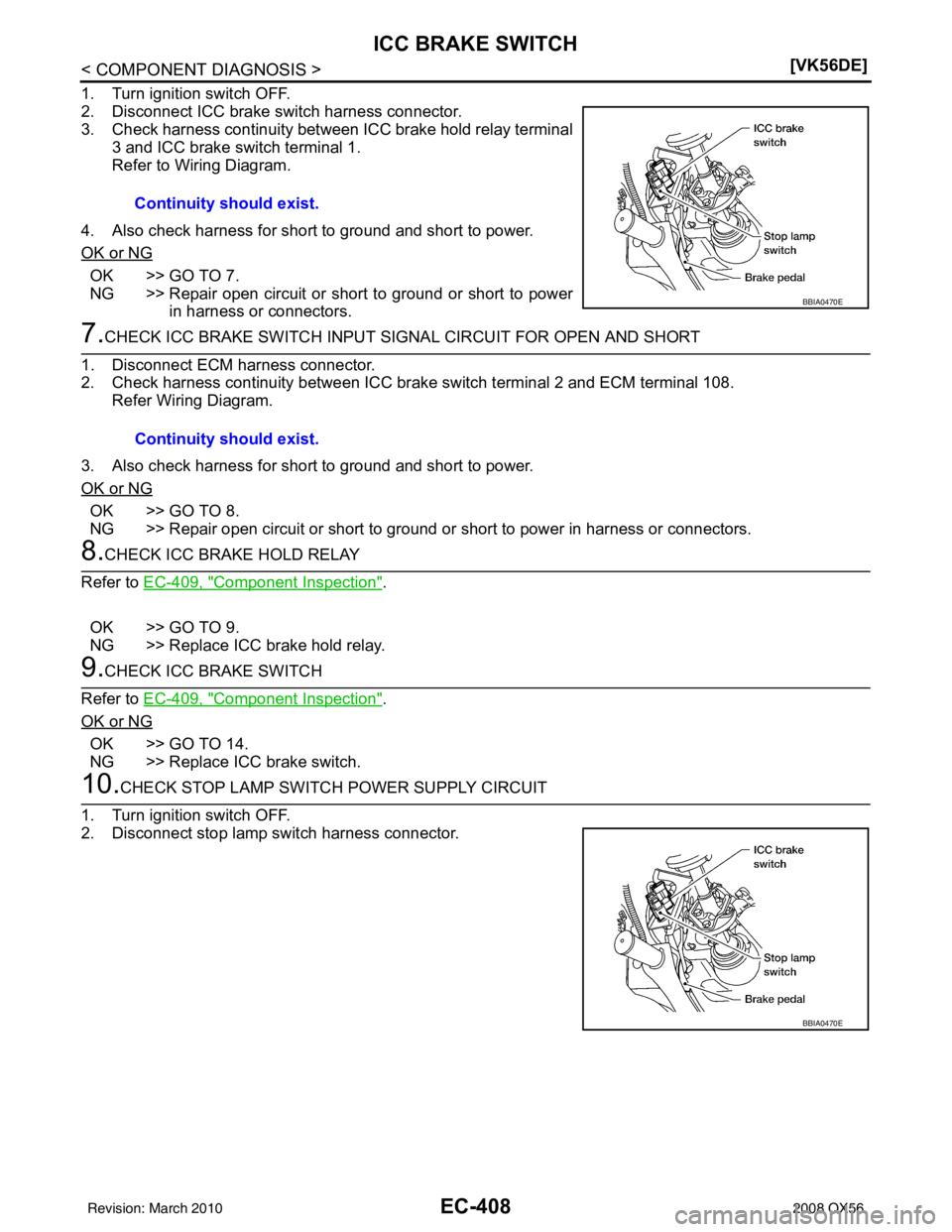

10.CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector. Continuity should exist.
BBIA0470E
Continuity should exist.
BBIA0470E
Revision: March 2010
2008 QX56

EC-410
< COMPONENT DIAGNOSIS >[VK56DE]
ICC BRAKE SWITCH

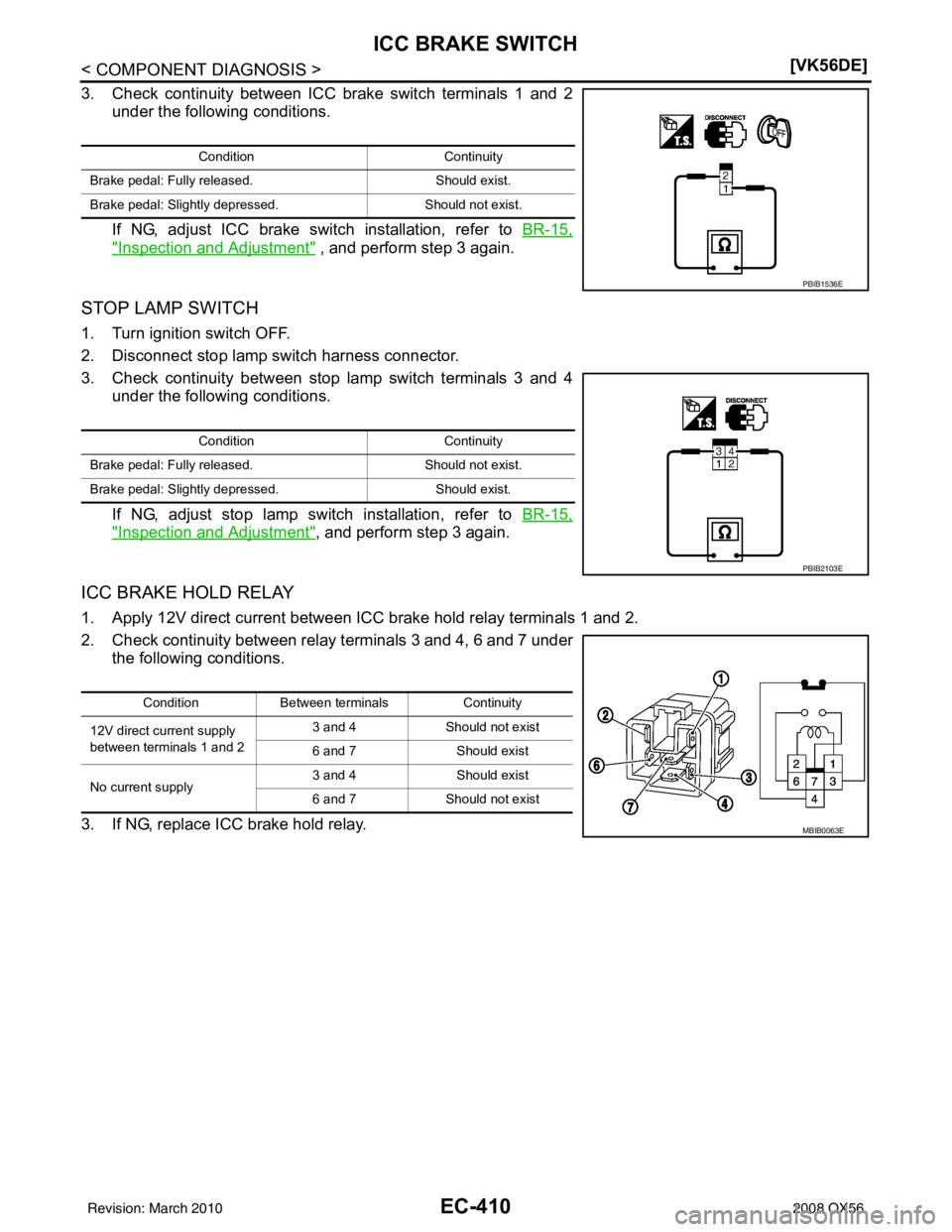

3. Check continuity between ICC brake switch terminals 1 and 2
under the following conditions.
If NG, adjust ICC brake switch installation, refer to BR-15,
"Inspection and Adjustment" , and perform step 3 again.
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check continuity between stop lamp switch terminals 3 and 4under the following conditions.
If NG, adjust stop lamp switch installation, refer to BR-15,
"Inspection and Adjustment", and perform step 3 again.
ICC BRAKE HOLD RELAY
1. Apply 12V direct current between ICC brake hold relay terminals 1 and 2.
2. Check continuity between relay terminals 3 and 4, 6 and 7 under
the following conditions.
3. If NG, replace ICC brake hold relay.
Condition Continuity
Brake pedal: Fully released. Should exist.
Brake pedal: Slightly depressed. Should not exist.
PBIB1536E
ConditionContinuity
Brake pedal: Fully released. Should not exist.
Brake pedal: Slightly depressed. Should exist.
PBIB2103E
ConditionBetween terminals Continuity
12V direct current supply
between terminals 1 and 2 3 and 4
Should not exist
6 and 7 Should exist
No current supply 3 and 4
Should exist
6 and 7 Should not exist
MBIB0063E
Revision: March 2010 2008 QX56

ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-419
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

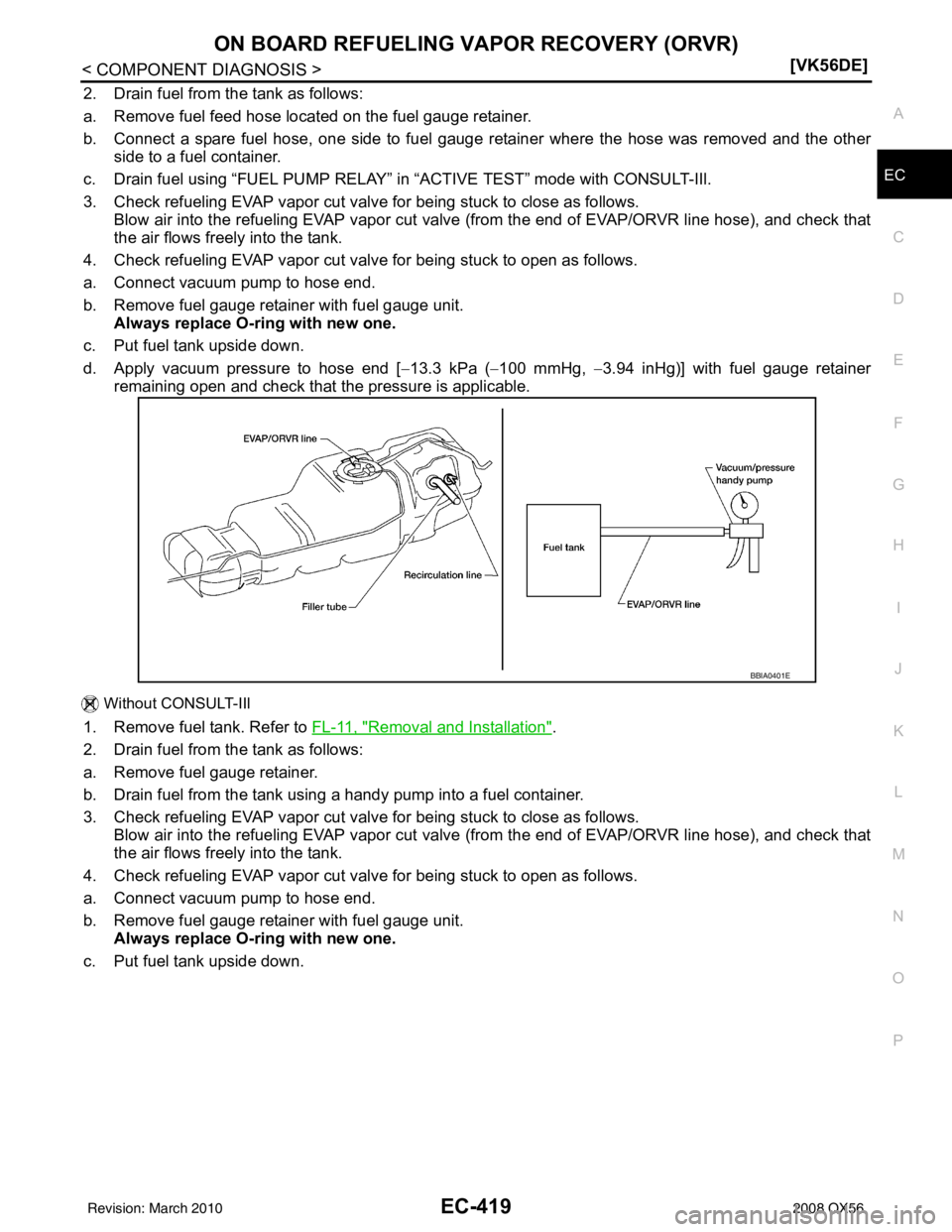

2. Drain fuel from the tank as follows:
a. Remove fuel feed hose located on the fuel gauge retainer.
b. Connect a spare fuel hose, one side to fuel gauge retainer where the hose was removed and the other
side to a fuel container.
c. Drain fuel using “FUEL PUMP RELAY” in “ACTIVE TEST” mode with CONSULT-IIl.
3. Check refueling EVAP vapor cut valve for being stuck to close as follows. Blow air into the refueling EVAP vapor cut valv e (from the end of EVAP/ORVR line hose), and check that
the air flows freely into the tank.
4. Check refueling EVAP vapor cut valve for being stuck to open as follows.
a. Connect vacuum pump to hose end.
b. Remove fuel gauge retainer with fuel gauge unit. Always replace O-ring with new one.
c. Put fuel tank upside down.
d. Apply vacuum pressure to hose end [ −13.3 kPa (− 100 mmHg, −3.94 inHg)] with fuel gauge retainer
remaining open and check that the pressure is applicable.
Without CONSULT-IIl
1. Remove fuel tank. Refer to FL-11, "Removal and Installation".
2. Drain fuel from the tank as follows:
a. Remove fuel gauge retainer.
b. Drain fuel from the tank using a handy pump into a fuel container.
3. Check refueling EVAP vapor cut valve for being stuck to close as follows. Blow air into the refueling EVAP vapor cut valv e (from the end of EVAP/ORVR line hose), and check that
the air flows freely into the tank.
4. Check refueling EVAP vapor cut valve for being stuck to open as follows.
a. Connect vacuum pump to hose end.
b. Remove fuel gauge retainer with fuel gauge unit. Always replace O-ring with new one.
c. Put fuel tank upside down.
BBIA0401E
Revision: March 2010 2008 QX56

ECM
EC-427
< ECU DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
LOAD SIGNAL • Ignition switch: ON
Rear window defogger switch is ON
and/or lighting switch is in 2nd.
ON
Rear window defogger switch is OFF
and lighting switch is OFF. OFF
IGNITION SW • Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW • Engine: After warming up, idle the
engine Heater fan control switch: ON ON
Heater fan control switch: OFF OFF
BRAKE SW • Ignition switch: ON Brake pedal: Fully released
OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1
INJ PULSE-B2 • Engine: After warming up
• Selector lever: P or N
• Air conditioner switch: OFF
• No load Idle
2.0 - 2.8 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING • Engine: After warming up
• Selector lever: P or N
• Air conditioner switch: OFF
• No load Idle
10° - 20 ° BTDC
2,000 rpm 25° - 45 ° BTDC
CAL/LD VALUE • Engine: After warming up
• Selector lever: P or N
• Air conditioner switch: OFF
• No load Idle
14% - 33%
2,500 rpm 12% - 25%
MASS AIRFLOW • Engine: After warming up
• Selector lever: P or N
• Air conditioner switch: OFF
• No load Idle
3.0 - 9.0 g·m/s
2,500 rpm 9.0 - 28.0 g·m/s
PURG VOL C/V • Engine: After warming up
• Selector lever: P or N
• Air conditioner switch: OFF
• No load Idle
(Accelerator pedal: Not depressed
even slightly, after engine starting.)
0%
2,000 rpm —
INT/V TIM (B1)
INT/V TIM (B2) • Engine: After warming up
• Selector lever: P or N
• Air conditioner switch: OFF
• No load Idle
−5° - 5 °CA
2,000 rpm Approx. 0° - 20°CA
INT/V SOL (B1)
INT/V SOL (B2) • Engine: After warming up
• Selector lever: P or N
• Air conditioner switch: OFF
• No load Idle
0% - 2%
2,000 rpm Approx. 25% - 50%
AIR COND RLY • Engine: After warming up, idle the
engine Air conditioner switch: OFF
OFF
Air conditioner switch: ON
(Compressor: Operates) ON
FUEL PUMP RLY • For 1 second after turning ignition switch ON
•
En
g

ine running or cranking ON
• Except above conditions OFF
VENT CONT/V • Ignition switch: ON OFF
THRTL RELAY • Ignition switch: ON ON
COOLING FAN • Engine: After warming up, idle the
engine
• Air conditioner switch: OFF Engine coolant temperature: 99
°C
(210 °F) or less OFF
Engine coolant temperature: 100 °C
(212 °F) or more HI
HO2S2 HTR (B1)
HO2S2 HTR (B2) • Engine speed: Below 3,600 rpm after the following conditions are met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load ON
• Engine speed: Above 3,600 rpm OFF
MONITOR ITEM
CONDITION SPECIFICATION
Revision: March 2010 2008 QX56

ECM
EC-429
< ECU DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

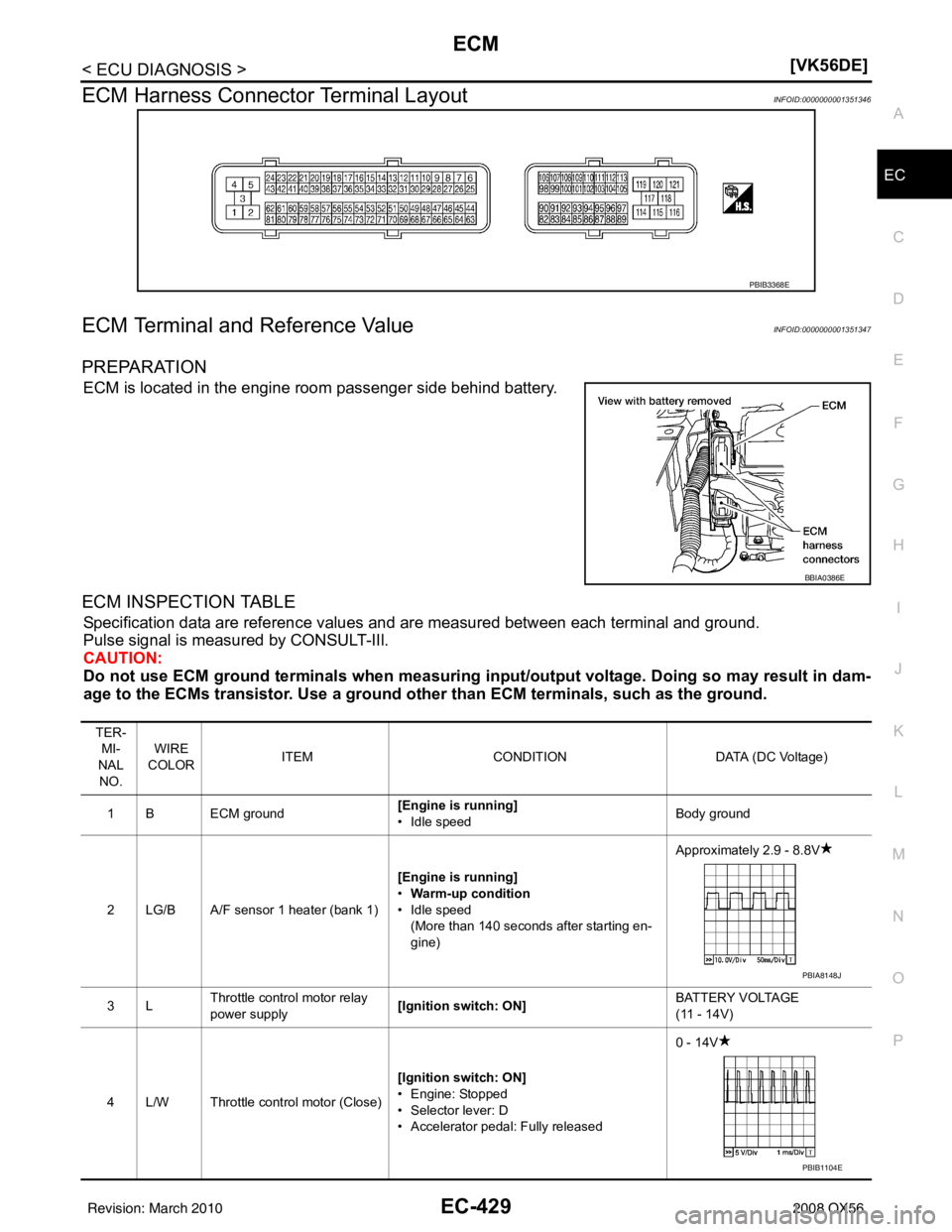

ECM Harness Connector Terminal LayoutINFOID:0000000001351346
ECM Terminal and Reference ValueINFOID:0000000001351347
PREPARATION
ECM is located in the engine room passenger side behind battery.
ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-IIl.
CAUTION:
Do not use ECM ground terminals wh
en measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground ot her than ECM terminals, such as the ground.
PBIB3368E
BBIA0386E
TER-
MI-
NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
1 B ECM ground [Engine is running]
• Idle speedBody ground
2 LG/B A/F sensor 1 heater (bank 1) [Engine is running]
•
Warm-up condition
• Idle speed (More than 140 seconds after starting en-
gine) Approximately 2.9 - 8.8V
3L Throttle contro
l motor relay
power supply [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
4 L/W Throttle cont rol motor (Close)[Ignition switch: ON]
• Engine: Stopped
• Selector lever: D
• Accelerator pedal: Fully released 0 - 14V
PBIA8148J
PBIB1104E
Revision: March 2010
2008 QX56

ECM
EC-437
< ECU DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
99 G/R
ASCD steering switch
(Models with ASCD system) [Ignition switch: ON]
• ASCD steering switch: OFF
Approximately 4V
[Ignition switch: ON]
• MAIN switch: Pressed Approximately 0V
[Ignition switch: ON]
• CANCEL switch: Pressed Approximately 1V
[Ignition switch: ON]
• RESUME/ACCELERATE switch: Pressed Approximately 3V
[Ignition switch: ON]
• SET/COAST switch: Pressed Approximately 2V
101 R/W Stop lamp switch [Ignition switch: OFF]
• Brake pedal: Fully released
Approximately 0V
[Ignition switch: OFF]
• Brake pedal: Slightly depressed BATTERY VOLTAGE
(11 - 14V)
102 GR/R PNP signal [Ignition switch: ON]
• Selector lever: P or N
Approximately 0V
[Ignition switch: ON]
• Except the above gear position BATTERY VOLTAGE
(11 - 14V)
104 O Throttle cont rol motor relay[Ignition switch: OFF]
BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON] 0 - 1.0V
106 BR/W Accelerator pedal position
sensor 1 [Ignition switch: ON]
• Engine: Stopped
• Accelerator pedal: Fully released
0.5 - 1.0V
[Ignition switch: ON]
• Engine: Stopped
• Accelerator pedal: Fully depressed 4.2 - 4.8V
107 V/R Fuel tank temperature sensor [Engine is running]Approximately 0 - 4.8V
Output voltage varies with fuel
tank temperature.
108 BR/W ICC brake switch
(Models with ICC system)
ASCD brake switch
(Models with ASCD system) [Ignition switch: ON]
• Brake pedal: Slightly depressed
Approximately 0V
[Ignition switch: ON]
• Brake pedal: Fully released BATTERY VOLTAGE
(11 - 14V)
109 L/W Ignition switch [Ignition switch: OFF]
0V
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
111 W / B ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]
• For a few seconds after turning ignition
switch OFF 0 - 1.5V
[Ignition switch: OFF]
• More than a few seconds after turning igni- tion switch OFF BATTERY VOLTAGE
(11 - 14V)
11 3 G R F u e l p u m p r e l a y [Ignition switch: ON]
• For 1 second after turning ignition switch
ON
[Engine is running] 0 - 1.5V
[Ignition switch: ON]
• More than 1 second after turning ignition switch ON BATTERY VOLTAGE
(11 - 14V)
TER-
MI-
NAL NO. WIRE
COLOR ITEM
CO
NDITION DA

TA (DC Voltage)
Revision: March 2010 2008 QX56

EC-460
< ECU DIAGNOSIS >[VK56DE]
ECM
• When there is an open circuit on MIL circuit, the ECM cannot warn the driver by lighting up MIL when there
is malfunction on engine control system.
Therefore, when electrical controlled throttle and pa rt of ECM related diagnoses are continuously detected
as NG for 5 trips, ECM warns the driver that engi ne control system malfunctions and MIL circuit is open by
means of operating fail-safe function.
The fail-safe function also operates when above diagnos es except MIL circuit are detected and demands the
driver to repair the malfunction.
DTC No. Detected items Engine operating condition in fail-safe mode
P0102
P0103 Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0117
P0118 Engine coolant tempera-
ture sensor circuit Engine coolant temperature will be determined by ECM based on the following condition.
CONSULT-IIl displays the engine coolant temperature decided by ECM.
Condition Engine coolant temperature decided
(CONSULT-IIl display)
Just as ignition switch is turned ON
or START 40
°C (104 °F)
Approx 4 minutes or more after en-
gine starting. 80
°C (176 °F)
Except as shown above 40 - 80
°C (104 - 176 °F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cooling
fan operates while engine is running.
P0122
P0123
P0222
P0223
P2135 Throttle position sensor The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
P0643 Sensor power supply ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P2100
P2103 Throttle control motor relay ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2101 Electric throttle control function ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2118 Throttle control motor ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P2119 Electric throttle control ac- tuator (When electric throttle control actuator does not function properly due to the return spring
malfunction:)
ECM controls the electric throttle actuator by regulating the throttle opening around the
idle position. The engine speed will not rise more than 2,000 rpm.
(When throttle valve opening angle in fail-safe mode is not in specified range:)
ECM controls the electric throttle control actuator by regulating the throttle opening to 20
degrees or less.
(When ECM detects the throttle valve is stuck open:)
While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the
engine stalls.
The engine can restart in N or P position, and engine speed will not exceed 1,000 rpm or
more.
P2122
P2123
P2127
P2128
P2138 Accelerator pedal position
sensor
The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
Engine operating condition in fail-safe mode
Engine speed will not rise more than 2,500 rpm due to the fuel cut
Revision: March 2010 2008 QX56
