LAN-12
< FUNCTION DIAGNOSIS >[CAN FUNDAMENTAL]
TROUBLE DIAGNOSIS
Example: Vehicle Display
ItemResult indi-
cated Error counter
Description
CAN_COMM
(Initial diagnosis) OK
0 Normal at present
NG 1 – 50 Control unit error
(The number indicates how many times diagnosis has been
run.)
CAN_CIRC_1
(Transmission diagnosis) OK
0 Normal at present
UNKWN 1 – 50 Unable to transmit for 2 seconds or more at present.
(The number indicates how many times diagnosis has been
run.)
CAN_CIRC_2 – 9
(Reception diagnosis of each unit) OK
0 Normal at present
UNKWN 1 – 50 Unable to transmit for 2 seconds or more at present.
(The number indicates how many times diagnosis has been
run.)
Diagnosis not performed.
No control unit for receiving signals. (No applicable optional
parts)
Revision: March 2010
2008 QX56

LAN
DIAGNOSIS AND REPAIR WORKFLOWLAN-19
< BASIC INSPECTION > [CAN FUNDAMENTAL]
C
D
E
F
G H
I
J
K L
B A
O P
N
Some items may not be needed depending on CAN system type of vehicle.

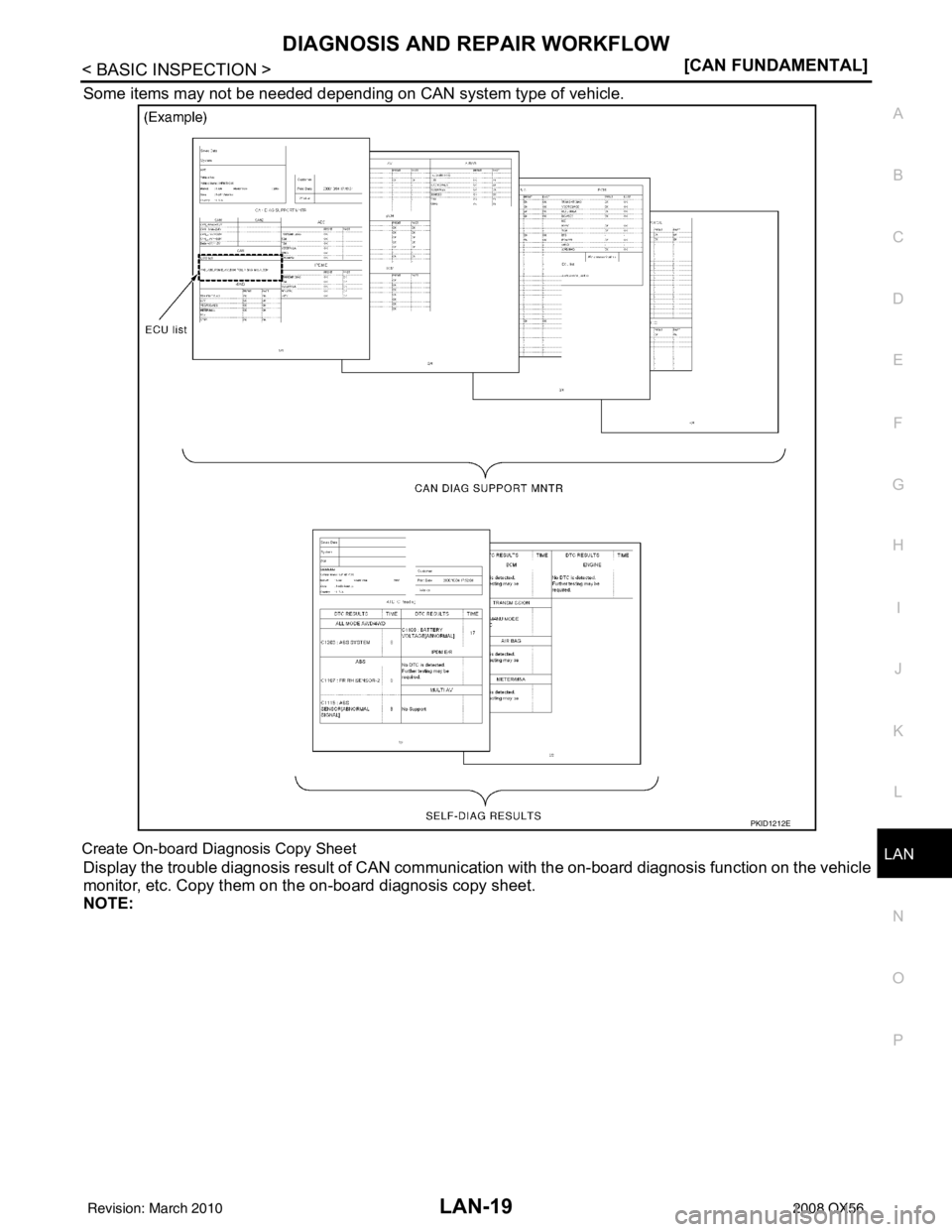

Create On-board Diagnosis Copy Sheet
Display the trouble diagnosis result of CAN communica
tion with the on-board diagnosis function on the vehicle
monitor, etc. Copy them on the on-board diagnosis copy sheet.
NOTE:
PKID1212E
Revision: March 2010 2008 QX56

LAN
CAN COMMUNICATION SYSTEMLAN-45
< FUNCTION DIAGNOSIS > [CAN]
C
D
E
F
G H
I
J
K L
B A
O P
N
Engine speed signal
T RRR R R R R R
Engine status signal TR
Fuel consumption monitor signal TR
RT
ICC steering switch signal TR
Malfunction indicator lamp signal T R
Wide open throttle position signal T R
A/T CHECK indicato r lamp signal T R
A/T fluid temperature sensor signal T R
A/T position indicator lamp signal TR RR
A/T self-diagnosis signal R T
Current gear position signal TR R
Input speed signal R TR
Output shaft revolution signal R TR R
P range signal TR R RR
ICC sensor signal T R
Buzzer output signal TR
TR
ICC OD cancel request signal R RT
ICC operation signal R RT
ICC system display signal TR
System setting signal TRT
RTR
A/C switch/indicator signal TR
RT
A/C switch signal RT R
Blower fan motor switch signal RT
Day time running light request signal TR R
Door lock/unlock status signal TR
Door switch signal R R TR R R
Front fog light request signal TR
Front wiper request signal RT R
High beam request signal TR R
Horn chirp signal TR
Ignition switch signal RTR R
Key fob door unlock signal RT
Key fob ID signal RT
Key switch signal RT
Low beam request signal TR
Position light request signal TR R
Rear window defogger switch signal T RR
Sleep wake up signal RT R R
Theft warning horn request signal TR
Signal name/Connecting unit
ECM
TCM
LASER ICC
ADP AV
BCM
HVAC I-KEY M&A
STRG 4WD
ABS
IPDM-E
Revision: March 2010 2008 QX56

LAN
TROUBLE DIAGNOSISLAN-49
< FUNCTION DIAGNOSIS > [CAN]
C
D
E
F
G H
I
J
K L
B A
O P
N
NOTE:
Replace the unit when “NG” is indicated on the “INITIAL DIAG”.
A/C Auto Amp.
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF→
ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.
Intelligent Key Unit
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF→ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.
Combination Meter
ITEMCAN DIAG SUP-
PORT MNTR DescriptionNormal Error
PRSNT
BCM INITIAL DIAG Status of CAN controller
OKNG
TRANSMIT DIAG Signal transmission status
UNKWN
ECM Signal receiving status from the ECM
IPDM E/R Signal receiving status from the IPDM E/R
METER/M&A Signal receiving status from the combination meter
I-KEY Not used even though indicated
ITEM
CAN DIAG SUP-
PORT MNTR Description Normal
Error
PRSNT PAST PRSNT PAST
HVAC TRANSMIT DIAG Signal transmission status
OKOK
or
1 – 39
*UNKWN 0
ECM Signal receiving status from the ECM
TCM Not used even though indicated
BCM/SEC Signal receiving status from the BCM OKOK
or
1 – 39
*UNKWN 0
VDC/TCS/ABS Signal receivin
g status from the ABS actua-
tor and electric unit (control unit)
IPDM E/R Not used even though indicated
DISPLAY Signal receiving status from the AV control
unit
OKOK
or
1 – 39
*UNKWN 0
I-KEY
Not used even though indicated
EPS
AWD/4WD
e4WD
ICC
LANE KEEP
TIRE-P
ITEM
CAN DIAG SUP-
PORT MNTR Description Normal
Error
PRSNT PAST PRSNT PAST
I-KEY TRANSMIT DIAG Signal transmission status
OKOK
or
1 – 39
*UNKWN 0
ECM
Signal receiving status from the ECM
METER/M&A Signal receiving status from the combina-
tion meter
BCM/SEC Signal receiving status from the BCM
Revision: March 2010 2008 QX56

LAN-50
< FUNCTION DIAGNOSIS >[CAN]
TROUBLE DIAGNOSIS
0: Error at present, 1 – 39: Error in the past (Number m
eans the number of times the ignition switch is turned OFF →ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.
Transfer Control Unit
0: Error at present, 1 – 39: Error in the past (Number m eans the number of times the ignition switch is turned OFF →ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.
ABS Actuator and Electric Unit (Control Unit)
CAUTION:ITEM
CAN DIAG SUP-
PORT MNTR Description Normal
Error
PRSNT PAST PRSNT PAST
M&A TRANSMIT DIAG Signal transmission status
OKOK
or
1 – 39
*UNKWN 0
ECM
Signal receiving status from the ECM
TCM Signal receiving status from the TCM
BCM/SEC Signal receiving status from the BCM
VDC/TCS/ABS Signal receiving stat
us from the ABS actua-
tor and electric unit (control unit)
IPDM E/R Signal receiving status from the IPDM E/R
DISPLAY Not used even though indicated
I-KEY Signal receiving status from the Intelligent
Key unit
OKOK
or
1 – 39
*UNKWN 0
EPS Not used even though indicated
AWD/4WD
e4WD
ICC Signal receiving status from the ICC unit OK OK
or
1 – 39
*UNKWN 0
LANE KEEP Not used even though indicated
TIRE-P
ITEM CAN DIAG SUP-
PORT MNTR Description Normal
Error
PRSNT PAST PRSNT PAST
4WD TRANSMIT DIAG Signal transmission status
OKOK
or
1 – 39
*UNKWN 0
ECM
Signal receiving status from the ECM
VDC/TCS/ABS Signal receiving stat
us from the ABS actua-
tor and electric unit (control unit)
TCM Signal receiving status from the TCM
STRG Signal receiving status from the steering an-
gle sensor
ITEMCAN DIAG SUP-
PORT MNTR DescriptionNormal Error
PRSNT
ABS INITIAL DIAG Status of CAN controller
OKNG
Caution
TRANSMIT DIAG Signal transmission status
UNKWN
ECM Signal receiving status from the ECM
TCM Signal receiving status from the TCM
METER/M&A Not used even though indicated
STRG Signal receiving status from the steering angle sensor
OK UNKWN
ICC Signal receiving status from the ICC unit
AWD/4WD Signal receiving status from the transfer control unit
Revision: March 2010 2008 QX56
