CONTENTS
WIPER & WASHER
BASIC INSPECTION ....... .............................3
DIAGNOSIS AND REPAIR WORKFLOW ..... .....3
Work Flow ........................................................... ......3
FUNCTION DIAGNOSIS ...............................4
FRONT WIPER AND WASHER SYSTEM ..... .....4
System Diagram .................................................. ......4
System Description ...................................................4
Component Parts Location ........................................7
Component Description ............................................7
REAR WIPER AND WASHER SYSTEM ............8
System Diagram .................................................. ......8
System Description ...................................................8
Component Parts Location ......................................10
Component Description ..........................................10
DIAGNOSIS SYSTEM (BCM) ............................11
COMMON ITEM ..................................................... ....11
COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................
11
WIPER ................................................................... ....11
WIPER : CONSULT-III Function (BCM - WIPER) ....11
DIAGNOSIS SYSTEM (IPDM E/R) .....................13
Diagnosis Description ......................................... ....13
CONSULT - III Function (IPDM E/R) .......................15
COMPONENT DIAGNOSIS .........................18
WIPER AND WASHER FUSE ........................ ....18
Description .......................................................... ....18
Diagnosis Procedure ...............................................18
FRONT WIPER MOTOR LO CIRCUIT ...............19
Component Function Check ................................ ....19
Diagnosis Procedure ...............................................19
FRONT WIPER MOTOR HI CIRCUIT ................21
Component Function Check ................................ ....21
Diagnosis Procedure ...............................................21
FRONT WIPER AUTO STOP SIGNAL CIR-
CUIT ..................................................................
23
Component Function Check ....................................23
Diagnosis Procedure ...............................................23
FRONT WIPER MOTOR GROUND CIRCUIT ...25
Diagnosis Procedure ...............................................25
WASHER SWITCH ............................................26
Description ...............................................................26
Component Inspection .............................................26
REAR WIPER MOTOR CIRCUIT ......................28
Component Function Check ....................................28
Diagnosis Procedure ...............................................28
REAR WIPER AUTO STOP SIGNAL CIRCUIT
...
30
Component Function Check ................................ ....30
Diagnosis Procedure ...............................................30
FRONT WIPER AND WASHER SYSTEM ........31
Wiring Diagram ........................................................31
REAR WIPER AND WASHER SYSTEM ..........35
Wiring Diagram ........................................................35
ECU DIAGNOSIS .........................................41
BCM (BODY CONTROL MODULE) .................41
Reference Value .................................................. ....41
Terminal Layout .......................................................43
Physical Values ................................................... ....43
Wiring Diagram ........................................................49
Fail Safe ..................................................................52
DTC Inspection Priority Chart ...............................53
DTC Index ...............................................................53
IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) ................
55
Revision: March 2010 2008 QX56

WW-2
Reference Value .....................................................55
Terminal Layout ......................................................57
Physical Values ......................................................57
Wiring Diagram .......................................................62
Fail Safe .................................................................65
DTC Index ..............................................................67
SYMPTOM DIAGNOSIS .............................68
WIPER AND WASHER SYSTEM SYMPTOMS
...
68
Symptom Table ................................................... ...68
NORMAL OPERATING CONDITION ................71
Description ........................................................... ...71
FRONT WIPER DOES NOT OPERATE ............72
Description ........................................................... ...72
Diagnosis Procedure ..............................................72
PRECAUTION .............................................74
PRECAUTION ... .............................................. ...74
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .............................................................. ...
74
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ..................................
74
ON-VEHICLE REPAIR ................................76
FRONT WIPER ARM ...................................... ...76
Front Wiper Arms ................................................. ...76
FRONT WIPER DRIVE ASSEMBLY .................77
Wiper Motor and Linkage ..................................... ...77
FRONT WASHER TUBE ...................................78
Washer Tube Layout ............................................ ...78
FRONT WASHER NOZZLE ..............................79
Washer Nozzle Adjustment .................................. ...79
WASHER TANK ................................................80
Washer Fluid Reservoir ..........................................80
FRONT WASHER PUMP ..................................81
Washer Motor ...................................................... ...81
FRONT WIPER AND WASHER SWITCH .........82
Wiper and Washer Switch .................................... ...82
REAR WIPER AND WASHER SYSTEM ...........83
Rear Wiper Arm ................................................... ...83
Rear Wiper Motor ....................................................83
Rear Washer Nozzle Adjustment ............................84
Rear Washer Tube Layout ......................................85
Rear Washer Nozzle ...............................................85
Rear Wiper and Washer Switch ..............................85
Washer Fluid Reservoir ....................................... ...86
Washer Motor .........................................................86
Revision: March 2010 2008 QX56

WW-4
< FUNCTION DIAGNOSIS >
FRONT WIPER AND WASHER SYSTEM
FUNCTION DIAGNOSIS
FRONT WIPER AND WASHER SYSTEM
System DiagramINFOID:0000000001735565
System DescriptionINFOID:0000000001735566
OUTLINE
The front wiper is controlled by each function of BCM and IPDM E/R.
Control by BCM
• Combination switch reading function
• Front wiper control function
Control by IPDM E/R
• Front wiper control function
• Relay control function
FRONT WIPER BASIC OPERATION
• BCM detects the combination switch conditi on by the combination switch reading function.
• BCM transmits the front wiper request signal to IPDM E/R with CAN communication depending on each
operating condition of the front wiper.
• IPDM E/R turns ON/OFF the integrated front wiper rela y and the front wiper high relay according to the front
wiper request signal. IPDM E/R provides the power supply to operate the front wiper HI/LO operation.
FRONT WIPER LO OPERATION
• BCM transmits the front wiper request signal (LO) to IPDM E/R with CAN communication according to the
front wiper LO operating condition.
Front wiper LO operating condition
- Ignition switch ON
- Front wiper switch LO or front wiper switch MIST (while pressing)
• IPDM E/R turns ON the integrated front wiper rela y according to the front wiper request signal (LO).
FRONT WIPER HI OPERATION
• BCM transmits the front wiper request signal (HI) to IPDM E/R with CAN communication according to the
front wiper HI operating condition.
Front wiper HI operating condition
- Ignition switch ON
- Front wiper switch HI
• IPDM E/R turns ON the integrated front wiper relay and the front wiper high relay according to the front wiper request signal (HI).
FRONT WIPER INT OPERATION (L INKED WITH VEHICLE SPEED)
ALLIA0427GB
Revision: March 2010 2008 QX56

FRONT WIPER AND WASHER SYSTEMWW-7
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
Component Parts LocationINFOID:0000000001735567
Component DescriptionINFOID:0000000001735568
1. IPDM E/R E121, E122, E124 2. Air cleaner case 3. Front and rear washer motor E105
4. Washer fluid reservoir 5. Front wiper motor E23
(view with cowl top removed) 6. Combination switch M28
7. BCM M18, M20
ALLIA0841ZZ
Part Description
BCM • Judges each switch status by the combination switch reading function.
• Requests (with CAN communication) the front wiper relay and the front wiper high relay ON to
IPDM E/R.
IPDM E/R • Controls the integrated relay according to the request (with CAN communication) from BCM.
• Performs the auto stop control of the front wiper.
Combination switch
(Wiper and washer
switch) Refer to WW-4, "
System Diagram".
Combination meter Transmits the vehicle speed signal to BCM with CAN communication.
Revision: March 2010 2008 QX56

WW-8
< FUNCTION DIAGNOSIS >
REAR WIPER AND WASHER SYSTEM
REAR WIPER AND WASHER SYSTEM
System DiagramINFOID:0000000001735569
System DescriptionINFOID:0000000001735570
OUTLINE
The rear wiper is controlled by each function of BCM.
Control by BCM• Combination switch reading function
• Rear wiper control function
REAR WIPER BASIC OPERATION
• BCM detects the combination switch condition by the combination switch reading function.
• BCM controls the rear wiper to start or stop.
REAR WIPER ON OPERATION
• BCM supplies power to the rear wiper motor ac cording to the rear wiper ON operating condition.
Rear wiper ON operating condition
- Ignition switch ON
- Rear wiper switch ON
REAR WIPER INT OPERATION
• BCM supplies power to the rear wiper motor according to the INT operating condition.
Rear wiper INT operating condition- Ignition switch ON
- Rear wiper switch INT
• BCM controls the rear wiper to operate once.
• BCM detects the rear wiper motor stopping position.
• BCM supplies power to the rear wiper motor after an intermittent from the stop of the rear wiper motor.
REAR WIPER AUTO STOP OPERATION
• BCM stops supplying power to the rear wiper motor when the rear wiper switch is turned OFF.
ALLIA0271GB
JPLIA0165GB
Revision: March 2010 2008 QX56

WW-10
< FUNCTION DIAGNOSIS >
REAR WIPER AND WASHER SYSTEM
Component Parts Location
INFOID:0000000001735571
Component DescriptionINFOID:0000000001735572
1. Steering column (v iew with instrument
panel removed) 2. BCM M18, M19, M20
3. Rear washer nozzle
4. Rear wiper motor D704 5. Air cleaner case6. Front and rear washer motor connector
E105
7. Washer fluid reservoir 8. Combination switch M28 9. Glass hatch ajar switch D707
ALLIA0842ZZ
Part Description
BCM • Judges each switch status by the combination switch reading function.
• Supplies power to the rear wiper motor.
• Performs the auto stop control of the rear wiper.
Combination switch
(Wiper and washer switch) Refer to BCS-7, "
System Diagram".
Revision: March 2010
2008 QX56

FRONT WIPER AND WASHER SYSTEMWW-31
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
FRONT WIPER AND WASHER SYSTEM

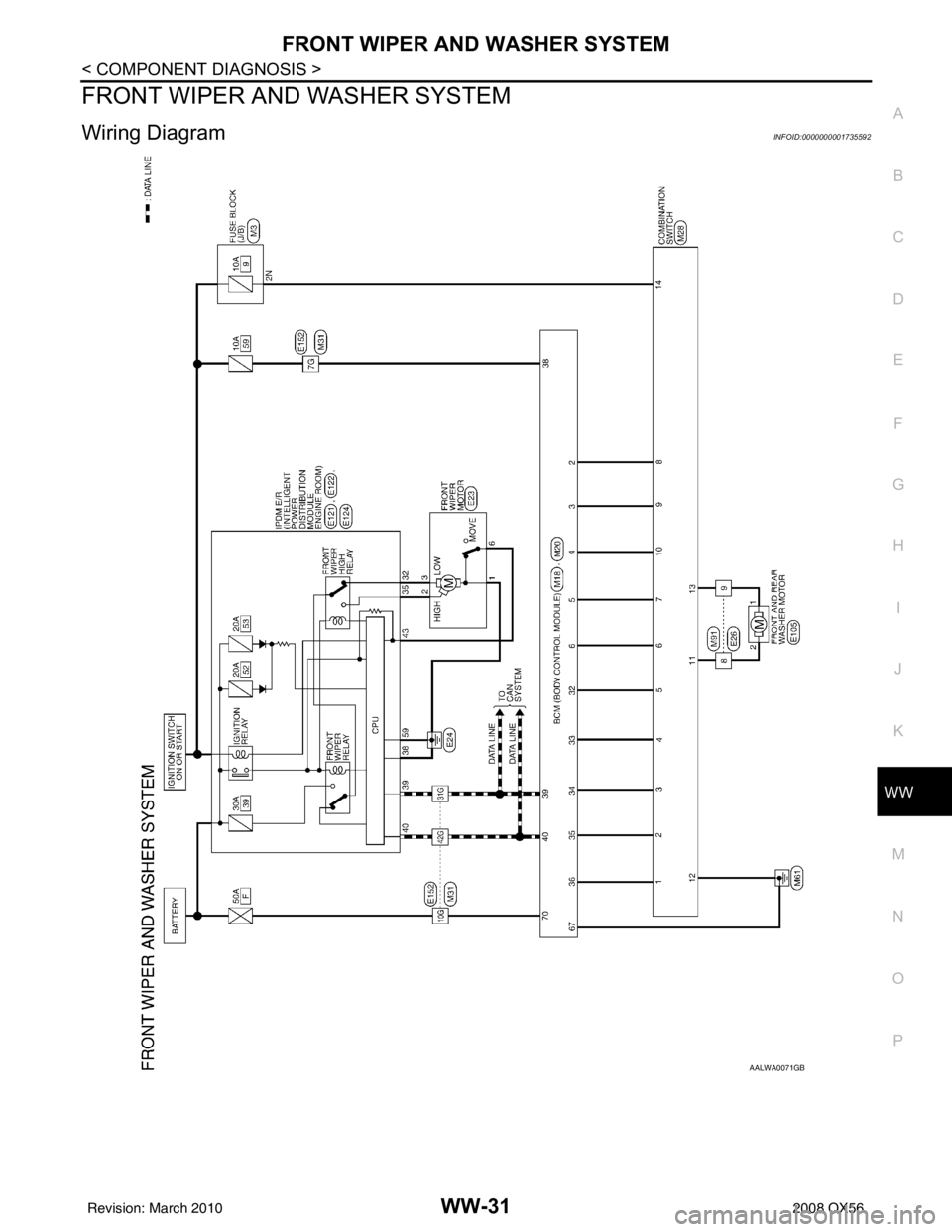

Wiring DiagramINFOID:0000000001735592
AALWA0071GB
Revision: March 2010 2008 QX56
