THIRD SEATSE-81
< DISASSEMBLY AND ASSEMBLY >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
Third seat RH
LIIA2323E
1. RH third seat assembly 2. Seatback assembly 3. Seatback pad
4. Seatback trim cover 5. Seat cushion assembly 6. Seat cushion trim cover
7. Seat cushion pad 8. Flex mat springs 9. Flex mat
10. Front link covers 11. Seat cushion frame 12. RH hinge cover
13. LH hinge cover 14. Seatback frame assembly 15. Seatback board
16. Seatback cable assembly 17. Release handle bezel 18. Headrest holder, locking
19. Headrest holder, free 20. Headrest
Revision: March 2010 2008 QX56

THIRD SEATSE-83
< DISASSEMBLY AND ASSEMBLY >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
Power FoldingINFOID:0000000001606230
Exploded ViewINFOID:0000000001606231

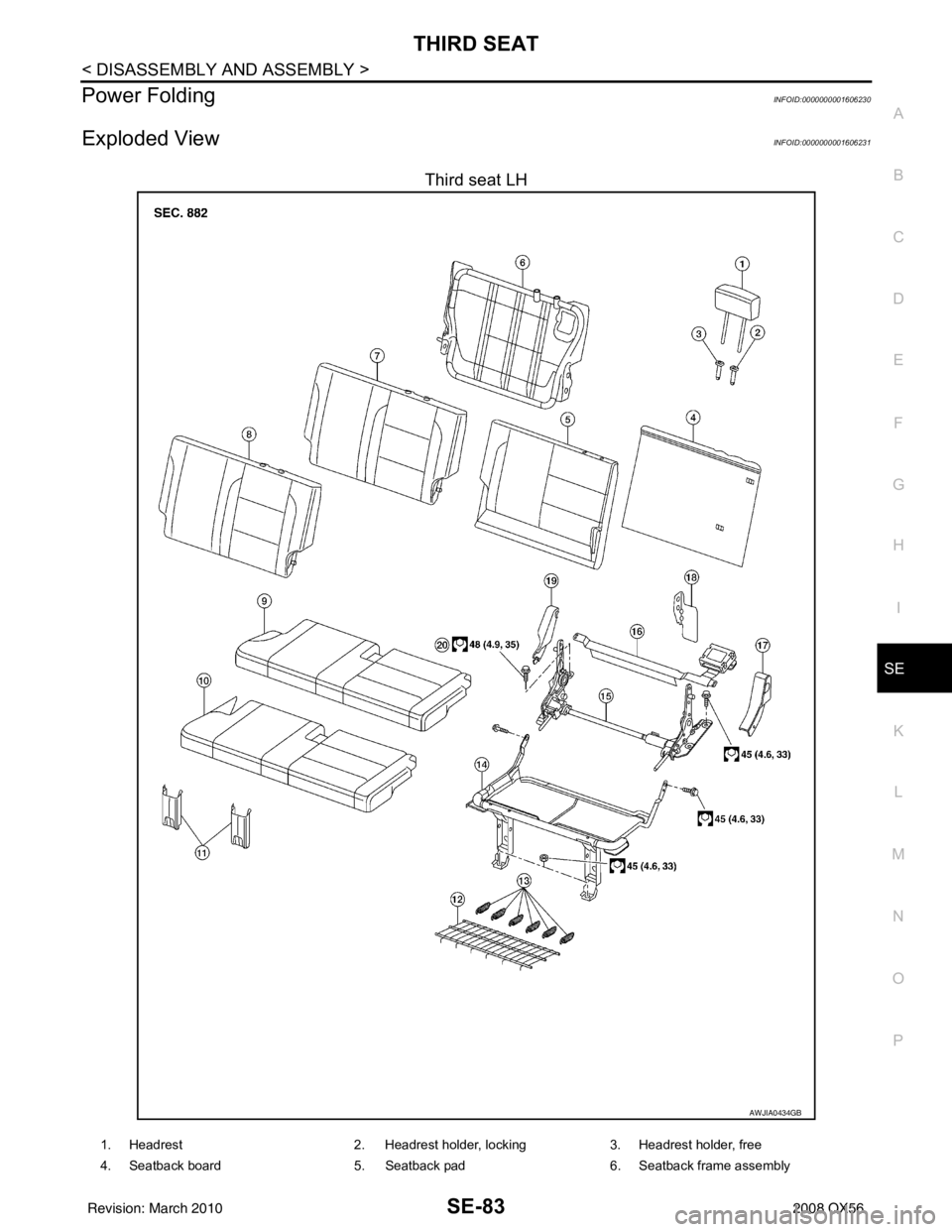

Third seat LH
AWJIA0434GB
1. Headrest 2. Headrest holder, locking 3. Headrest holder, free
4. Seatback board 5. Seatback pad 6. Seatback frame assembly
Revision: March 2010 2008 QX56

THIRD SEATSE-85
< DISASSEMBLY AND ASSEMBLY >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

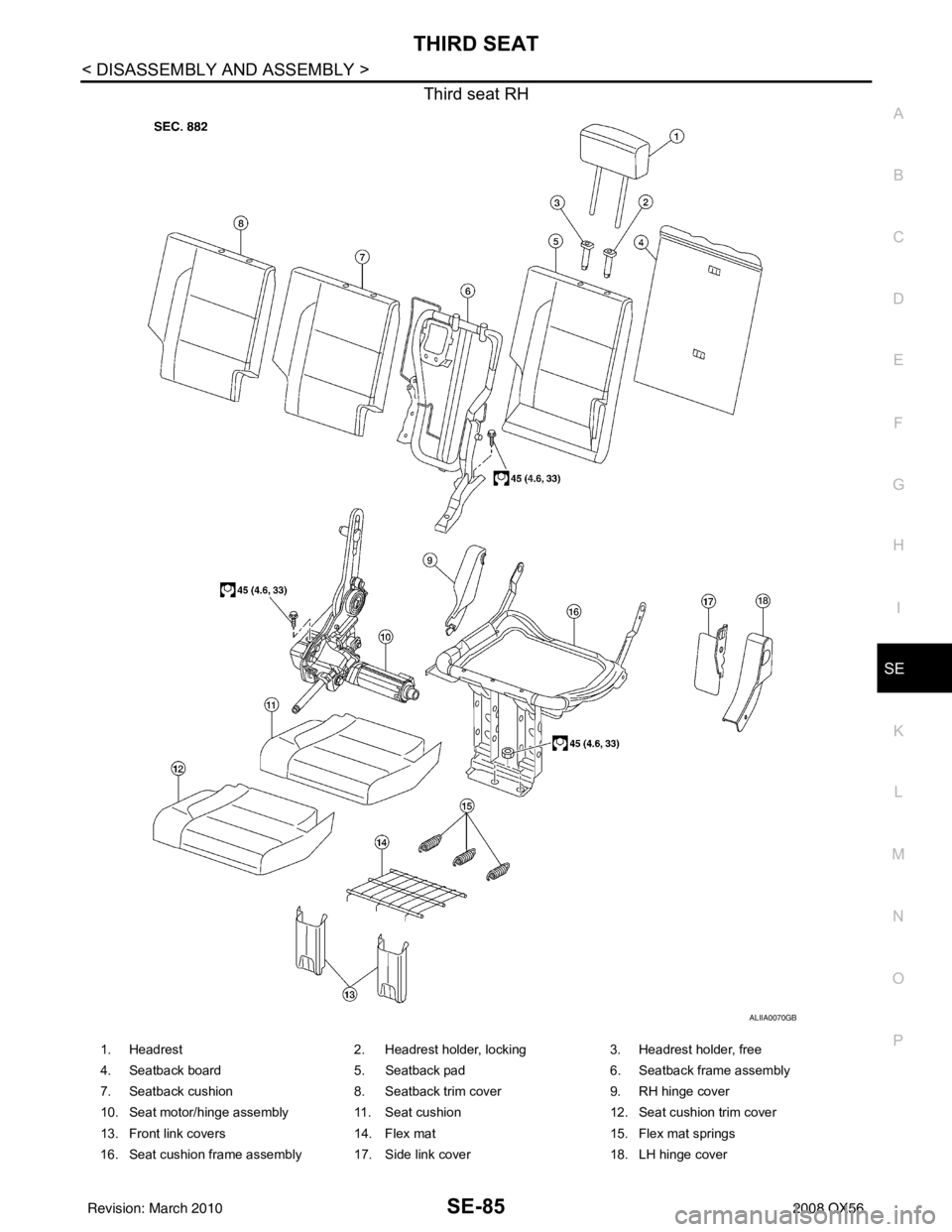

Third seat RH
ALIIA0070GB
1. Headrest 2. Headrest holder, locking 3. Headrest holder, free
4. Seatback board 5. Seatback pad 6. Seatback frame assembly
7. Seatback cushion 8. Seatback trim cover 9. RH hinge cover
10. Seat motor/hinge assembly 11. Seat cushion 12. Seat cushion trim cover
13. Front link covers 14. Flex mat 15. Flex mat springs
16. Seat cushion frame assembly 17. Side link cover 18. LH hinge cover
Revision: March 2010 2008 QX56
