FRONT SEATSE-49
< ON-VEHICLE REPAIR >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
Removal and InstallationINFOID:0000000001606205
REMOVAL
When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.
CAUTION:
• Before removing the front seat, turn the ignition switch off, disconnect both battery cables and wait
at least 3 minutes.
• When checking the power seat circuit for continuity using a circuit tester, do not confuse its connec-
tor with the side air bag module connector. Su ch an error may cause the air bag to deploy.
• Do not drop, tilt, or bump the side air bag modul e while installing the seat. Always handle it with
care.
• After front side air bag module inflat es, front seatback assembly must be replaced.
• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-
ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect
the Occupant Classificatio n System calibration.
• Always replace passenger seat cushion as an assembly.
1. Slide the seat until the four body mounting bolts are visible and a tool can be inserted.
NOTE:
• If disassembling the seat after removal, set the front/rear cushion lifters to the top position.
2. Disconnect both battery cables and wait at least 3 minutes.
3. Disconnect the side air bag module harness connector.
4. Remove the four body mounting bolts.
5. Disconnect the power seat harness connectors and remove the seat from the vehicle.
NOTE:
When removing and installing the seat, use shop cloths to protect the vehicle from damage.
INSTALLATION
• Installation is in the reverse order of removal.
19. Outer pedestal finisher20. Seat cushion outer finisher21. Seat cushion assembly
22. Power seat switch escutcheon 23. Slide switch knob 24. Recliner switch knob
25. Seatback assembly 26. Headrest holder27. Seat slide/ recline switch
28. Power lumbar switch
Revision: March 2010 2008 QX56

SE-50
< ON-VEHICLE REPAIR >
SECOND SEAT
SECOND SEAT
Exploded ViewINFOID:0000000001606261

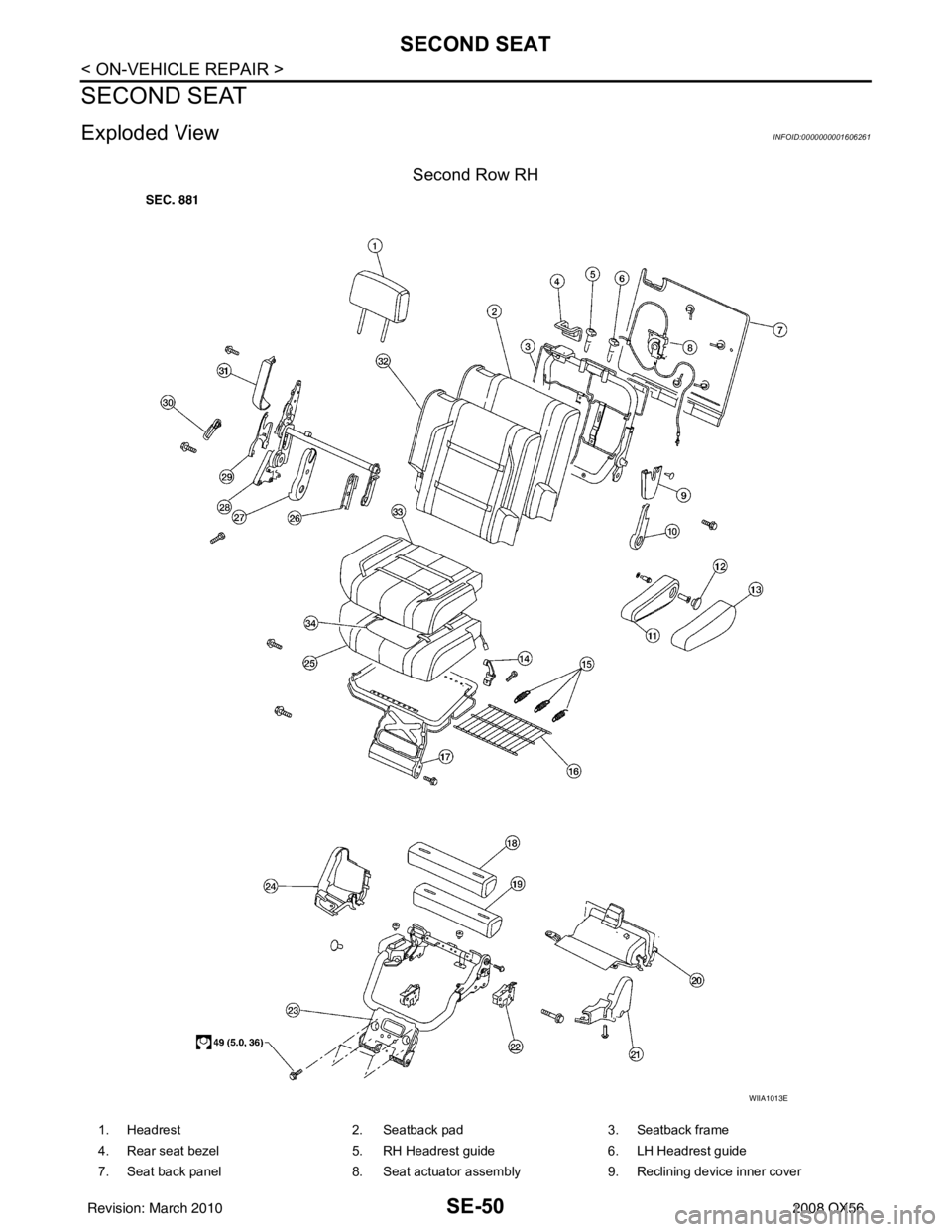

Second Row RH
WIIA1013E
1. Headrest 2. Seatback pad 3. Seatback frame
4. Rear seat bezel 5. RH Headrest guide 6. LH Headrest guide
7. Seat back panel 8. Seat actuator assembly 9. Reclining device inner cover
Revision: March 2010 2008 QX56

SE-52
< ON-VEHICLE REPAIR >
SECOND SEAT

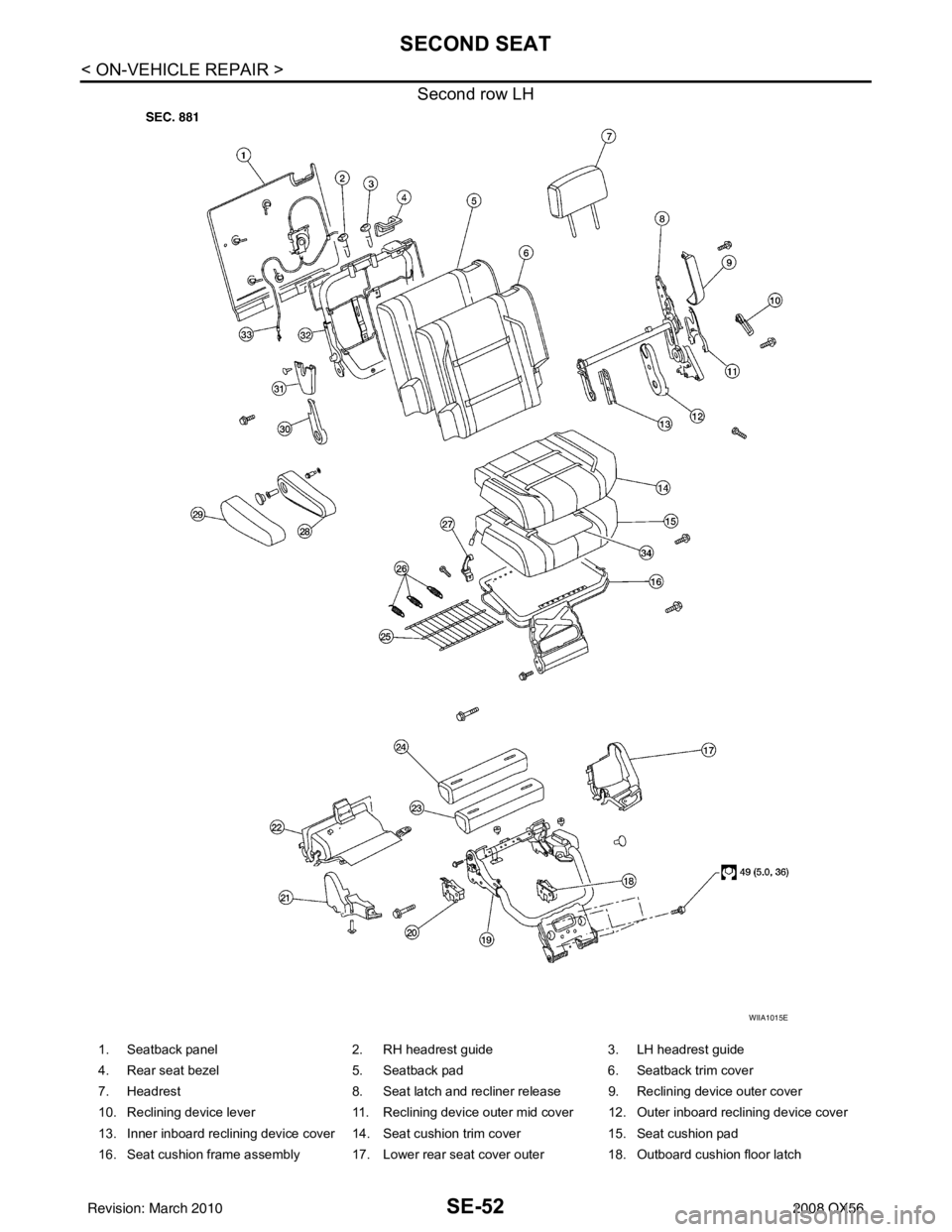

Second row LH
WIIA1015E
1. Seatback panel2. RH headrest guide 3. LH headrest guide
4. Rear seat bezel 5. Seatback pad 6. Seatback trim cover
7. Headrest 8. Seat latch and recliner release 9. Reclining device outer cover
10. Reclining device lever 11. Reclining device outer mid cover 12. Outer inboard reclining device cover
13. Inner inboard reclining device cover 14. Seat cushion trim cover 15. Seat cushion pad
16. Seat cushion frame assembly 17. Lower rear seat cover outer 18. Outboard cushion floor latch
Revision: March 2010 2008 QX56

SE-54
< ON-VEHICLE REPAIR >
SECOND SEAT
Removal and Installation
INFOID:0000000001606207
Second Row Outboard
Removal
1. Remove seat base trim cover.
2. Lift handle and tilt seat forward.
3. DIsconnect the seat cushion heating element electrical connec- tor.
4. Remove seat anchor nuts, bolts and seat assembly.
Installation
Installation is in the reverse order of removal.
Second Row Center
Removal
1. Tilt the seat cushion forward.
2. Remove the seat anchor bolts.
3. Tilt the seat cushion back and remove the seat.
Installation
Installation is in the reverse order of removal.
1. Seatback pad 2. Armrest finisher 3. Headrest
4. Seat belt retractor cover 5. Seat belt bezel 6. RH headrest guide locking
7. LH headrest guide free 8. Seatback board 9. Seat bracket cover
10. Armrest pivot bracket cover 11. Seatback frame 12. Seat cushion frame
13. Latch assembly 14. Lower rear pivot bracket support 15. Outer hinge cover
16. Center seat base assembly 17. Link and pivot bracket apron 18. Seat cushion pad
19. Seat cushion trim cover 20. Cushion stop bumper 21. Inner lever cover
22. Seat hinge assembly 23. Seat lever assembly 24. Outer lever cover
25. Seat lock cover 26. Armrest cover 27. Armrest bracket
28. Armrest pad 29. Cup holder 30. Seatback trim cover
31. Seat belt assembly
LIIA1119E
LIIA1116E
Revision: March 2010 2008 QX56

SE-56
< ON-VEHICLE REPAIR >
THIRD SEAT
1. LH third seat assembly2. Seatback assembly 3. Seatback trim cover
4. Seat cushion assembly 5. Seat cushion pad 6. Seat cushion trim cover
7. Flex mat springs 8. Flex mat 9. Front link covers
10. RH hinge cover 11. Seat cushion frame 12. LH hinge cover
13. Seatback frame assembly 14. Seatback cable assembly 15. Release handle bezel
16. Seatback board 17. Seatback pad 18. Headrest holder, locking
19. Headrest holder, free 20. Headrest 21. Seat belt buckle bolt
Revision: March 2010 2008 QX56

THIRD SEATSE-57
< ON-VEHICLE REPAIR >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

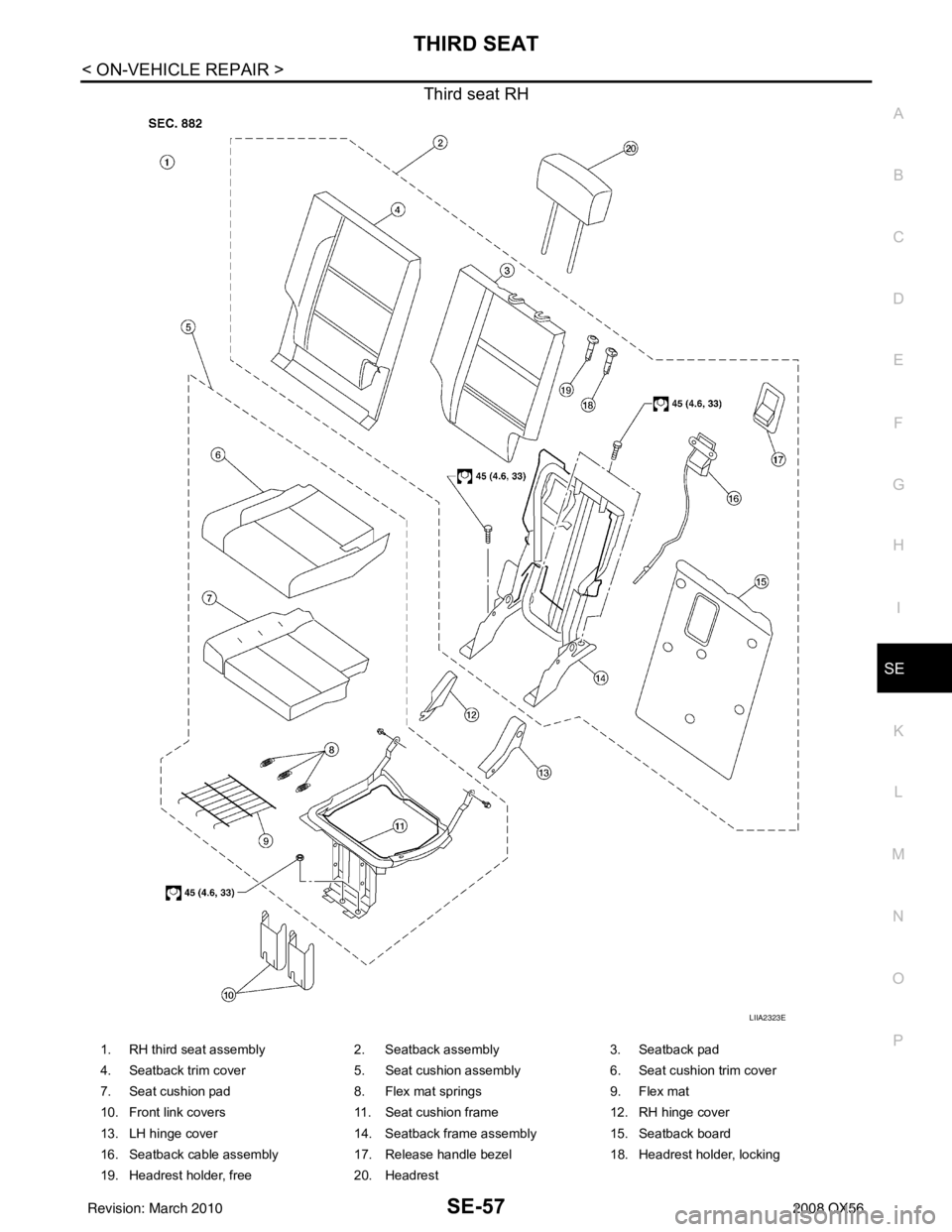

Third seat RH
LIIA2323E
1. RH third seat assembly 2. Seatback assembly 3. Seatback pad
4. Seatback trim cover 5. Seat cushion assembly 6. Seat cushion trim cover
7. Seat cushion pad 8. Flex mat springs 9. Flex mat
10. Front link covers 11. Seat cushion frame 12. RH hinge cover
13. LH hinge cover 14. Seatback frame assembly 15. Seatback board
16. Seatback cable assembly 17. Release handle bezel 18. Headrest holder, locking
19. Headrest holder, free 20. Headrest
Revision: March 2010 2008 QX56

SE-60
< ON-VEHICLE REPAIR >
THIRD SEAT
Power Folding
INFOID:0000000001606221
Exploded ViewINFOID:0000000001606222

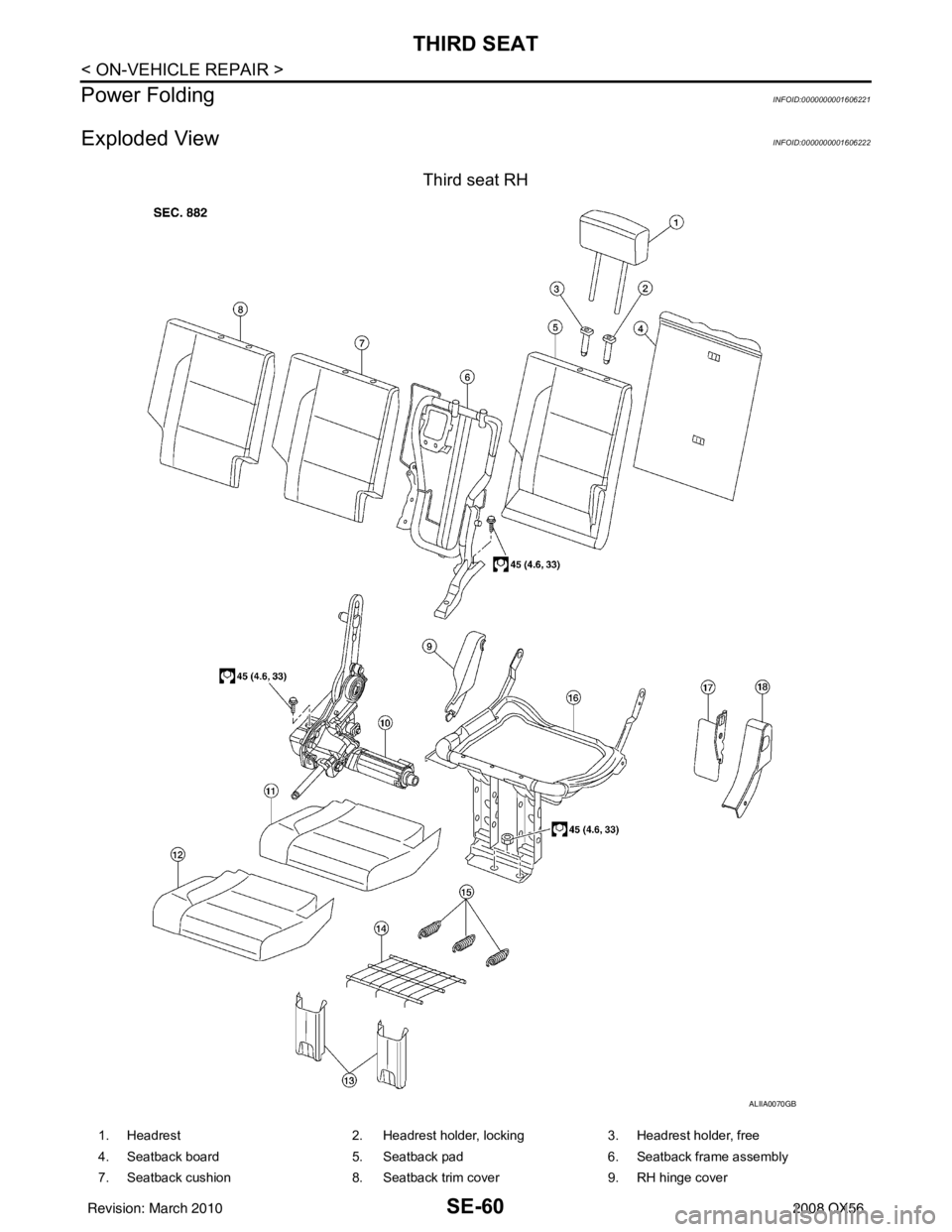

Third seat RH
ALIIA0070GB
1. Headrest 2. Headrest holder, locking 3. Headrest holder, free
4. Seatback board 5. Seatback pad 6. Seatback frame assembly
7. Seatback cushion 8. Seatback trim cover 9. RH hinge cover
Revision: March 2010 2008 QX56

THIRD SEATSE-61
< ON-VEHICLE REPAIR >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

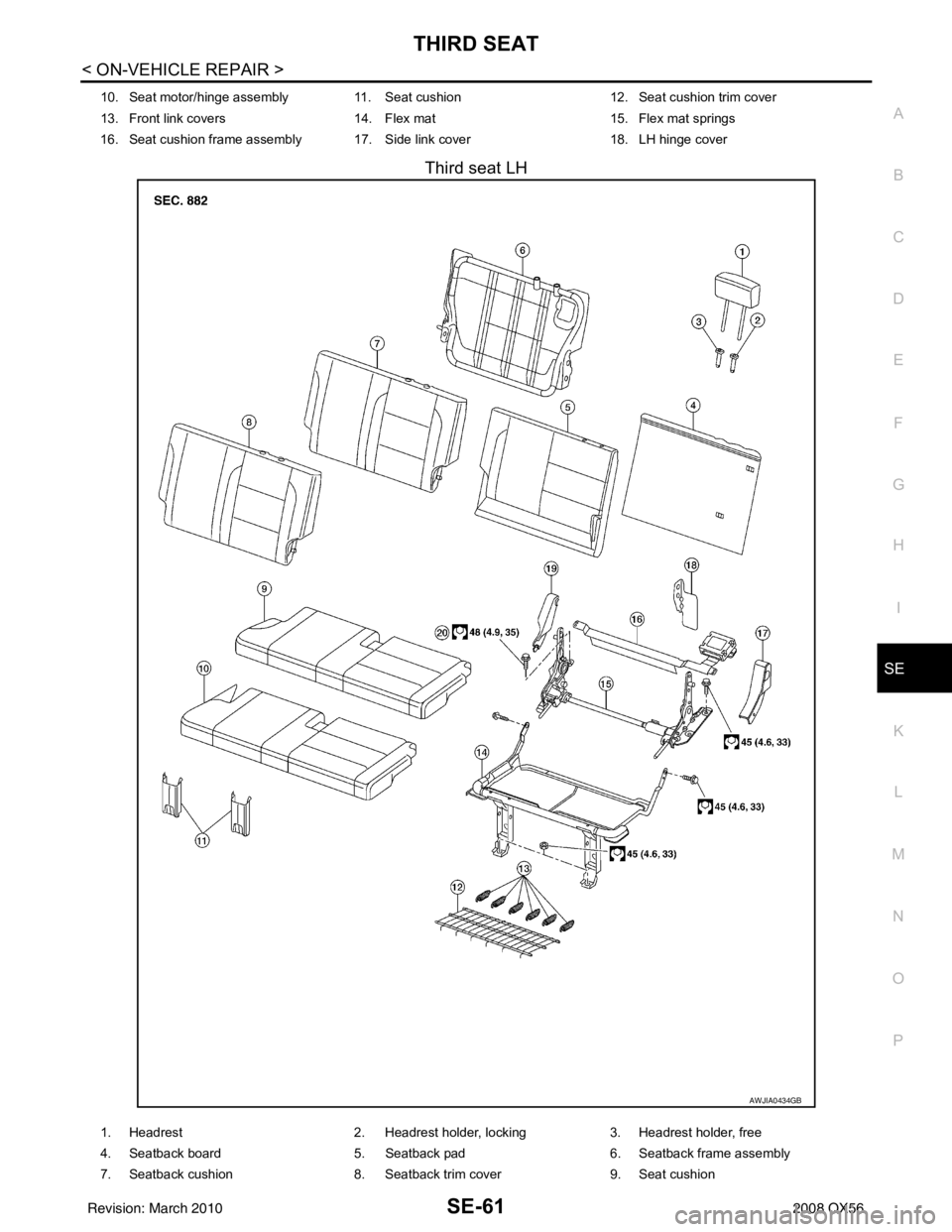

Third seat LH
10. Seat motor/hinge assembly 11. Seat cushion 12. Seat cushion trim cover
13. Front link covers 14. Flex mat 15. Flex mat springs
16. Seat cushion frame assembly 17. Side link cover 18. LH hinge cover
AWJIA0434GB
1. Headrest 2. Headrest holder, locking 3. Headrest holder, free
4. Seatback board 5. Seatback pad 6. Seatback frame assembly
7. Seatback cushion 8. Seatback trim cover 9. Seat cushion
