P1819 TRANSFER CONTROL DEVICEDLN-51
< COMPONENT DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
With CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select SELF-DIAG RESULTS mode for ALL MODE AWD/4WD with CONSULT-III.
3. Touch ERASE.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Perform the self-diagnosis again.
Is the SHIFT ACT CIR [P1819] displayed?
YES >> Replace transfer control unit. Refer to DLN-128, "Removal and Installation".
NO >> Inspection End.
8.PERFORM SELF-DIAGNOSIS (WITHOUT CONSULT-III)
Without CONSULT-III
1. Perform the self-diagnosis and then eras e self-diagnostic results. Refer to DLN-18, "CONSULT-III Func-
tion (ALL MODE AWD/4WD)".
2. Perform the self-diagnosis again.
Do the self-diagnostic results indicate transfer control device?
YES >> Replace transfer control unit.
NO >> Inspection End.
Revision: March 2010 2008 QX56

P1822 CLUTCH PRESSURE SOLENOIDDLN-55
< COMPONENT DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
3. Check continuity between transfer terminal cord assembly har- ness connector F56 terminal 19 and ground.
Also check harness for short to ground and short to power.
Are the inspection results normal?
YES >> GO TO 5.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK CLUTCH PRESSURE SOLENOID
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer terminal cord assembly harness connector.
3. Check resistance between transfer terminal cord assembly har- ness connector F56 terminals 6 and 19.
Are the inspection results normal?
YES >> GO TO 6.
NO >> Replace clutch pressure solenoid. Refer to DLN-16,
"Component Parts Location".
6.CHECK TRANSFER DROPPING RESISTOR
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer dropping resistor harness connector.
3. Check resistance between transfer dropping resistor terminals 1 and 2.
Are the inspection results normal?
YES >> GO TO 7.
NO >> Replace transfer dropping resistor.
7.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to DLN-80, "
Reference Value".
Are the inspection results normal?
YES >> GO TO 8.
NO >> Check transfer control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts.
8.CHECK DTC
Drive the vehicle and then perform self-diagnosis.
Are the inspection results normal?
YES >> Inspection End.
NO >> Replace transfer control unit. Refer to DLN-128, "
Removal and Installation".
Component InspectionINFOID:0000000001737146
CLUTCH PRESSURE SOLENOID
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)Continuity should exist.
SDIA2723E
6 - 19 : Approx. 3.0 - 3.4
Ω
SDIA2724E
1 - 2 : Approx. 11.2 - 12.8 Ω
SDIA2725E
Revision: March 2010 2008 QX56

P1823 2-4 SOLENOIDDLN-59
< COMPONENT DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P

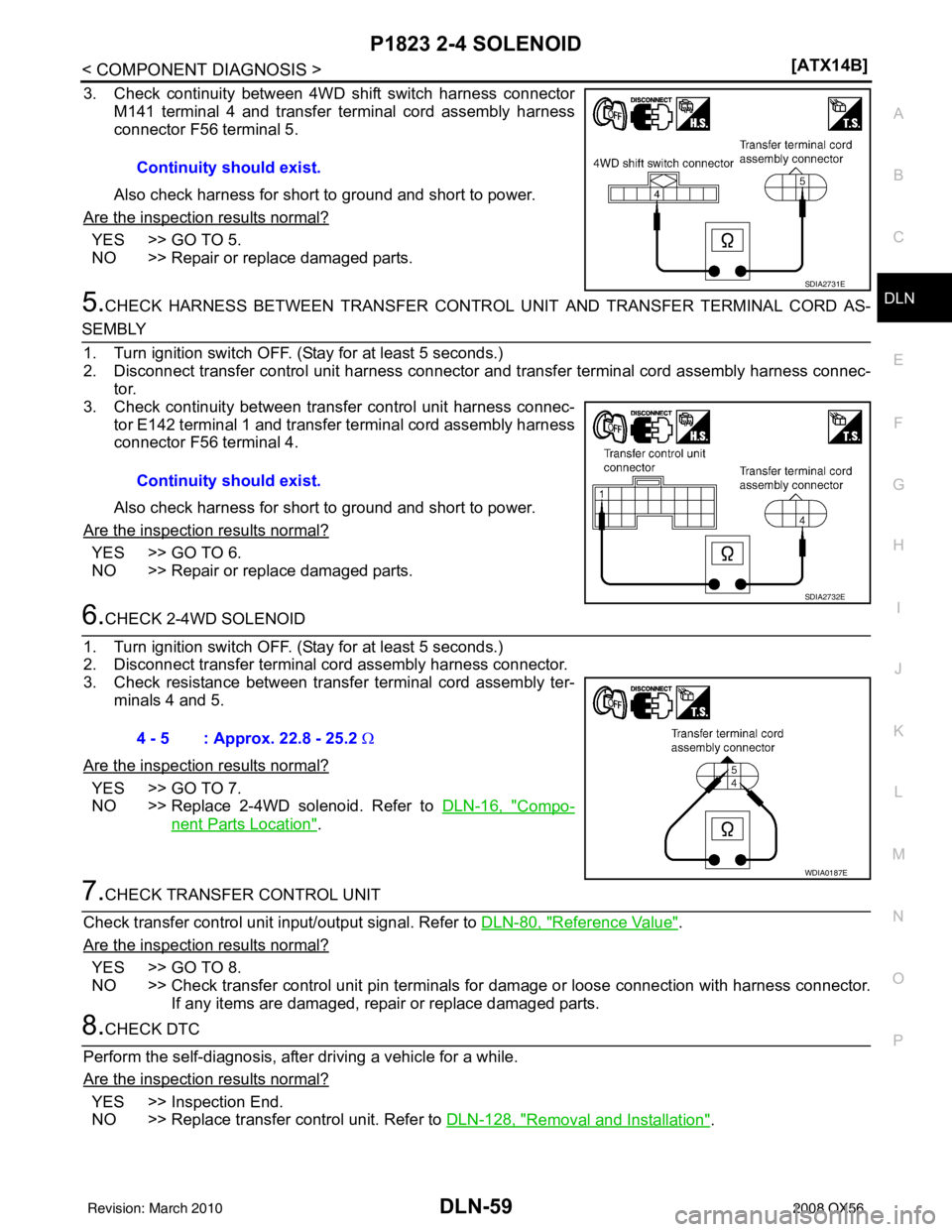

3. Check continuity between 4WD shift switch harness connector M141 terminal 4 and transfer terminal cord assembly harness
connector F56 terminal 5.
Also check harness for short to ground and short to power.
Are the inspection results normal?
YES >> GO TO 5.
NO >> Repair or replace damaged parts.
5.CHECK HARNESS BETWEEN TRANSF ER CONTROL UNIT AND TRANSFER TERMINAL CORD AS-
SEMBLY
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit har ness connector and transfer terminal cord assembly harness connec-
tor.
3. Check continuity between transfer control unit harness connec- tor E142 terminal 1 and transfer terminal cord assembly harness
connector F56 terminal 4.
Also check harness for short to ground and short to power.
Are the inspection results normal?
YES >> GO TO 6.
NO >> Repair or replace damaged parts.
6.CHECK 2-4WD SOLENOID
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer terminal cord assembly harness connector.
3. Check resistance between transfer terminal cord assembly ter- minals 4 and 5.
Are the inspection results normal?
YES >> GO TO 7.
NO >> Replace 2-4WD solenoid. Refer to DLN-16, "
Compo-
nent Parts Location".
7.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to DLN-80, "
Reference Value".
Are the inspection results normal?
YES >> GO TO 8.
NO >> Check transfer control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts.
8.CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
Are the inspection results normal?
YES >> Inspection End.
NO >> Replace transfer control unit. Refer to DLN-128, "
Removal and Installation".
Continuity should exist.
SDIA2731E
Continuity should exist.
SDIA2732E
4 - 5 : Approx. 22.8 - 25.2
Ω
WDIA0187E
Revision: March 2010 2008 QX56

P1824 TRANSFER MOTORDLN-65
< COMPONENT DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
3. Check continuity between transfer motor harness connector F57 terminal 15 and ground.
Also check harness for short to ground and short to power.
Are the inspection results normal?
YES >> GO TO 6.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK TRANSFER MOTOR
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer motor harness connector.
3. Apply 12V direct current between transfer motor terminals 14 and 15.
Does transfer motor operate?
YES >> GO TO 7.
NO >> Replace transfer motor. Refer to DLN-138, "
Removal
and Installation".
7.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to DLN-80, "
Reference Value".
Are the inspection results normal?
YES >> GO TO 8.
NO >> Check transfer control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts.
8.CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
Are the inspection results normal?
YES >> Inspection End.
NO >> Replace transfer control unit. Refer to DLN-128, "
Removal and Installation".
Component InspectionINFOID:0000000001737154
TRANSFER MOTOR RELAY
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Remove transfer motor relay. Refer to DLN-16, "
Component Parts Location".
3. Apply 12V direct current between transfer motor relay terminals 1 and 2.
4. Check continuity between relay terminals 3 and 5.
5. If inspection results are abnormal replace transfer motor relay.
TRANSFER MOTOR
Continuity should exist.
SDIA2740E
LDIA0097E
Condition Continuity
12V direct current supply between terminals 1 and 2 Yes
OFF No
LDIA0098E
Revision: March 2010 2008 QX56

DLN-66
< COMPONENT DIAGNOSIS >[ATX14B]
P1824 TRANSFER MOTOR
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Remove transfer motor. Refer to
DLN-138, "
Removal and Installation".
3. Apply 12V direct current between transfer motor terminals 14 and 15.
4. If transfer motor does not operate, replace transfer motor.
LDIA0097E
Revision: March 2010 2008 QX56

DLN-68
< COMPONENT DIAGNOSIS >[ATX14B]
P1826 TRANSFER FLUID TEMPERATURE
SEMBLY

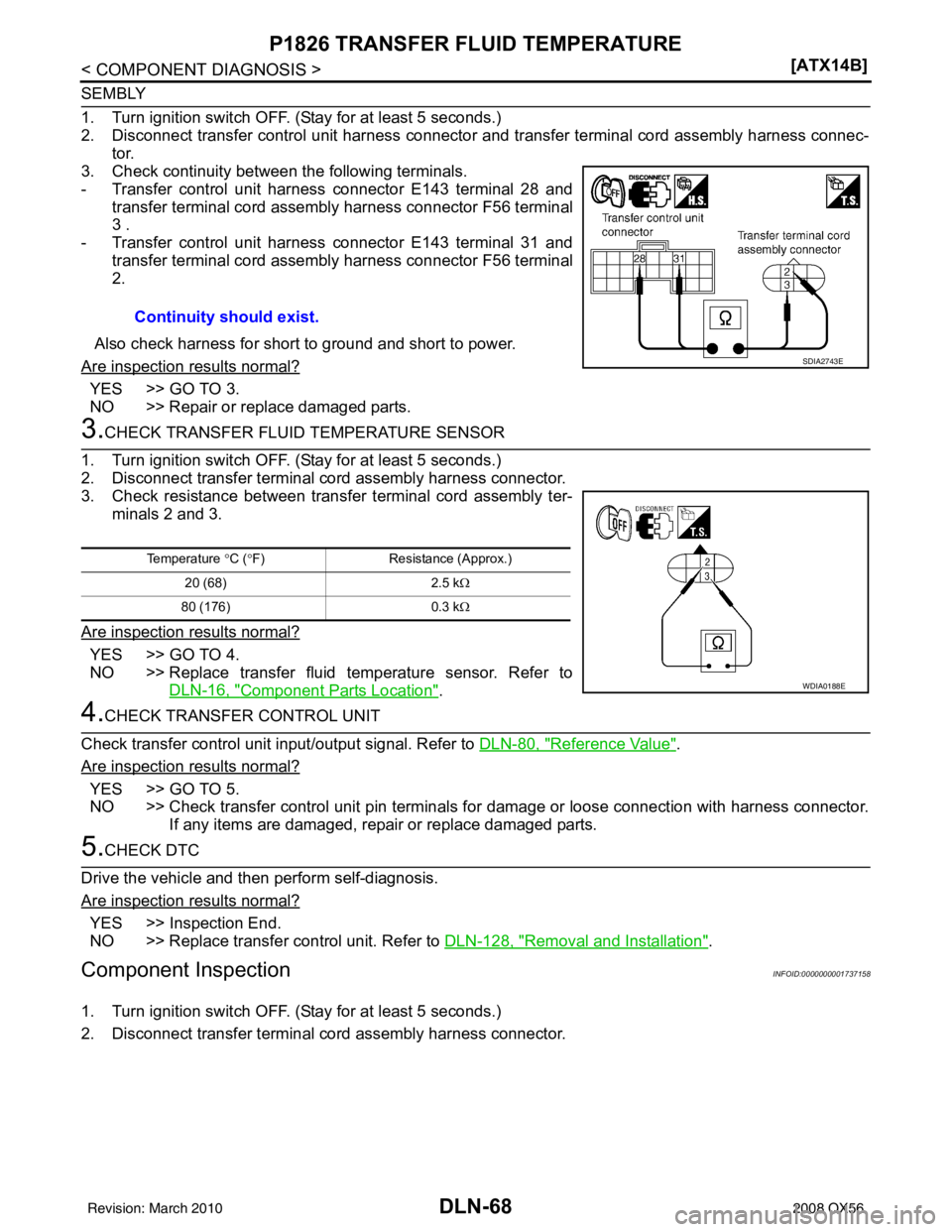

1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and
transfer terminal cord assembly harness connec-
tor.
3. Check continuity between the following terminals.
- Transfer control unit harness connector E143 terminal 28 and
transfer terminal cord assembly harness connector F56 terminal
3 .
- Transfer control unit harness connector E143 terminal 31 and transfer terminal cord assembly harness connector F56 terminal
2.
Also check harness for short to ground and short to power.
Are inspection results normal?
YES >> GO TO 3.
NO >> Repair or replace damaged parts.
3.CHECK TRANSFER FLUI D TEMPERATURE SENSOR
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer terminal cord assembly harness connector.
3. Check resistance between transfer terminal cord assembly ter- minals 2 and 3.
Are inspection results normal?
YES >> GO TO 4.
NO >> Replace transfer fluid temperature sensor. Refer to DLN-16, "
Component Parts Location".
4.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to DLN-80, "
Reference Value".
Are inspection results normal?
YES >> GO TO 5.
NO >> Check transfer control unit pin terminals fo r damage or loose connection with harness connector.
If any items are damaged, repair or replace damaged parts.
5.CHECK DTC
Drive the vehicle and then perform self-diagnosis.
Are inspection results normal?
YES >> Inspection End.
NO >> Replace transfer control unit. Refer to DLN-128, "
Removal and Installation".
Component InspectionINFOID:0000000001737158
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer terminal cord assembly harness connector.Continuity should exist.
SDIA2743E
Temperature
°C ( °F) Resistance (Approx.)
20 (68) 2.5 kΩ
80 (176) 0.3 kΩ
WDIA0188E
Revision: March 2010 2008 QX56

P1827 CLUTCH PRESSURE SWITCHDLN-71
< COMPONENT DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
YES >> GO TO 5.
NO >> GO TO 2.

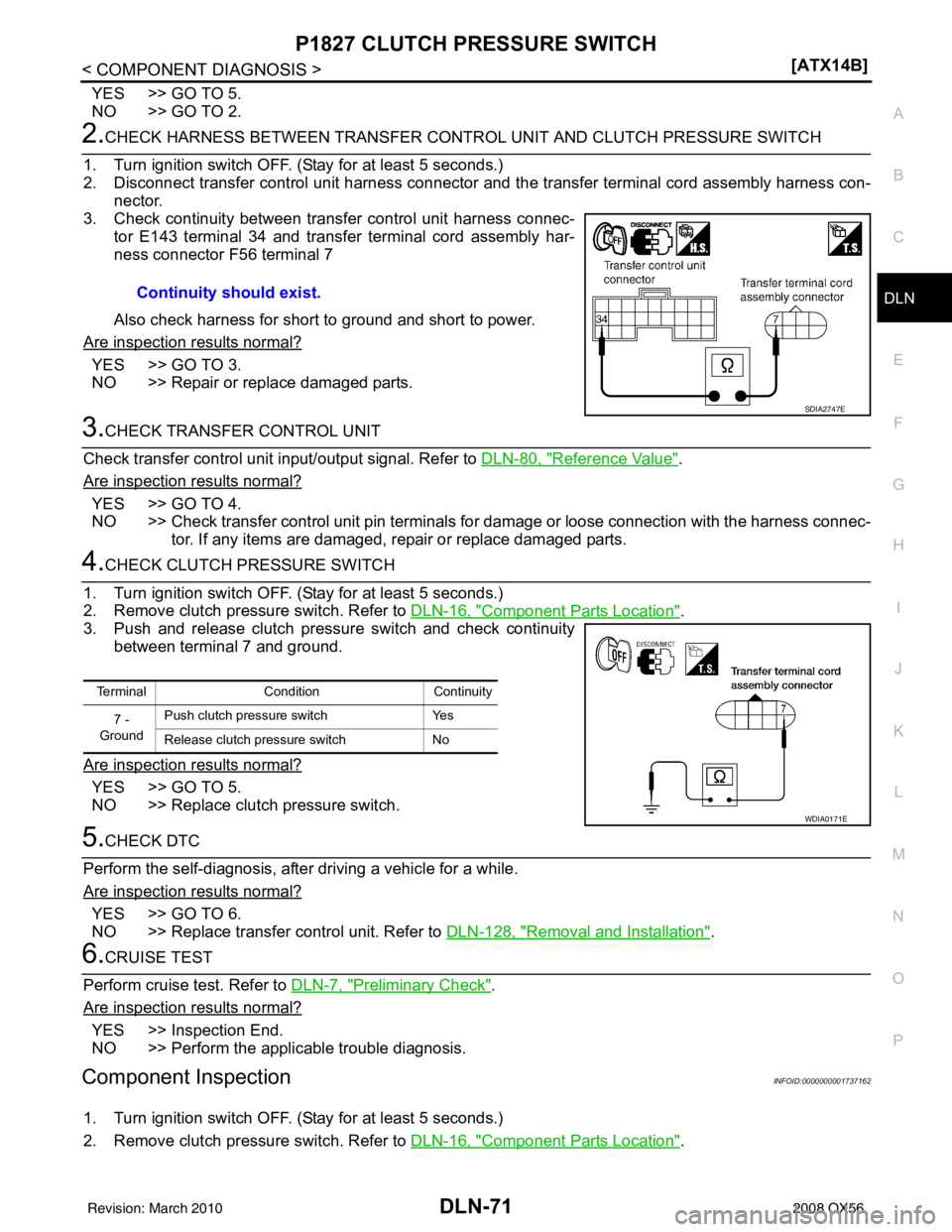

2.CHECK HARNESS BETWEEN TRAN SFER CONTROL UNIT AND CLUTCH PRESSURE SWITCH
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and the transfer terminal cord assembly harness con-
nector.
3. Check continuity between transfer control unit harness connec- tor E143 terminal 34 and transfer terminal cord assembly har-
ness connector F56 terminal 7
Also check harness for short to ground and short to power.
Are inspection results normal?
YES >> GO TO 3.
NO >> Repair or replace damaged parts.
3.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to DLN-80, "
Reference Value".
Are inspection results normal?
YES >> GO TO 4.
NO >> Check transfer control unit pin terminals fo r damage or loose connection with the harness connec-
tor. If any items are damaged, repair or replace damaged parts.
4.CHECK CLUTCH PRESSURE SWITCH
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Remove clutch pressure switch. Refer to DLN-16, "
Component Parts Location".
3. Push and release clutch pressure switch and check continuity
between terminal 7 and ground.
Are inspection results normal?
YES >> GO TO 5.
NO >> Replace clutch pressure switch.
5.CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
Are inspection results normal?
YES >> GO TO 6.
NO >> Replace transfer control unit. Refer to DLN-128, "
Removal and Installation".
6.CRUISE TEST
Perform cruise test. Refer to DLN-7, "
Preliminary Check".
Are inspection results normal?
YES >> Inspection End.
NO >> Perform the applicable trouble diagnosis.
Component InspectionINFOID:0000000001737162
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Remove clutch pressure switch. Refer to DLN-16, "
Component Parts Location".
Continuity should exist.
SDIA2747E
Terminal
Condition Continuity
7 -
Ground Push clutch pressure switch
Yes
Release clutch pressure switch No
WDIA0171E
Revision: March 2010 2008 QX56

DLN-74
< COMPONENT DIAGNOSIS >[ATX14B]
P1828 LINE PRESSURE SWITCH
Are inspection results normal?
YES >> GO TO 5.
NO >> GO TO 2.

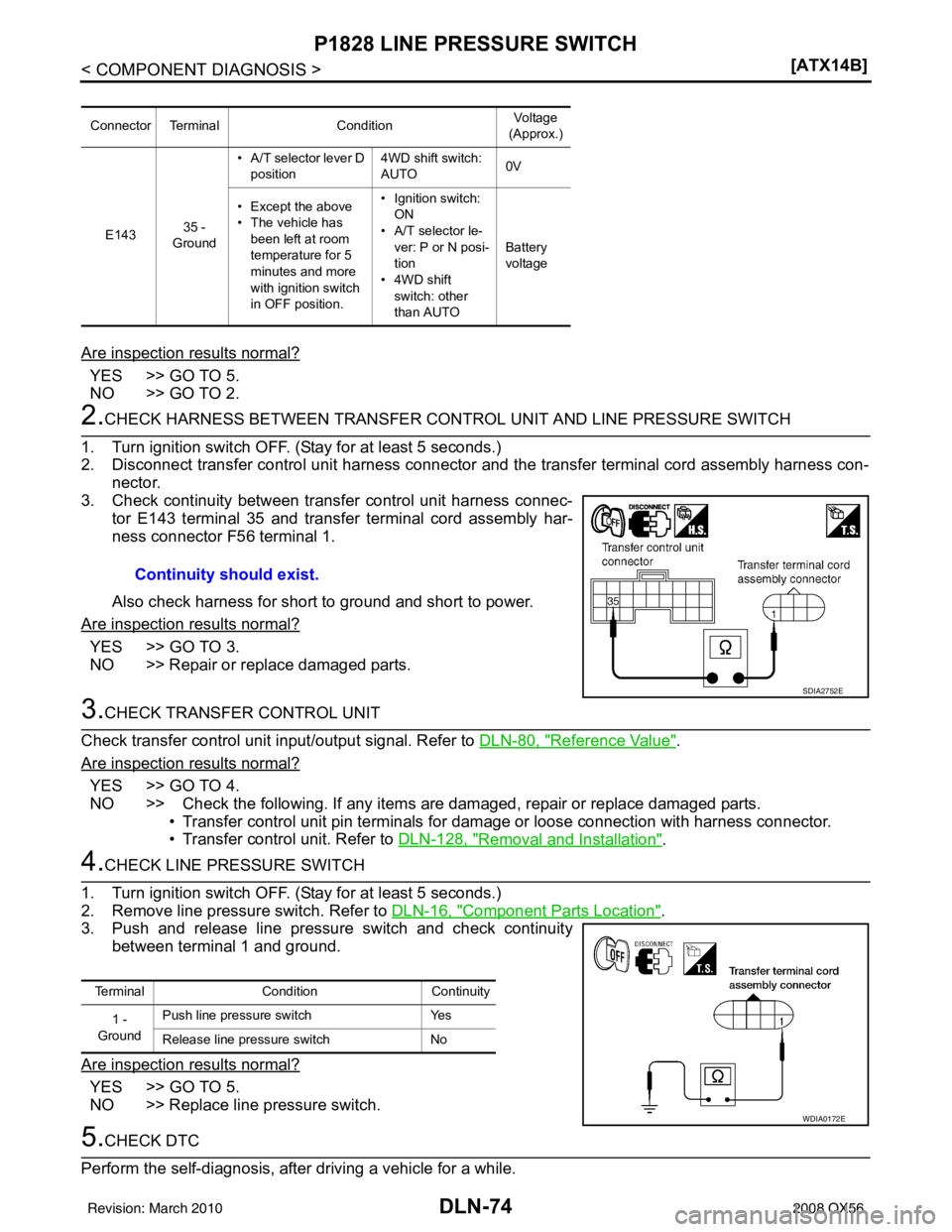

2.CHECK HARNESS BETWEEN TRANSFER CONT
ROL UNIT AND LINE PRESSURE SWITCH
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and the transfer terminal cord assembly harness con-
nector.
3. Check continuity between transfer control unit harness connec-
tor E143 terminal 35 and transfer terminal cord assembly har-
ness connector F56 terminal 1.
Also check harness for short to ground and short to power.
Are inspection results normal?
YES >> GO TO 3.
NO >> Repair or replace damaged parts.
3.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to DLN-80, "
Reference Value".
Are inspection results normal?
YES >> GO TO 4.
NO >> Check the following. If any items are damaged, repair or replace damaged parts. • Transfer control unit pin terminals for damage or loose connection with harness connector.
• Transfer control unit. Refer to DLN-128, "
Removal and Installation".
4.CHECK LINE PRESSURE SWITCH
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Remove line pressure switch. Refer to DLN-16, "
Component Parts Location".
3. Push and release line pressure switch and check continuity between terminal 1 and ground.
Are inspection results normal?
YES >> GO TO 5.
NO >> Replace line pressure switch.
5.CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
Connector Terminal ConditionVoltage
(Approx.)
E143 35 -
Ground • A/T selector lever D
position 4WD shift switch:
AUTO
0V
• Except the above
• The vehicle has been left at room
temperature for 5
minutes and more
with ignition switch
in OFF position. • Ignition switch:
ON
• A/T selector le-
ver: P or N posi-
tion
• 4WD shift
switch: other
than AUTO Battery
voltage
Continuity should exist.
SDIA2752E
Terminal
Condition Continuity
1 -
Ground Push line pressure switch
Yes
Release line pressure switch No
WDIA0172E
Revision: March 2010 2008 QX56
