2008 INFINITI QX56 Ignition switch removal

REAR WINDOW DEFOGGER RELAYDEF-9
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
DEF
N
O P
REAR WINDOW DEFOGGER RELAY
DescriptionINFOID:0000000001735612
Power is supplied to the rear window defogger with BCM control.
Component Function CheckINFOID:0000000001735613
1. CHECK REAR WINDOW DEFOGGER RELAY POWER SUPPLY CIRCUIT
Check that an operation noise of rear window defogger re lay (located in IPDM E/R) can be heard when turning
the rear window defogger switch ON.
Is the inspection result normal?
YES >> Rear window defogger relay power supply circuit is OK.
NO >> Refer to DEF-9, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001735614
1.CHECK FUSES
Check if any of the following fuses in the IPDM E/R are blown.
Is the inspection result normal?
YES >> GO TO 2
NO >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.
2. CHECK REAR WINDOW DEFOGGER RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between IPDM E/R connector and ground.
Is the inspection result normal?
YES >> Replace IPDM E/R. Refer to PCS-34, "Removal and Installation of IPDM E/R".
NO >> GO TO 3
3. CHECK INTERMITTENT INCIDENT
Check intermittent incident.
Refer to GI-38, "
Intermittent Incident"
Is the inspection result normal?
YES >> Check the following.
• Battery power supply circuit.
• IPDM E/R.
NO >> Repair or replace the malfunctioning parts.
COMPONENT PARTS AMPEREFUSE NO.
IPDM E/R 15A46
IPDM E/R 15A47
Te r m i n a l s
Condition of rear
window defogger
switch Voltage (V)
(Approx.)
(+)
(–)
IPDM E/R con-
nector Te r m i n a l
E124 60 Ground ON Battery voltage
OFF 0
LIIA2190E
Revision: March 2010 2008 QX56

DEF-12
< COMPONENT DIAGNOSIS >
DOOR MIRROR DEFOGGER LH
DOOR MIRROR DEFOGGER LH
DescriptionINFOID:0000000001735623
Heats the heating wire with the power supply from the rear window defogger relay to prevent the door mirror
from fogging up.
Component Function CheckINFOID:0000000001735624
1. CHECK DOOR MIRROR DEFOGGER LH
Check that heating wire of door mirror defogger LH is heated when turning the rear window defogger switch
ON.
Is the inspection result normal?
YES >> Door mirror defogger is OK.
NO >> Refer to DEF-12, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001735625
1. CHECK POWER SUPPLY
Check if the following fuse in the IPDM E/R is blown.
Is the inspection result normal?
YES >> GO TO 2
NO >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.
2. CHECK DOOR MIRROR DE FOGGER POWER SUPPLY CIRCUIT
Check voltage between IPDM E/R connector and ground.

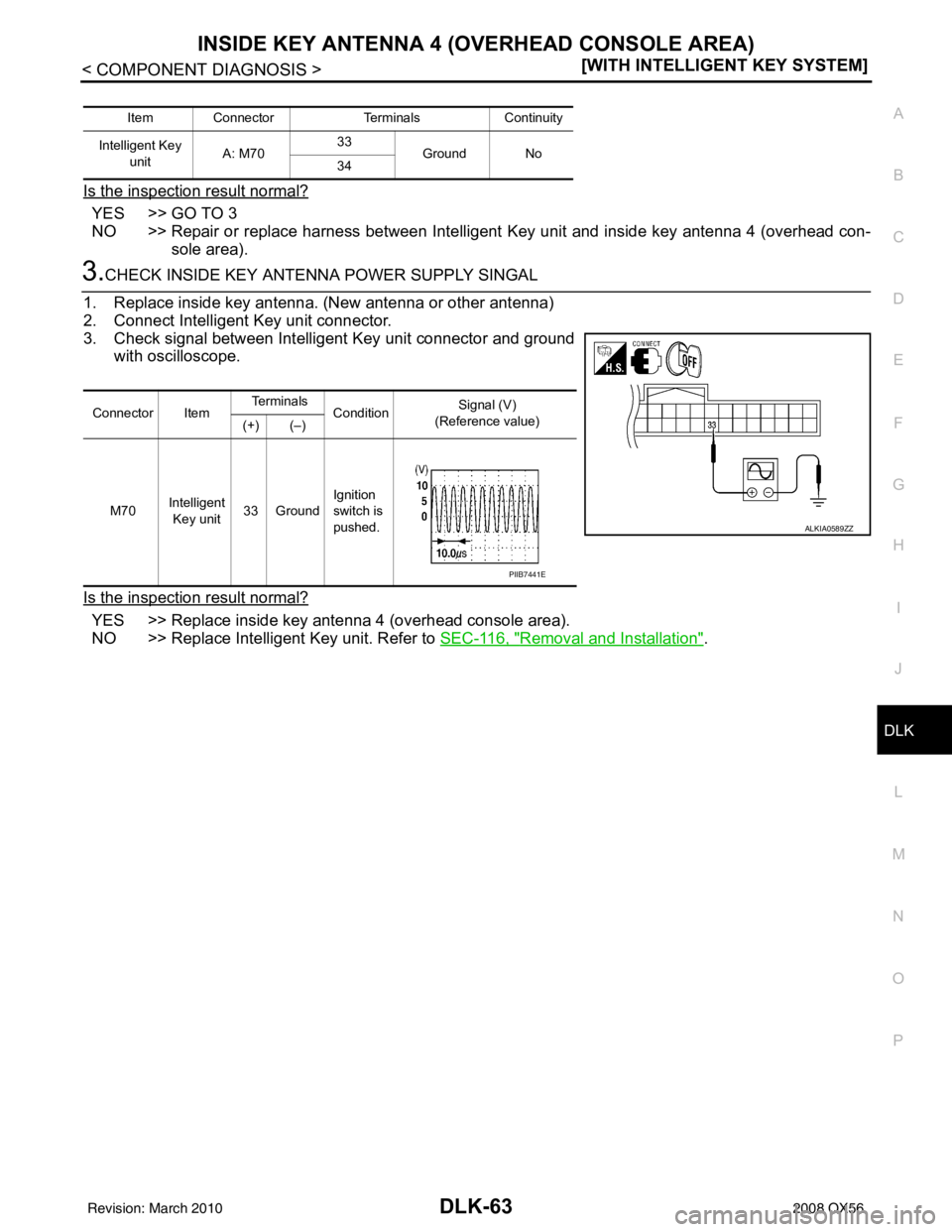

Is the inspection result normal?
YES >> GO TO 3
NO >> Replace IPDM E/R. Refer to PCS-34, "
Removal and Installation of IPDM E/R".
3. CHECK DOOR MIRROR DEFOGGER POWER SUPPLY CIRCUIT 2
1. Turn ignition switch OFF.
2. Disconnect door mirror LH.
3. Turn ignition switch ON.
4. Check voltage between door mirror LH connector and ground.
Is the inspection result normal?
YES >> GO TO 4
COMPONENT PARTS AMPEREFUSE NO.
IPDM E/R 15A43
ConnectorTe r m i n a l
ConditionVoltage (V)
(Approx.)
(+) (-)
E120 23 Ground Rear window defogger
switch ON
Battery voltage
Rear window defogger
switch OFF 0
LIIA2049E
ConnectorTe r m i n a l
ConditionVoltage (V)
(Approx.)
(+) (-)
D4 10 Ground Rear window defogger
switch ON
Battery voltage
Rear window defogger
switch OFF 0
LIIA1456E
Revision: March 2010
2008 QX56

DEF-14
< COMPONENT DIAGNOSIS >
DOOR MIRROR DEFOGGER RH
DOOR MIRROR DEFOGGER RH
DescriptionINFOID:0000000001735631
Heats the heating wire with the power supply from the rear window defogger relay to prevent the door mirror
from fogging up.
Component Function CheckINFOID:0000000001735632
1.CHECK DOOR MIRROR DEFOGGER RH
Check that the heating wire of door mirror defogger RH is heated when turning the rear window defogger
switch ON.
Is the inspection result normal?
YES >> Door mirror defogger RH is OK.
NO >> Refer to DEF-14, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001735633
1. CHECK POWER SUPPLY
Check if the following fuse in the IPDM E/R is blown.
Is the inspection result normal?
YES >> GO TO 2
NO >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.
2. CHECK DOOR MIRROR DE FOGGER POWER SUPPLY CIRCUIT
Check voltage between IPDM E/R connector and ground.
Is the inspection result normal?
YES >> GO TO 3
NO >> Replace IPDM E/R. Refer to PCS-34, "
Removal and Installation of IPDM E/R".
3. CHECK DOOR MIRROR DEFOGGER POWER SUPPLY CIRCUIT 2
1. Turn ignition switch OFF.
2. Disconnect door mirror RH.
3. Turn ignition switch ON.
4. Check voltage between door mirror RH connector and ground.
Is the inspection result normal?
YES >> GO TO 4
COMPONENT PARTS AMPEREFUSE NO.
IPDM E/R 15A43
ConnectorTe r m i n a l
ConditionVoltage (V)
(Approx.)
(+) (-)
E120 23 Ground Rear window defogger
switch ON
Battery voltage
Rear window defogger
switch OFF 0
LIIA2049E
ConnectorTe r m i n a l
ConditionVoltage (V)
(Approx.)
(+) (-)
D107 10 Ground Rear window defogger
switch ON
Battery voltage
Rear window defogger
switch OFF 0
LIIA1456E
Revision: March 2010
2008 QX56

PRECAUTIONSDEF-31
< PRECAUTION >
C
DE
F
G H
I
J
K
M A
B
DEF
N
O P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000004894308
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and w hether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the battery, and wait at least 3 minutes before performing any service.
Precaution Necessary for Steering Wheel Rotation After Battery Disconnect
INFOID:0000000004894309
NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-
TEM).
• Remove and install all control units after disconnecti ng both battery cables with the ignition knob in the
″ LOCK ″ position.
• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.
If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NATS , an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables. NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC ″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
Revision: March 2010 2008 QX56

INSIDE KEY ANTENNA 1 (REAR OF CENTER CONSOLE)DLK-57
< COMPONENT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace harness between Intelligent Key unit and inside key antenna 1 (rear of center console).
3.CHECK INSIDE KEY ANTENNA POWER SUPPLY SINGAL
1. Replace inside key antenna. (New antenna or other antenna)
2. Connect Intelligent Key unit connector.
3. Check signal between Intelligent Key unit connector and ground with oscilloscope.
Is the inspection result normal?
YES >> Replace inside key antenna 1 (rear of center console).
NO >> Replace Intelligent Key unit. Refer to SEC-116, "
Removal and Installation".
Item ConnectorTerminalsContinuity
Intelligent Key unit A: M70 15
Ground No
16
Connector Item Te r m i n a l s
Condition Signal (V)
(Reference value)
(+) (–)
M70 Intelligent
Key unit 15 Ground Ignition
switch is
pushed.
ALKIA0585ZZ
PIIB7441E
Revision: March 2010
2008 QX56

INSIDE KEY ANTENNA 2 (LUGGAGE COMPARTMENT)DLK-59
< COMPONENT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace harness between Intelligent Key unit and inside key antenna 2 (luggage com- partment).
3.CHECK INSIDE KEY ANTENNA POWER SUPPLY SINGAL
1. Replace inside key antenna. (New antenna or other antenna)
2. Connect Intelligent Key unit connector.
3. Check signal between Intelligent Key unit connector and ground with oscilloscope.
Is the inspection result normal?
YES >> Replace inside key antenna 2 (luggage compartment).
NO >> Replace Intelligent Key unit. Refer to SEC-116, "
Removal and Installation".
Item ConnectorTerminalsContinuity
Intelligent Key unit A: M70 35
Ground No
36
Connector Item Te r m i n a l s
Condition Signal (V)
(Reference value)
(+) (–)
M70 Intelligent
Key unit 35 Ground Ignition
switch is
pushed.
ALKIA0587ZZ
PIIB7441E
Revision: March 2010
2008 QX56

INSIDE KEY ANTENNA 3 (FRONT OF CENTER CONSOLE)
DLK-61
< COMPONENT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace harness between Intelligent Key unit and inside key antenna 3 (front of center console).
3.CHECK INSIDE KEY ANTENNA POWER SUPPLY SINGAL
1. Replace inside key antenna. (New antenna or other antenna)
2. Connect Intelligent Key unit connector.
3. Check signal between Intelligent Key unit connector and ground with oscilloscope.
Is the inspection result normal?
YES >> Replace inside key antenna 3 (front of center console).
NO >> Replace Intelligent Key unit. Refer to SEC-116, "
Removal and Installation".
Item ConnectorTerminalsContinuity
Intelligent Key unit A: M70 13
Ground No
14
Connector Item Te r m i n a l s
Condition Signal (V)
(Reference value)
(+) (–)
M70 Intelligent
Key unit 13 Ground Ignition
switch is
pushed.
ALKIA0583ZZ
PIIB7441E
Revision: March 2010
2008 QX56

INSIDE KEY ANTENNA 4 (OVERHEAD CONSOLE AREA)DLK-63
< COMPONENT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace harness between Intelligent Key unit and inside key antenna 4 (overhead con- sole area).
3.CHECK INSIDE KEY ANTENNA POWER SUPPLY SINGAL
1. Replace inside key antenna. (New antenna or other antenna)
2. Connect Intelligent Key unit connector.
3. Check signal between Intelligent Key unit connector and ground with oscilloscope.
Is the inspection result normal?
YES >> Replace inside key antenna 4 (overhead console area).
NO >> Replace Intelligent Key unit. Refer to SEC-116, "
Removal and Installation".
Item ConnectorTerminalsContinuity
Intelligent Key unit A: M70 33
Ground No
34
Connector Item Te r m i n a l s
Condition Signal (V)
(Reference value)
(+) (–)
M70 Intelligent
Key unit 33 Ground Ignition
switch is
pushed.
ALKIA0589ZZ
PIIB7441E
Revision: March 2010
2008 QX56
