SRC-76
< ECU DIAGNOSIS >
DIAGNOSIS SENSOR UNIT

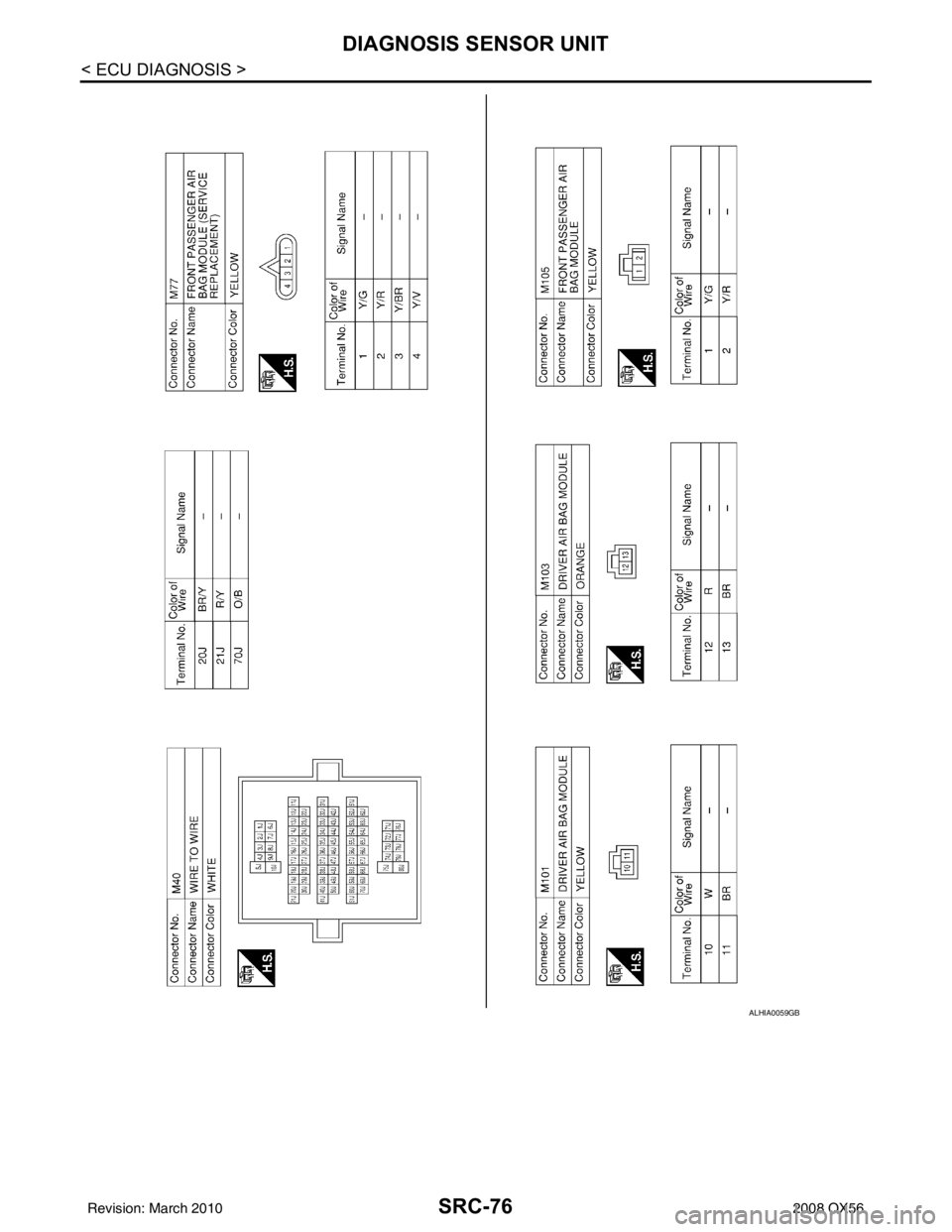

ALHIA0059GB
Revision: March 20102008 QX56

DIAGNOSIS SENSOR UNITSRC-77
< ECU DIAGNOSIS >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P

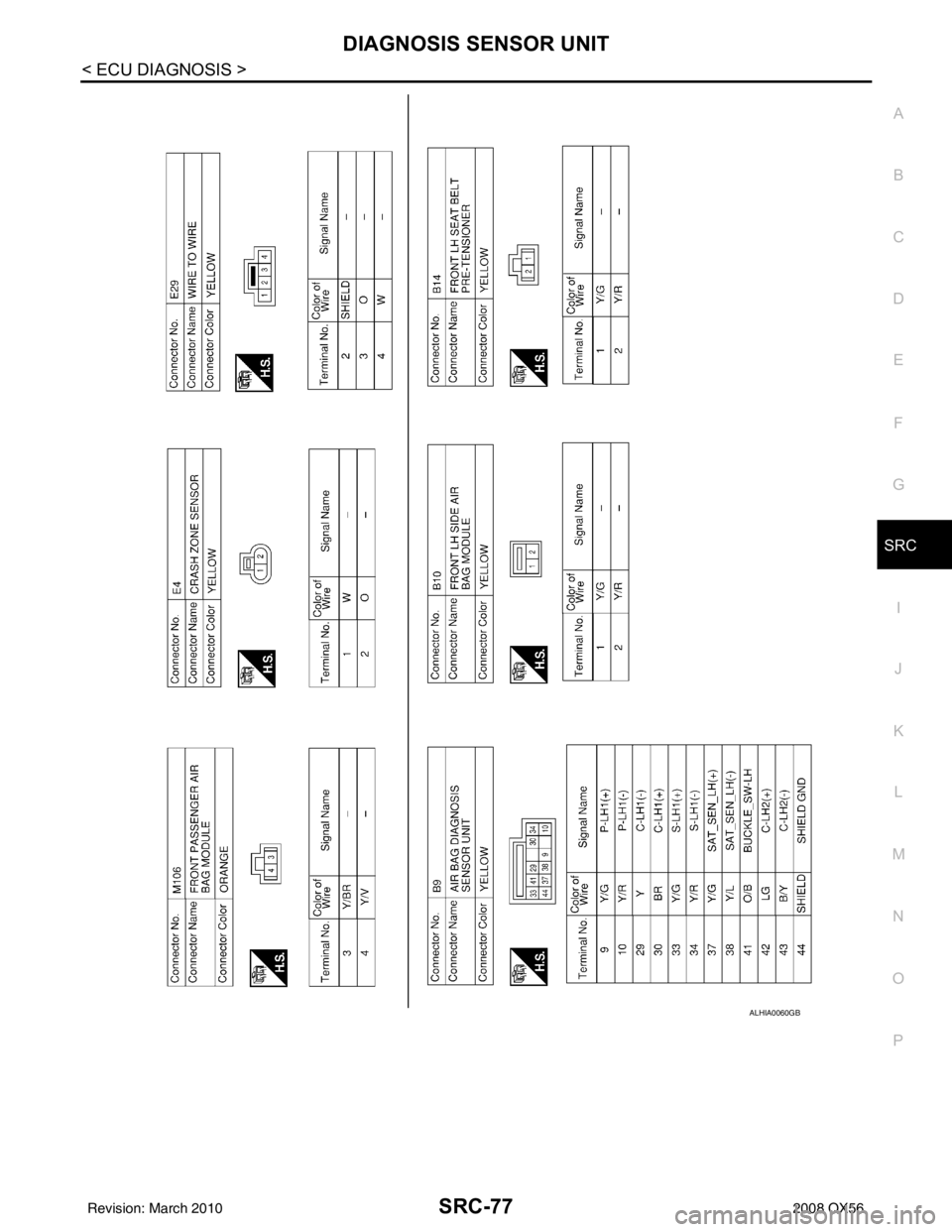

ALHIA0060GB
Revision: March 2010 2008 QX56

SRC-78
< ECU DIAGNOSIS >
DIAGNOSIS SENSOR UNIT

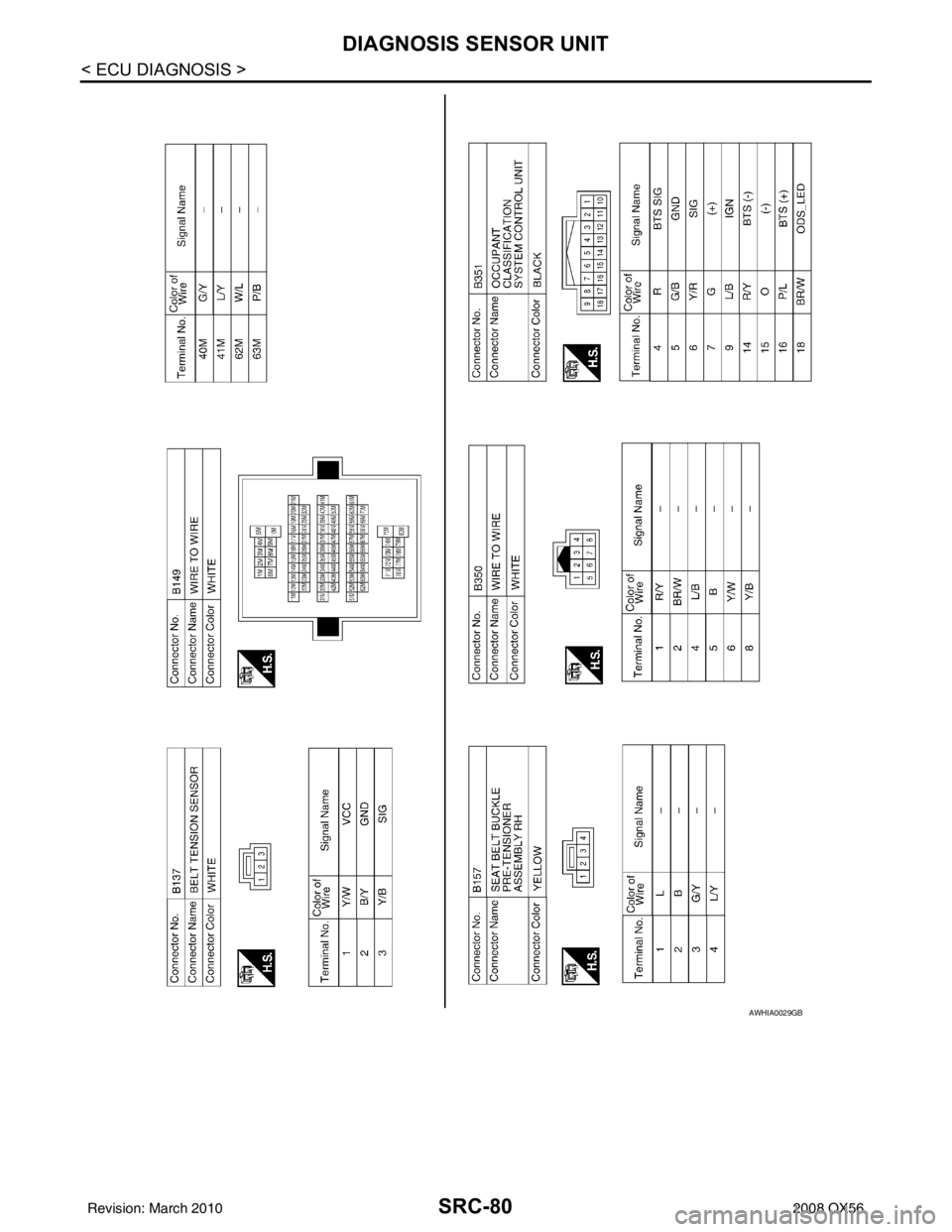

AWHIA0028GB
Revision: March 20102008 QX56

DIAGNOSIS SENSOR UNITSRC-79
< ECU DIAGNOSIS >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P

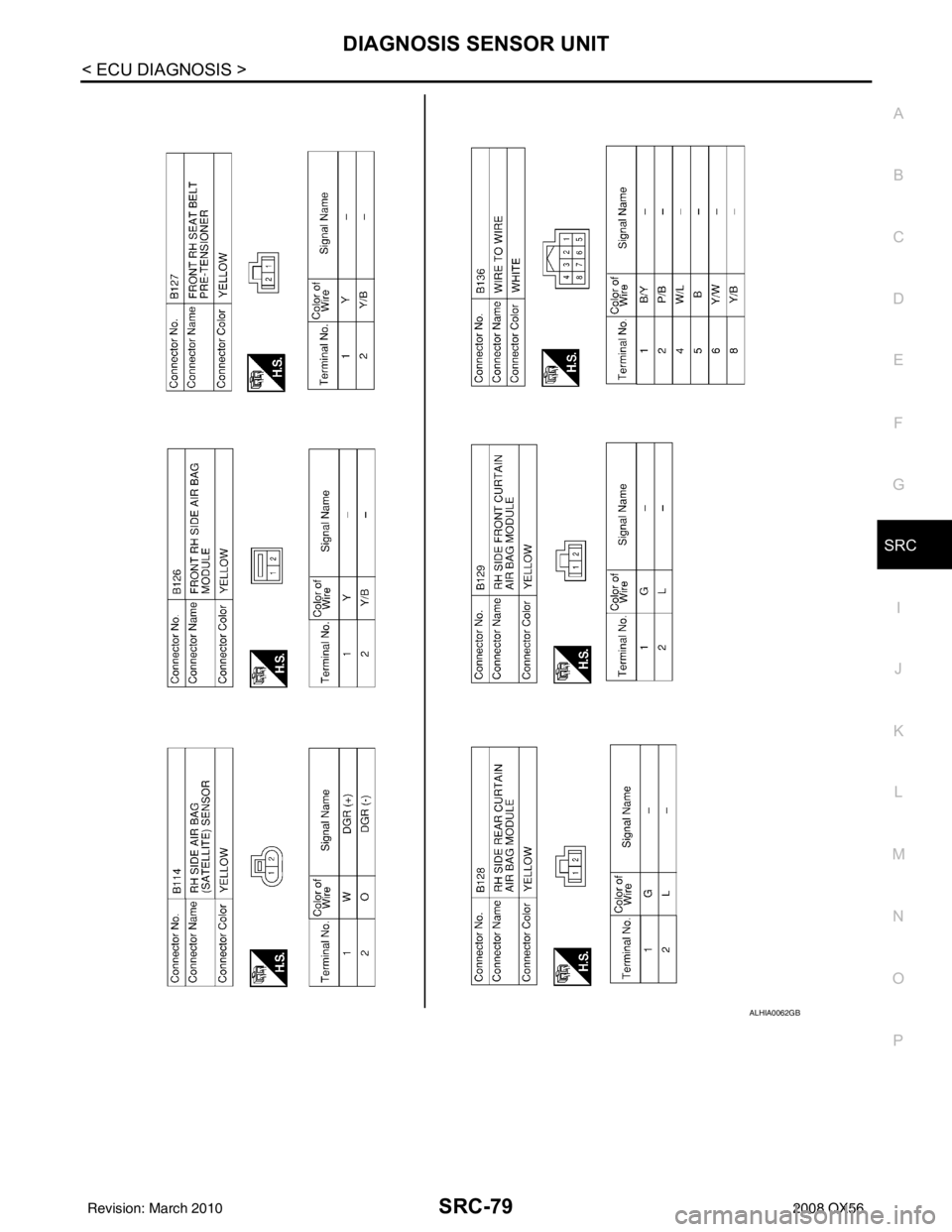

ALHIA0062GB
Revision: March 2010 2008 QX56

SRC-80
< ECU DIAGNOSIS >
DIAGNOSIS SENSOR UNIT
AWHIA0029GB
Revision: March 20102008 QX56

DIAGNOSIS SENSOR UNITSRC-81
< ECU DIAGNOSIS >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
Trouble Diagnosis with CONSULT-IIIINFOID:0000000001735361
DIAGNOSTIC CODE CHART
NOTE:
Follow the procedures in numerical order when repairi ng malfunctioning parts. Confirm whether malfunction is
eliminated using air bag warning lamp or CONSULT-III eac h time repair is finished. If malfunction is still
observed, proceed to the next step. When malfunction is elim inated, further repair work is not required.

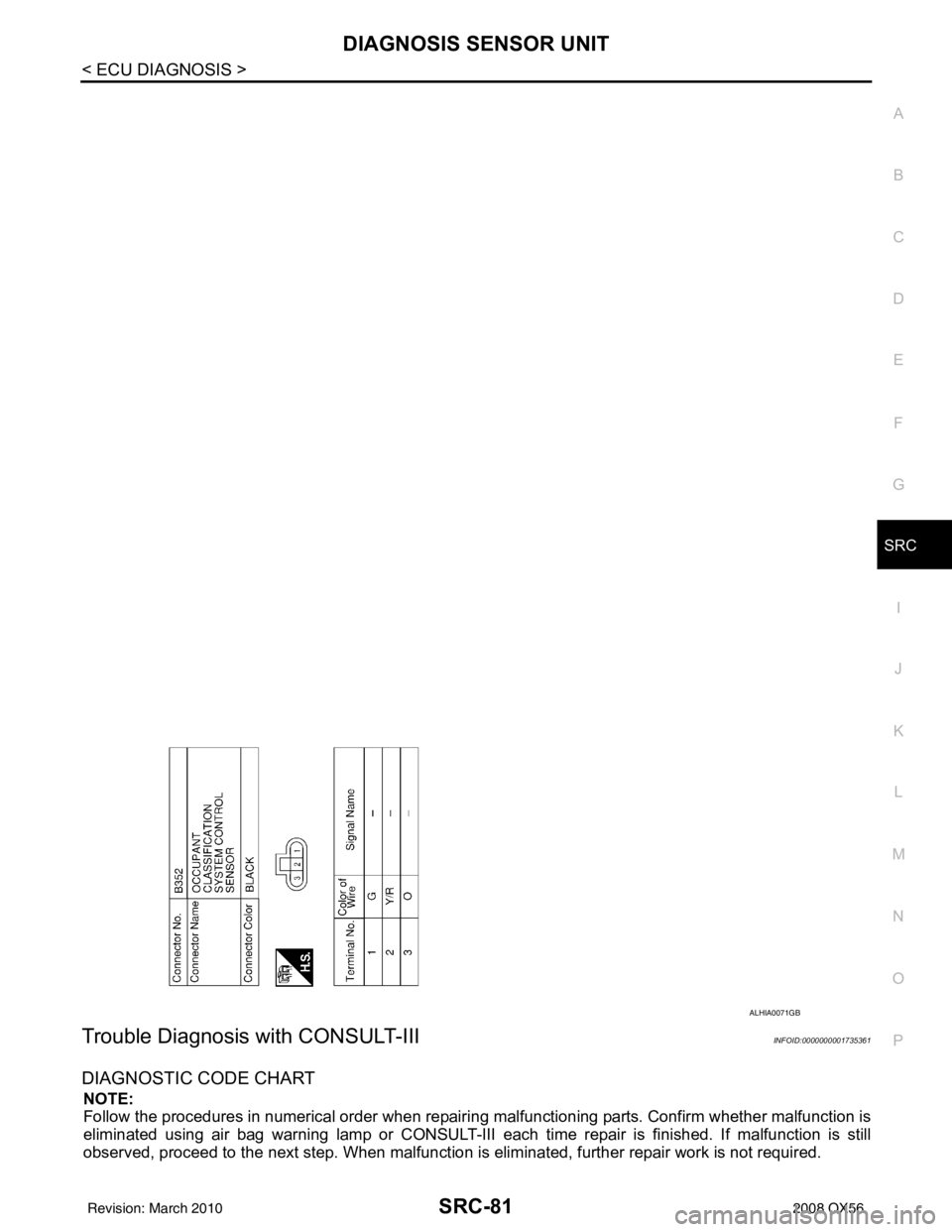

ALHIA0071GB
Revision: March 2010 2008 QX56

SRC-82
< ECU DIAGNOSIS >
DIAGNOSIS SENSOR UNIT
CONSULT-III name DTCDTC detecting condition Repair order
DRIVER AIRBAG MODULE [OPEN] B1049
Driver air bag module circuit (DR1) is
open
(including the spiral cable). 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the driver air bag module.
4. Replace the spiral cable.
5. Replace the air bag diagnosis sensor unit.
6. Replace the related harness.
B1054 Driver air bag module circuit (DR2) is
open
(including the spiral cable).
DRIVER AIRBAG MODULE [VB-SHORT] B1050
Driver air bag module circuit (DR1) is
shorted to a power supply circuit
(including the spiral cable).
B1055 Driver air bag module circuit (DR2) is
shorted to a power supply circuit
(including the spiral cable).
DRIVER AIRBAG MODULE [GND-SHORT] B1051
Driver air bag module circuit (DR1) is
shorted to ground
(including the spiral cable).
B1056 Driver air bag module circuit (DR2) is
shorted to ground
(including the spiral cable).
DRIVER AIRBAG MODULE [SHORT] B1052
Driver air bag module
circuits (DR1) are
shorted to each other
(including the spiral cable).
B1057 Driver air bag module
circuits (DR2) are
shorted to each other
(including the spiral cable).
ASSIST A/B MODULE [OPEN] B1065
Front passenger air bag module circuit
(AS1) is open. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the front passenger air bag module.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
B1070
Front passenger air bag module circuit
(AS2) is open.
ASSIST A/B MODULE [VB-SHORT] B1066
Front passenger air bag module circuit
(AS1) is shorted to a power supply cir-
cuit.
B1071 Front passenger air bag module circuit
(AS2) is shorted to a power supply cir-
cuit.
ASSIST A/B MODULE [GND-SHORT] B1067
Front passenger air bag module circuit
(AS1) is shorted to ground.
B1072 Front passenger air bag module circuit
(AS2) is shorted to ground.
ASSIST A/B MODULE [SHORT] B1068
Front passenger air bag module circuits
(AS1) are shorted to each other.
B1073 Front passenger air bag module circuits
(AS2) are shorted to each other.
SIDE MODULE LH [OPEN] B1134Front LH side air bag module circuit is
open. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the front LH seat back assembly.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
SIDE MODULE LH
[VB-SHORT] B1135Front LH side air bag module circuit is
shorted to a power supply circuit.
SIDE MODULE LH [GND-SHORT] B1136
Front LH side air bag module circuit is
shorted to ground.
SIDE MODULE LH [SHORT
] B1

137Front LH side air bag module circuits are
shorted to each other.
Revision: March 2010
2008 QX56

DIAGNOSIS SENSOR UNITSRC-83
< ECU DIAGNOSIS >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
SIDE MODULE RH [OPEN] B1129Front RH side air bag module circuit is
open. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the front RH seat back assembly.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
SIDE MODULE RH
[VB-SHORT] B1130Front RH side air bag module circuit is
shorted to a power supply circuit.
SIDE MODULE RH [GND-SHORT] B1131
Front RH side air bag module circuit is
shorted to ground.
SIDE MODULE RH [SHORT] B1132Front RH side air bag module circuits
are shorted to each other.
FR CURTN MODULE LH [OPEN] B1198LH side curtain air bag module (front)
circuit is open. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the LH side curtain air bag module.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
FR CURTN MODULE LH
[VB-SHORT] B1199LH side curtain air bag module (front)
circuit is shorted to a power supply cir-
cuit.
FR CURTN MODULE LH [GND-SHORT] B1200LH side curtain air bag module (front)
circuit is shorted to ground.
FR CURTN MODULE LH [SHORT] B1201
LH side curtain air bag module (front)
circuits are shorted to each other.
FR CURTN MODULE RH [OPEN] B1193RH side curtain air bag module (front)
circuit is open. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the RH side curtain air bag module.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
FR CURTN MODULE RH
[VB-SHORT] B1194RH side curtain air bag module (front)
circuit is shorted to a power supply cir-
cuit.
FR CURTN MODULE RH [GND-SHORT] B1195RH side curtain air bag module (front)
circuit is shorted to ground.
FR CURTN MODULE RH [SHORT] B1196RH side curtain air bag module (front)
circuits are shorted to each other.
CURTAIN MODULE LH [OPEN] B1150
LH side curtain air bag module (rear) cir-
cuit is open. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the LH side curtain air bag module.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
CURTAIN MODULE LH
[VB-SHORT] B1151LH side curtain air bag module (rear) cir-
cuit is shorted to a power supply circuit.
CURTAIN MODULE LH [GND-SHORT] B1152LH side curtain air bag module (rear) cir-
cuit is shorted to ground.
CURTAIN MODULE LH [SHORT] B1153
LH side curtain air bag module (rear) cir-
cuits are shorted to each other.
CURTAIN MODULE RH [OPEN] B1145
RH side curtain air bag module (rear)
circuit is open. 1.
Visua
lly check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the RH side curtain air bag module.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
CURTAIN MODULE RH
[VB-SHORT] B1146RH side curtain air bag module (rear)
circuit is shorted to a power supply cir-
cuit.
CURTAIN MODULE RH [GND-SHORT] B1147
RH side curtain air bag module (rear)
circuit is shorted to ground.
CURTAIN MODULE RH [SHORT] B1148RH side curtain air bag module (rear)
circuits are shorted to each other.
PRE-TEN FRONT LH [OPEN] B1086LH seat belt pre-tensioner circuit is
open. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the front LH seat belt pre-tensioner.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
PRE-TEN FRONT LH
[VB-SHORT] B1087
LH seat belt pre-tensioner circuit is
shorted to a power supply circuit.
PRE-TEN FRONT LH [GND-SHORT] B1088LH seat belt pre-tensioner circuit is
shorted to ground.
PRE-TEN FRONT LH [SHORT] B1089LH seat belt pre-tensioner circuits are
shorted to each other.
CONSULT-III name DTC
DTC detecting condition Repair order
