2008 INFINITI QX56 fl sensor

SRC-84
< ECU DIAGNOSIS >
DIAGNOSIS SENSOR UNIT
PRE-TEN FRONT RH [OPEN] B1081RH seat belt pre-tensioner circuit is
open. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the front RH seat belt pre-tensioner.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
PRE-TEN FRONT RH
[VB-SHORT] B1082RH seat belt pre-tensioner circuit is
shorted to a power supply circuit.
PRE-TEN FRONT RH [GND-SHORT] B1083
RH seat belt pre-tensioner circuit is
shorted to ground.
PRE-TEN FRONT RH [SHORT] B1084RH seat belt pre-tensioner circuits are
shorted to each other.
PRE-TEN2 FRONT LH [OPEN] B1182LH seat belt buckle pre-tensioner circuit
is open. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the front LH seat belt buckle pre-ten-
sioner.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
PRE-TEN2 FRONT LH
[VB-SHORT] B1183
LH seat belt buckle pre-tensioner circuit
is shorted to a power supply circuit.
PRE-TEN2 FRONT LH [GND-SHORT] B1184LH seat belt buckle pre-tensioner circuit
is shorted to ground.
PRE-TEN2 FRONT LH [SHORT] B1185LH seat belt buckle pre-tensioner cir-
cuits are shorted to each other.
PRE-TEN2 FRONT RH [OPEN] B1177
RH seat belt buckle pre-tensioner circuit
is open. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the front RH seat belt buckle pre-ten-
sioner.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
PRE-TEN2 FRONT RH
[VB-SHORT] B1178RH seat belt buckle pre-tensioner circuit
is shorted to a power supply circuit.
PRE-TEN2 FRONT RH [GND-SHORT] B1179RH seat belt buckle pre-tensioner circuit
is shorted to ground.
PRE-TEN2 FRONT RH [SHORT] B1180
RH seat belt buckle pre-tensioner cir-
cuits are shorted to each other.
CRASH ZONE SEN [UNIT FAIL] B1033 Crash zone sensor has malfunctioned. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the crash zone sensor.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
B1034
CRASH ZONE SEN [COMM FAIL] B1035Crash zone sensor communication er-
ror.
SATELLITE SENS LH [UNIT FAIL] B1118 LH side air bag satellite sensor has mal-
functioned. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the LH side air bag satellite sensor.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
B 111 9
SATELLITE SENS LH [COMM FAIL] B1120LH side air bag satellite sensor commu-
nication error.
SATELLITE SENS RH [UNIT FAIL] B1
113
RH side air bag satellite sensor has mal-
functioned. 1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the RH side air bag satellite sensor.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
B 111 4
SATELLITE SENS RH [COMM FAIL] B 111 5RH side air bag satellite sensor commu-
nication error.
CONTROL UNIT B1XXX Air bag diagnosis sensor unit is malfunc-
tioning.
1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the air bag diagnosis sensor unit.
4. Replace the related harness.
PASS A/B INDCTR CKT B1023 Front passenger air bag OFF indicator is
malfunctioning.
1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the front passenger air bag OFF in-
dicator.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
OCCUPANT SENS C/U [UNIT FAIL] B1017 The OCS control unit is malfunctioning. 1. Replace the RH front seat cushion assembly.
Do not disassemble the seat cushion assem-
bly.
B1021
B1020 The OCS control unit is malfunctioning. 1. Replace the harness if it has visible damage.
2. Replace the RH front seat cushion assembly.
Do not disassemble the seat cushion assem-
bly.
3. Replace the RH front seat belt assembly.
CONSULT-III name DTC
DTC detecting condition Repair order
Revision: March 2010 2008 QX56

DIAGNOSIS SENSOR UNITSRC-85
< ECU DIAGNOSIS >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
Trouble Diagnosis without CONSULT-IIIINFOID:0000000001735362

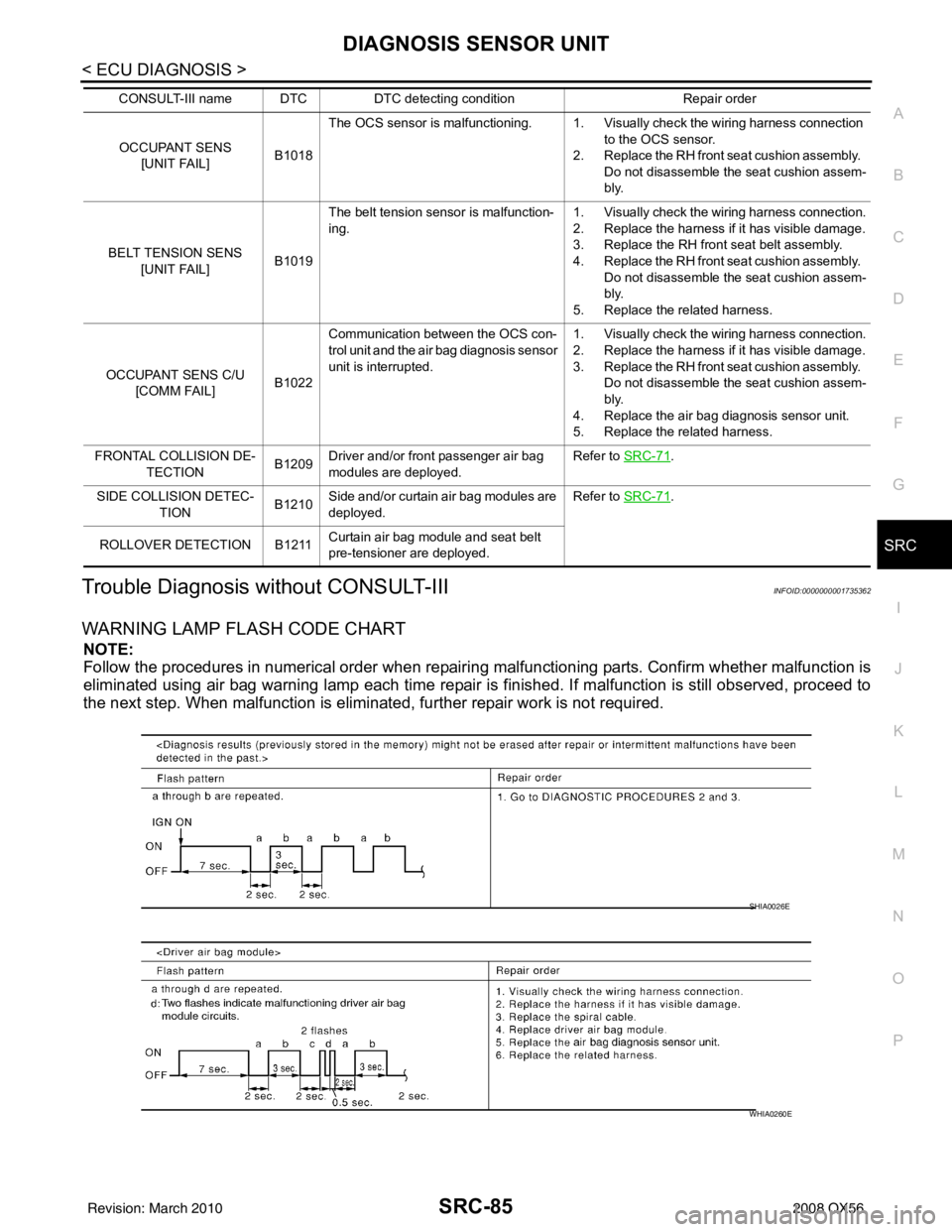

WARNING LAMP FLASH CODE CHART
NOTE:
Follow the procedures in numerical order when repairi ng malfunctioning parts. Confirm whether malfunction is
eliminated using air bag warning lamp each time repair is finished. If malfunction is still observed, proceed to
the next step. When malfunction is eliminated, fu rther repair work is not required.
OCCUPANT SENS
[UNIT FAIL] B1018The OCS sensor is malfunctioning. 1. Visually check the wiring harness connection
to the OCS sensor.
2. Replace the RH front seat cushion assembly. Do not disassemble the seat cushion assem-
bly.
BELT TENSION SENS [UNIT FAIL] B1019The belt tension sensor is malfunction-
ing.
1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the RH front seat belt assembly.
4. Replace the RH front seat cushion assembly.
Do not disassemble the seat cushion assem-
bly.
5. Replace the related harness.
OCCUPANT SENS C/U [COMM FAIL] B1022Communication between the OCS con-
trol unit and the air bag diagnosis sensor
unit is interrupted.
1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the RH front seat cushion assembly.
Do not disassemble the seat cushion assem-
bly.
4. Replace the air bag diagnosis sensor unit.
5. Replace the related harness.
FRONTAL COLLISION DE- TECTION B1209Driver and/or front passenger air bag
modules are deployed. Refer to SRC-71
.
SIDE COLLISION DETEC- TION B1210
Side and/or curtain air bag modules are
deployed. Refer to SRC-71
.
ROLLOVER DETECTION B1211 Curtain air bag module and seat belt
pre-tensioner are deployed.
CONSULT-III name DTC
DTC detecting condition Repair order
SHIA0026E
WHIA0260E
Revision: March 2010 2008 QX56

SRC-86
< ECU DIAGNOSIS >
DIAGNOSIS SENSOR UNIT

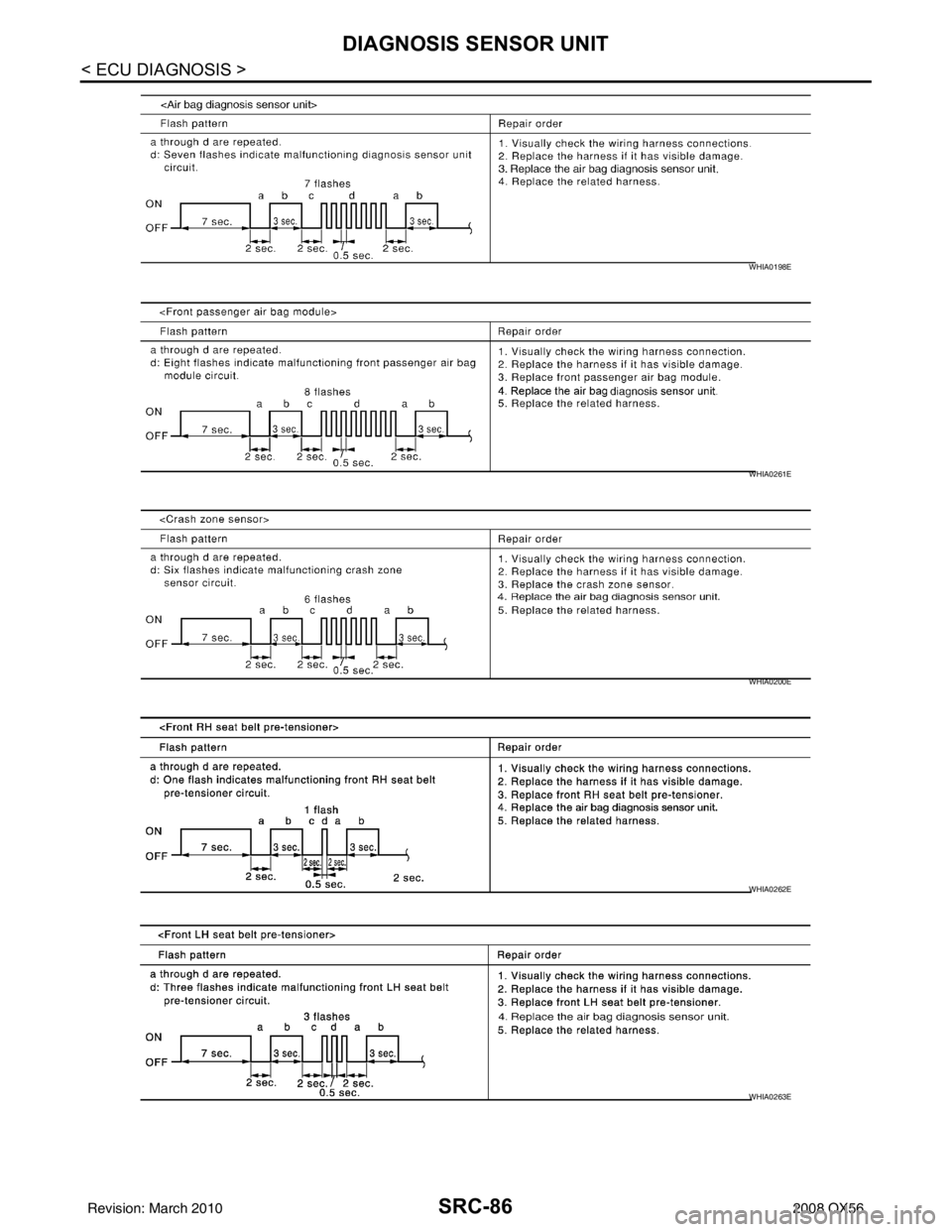

WHIA0198E
WHIA0261E
WHIA0200E
WHIA0262E
WHIA0263E
Revision: March 20102008 QX56

DIAGNOSIS SENSOR UNITSRC-87
< ECU DIAGNOSIS >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P

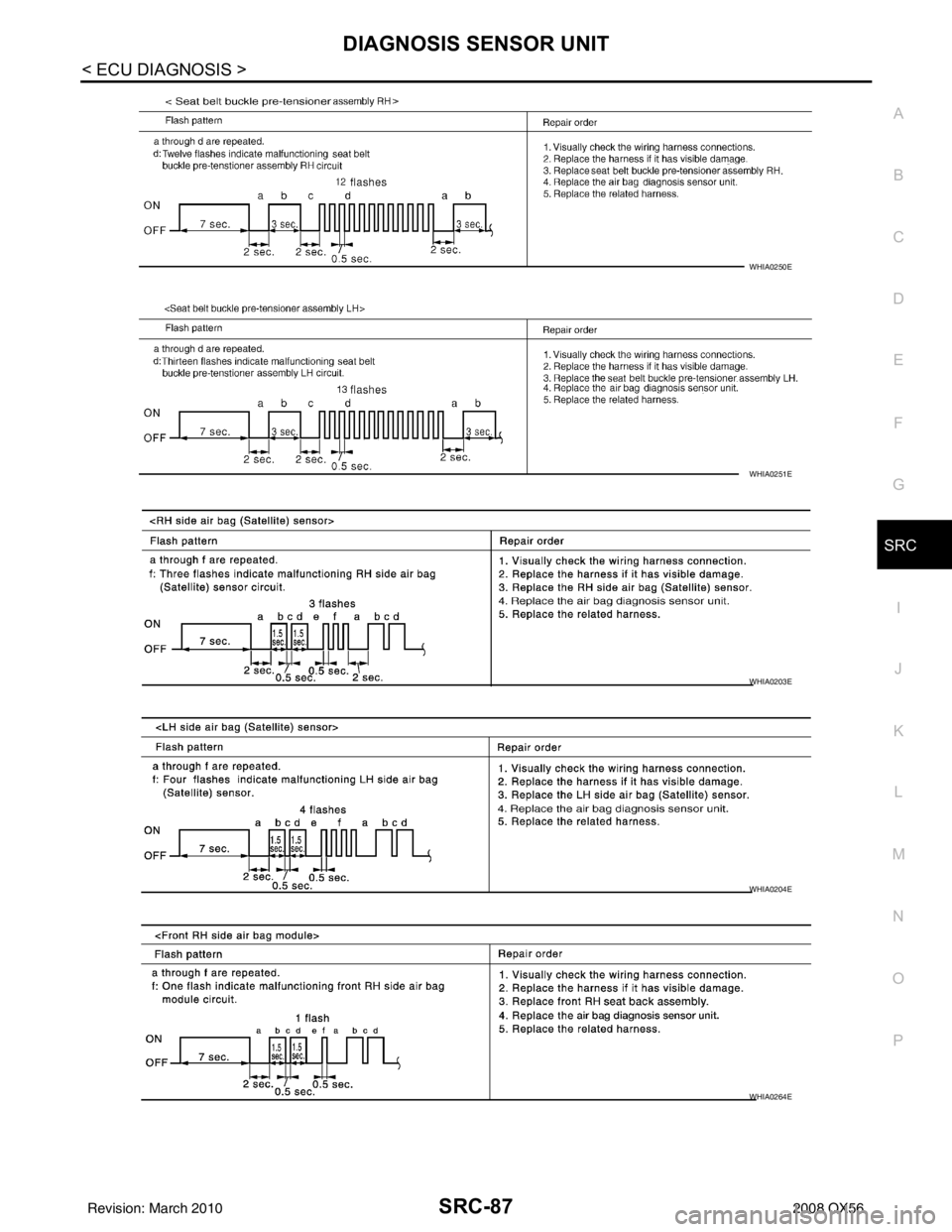

WHIA0250E
WHIA0251E
WHIA0203E
WHIA0204E
WHIA0264E
Revision: March 2010 2008 QX56

SRC-88
< ECU DIAGNOSIS >
DIAGNOSIS SENSOR UNIT

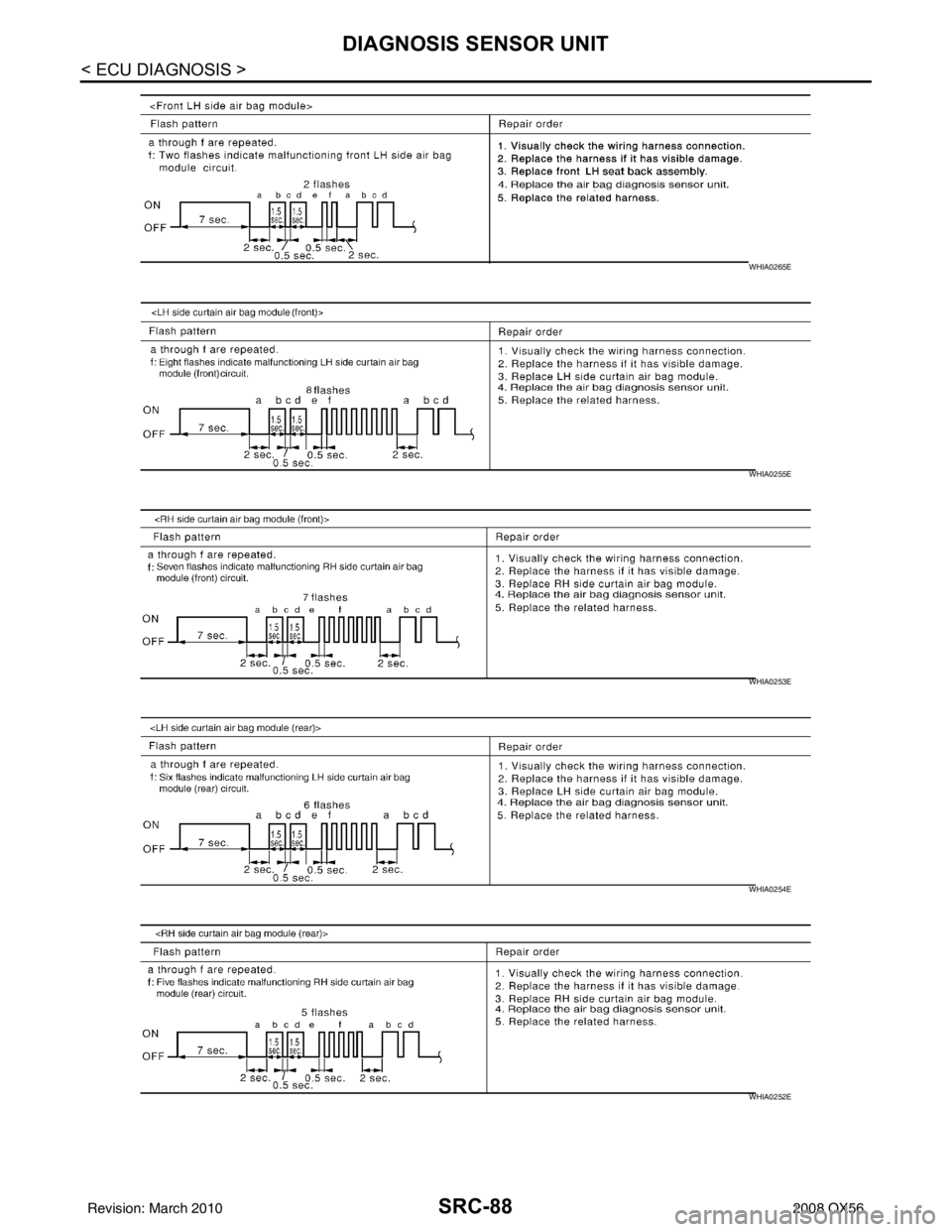

WHIA0265E
WHIA0255E
WHIA0253E
WHIA0254E
WHIA0252E
Revision: March 20102008 QX56

DIAGNOSIS SENSOR UNITSRC-89
< ECU DIAGNOSIS >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P

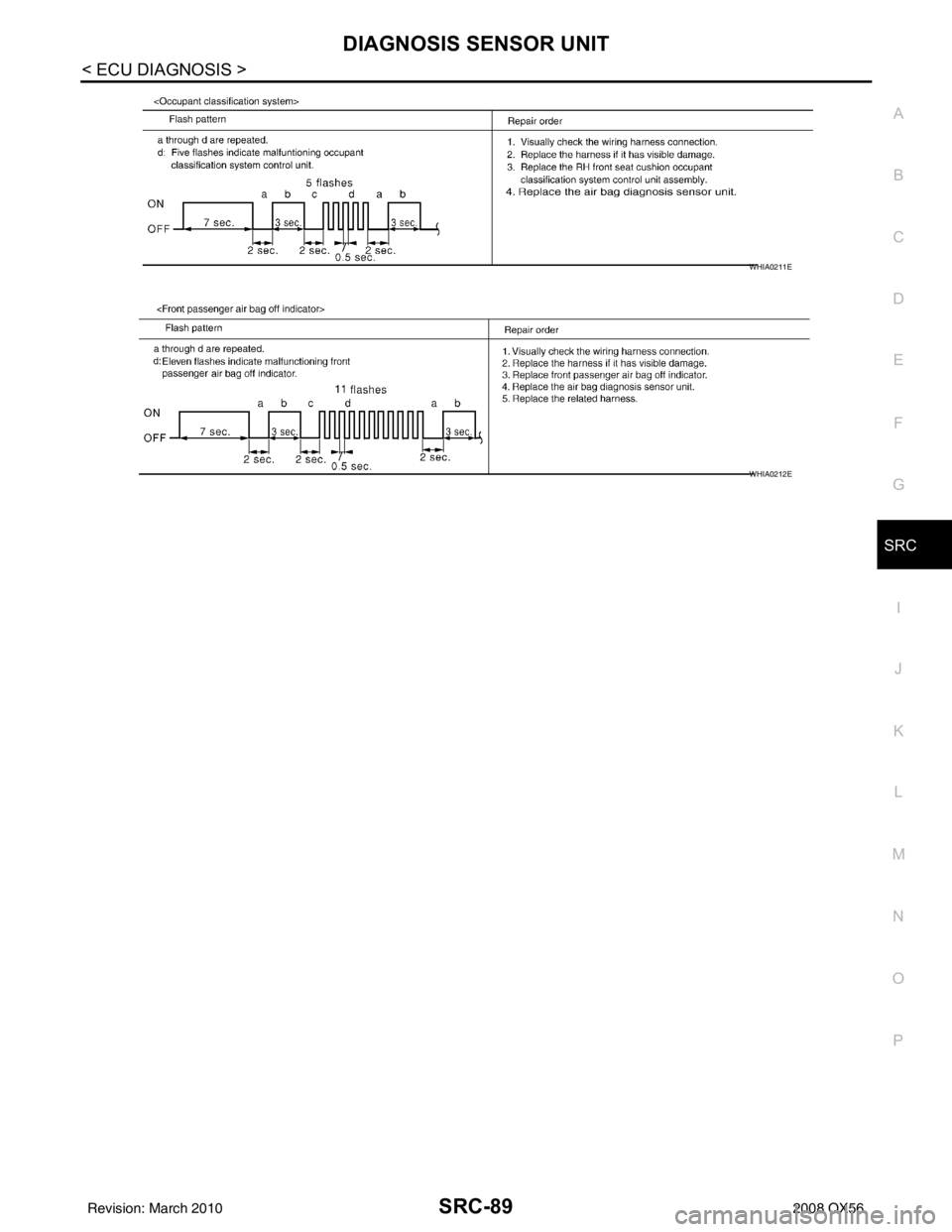

WHIA0211E
WHIA0212E
Revision: March 2010 2008 QX56

SRC-90
< SYMPTOM DIAGNOSIS >
SRS AIR BAG SYSTEM
SYMPTOM DIAGNOSIS
SRS AIR BAG SYSTEM
"AIR BAG" Warning Lamp Does Not Turn OffINFOID:0000000001735363
DIAGNOSTIC PROCEDURE 7
1.CHECK CONDITION OF AIR BAG MODULE
Inspect for any deployed air bag modules or seat belt pre-tensioners.
Are any air bag modules or s eat belt pre-tensioners deployed?
YES >> Refer to SR-19, "For Frontal Collision" or SR-20, "For Side and Rollover Collision".
NO >> GO TO 2
2.CHECK THE AIR BAG FUSE
Check 10A fuse [No. 13, locat ed in the fuse block (J/B)].
Is the fuse blown?
Ye s > > G O T O 3
No >> GO TO 4
3.CHECK AIR BAG FUSE AGAIN
Replace 10A fuse [No. 13, located in the fu se block (J/B)] and turn ignition switch ON.
Does the fuse blow again?
YES >> Replace harness.
NO >> Inspection End.
4.CHECK AIR BAG DIAGNOSIS SENSOR UNIT
Connect CONSULT-III.
Is
“AIR BAG” displayed on CONSULT-III?
YES >> GO TO 5
NO >> Visually inspect the air bag diagnosis sensor unit harness connections. If the connections are OK,
replace the air bag diagnosis sensor unit. Refer to SR-17, "
Removal and Installation".
5.CHECK HARNESS CONNECTION
Check for loose connections between the combination meter and the air bag diagnosis sensor unit.
Are there any loose connections?
Yes >> Properly connect the combination meter and air bag diagnosis sensor unit harness connectors. If
“AIR BAG” warning lamp still does not turn off, replace the wiring harness.
No >> Replace air bag diagnosis sensor unit.
"AIR BAG" Warning La mp Does Not Turn OnINFOID:0000000001735364
DIAGNOSTIC PROCEDURE 8
1.CHECK METER FUSE
Check the 10A fuse [No. 14, located in the fuse block (J/B)] .
Is the fuse blown?
Ye s > > G O T O 2
No >> GO TO 3
2.REPLACE METER FUSE AND CHECK AGAIN
Replace 10A fuse [No. 14, located in the fu se block (J/B)] and turn ignition switch ON.
Does the fuse blow again?
Yes >> Replace harness.
No >> Inspection End.
3.CHECK HARNESS CONNECTIONS BET WEEN AIR BAG DIAGNOSIS SENSOR UNIT AND COMBINA-
Revision: March 2010 2008 QX56

SRS AIR BAG SYSTEMSRC-91
< SYMPTOM DIAGNOSIS >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
TION METER Inspect the harness and connectors between the air bag diagnosis sensor unit and the combination meter.
Do the harness or connectors have any visible damage?
Yes >> Replace harness.
No >> GO TO 4
4.CHECK COMBINATION METER
Disconnect the air bag diagnosis sensor unit harnes s connectors and turn ignition switch ON.
Does
“AIR BAG” warning lamp turn on?
Yes >> Replace the air bag diagnosis sensor unit. Refer to SR-17, "Removal and Installation".
No >> Replace the combination meter. Refer to MWI-76, "
Removal and Installation".
