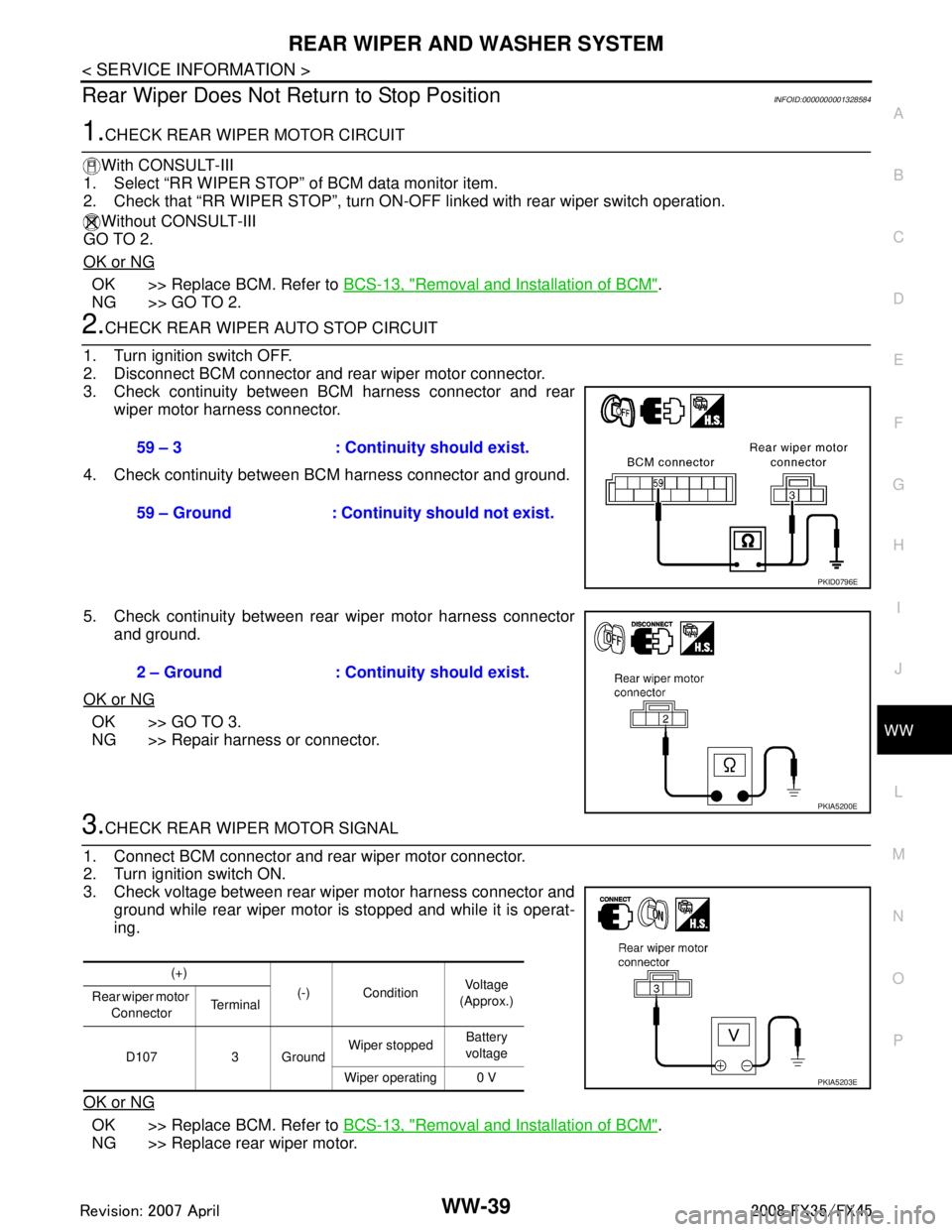

Rear Wiper Does Not Re turn to Stop PositionINFOID:0000000001328584
1.CHECK REAR WIPER MOTOR CIRCUIT
With CONSULT-III
1. Select “RR WIPER STOP” of BCM data monitor item.
2. Check that “RR WIPER STOP”, turn ON-O FF linked with rear wiper switch operation.
Without CONSULT-III
GO TO 2.
OK or NG
OK >> Replace BCM. Refer to BCS-13, "Removal and Installation of BCM".
NG >> GO TO 2.
2.CHECK REAR WIPER AUTO STOP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and rear wiper motor connector.
3. Check continuity between BCM harness connector and rear wiper motor harness connector.
4. Check continuity between BCM harness connector and ground.
5. Check continuity between rear wiper motor harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3.CHECK REAR WIPER MOTOR SIGNAL
1. Connect BCM connector and rear wiper motor connector.
2. Turn ignition switch ON.
3. Check voltage between rear wiper motor harness connector and ground while rear wiper motor is stopped and while it is operat-
ing.
OK or NG
OK >> Replace BCM. Refer to BCS-13, "Removal and Installation of BCM".
NG >> Replace rear wiper motor.
59 – 3 : Continuity should exist.
59 – Ground : Continuity should not exist.
PKID0796E
2 – Ground : Continuity should exist.
PKIA5200E
(+)
(-) Condition Vo l ta g e
(Approx.)
Rear wiper motor
Connector Te r m i n a l
D107 3 Ground Wiper stopped
Battery
voltage
Wiper operating 0 V
PKIA5203E
