DTC P2127, P2128 APP SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in
put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
Diagnosis ProcedureINFOID:0000000001326400
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body, Refer to EC-144, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK ACCLERATOR PEDA L POSITION SENSOR 2 POWER SUPPLY CIRCUIT-I
TER-
MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
47 L Sensor power supply (Throt-
tle position sensor) [Ignition switch: ON]
Approximately 5V
82 B/W Sensor ground
(APP sensor 1) [Engine is running]

Warm-up condition
 Idle speed Approximately 0V
83 G/OR Sensor ground
(APP sensor 2) [Engine is running]

Warm-up condition
 Idle speed Approximately 0V
90 L/B Sensor power supply
(APP sensor 1)
[Ignition switch: ON]
Approximately 5V
91 G Sensor power supply
(APP sensor 2) [Ignition switch: ON]
Approximately 5V
98 Y/R Accelerator pedal position
sensor 2 [Ignition switch: ON]
 Engine stopped
 Accelerator pedal: Fully released
0.15 - 0.60V
[Ignition switch: ON]
 Engine stopped
 Accelerator pedal: Fully depressed 1.95 - 2.40V
106 OR Accelerator pedal position
sensor 1 [Ignition switch: ON]
 Engine stopped
 Accelerator pedal: Fully released
0.5 - 1.0V
[Ignition switch: ON]
 Engine stopped
 Accelerator pedal: Fully depressed 3.9 - 4.7V
PBIB2625E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P2127, P2128 APP SENSOREC-515
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 4 and ground with
CONSULT-III or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
3.CHECK ACCELERATOR PEDAL POSITION SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 4 and ECM terminal 91. Refer to wiring diagram.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors E211, M41
 Harness for open or short between ECM and APP sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK THROTTLE POSI TION SENSOR 2 POWER SUPPLY CIRCUIT-III
Check the following.
 Harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 6.
NG >> Repair short to ground or short to power in harness or connectors.
6.CHECK THROTTLE POSITION SENSOR
Refer to EC-306, "
Component Inspection".
OK or NG
PBIB1580E
Voltage: Approximately 5V
PBIB0915E
Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
91 APP sensor terminal 4 EC-513
47 Electric throttle control actuator terminal 1EC-303
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-516
< SERVICE INFORMATION >[VQ35DE]
DTC P2127, P2128 APP SENSOR
OK >> GO TO 14.
NG >> GO TO 7.
7.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator.
2. Perform EC-85, "
Throttle Valve Closed Position Learning".
3. Perform EC-85, "
Idle Air Volume Learning".
>> INSPECTION END
8.CHECK ACCLERATOR PEDAL PO SITION SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 1 and ECM terminal 83. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors E211, M41
 Harness for open or short between ECM and APP sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
10.CHECK ACCELERATOR PEDAL PO SITION SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND
SHORT
1. Check harness continuity between ECM terminal 98 and APP sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 .DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors E211, M41
 Harness for open or short between ECM and APP sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
12.CHECK ACCELERATOR PEDAL POSITION SENSOR
Refer to EC-517, "
Component Inspection".
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-85, "
Accelerator Pedal Released Position Learning".
3. Perform EC-85, "
Throttle Valve Closed Position Learning".
Continuity should exist.
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P2127, P2128 APP SENSOREC-517
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
4. Perform
EC-85, "Idle Air Volume Learning".
>> INSPECTION END
14.CHECK INTERMITTENT INCIDENT
Refer to EC-139
.
>> INSPECTION END
Component InspectionINFOID:0000000001326401
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and ground under the following
conditions.
4. If NG, replace accelerator pedal assembly and go to next step.
5. Perform EC-85, "
Accelerator Pedal Released Position Learning".
6. Perform EC-85, "
Throttle Valve Closed Position Learning".
7. Perform EC-85, "
Idle Air Volume Learning".
Removal and InstallationINFOID:0000000001326402
ACCELERATOR PEDAL
Refer to ACC-3.
Terminal Accelerator pedal Voltage
106
(Accelerator pedal position
sensor 1) Fully released 0.5 - 1.0V
Fully depressed 3.9 - 4.7V
98
(Accelerator pedal position
sensor 2) Fully released 0.15 - 0.60V
Fully depressed 1.95 - 2.40V
MBIB0023E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-518
< SERVICE INFORMATION >[VQ35DE]
DTC P2135 TP SENSOR
DTC P2135 TP SENSOR
Component DescriptionINFOID:0000000001326403
Electric throttle control actuator
consists of throttle control motor,
throttle position (TP) sensor, et c. The throttle position sensor
responds to the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326404
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagn osis LogicINFOID:0000000001326405
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000001326406
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.
1. Start engine and let it idle for 1 second.
2. Check DTC.
3. If DTC is detected, go to EC-520, "
Diagnosis Procedure".
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
TP SEN 1-B1
TP SEN 2-B1*  Ignition switch: ON
(Engine stopped)
 Selector lever: D Accelerator pedal:
Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2135
2135 Throttle position sensor
circuit range/perfor-
mance Rationally incorrect voltage is sent to ECM
compared with the signals from TP sensor 1
and TP sensor 2.  Harness or connector
(TP sensor 1 and 2 circuit is open or
shorted.)
(APP sensor 2 circuit is shorted).
 Electric throttle control actuator (TP sensor 1 and 2)
 Accelerator pedal position sensor.
(APP sensor 2)
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P2135 TP SENSOREC-519
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

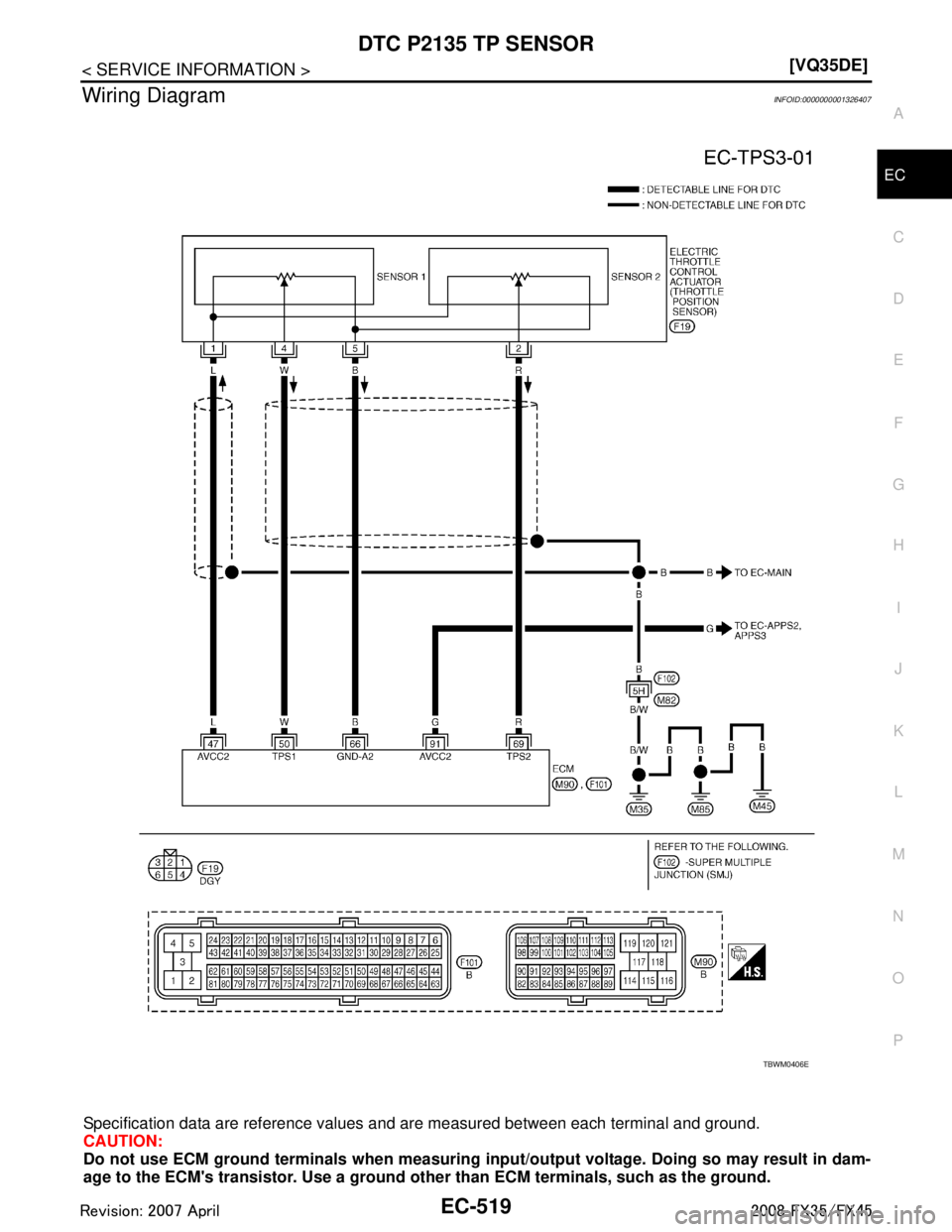

Wiring DiagramINFOID:0000000001326407
Specification data are reference values
and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals wh en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
TBWM0406E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-520
< SERVICE INFORMATION >[VQ35DE]
DTC P2135 TP SENSOR
Diagnosis Procedure
INFOID:0000000001326408
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-144, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK THROTTLE POSITION SE NSOR POWER SUPPLY CIRCUIT-1
TER-
MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
47 L Sensor power supply (Throt-
tle position sensor) [Ignition switch: ON]
Approximately 5V
50 W Throttle position sensor 1 [Ignition switch: ON]
 Engine stopped
 Selector lever: D
 Accelerator pedal: Fully released
More than 0.36V
[Ignition switch: ON]
 Engine stopped
 Selector lever: D
 Accelerator pedal: Fully depressed Less than 4.75V
66 B Sensor ground
(Throttle position sensor) [Engine is running]

Warm-up condition
 Idle speed Approximately 0V
69 R Throttle position sensor 2 [Ignition switch: ON]
 Engine stopped
 Selector lever: D
 Accelerator pedal: Fully released
Less than 4.75V
[Ignition switch: ON]
 Engine stopped
 Selector lever: D
 Accelerator pedal: Fully depressed More than 0.36V
91 G Sensor power supply
(APP sensor 2) [Ignition switch: ON]
Approximately 5V
PBIB2625E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P2135 TP SENSOREC-521
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Disconnect electric throttle c
ontrol actuator harness connector.
2. Turn ignition switch ON.
3. Check voltage between electric throttle control actuator terminal 1 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3.CHECK THROTTLE POSITION SEN SOR POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric thrott le control actuator terminal 1 and ECM terminal 47.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit.
4.CHECK THROTTLE POSITION SEN SOR POWER SUPPLY CIRCUIT-III
Check the following.
 Harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 5.
NG >> Repair short to ground or short to power in harness or connectors.
5.CHECK APP SENSOR
Refer to EC-517, "
Component Inspection".
OK or NG
OK >> GO TO 11.
NG >> GO TO 6.
6.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-85, "
Accelerator Pedal Released Position Learning".
3. Perform EC-85, "
Throttle Valve Closed Position Learning".
4. Perform EC-85, "
Idle Air Volume Learning".
PBIB1557E
Voltage: Approximately 5V
PBIB0082E
Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
47 Electric throttle control actuator terminal 1 EC-519
91 APP sensor terminal 4EC-513
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
