2008 Hyundai Coupe Owner's Manual

F9
1. Multi-Function Light Switch
2. Horn and Driver's Airbag
3. Windshield Wiper/Washer Switch 4. Ignition Switch
5. Front Fog Light Switch (If installed)
6. Digital Clock
7. Hazard Warning Switch 8. Outside Temperature Switch
9. Rear Fog Light Switch (If installed)
10. Passenger's Air Bag (If installed)
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel surface. If there is any leakage from the air freshener onto these areas (Instrument cluster, instrument panel or air ventilator), it maydamage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately.
! 11. Fuse Box Relay
12. Hood Release Lever
13. Steering Wheel Tilt Lever
14. Heating and Airconditioning Control Panel
15. Ashtray
16. Front Seat Warmer (If installed)
17. Parking Brake Lever
18. Shift Lever
19. Cigarette Lighter
20. Audio System (If installed)
21. Glove Box

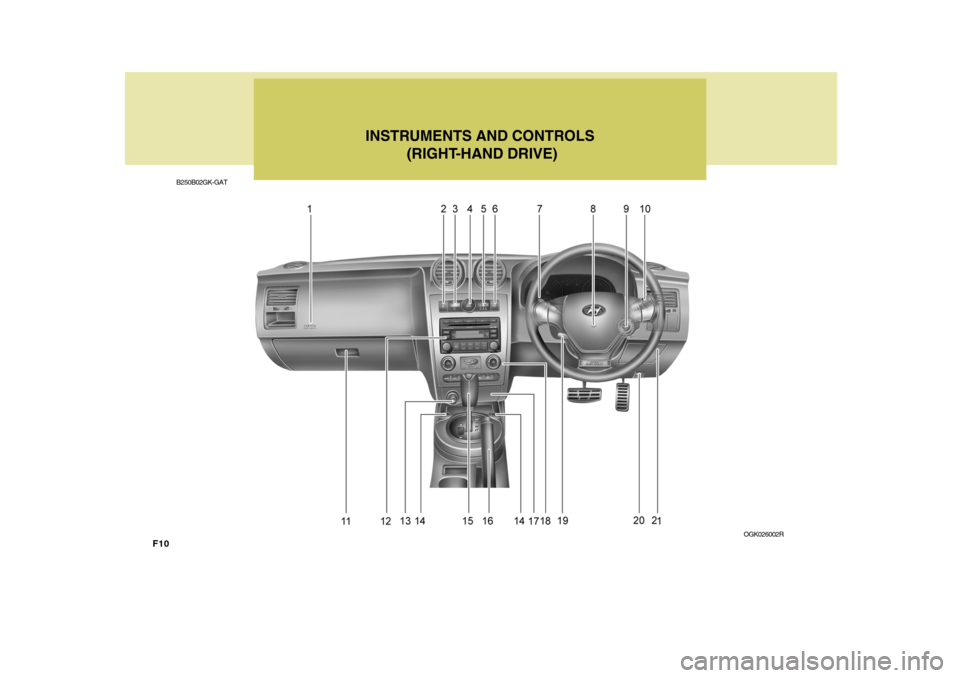

F10INSTRUMENTS AND CONTROLS
(RIGHT-HAND DRIVE)
OGK026002R
B250B02GK-GAT

F11
1. Passenger's Air Bag (If installed)
2. Rear Fog Light Switch (If installed) 3. Outside Temperature Switch
4. Hazard Warning Switch
5. Digital Clock
6. Front Fog Light Switch (If installed)
7. Windshield Wiper/Washer Switch
8. Horn and Driver's Airbag 9. Ignition Switch
10. Multi-Function Light Switch
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel surface. If there is any leakage from the air freshener onto these areas (Instrument cluster, instrument panel or air ventilator), it may damage these parts. If the liquid from the air freshener doesleak onto these areas, wash them with water immediately.
! 11. Glove Box
12. Audio System (If installed)
13. Cigarette Lighter
14. Front Seat Warmer (If installed)
15. Shift Lever
16. Parking Brake Lever
17. Ashtray
18. Heating and Airconditioning Control Panel
19. Steering Wheel Tilt Lever
20. Hood Release Lever
21. Fuse Box Relay

YOUR VEHICLE AT A GLANCE
F12B255A02GK-GAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL * More detailed explanations of these items will be found beginning on page 1-44.
Malfunction Indicator Light (If installed)
SRS (Airbag) Service Reminder Indicator (SRI)(If installed)
Tail Gate Open Warning Light
Low Fuel Level Warning Light
Door Ajar Warning Light (If installed)
ABS Service Reminder Indicator (If installed)
Turn Signal Indicator Lights
High Beam Indicator Light Low Oil Pressure Warning Light Parking Brake/Brake Fluid Level Warning Light
Charging System Warning Light CRUISE Indicator Light (If installed)
Seat Belt Warning Light CRUISE SET Indicator Light (If installed)
Electronic Stability Program (ESP) Indicator Light (If installed)
Immobilizer Warning Light (If installed)
120
km/hOverspeed warning Light (Mideast only)

Fuel Recommendations ............................................... 1-2
Breaking In Your New Hyundai .................................... 1-3
Keys .............................................................................. 1-4
Immobilizer System ...................................................... 1-4
Door Locks ................................................................... 1-7
Theft-Alarm System ...................................................... 1-9
Power Windows ..........................................................1-12
Seats .......................................................................... 1-13
Seat Belts .................................................................... 1-20
Child Restraint System ................................................ 1-25
Supplemental Restraint (AIRBAG ) System................. 1-34
Instrument Cluster and Indicator Lights .......................1-42
Warning and Indicator Lights....................................... 1-44
Trip Computer .............................................................. 1-52
Multi-function Light Switch ........................................... 1-55
Windshield Wiper/Washer Switch ................................1-58
Sunroof ........................................................................ 1-67
Mirror ........................................................................... 1-71
Hood R elease .............................................................. 1-75
Cruise Co ntrol.............................................................. 1-81
Audio Remote Contro l Switch ...................................... 1-85
Heating and Cooling Control .......... ..............................1-86
Antenna ..................................................................... 1-103
Stereo Sound System ............................................... 1-105
Audio System ............................................................ 1-107
FEATURES OF YOUR HYUNDAI
1
1

1FEATURES OF YOUR HYUNDAI
2FUEL RECOMMENDATIONS
B010A03A-GAT Use Unleaded Gasoline For Europe – For the optimal vehicle
performance, we recommend you to use unleaded gasoline with an octanerating of RON (Research Octane Num- ber) 95 /AKI (Anti Knock Index) 91 or higher.You may use unleaded gasoline with an octane rating of RON 91~94/AKI 87~90 but it may result in slight performancereduction of the vehicle. Except Europe – Unleaded gasoline
with a Pump Octane Rating of 87 (Re- search Octane Number 91) or higher must be used in Hyundai vehicle. If leaded gasoline is used, it will causethe catalytic converter to become inef-fective and the emission control sys- tem to malfunction. This can also result in increased main-tenance expense. To avoid accidental use of leaded fuel, the large nozzle used with leaded gasoline at servicestations can not be inserted into fuel tank opening of Hyundai vehicle. NOTE:
o For some countries, Hyundai
vehicles are designed to use leaded gasoline. When you are going to use leaded gasoline,ask to Hyundai dealer whether leaded gasoline in your vehicle is available or not.
o Octane Rating of leaded gaso- line is same with unleaded one. B010B01A-AAT What About Gasohol? Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grainalcohol) may be used in your Hyundai. However, if your engine develops driveability problems, the use of 100%unleaded gasoline is recommended. Fuels with unspecified quantities of alcohol, or alcohols other than ethanol,should not be used.
B010D01S-AAT Do not Use Methanol Fuels containing methanol (wood al- cohol) should not be used in your Hyundai. This type of fuel can reducevehicle performance and damage com- ponents of the fuel system.
CAUTION:
Your Hyundai's New Vehicle Lim- ited Warranty may not cover dam-age to the fuel system and perfor- mance problems that are caused by the use of methanol or fuels con-taining methanol.
!
OGK016100

1
FEATURES OF YOUR HYUNDAI
3BREAKING IN YOUR NEW HYUNDAI
B010E01A-AAT Gasolines for Cleaner Air To help contribute to cleaner air, Hyundai recommends that you usegasolines treated with detergent addi- tives, which help prevent deposit for- mation in the engine. These gasolineswill help the engine run cleaner and enhance performance of the Emission Control System. B010F01A-AAT Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding
registration and insurance.
o Determine that acceptable fuel is
available. B020A01S-GAT During the First 2,000 Km (1,200 Miles) No formal "break-in" procedure is re- quired with your new Hyundai. How- ever, you can contribute to the eco-nomical operation and durability of your Hyundai by observing the following recommendations during the first 2,000km (1,200 miles).
o Don't drive faster than 88 km/h (55
mph).
o While driving, keep your engine
speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000 rpm.
o Use moderate acceleration. Don't start, depress the accelerator pedalfully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words,
don't drive so slowly. In too high a gear that the engine "bucks" shift to a lower gear). o Whether going fast or slow, vary
your speed from time to time.
o Don't let the engine idle longer than 3 minutes at one time.
o Don't tow a trailer during the first 2,000 km (1,200 miles) of opera-tion.

1FEATURES OF YOUR HYUNDAI
4KEYSIMMOBILIZER SYSTEM
B030A01A-AAT For greater convenience, the same key operates all the locks in yourHyundai. However, because the doors can be locked without a key, carrying a spare key is recommended in caseyou accidentally lock one key inside the car. B030B01S-AAT Record Your Key Number A code number is stamped on the key number plate that came with the keys to your Hyundai. This key number plateshould be kept in a safe place, not in the vehicle. The key number should also be recorded in a place where itcan be found in an emergency. If you need additional keys, or if you should lose your keys, your authorized Hyundai dealer can make new keys if you can supply the key number. B880A01A-GAT (If Installed) The immobilizer system is an anti-theft device, designed to deter automobile theft. B880B06A-GAT Keys All of the locks fitted to the vehicle are operated by the same key. However, since it is possible to lock the doorswithout the use of the key, care should be exercised to ensure that the key does not become locked inside thevehicle by mistake. NOTE: If you make your own duplicate key, you will not be able to cancel the system or start the engine.
OMC025001
B030B01MC
OHD046100
