2008 HONDA CIVIC Owners Manual

Audio System (Models without navigation system)
Playing a Disc
124

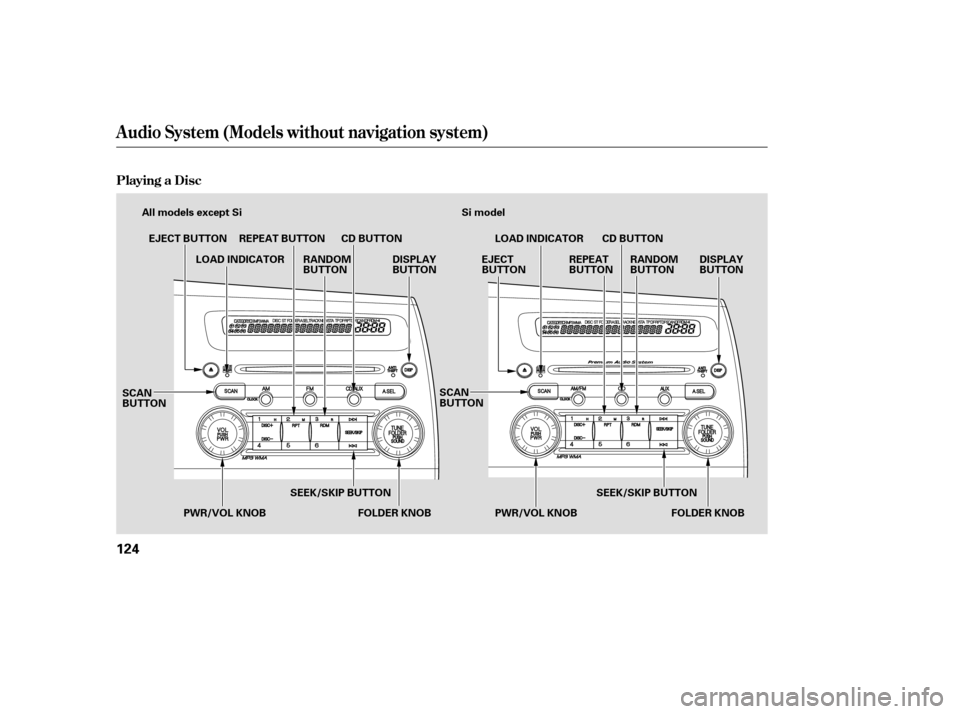

SCAN
BUTTONPWR/VOL KNOB
RANDOM
BUTTON
SEEK/SKIP BUTTON
SEEK/SKIP BUTTON
All models except Si
DISPLAY
BUTTONEJECT
BUTTON
CD BUTTON
EJECT BUTTON REPEAT BUTTON LOAD INDICATOR
DISPLAY
BUTTON
Si model
LOAD INDICATOR CD BUTTON
RANDOM
BUTTON
REPEAT
BUTTON
FOLDER KNOB
PWR/VOL KNOB FOLDER KNOB
SCAN
BUTTON
——yy
(#y
y

µ
µ
µ
µ
µ µ
µ
µ
To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
NOTE:
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays FORMAT, and then skips to
the next f ile.
Insert a disc about half way into the
disc slot. The drive will pull the disc
intherestof thewaytoplayit.You
operate the disc player with the
same controls used f or the radio.
The number of the current track and
the elapsed time are shown in the
display. When playing a disc in MP3
or WMA, the numbers of the current
f older and f ile, and the elapsed time
are shown. The system will
continuously play a disc until you
change modes.Maximum layers
(including ROOT): 8 layers
Compatible with variable bit rate
and multi-session
Bit rate:
48/64/80/96/128/160/192 kbps
The specif ications of the compatible
WMA f ile are:
Maximum layers
(including ROOT): 8 layers
Compatible with variable bit rate
and multi-session
Bit rate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/160 kbps (MPEG2)
Sampling f requency:
32/44.1/48 kHz (MPEG1)
24/22.05/16 kHz (MPEG2)
The specif ications of the compatible
MP3 f ile are:
Video CDs and DVD discs do not
work in this unit.
Sampling f requency:
32/44.1/48 kHz
You operate the disc player with the
same controls used f or the radio. To
select the disc player, press the CD
button. You will see ‘‘CD’’ in the
display.
This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA f ormats. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. In WMA
f ormat, ‘‘WMA’’ will appear in the
display. You can select up to 99
f olders, or up to 255 tracks/f iles.
CONT INUED
To Play a Disc
To Load a Disc
Audio System (Models without navigation system)
Features
125
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
——yy
(#y
y

µ
¼ Use the SEEK/SKIP button while a
disc is playing to select passages and
change tracks (f iles in MP3/WMA
mode).
Each time you
press and release the side of
the SEEK/SKIP button, the player
skips forward to the beginning of the
next track (f ile in MP3 or WMA
mode). Press and release the side to skip backward to the
beginning of the current track. Press
itagaintoskiptothebeginningof
the previous track.
To move rapidly within a track, press
and hold the or side of the
SEEK/SKIP button.
With the f older name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
Each time you press the DISP button,
the display shows you the text data
on a disc, if the disc was recorded
with text data.
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the f older and f ile name, and the
album, artist, and track tag.
The display shows up to about 16
characters of selected text data (the
foldername,filename,etc.).If the
text data has more than 16
characters, you will see the f irst 15
characters and the indicator in the display. Press and hold the DISP
button until the next 16 characters
are shown.
You will also see some text data
under these conditions:
When a new f older, f ile, or track is
selected.
When you change the audio mode
to play a disc with text data or in
MP3 or WMA.
When you insert a disc, and the
system begins to play.
When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name.
T o Change or Select T racks/Files
T ext Data Display Function
SEEK /SK IP
Audio System (Models without navigation system)
126
——y
y
(#y

y

µ
µ µ µ µ
To
select a different folder, turn the
TUNE knob to move to the
beginning of the next f older. Turn
theknobtotherighttoskiptothe
next f older, and to the lef t to move to
the beginning of the current f older.
Turn it again to skip to the beginning
of the previous f older. Turning the
TUNE knob more than one click
skips several f olders at a time.
To continuously replay
a track (f iles in MP3 or WMA mode),
press and release the RPT button.
You will see RPT in the display.
Press and hold the RPT button for 2
seconds to turn it off.
This feature,
when activated, replays all f iles on
the selected f older in the order they
are compressed. To activate folder repeat, press the RPT button twice.
You will hear a beep and see F-RPT
in the display. The system
continuously replays the current
folder. Press the RPT button again to
turn it off. Pressing the RDM button,
or selecting a dif f erent f older with
the TUNE knob also turns of f the
repeat feature.
Each time you press and release the
RPT button, the mode changes f rom
f ile repeat to f older repeat, then to
normal playing.
This f eature plays the
tracks within a disc (the f iles in MP3
or WMA mode) in random order. To
activate random play, press and
release the RDM button. In MP3 or
WMA mode, press the RDM button
repeatedly to select RDM (within a
disc random play). You will see RDM
in the display. Press the RDM button
for 2 seconds to return to normal play.
This
feature, when activated, plays all
f iles on the selected f older in random
order. To activate f older random,
press and release the RDM button.
You will see F-RDM in the display.
The system will then select and play
f iles randomly. This continues until
you deactivate folder random by
pressing and holding the RDM
button f or 2 seconds, or by selecting
a different folder with the TUNE
knob.
Each time you press and release the
RDM button, the mode changes
f rom f older random play to random
play (within a disc random play),
then to normal playing.
CONT INUED
In MP3 or WMA mode
In MP3 or WMA mode
In MP3 or WMA mode
FOLDER SELECTION
REPEAT (TRACK/FILE
REPEAT)
FOL DER-REPEA T RANDOM (Random within a disc)FOLDER-RANDOM
Audio System (Models without navigation system)
Features
127
——yy
(#y
y

µµ
Pressing either side of the SEEK/
SKIP button also turns of f the scan
feature. Each time you press and release the
SCAN button, the mode changes
from folder scan to scan, then to
normal playing.Press the eject button ( ) to
remove the disc. If you eject the disc,
but do not remove it f rom the slot,
the system will automatically reload
it af ter 10 seconds and put it in pause
mode. To begin playing, press the
CD button.
You can also eject the disc when the
ignition switch is of f .
The scan f unction samples all tracks
(f iles in MP3 or WMA) on the disc in
the order they are recorded on the
disc. To activate scan, press the
SCAN button. In MP3 or WMA
mode, press the SCAN button
repeatedly to select SCAN. You will
see SCAN in the display. You will get
a10secondsamplingof eachtrack/
f ile on the disc. Press the SCAN
button again to get out of scan mode
and play the last track/f ile sampled. This
feature, when activated, samples the
f irst f ile of each f older on the disc.
To activate folder scan, press the
SCAN button twice. You will see
F-SCAN in the display.
The system plays the f irst f ile in the
f irst f older f or about 10 seconds. If
you do nothing, the system will then
play the f irst f iles in the remaining
f olders f or 10 seconds each. Af ter
playing the f irst f ile of the last f older,
the system plays normally.
Pressing either side of the SEEK/
SKIP button, selecting a dif f erent
folder with the TUNE knob, or
pressing the SCAN button, also turns
of f the f older scan. To play the radio when a disc is
playing, press the AM/FM button
(AM or FM button). Press the CD
button again to switch back to the
CD player.In MP3 or WMA modeTo Stop Playing a Disc
SCA N (T RA CK /FIL E SCA N)
F-SCAN (FOLDER SCAN)
Audio System (Models without navigation system)
128
——y
y
(#y
y

µ´ µ´
If you turn the system of f while a
disc is playing, either with the
power/volume knob or by turning
of f the ignition switch, the disc will
stay in the drive. When you turn the
system back on, the disc will begin
playing where it lef t of f .
Load the desired discs in the
magazine, and load the magazine in
the changer according to the
instructions that came with the unit.
To select the disc changer, press the
CD button. The disc and track
numbers will be displayed. To select
a dif f erent disc, use the preset 4
(DISC ) or the preset 1 (DISC )
on the preset button. To select the
previous disc, press the preset 4
(DISC ), or the preset 1 (DISC )
to select the next disc in sequence.If you select an empty slot in the
magazine, the changer will search
f or the next available disc to load and
play.
An optional six or eight disc changer
is available f or your vehicle. This
disc changer uses the same controls
used f or the in-dash disc player or
the radio. For inf ormation on how to handle
and protect compact discs, see page.
168
Operating the Optional Disc
Changer
Protecting Discs
Audio System (Models without navigation system)
Features
129
——yy
(#y
y

Î
Î
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
For the additional information on
damaged discs, see page .
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
Solution
Error Message Cause
: Except Si model
169
Will disappear when the temperature returns to
normal.
Current track will be skipped. The next
supported track or file plays automatically.
Press the EJECT button and pull out the disc(s).
Check the disc f or serious damage, signs of
deformation, excessive scratches, and/or dirt
(see page 169 ). Insert the disc again. If the
code does not disappear, or the disc(s) cannot
be removed, consult your dealer. Do not try to
f orce the disc out of the player.
High temperature
Track/File format not
supported
Mechanical Error
Servo Error
Disc Player Error Messages
Audio System (Models without navigation system)
130
HEAT ERROR
UNSUPPORT FORMAT
BAD DISC
PLEASE CHECK
OWNER’S
MANUAL PUSH
EJECT
BAD DISC
PLEASE CHECK
OWNER’SMANUAL
——yy
(#y
y

Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
If there is still a problem, the error
message will appear again. Press the
eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.Solution
Error Message CausePress the magazine eject button, and pull the
magazine out. If the message does not
disappear or the magazine cannot be pulled out,
see your dealer.
Insert disc.
Press the magazine eject button, pull the
magazine out, check for an error message, then
insert the magazine again. If the message does
not disappear, or the magazine cannot be pulled
out, see your dealer.
Insert disc magazine.
Will disappear when the temperature returns to
normal.
FOCUS Error
No disc in the disc magazine
Mechanical Error
No disc magazine in
the disc changer
High Temperature
Audio System (Models without navigation system)
Optional Disc Changer Error
Messages
Features
131
——yy
(#y
y
