2008 FORD MUSTANG Owners Manual

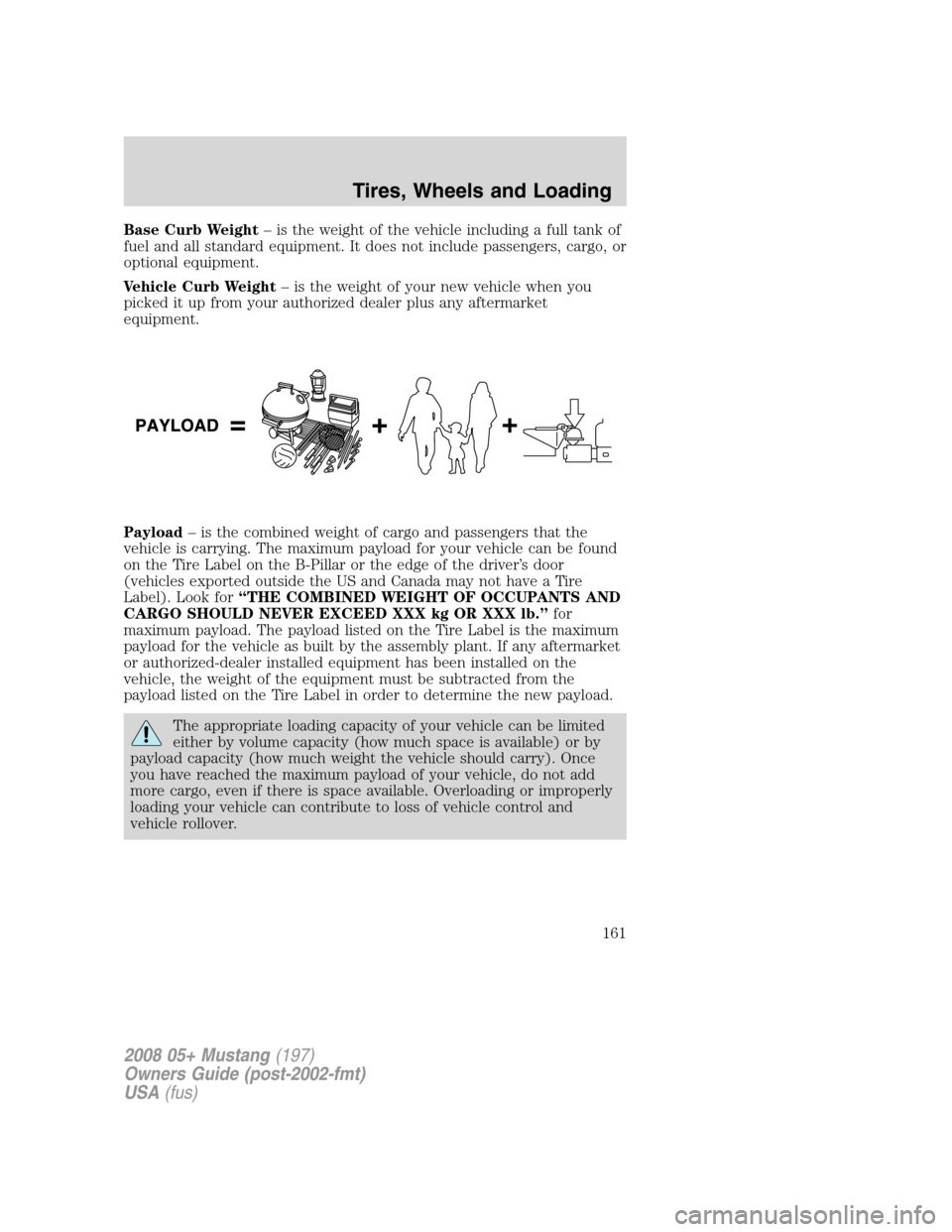

Page 161 of 280

FORD MUSTANG 2008 5.G Owners Manual Base Curb Weight– is the weight of the vehicle including a full tank of
fuel and all standard equipment. It does not include passengers, cargo, or
optional equipment.
Vehicle Curb Weight– is the w

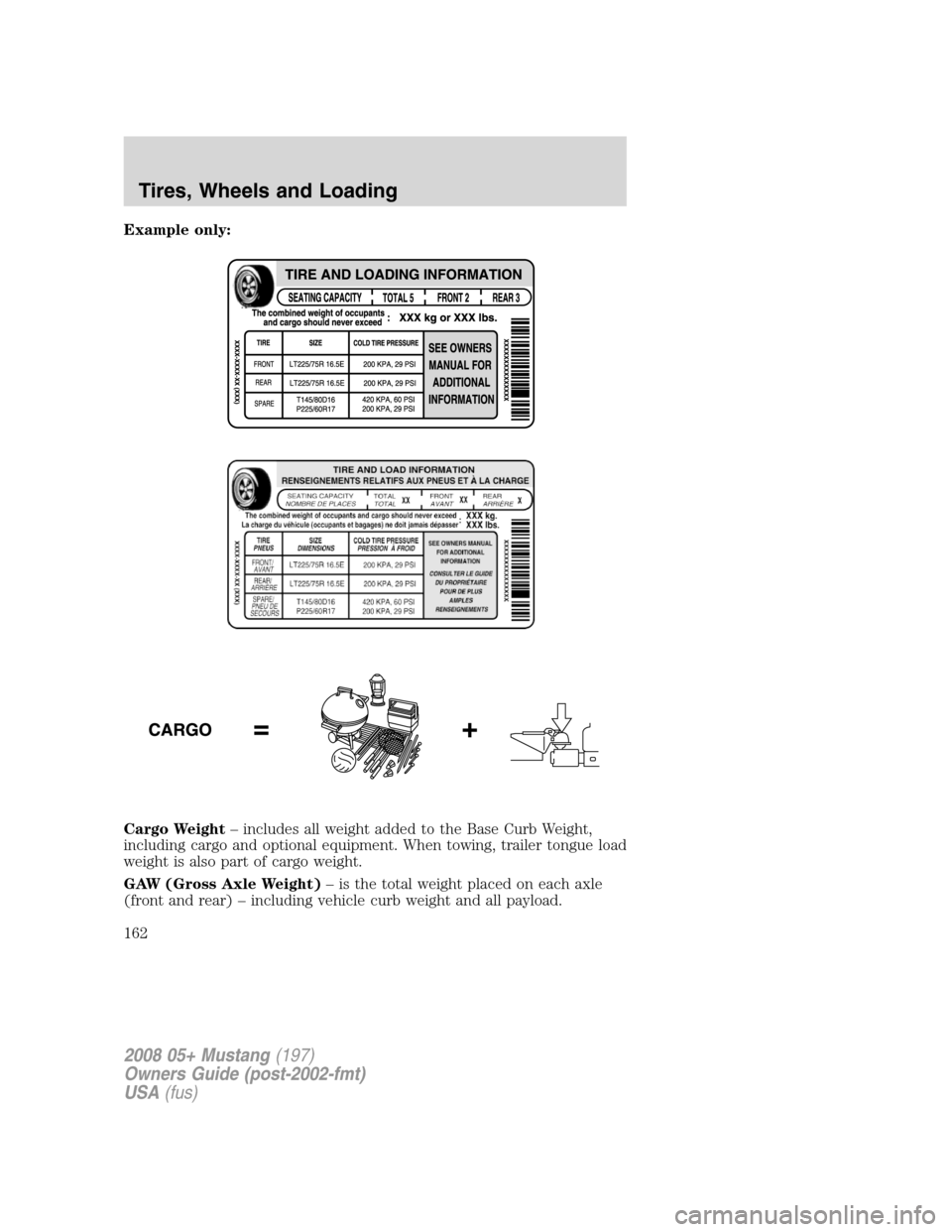

Page 162 of 280

FORD MUSTANG 2008 5.G Owners Manual Example only:
Cargo Weight– includes all weight added to the Base Curb Weight,
including cargo and optional equipment. When towing, trailer tongue load
weight is also part of cargo weight.
GAW (Gros

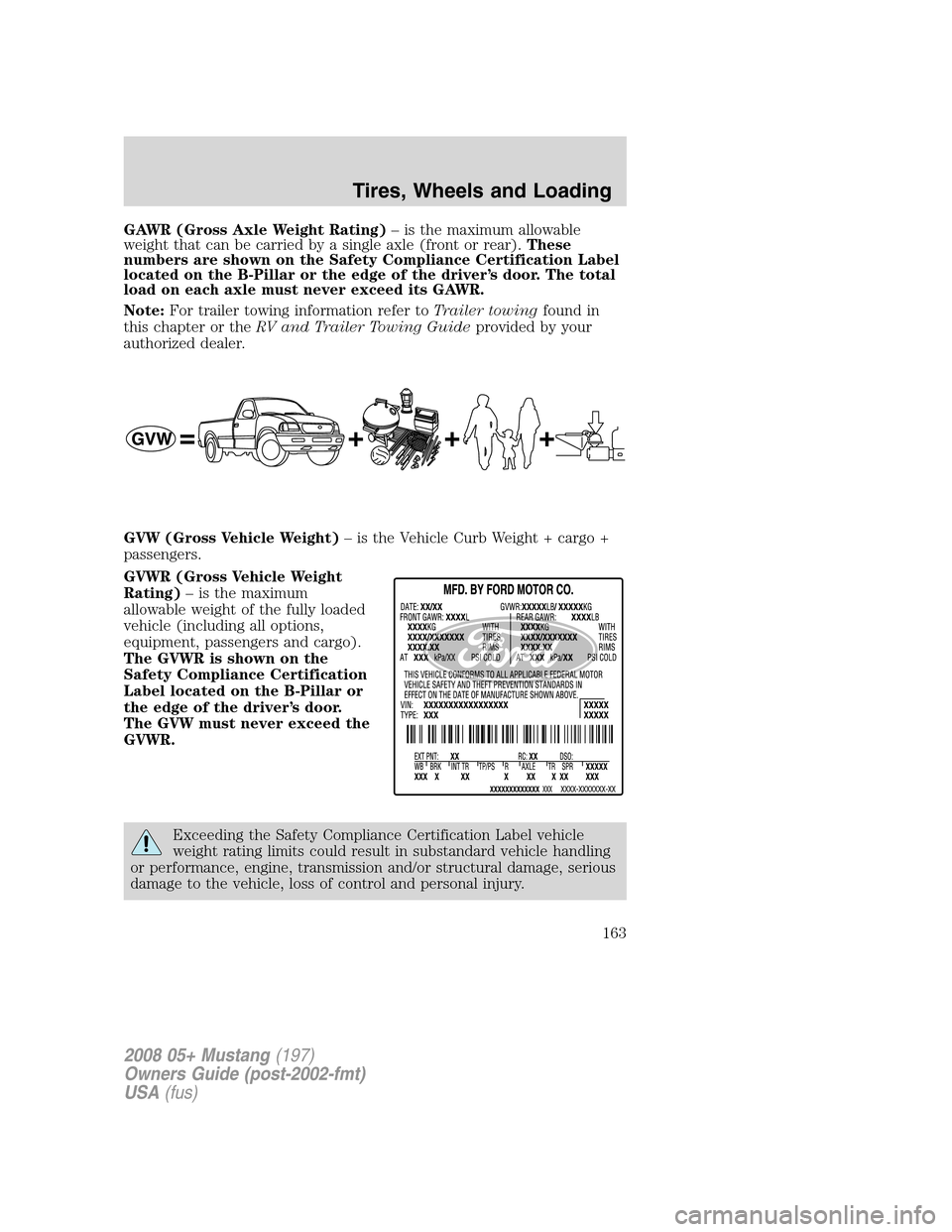

Page 163 of 280

FORD MUSTANG 2008 5.G Owners Manual GAWR (Gross Axle Weight Rating)– is the maximum allowable
weight that can be carried by a single axle (front or rear).These
numbers are shown on the Safety Compliance Certification Label
located on

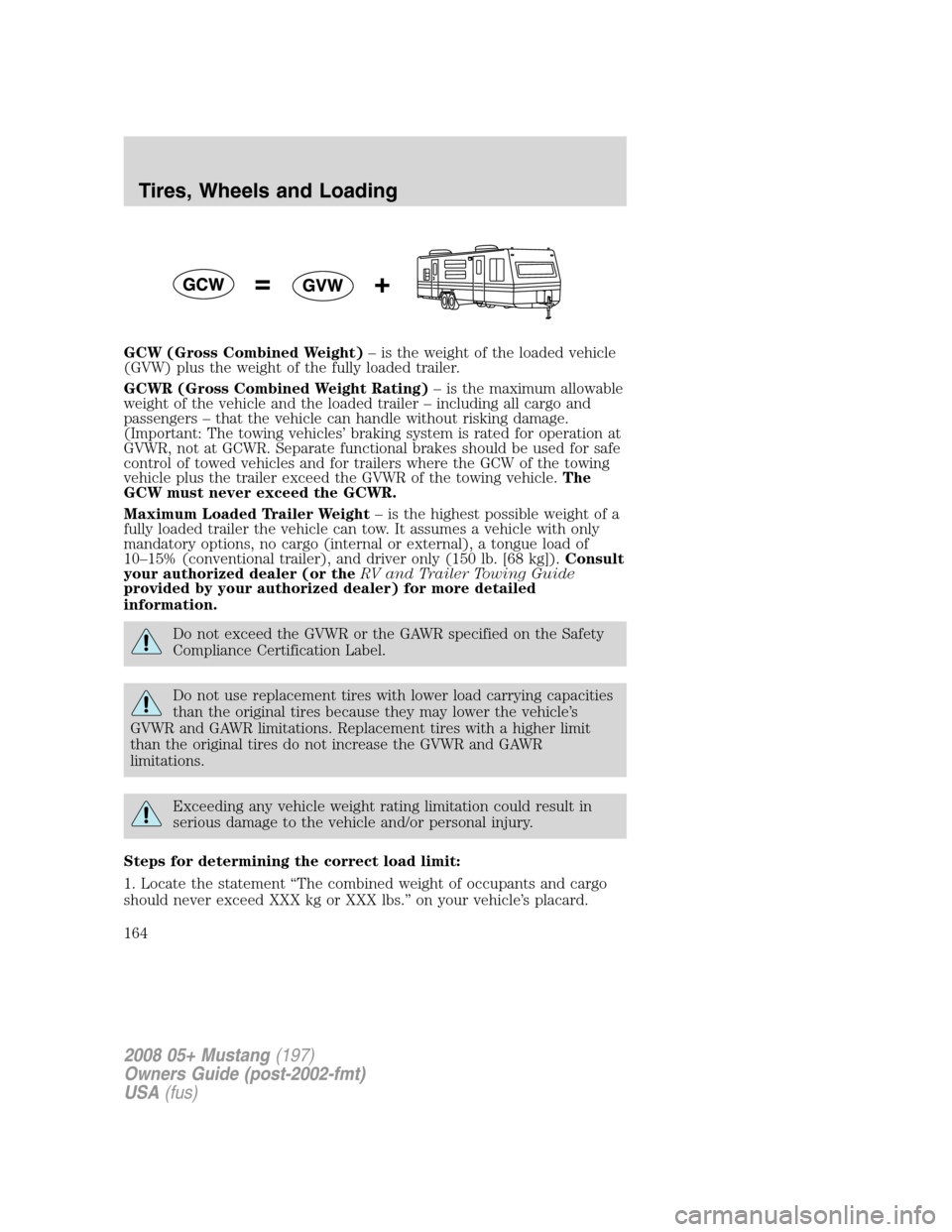

Page 164 of 280

FORD MUSTANG 2008 5.G Owners Manual GCW (Gross Combined Weight)– is the weight of the loaded vehicle
(GVW) plus the weight of the fully loaded trailer.
GCWR (Gross Combined Weight Rating)– is the maximum allowable
weight of the vehi

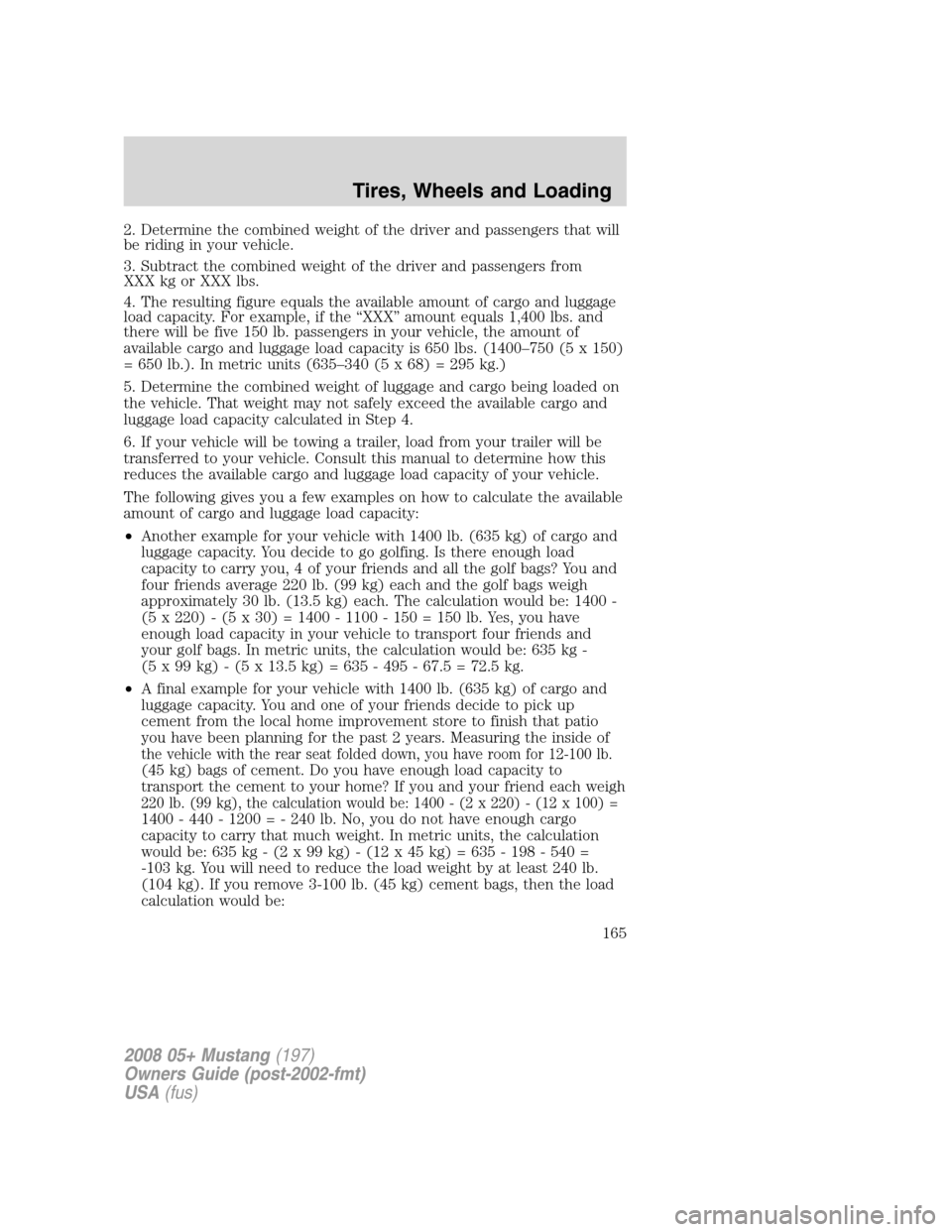

Page 165 of 280

FORD MUSTANG 2008 5.G Owners Manual 2. Determine the combined weight of the driver and passengers that will
be riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from
XXX kg or XXX lbs.
4. The resulting

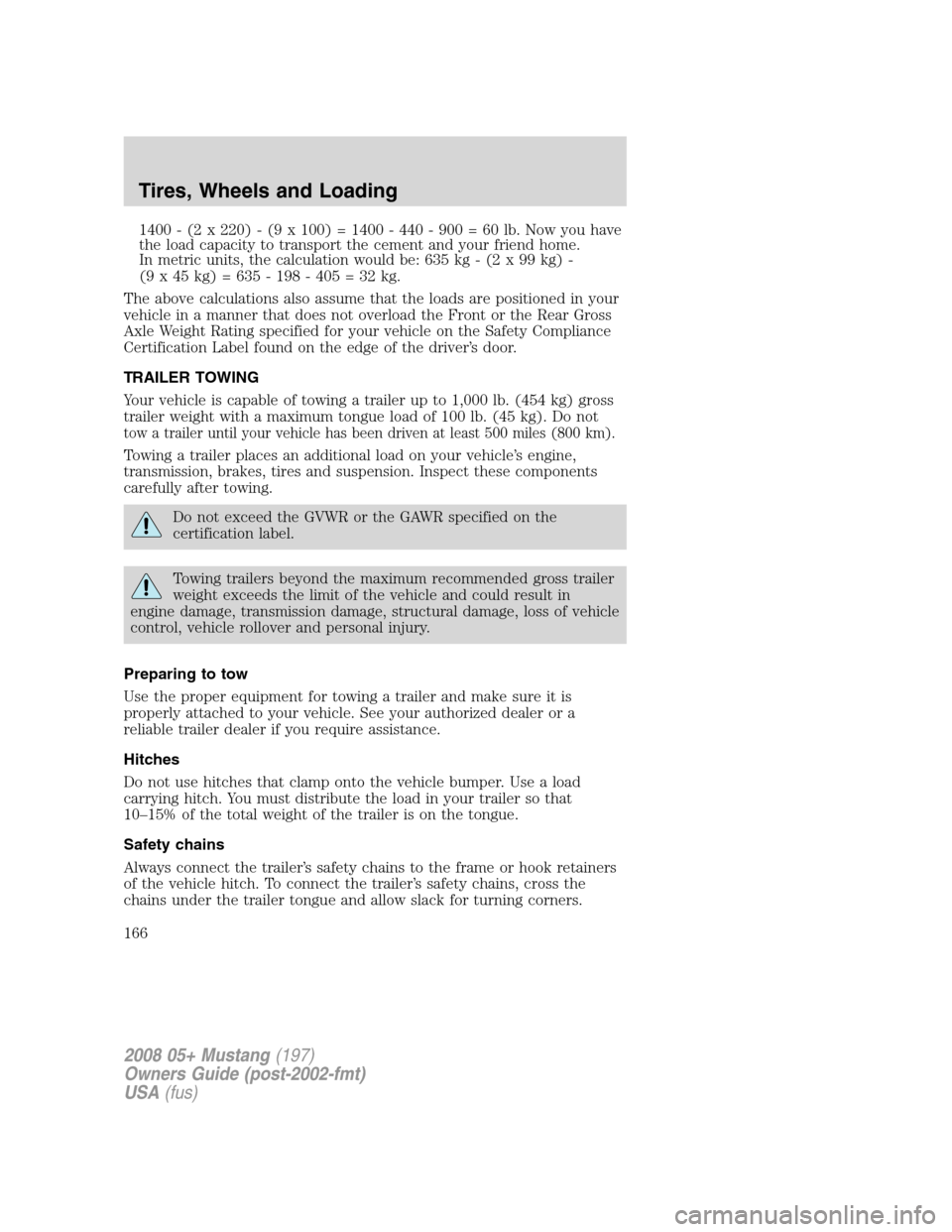

Page 166 of 280

FORD MUSTANG 2008 5.G Owners Manual 1400 - (2 x 220) - (9 x 100) = 1400 - 440 - 900 = 60 lb. Now you have
the load capacity to transport the cement and your friend home.
In metric units, the calculation would be: 635 kg - (2 x 99 kg) -

Page 167 of 280

FORD MUSTANG 2008 5.G Owners Manual If you use a rental trailer, follow the instructions that the rental agency
gives to you.
Do not attach safety chains to the bumper.
Trailer brakes
Electric brakes and manual, automatic or surge-type

Page 168 of 280

FORD MUSTANG 2008 5.G Owners Manual Trailer towing tips
•Practice turning, stopping and backing up before starting on a trip to
get the feel of the vehicle trailer combination. When turning, make
wider turns so the trailer wheels will
