2008 FORD MUSTANG Owners Manual

Page 145 of 280

FORD MUSTANG 2008 5.G Owners Manual Improper or inadequate vehicle maintenance can cause tires to wear
abnormally. Inspect all your tires, including the spare, frequently, and
replace them if one or more of the following conditions exis

Page 146 of 280

FORD MUSTANG 2008 5.G Owners Manual U.S. DOT Tire Identification Number (TIN)
Both U.S. and Canada Federal regulations require tire manufacturers to
place standardized information on the sidewall of all tires. This
information identifie

Page 147 of 280

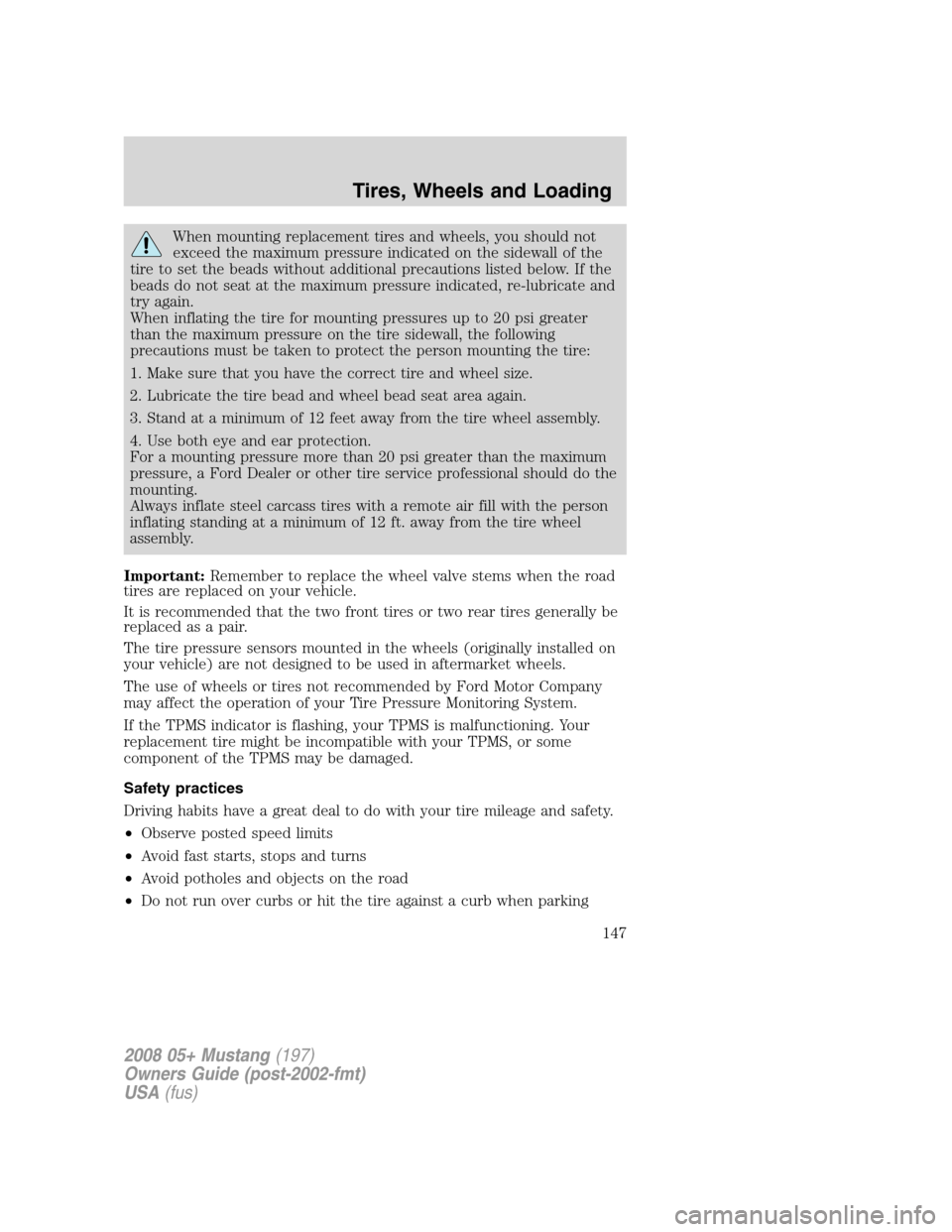

FORD MUSTANG 2008 5.G Owners Manual When mounting replacement tires and wheels, you should not
exceed the maximum pressure indicated on the sidewall of the
tire to set the beads without additional precautions listed below. If the
beads

Page 148 of 280

FORD MUSTANG 2008 5.G Owners Manual If your vehicle is stuck in snow, mud, sand, etc.,do notrapidly
spin the tires; spinning the tires can tear the tire and cause an
explosion. A tire can explode in as little as three to five seconds.
D

Page 149 of 280

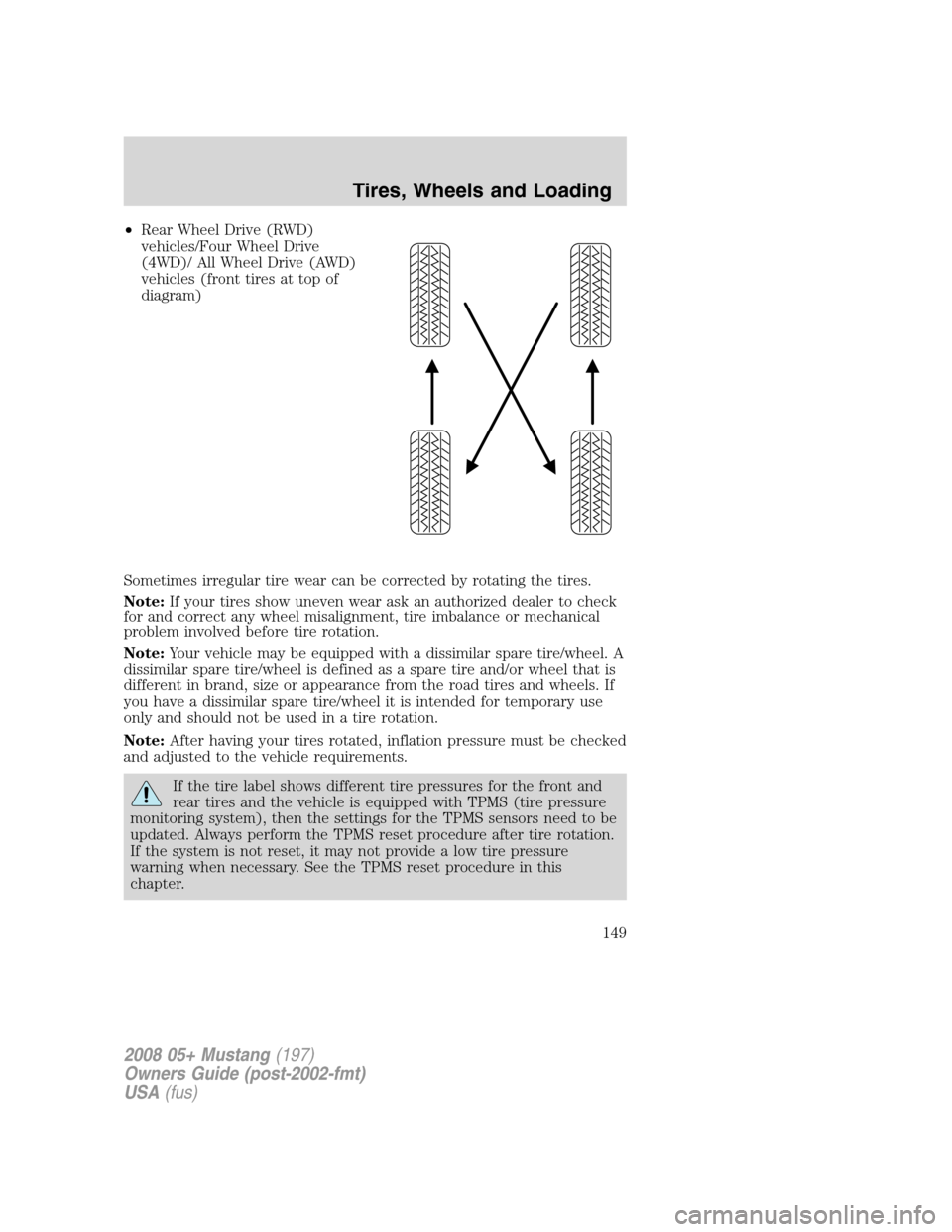

FORD MUSTANG 2008 5.G Owners Manual •Rear Wheel Drive (RWD)
vehicles/Four Wheel Drive
(4WD)/ All Wheel Drive (AWD)
vehicles (front tires at top of
diagram)
Sometimes irregular tire wear can be corrected by rotating the tires.
Note:If

Page 150 of 280

FORD MUSTANG 2008 5.G Owners Manual INFORMATION CONTAINED ON THE TIRE SIDEWALL
Both U.S. and Canada Federal regulations require tire manufacturers to
place standardized information on the sidewall of all tires. This
information identifi

Page 151 of 280

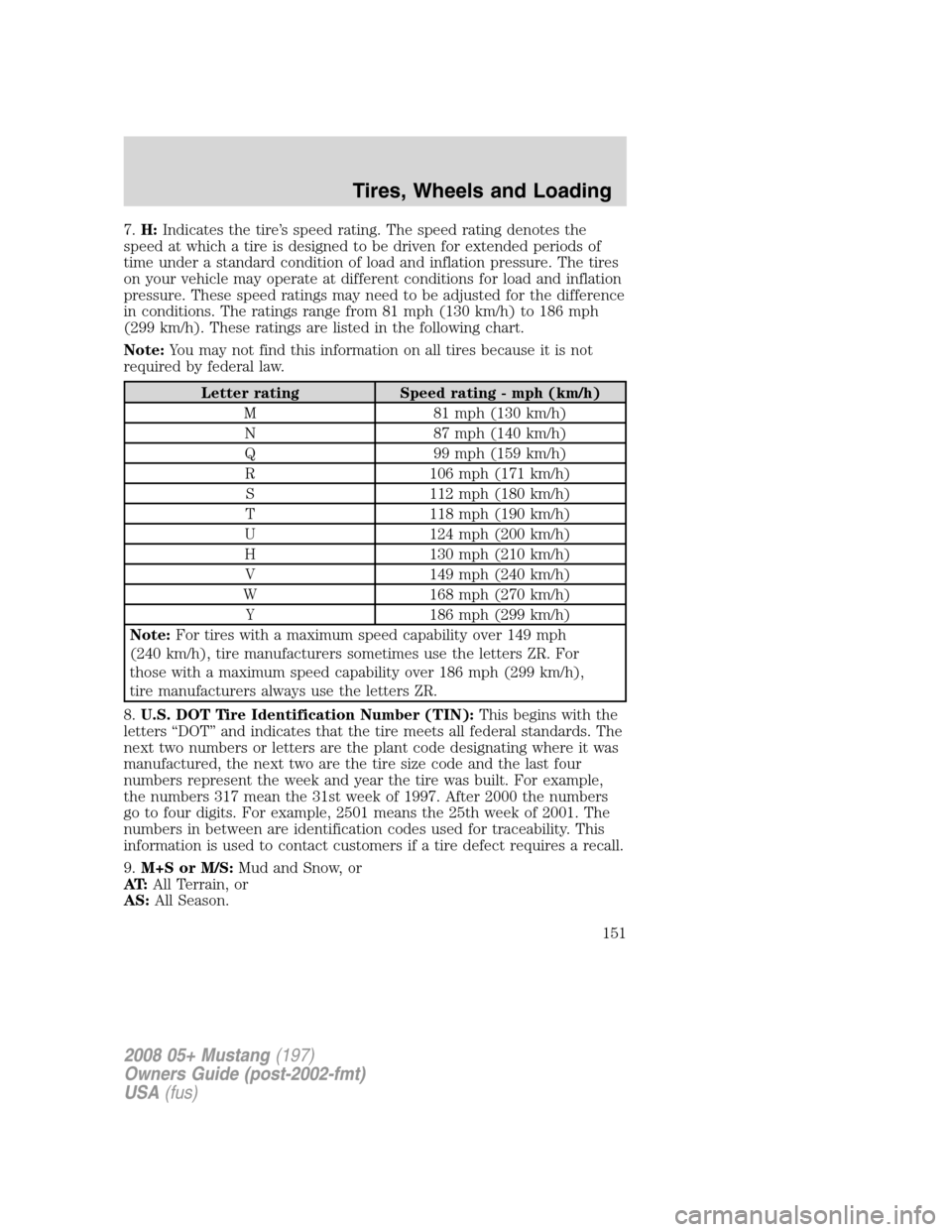

FORD MUSTANG 2008 5.G Owners Manual 7.H:Indicates the tire’s speed rating. The speed rating denotes the
speed at which a tire is designed to be driven for extended periods of
time under a standard condition of load and inflation press

Page 152 of 280

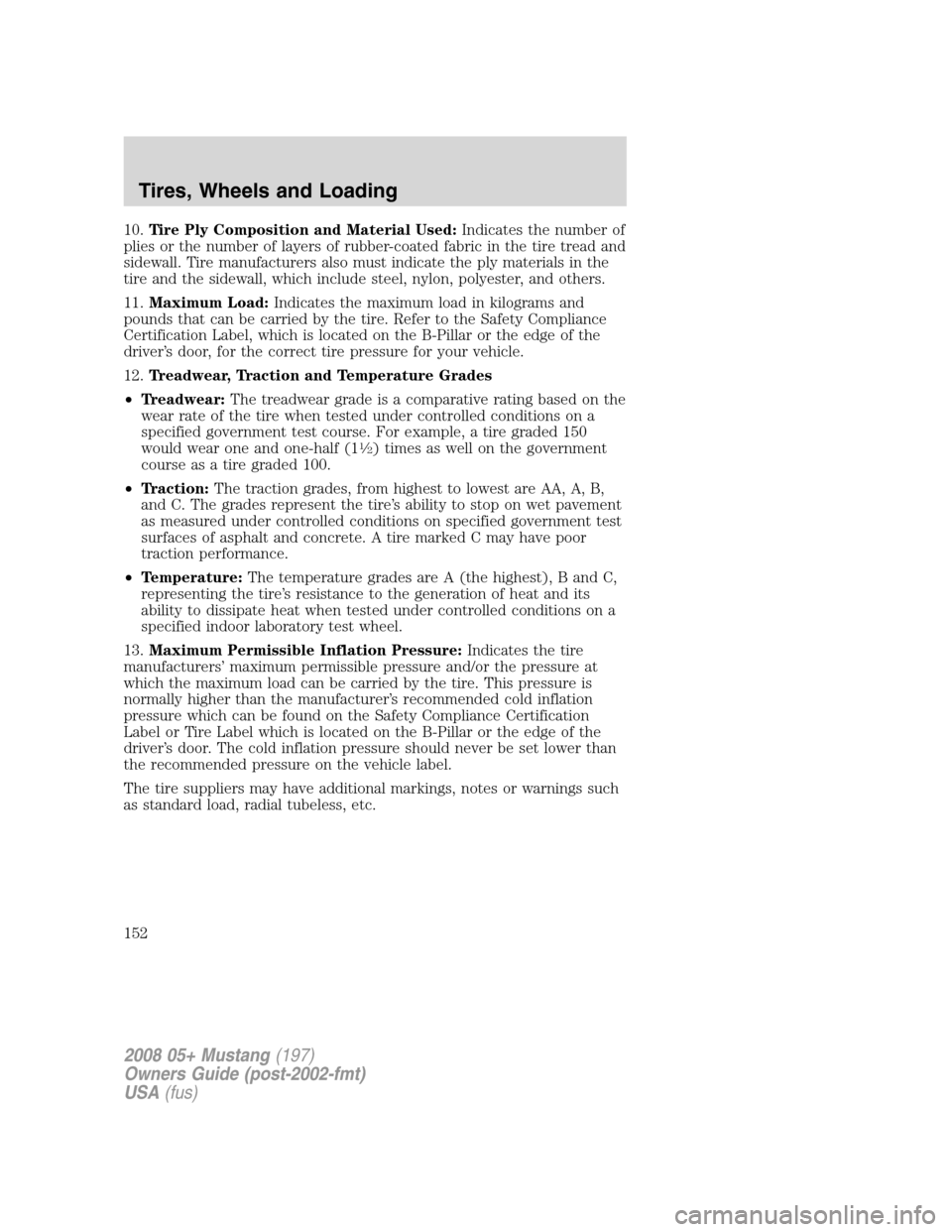

FORD MUSTANG 2008 5.G Owners Manual 10.Tire Ply Composition and Material Used:Indicates the number of
plies or the number of layers of rubber-coated fabric in the tire tread and
sidewall. Tire manufacturers also must indicate the ply ma
