2008 FORD MUSTANG Owners Manual

Page 153 of 280

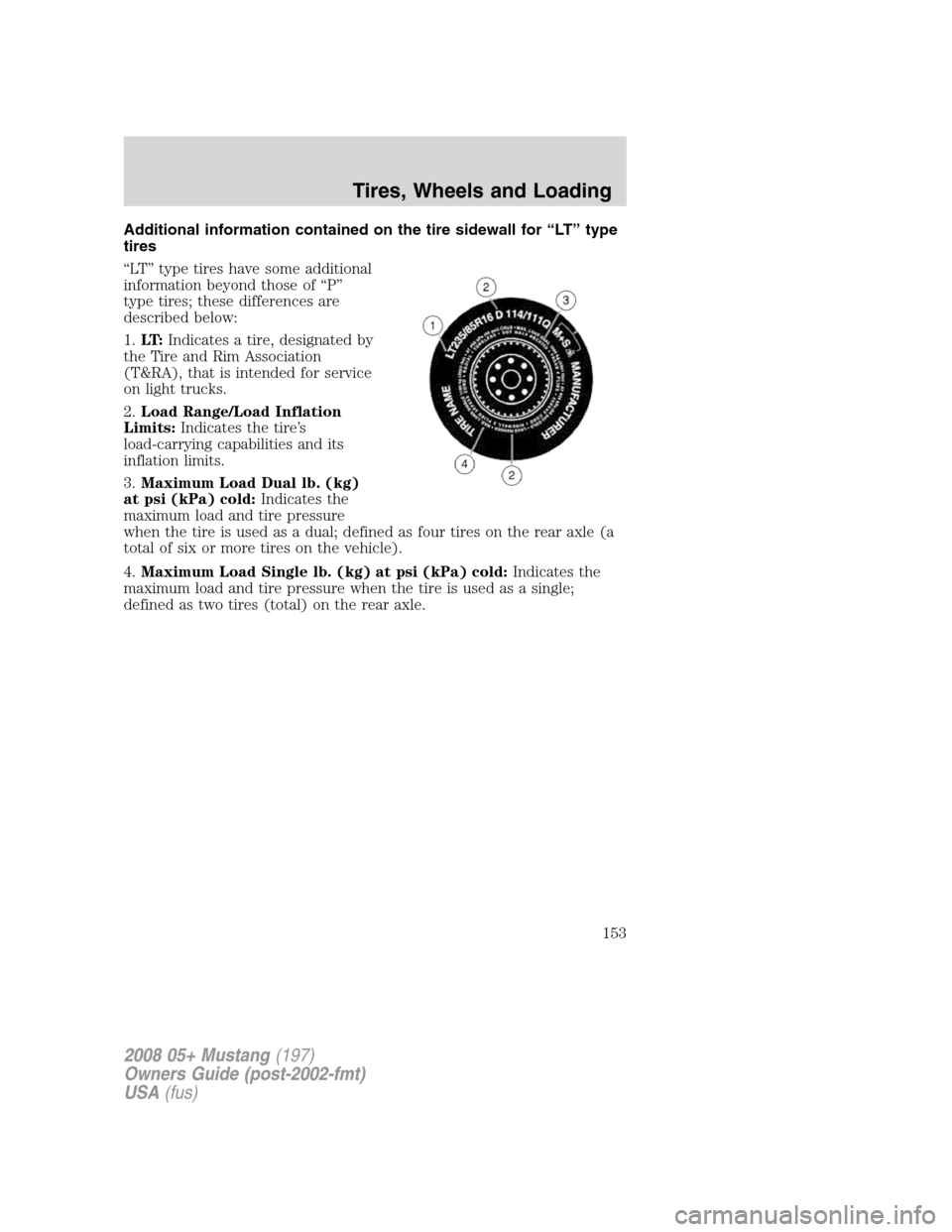

FORD MUSTANG 2008 5.G Owners Manual Additional information contained on the tire sidewall for “LT” type
tires
“LT” type tires have some additional
information beyond those of “P”
type tires; these differences are
described b

Page 154 of 280

FORD MUSTANG 2008 5.G Owners Manual Information on “T” type tires
“T” type tires have some additional
information beyond those of “P”
type tires; these differences are
described below:
T145/80D16 is an example of a tire
size

Page 155 of 280

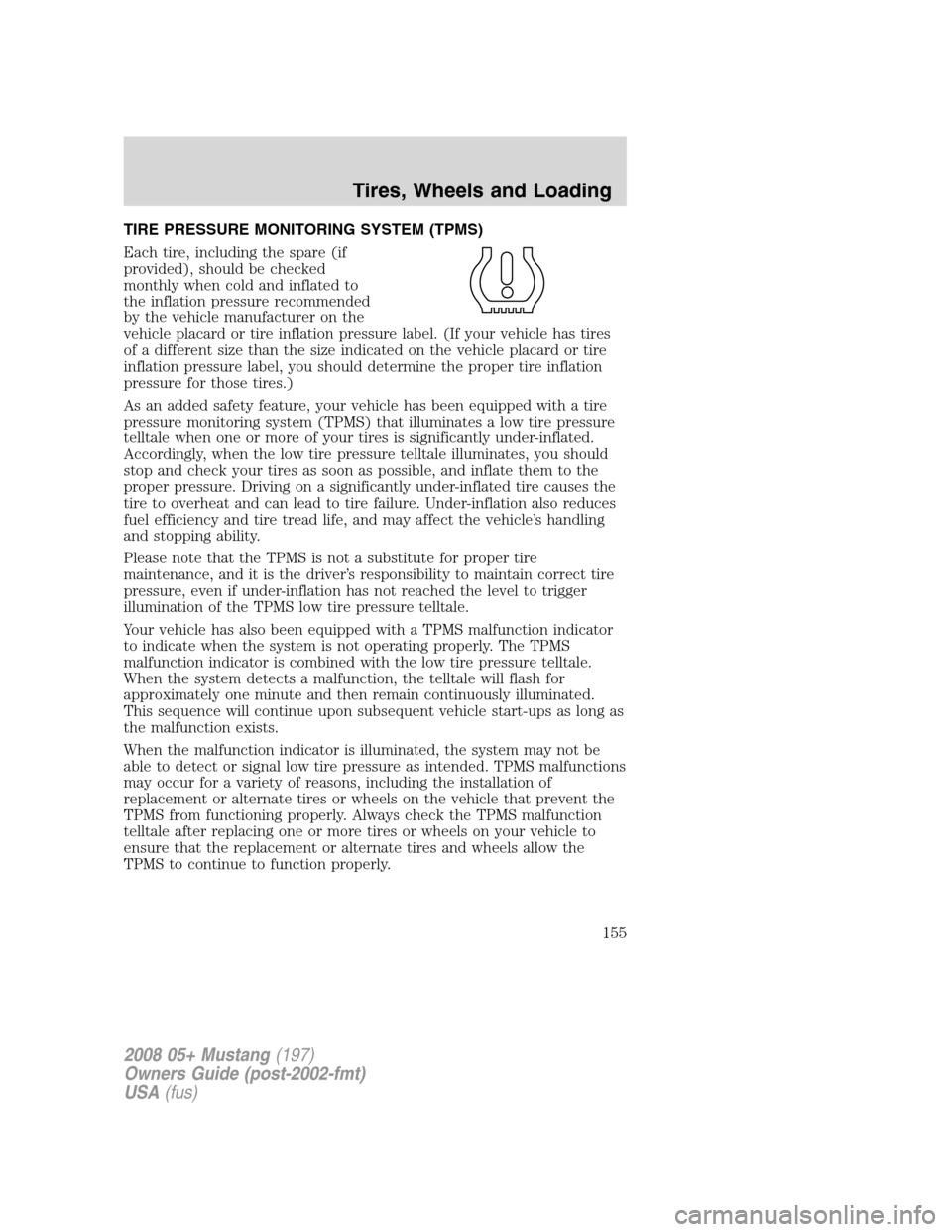

FORD MUSTANG 2008 5.G Owners Manual TIRE PRESSURE MONITORING SYSTEM (TPMS)
Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated to
the inflation pressure recommended
by the vehicle manufacturer

Page 156 of 280

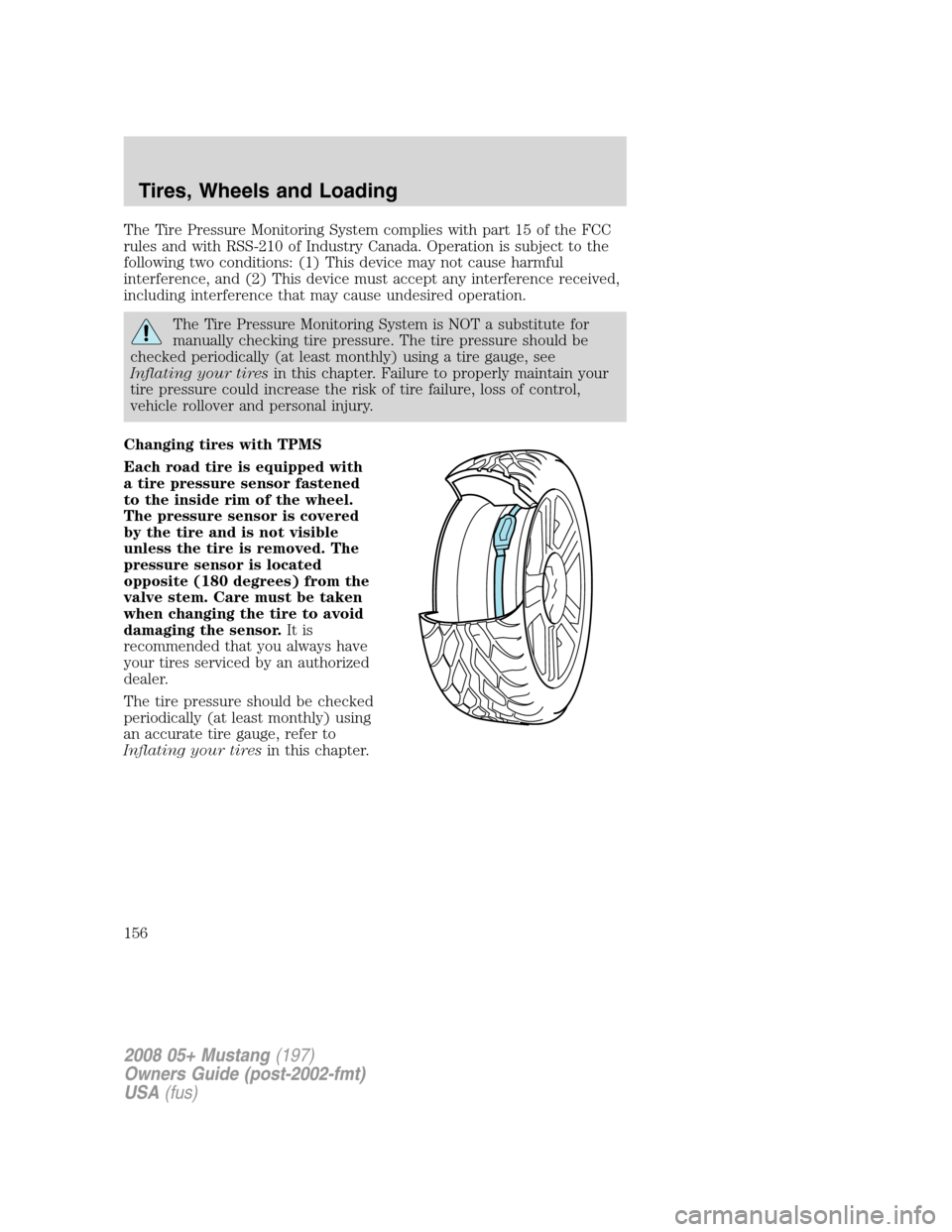

FORD MUSTANG 2008 5.G Owners Manual The Tire Pressure Monitoring System complies with part 15 of the FCC
rules and with RSS-210 of Industry Canada. Operation is subject to the
following two conditions: (1) This device may not cause harm

Page 157 of 280

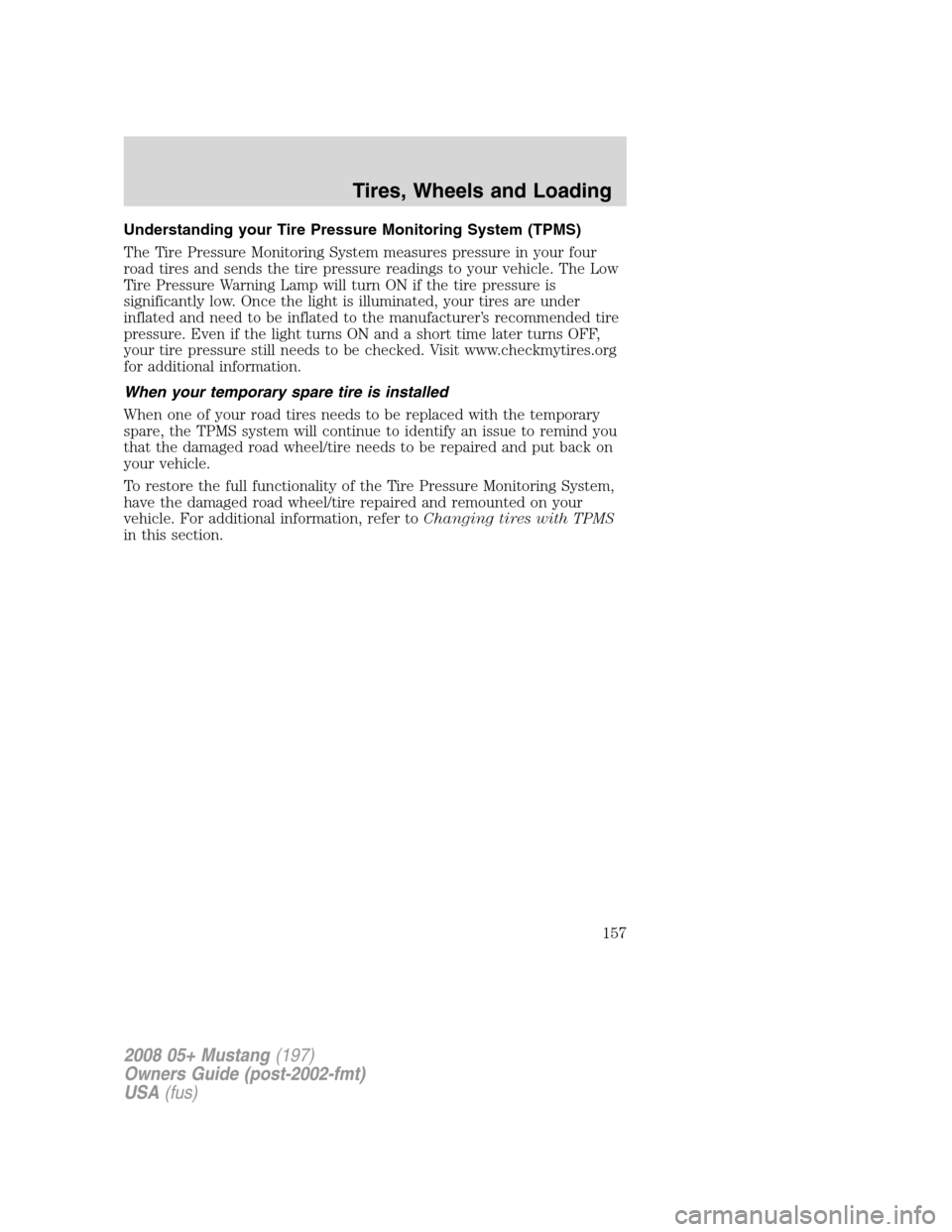

FORD MUSTANG 2008 5.G Owners Manual Understanding your Tire Pressure Monitoring System (TPMS)
The Tire Pressure Monitoring System measures pressure in your four
road tires and sends the tire pressure readings to your vehicle. The Low
Ti

Page 158 of 280

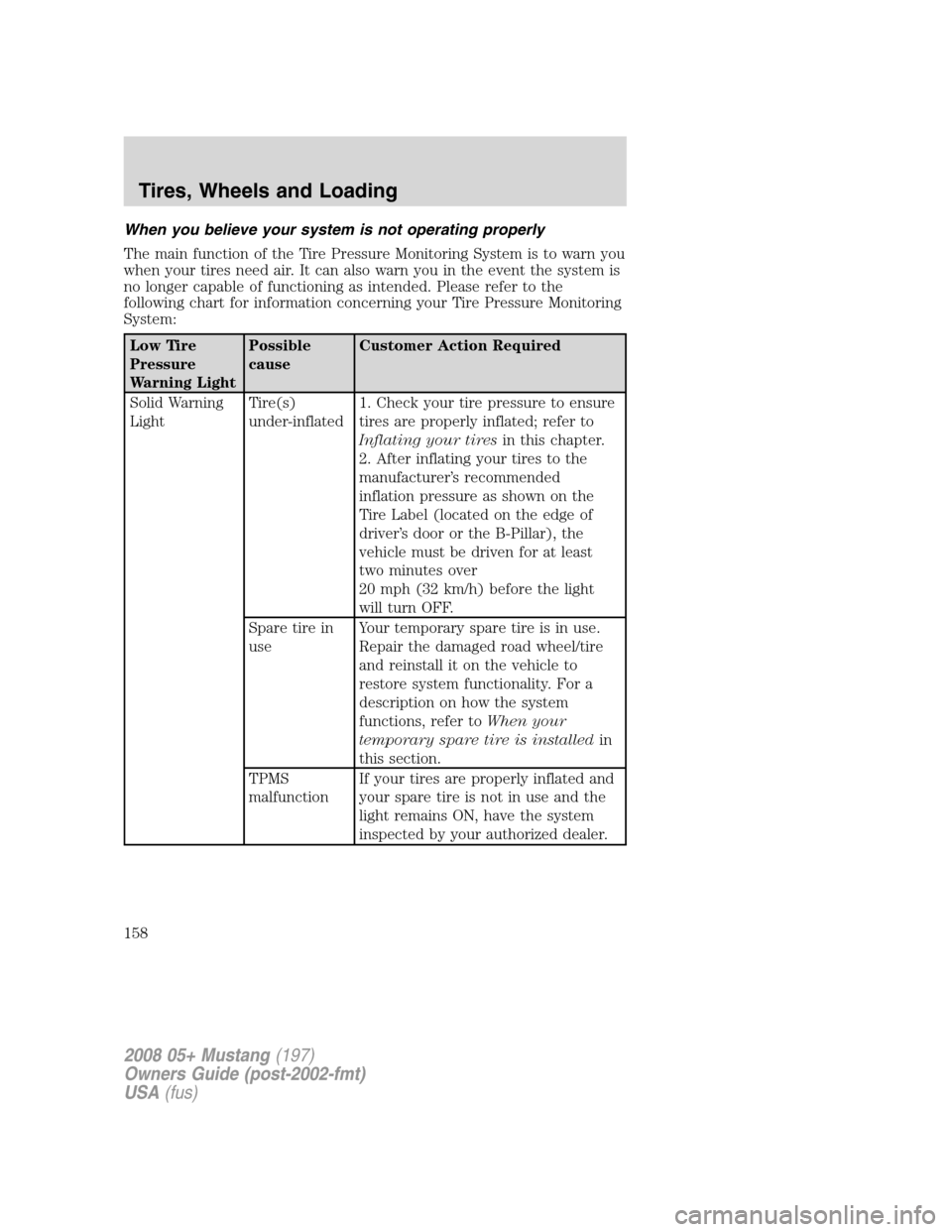

FORD MUSTANG 2008 5.G Owners Manual When you believe your system is not operating properly
The main function of the Tire Pressure Monitoring System is to warn you
when your tires need air. It can also warn you in the event the system is

Page 159 of 280

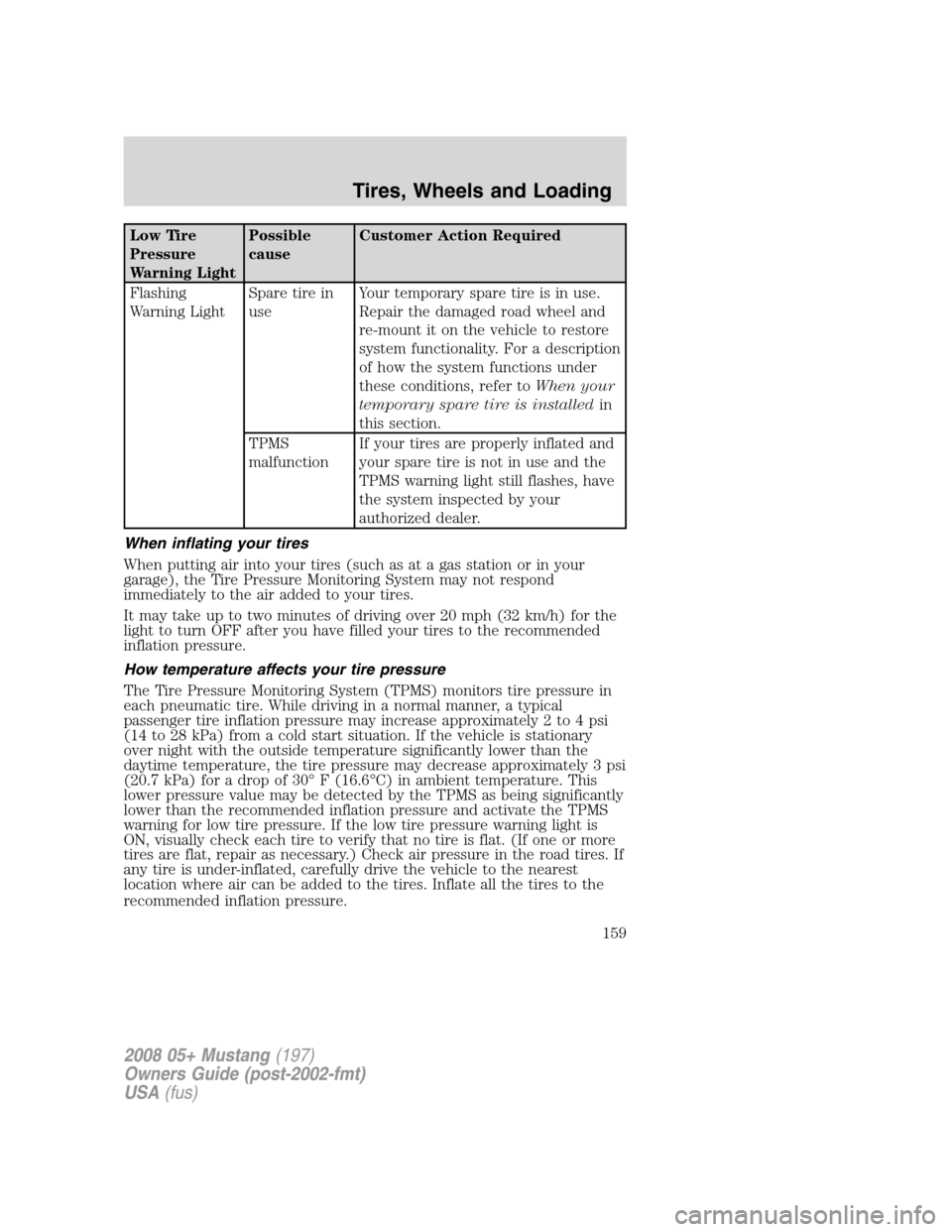

FORD MUSTANG 2008 5.G Owners Manual Low Tire
Pressure
Warning LightPossible
causeCustomer Action Required
Flashing
Warning LightSpare tire in
useYour temporary spare tire is in use.
Repair the damaged road wheel and
re-mount it on the v

Page 160 of 280

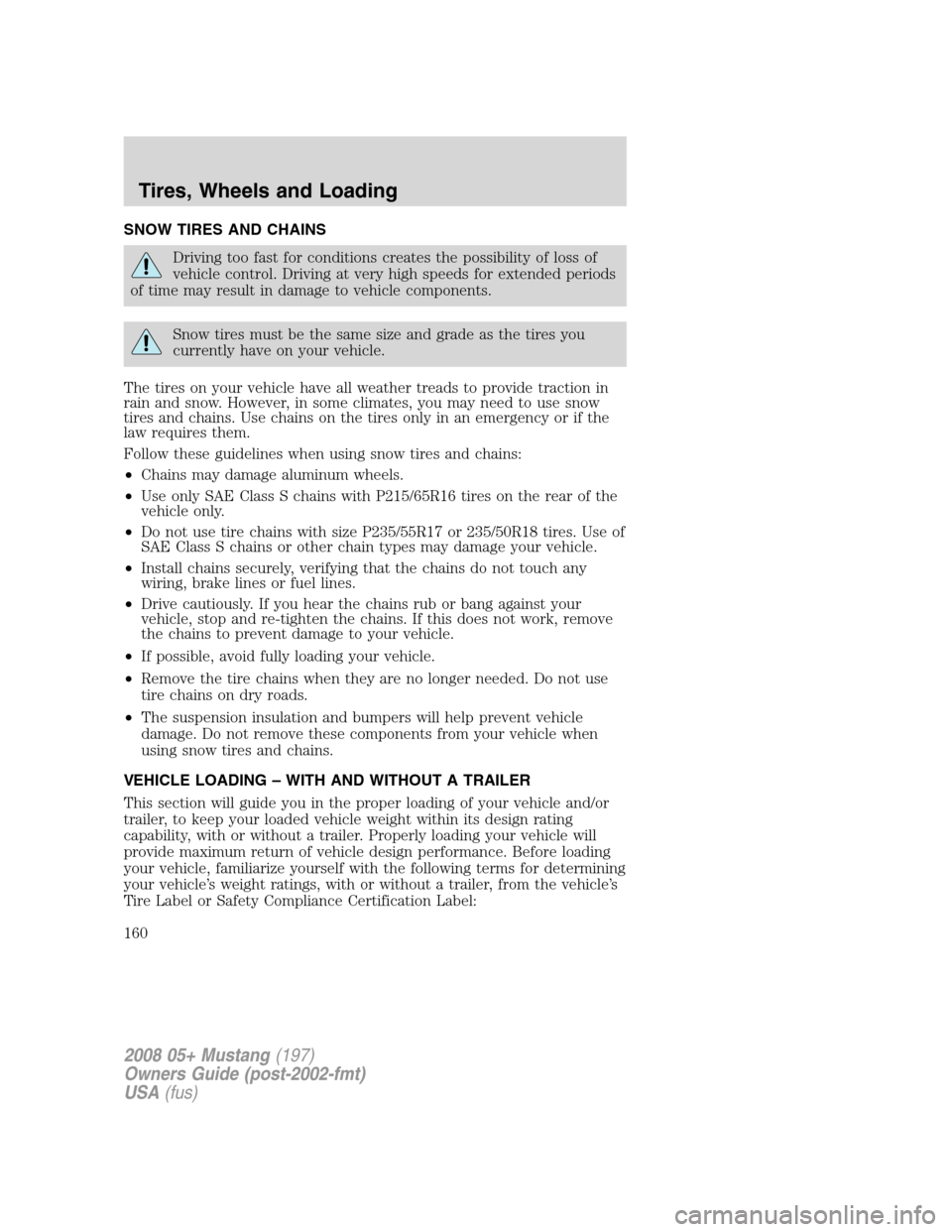

FORD MUSTANG 2008 5.G Owners Manual SNOW TIRES AND CHAINS
Driving too fast for conditions creates the possibility of loss of
vehicle control. Driving at very high speeds for extended periods
of time may result in damage to vehicle compo
