Page 31 of 467

HOW TO USE REMOTE START
All of the following conditions must be met before the
engine will remote start:
² Shift the gear selector lever into PARK.
² Doors closed.
² Hood closed.
² Trunk closed.
² Hazard switch off.
² Brake switch inactive (brake pedal not pressed).
² Ignition key removed from ignition switch.
² Battery at an acceptable charge level.
² RKE PANIC button not pressed. To Enter Remote Start Mode
Press and release the Remote Start button on
the RKE transmitter twice. The engine will start
and the vehicle will remain in the Remote Start
mode for a 15±minute cycle.
NOTE:
² For security, power window operation is disabled
when the vehicle is in the Remote Start mode.
² The engine can be started two consecutive times (two
15±minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.
To Exit Remote Start Mode Without Driving The
Vehicle
Allow the engine to run for the entire 15-minute cycle. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2
Page 32 of 467

To Exit Remote Start Mode And Drive The Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, within 15 minutes, insert the key into
the ignition switch and turn the switch to the ON
position.
NOTE: The ignition switch must be in the ON position
in order to drive the vehicle.
To Turn Off The Engine While In Remote Start
Mode
Press and release the Remote Start button one time.
NOTE: To avoid inadvertent shut downs, the system
will disable the one-time press of the Remote Start button
for two seconds after receiving a valid remote start
request. DOOR LOCKS
MANUAL DOOR LOCKS
Use the manual door lock plunger to lock the doors from
inside the vehicle. If the plunger is down when the door
is closed, the door will lock. Therefore, make sure the
keys are not inside the vehicle before closing the door.
Manual Lock Plunger30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 33 of 467

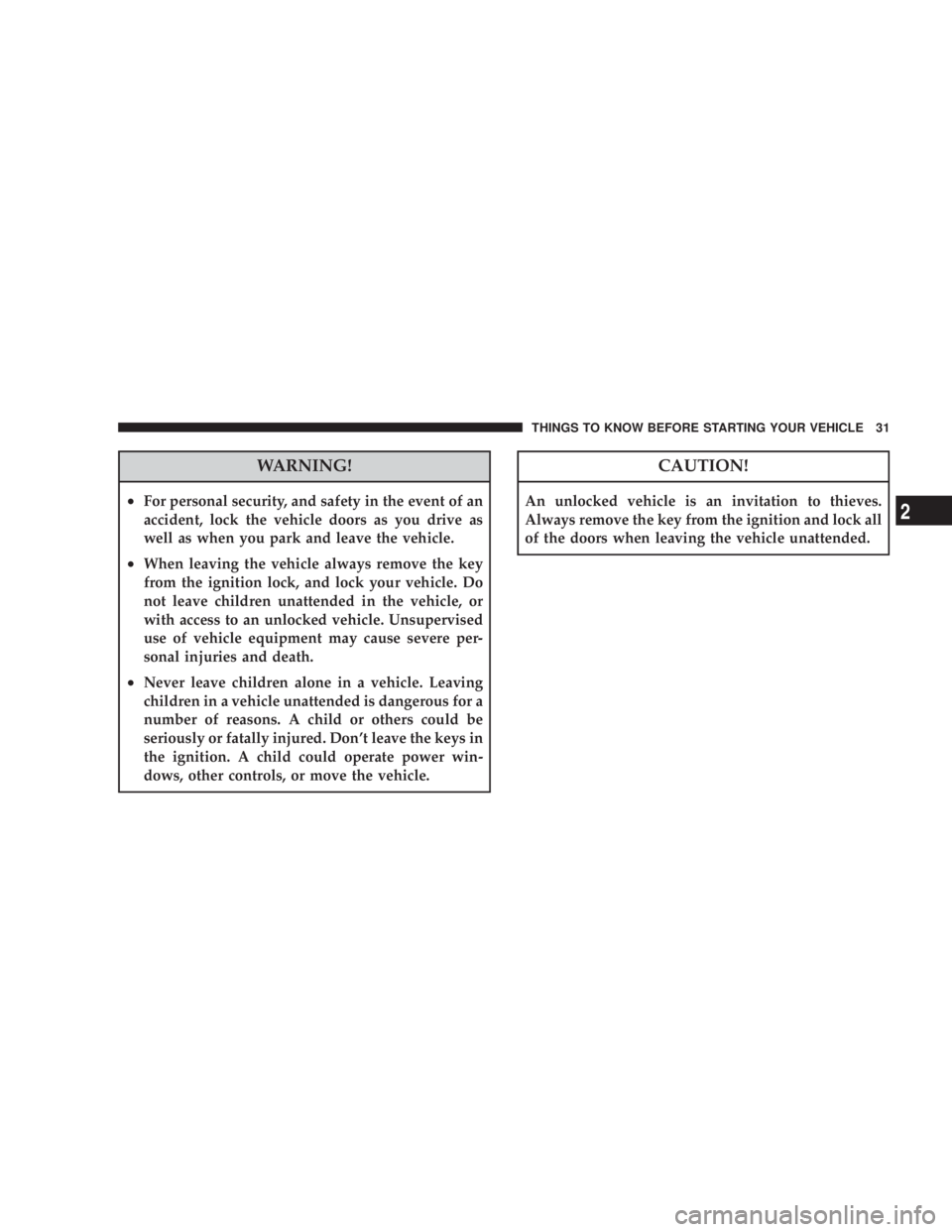

WARNING!² For personal security, and safety in the event of an
accident, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.
² When leaving the vehicle always remove the key
from the ignition lock, and lock your vehicle. Do
not leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause severe per-
sonal injuries and death.
² Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don't leave the keys in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle. CAUTION!An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition and lock all
of the doors when leaving the vehicle unattended. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2
Page 35 of 467

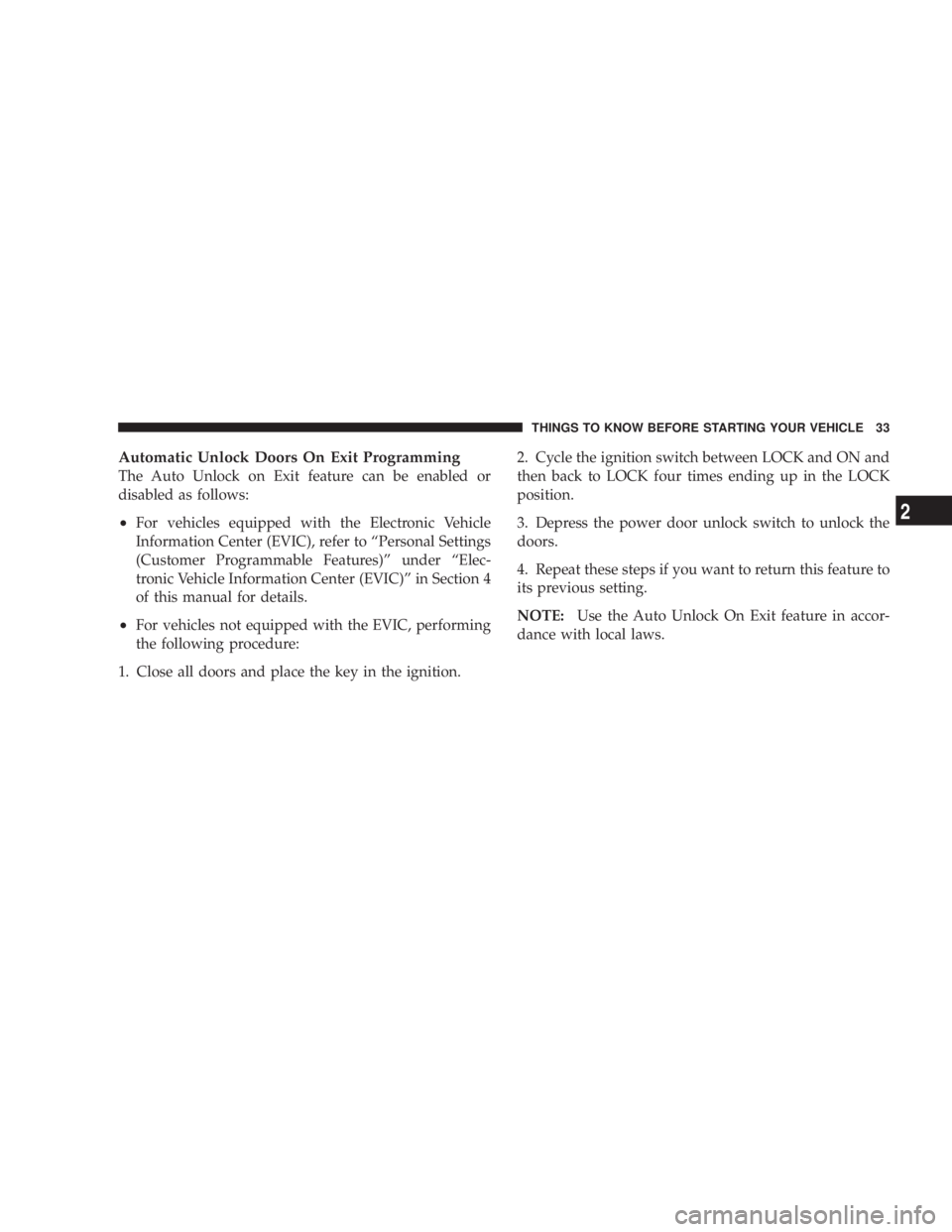

Automatic Unlock Doors On Exit Programming
The Auto Unlock on Exit feature can be enabled or
disabled as follows:
² For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to ªPersonal Settings
(Customer Programmable Features)º under ªElec-
tronic Vehicle Information Center (EVIC)º in Section 4
of this manual for details.
² For vehicles not equipped with the EVIC, performing
the following procedure:
1. Close all doors and place the key in the ignition. 2. Cycle the ignition switch between LOCK and ON and
then back to LOCK four times ending up in the LOCK
position.
3. Depress the power door unlock switch to unlock the
doors.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE: Use the Auto Unlock On Exit feature in accor-
dance with local laws. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2
Page 36 of 467
ªCHILD-PROTECTIONº DOOR LOCK SYSTEM
(REAR DOORS)
The Rear Door Child-Protection Locks are located inside
the rear edge of the door. Insert the tip of the ignition key
or similar flat-bladed object into the lock and rotate
approximately oneÐquarter turn to the lock or unlock
position (as indicated by the stamped icons).
WARNING!Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened from
the outside when the child protection locks are engaged. Child Lock Control34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 38 of 467

WARNING!Never leave children in a vehicle, with the keys in
the ignition switch. Occupants, particularly unat-
tended children, can become entrapped by the win-
dows while operating the power window switches.
Such entrapment may result in serious injury or
death.
AUTO WINDOW DOWN Ð IF EQUIPPED
The front window controls on the driver and passenger
door trim panels have an Auto Down feature. These
switches are labeled AUTO to indicate this capability.
Push the window switch past the first detent, release, and
the window will go down automatically.
To open the window part way, push the window switch
to the first detent and release it when you want the
window to stop. To cancel the Auto Down movement, operate the switch
either in the up or down direction and release the switch.
For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window switches
will remain active for approximately 45 seconds after the
ignition switch is turned to the LOCK position. Opening
either door will cancel this feature.
For vehicles equipped with the Electronic Vehicle Infor-
mation Center (EVIC), the power window switches will
remain active for up to 10 minutes after the ignition
switch is turned off. Opening either door will cancel this
feature. The time for this feature is programmable. For
details, refer to ªKey-Off Power Delay,º under ªPersonal
Settings (Customer Programmable Features)º under
ªElectronic Vehicle Information Center (EVIC)º in Sec-
tion 4 of this manual.36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 41 of 467

TRUNK RELEASE
From inside the car the trunk lid
can be released by depressing the
Trunk Release Button located on
the instrument panel to the left of
the steering wheel. The transmis-
sion must be in Park before the
switch will operate.
NOTE: The gear selector lever must be in PARK for this
switch to operate.
To unlatch the trunk lid from outside the vehicle, press
and release the TRUNK button on the Remote Keyless
Entry (RKE) transmitter two times.
With the ignition ON, the word ªdeckº will display in
place of the odometer display indicating that the trunk is
open. The odometer display will reappear once the trunk
is closed or if the trip button is depressed. With the key in the lock position or with the key out, the
word ªdeckº will display until the trunk is closed.
On EVIC equipped vehicles, the words ªTrunk Ajarº will
display.
TRUNK SAFETY WARNING
WARNING!Do not allow children to have access to the trunk,
either by climbing into the trunk from outside, or
through the inside of the vehicle. Always close the
trunk lid when your vehicle is unattended. Once in
the trunk, young children may not be able to escape,
even if they entered through the rear seat. If trapped
in the trunk, children can die from suffocation or
heat stroke. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39
2
Page 61 of 467

AIRBAG DEPLOYMENT SENSORS AND
CONTROLS
Occupant Restraint Controller (ORC)
The Occupant Restraint Controller System (ORC) is
part of a Federally regulated safety system required for
this vehicle.
The ORC determines if a frontal collision is severe
enough to require the airbags to inflate. Based on the
sensor signals, a central electronic Occupant Restraint
Controller (ORC) deploys the front airbags, side inflat-
able airbag curtains (if equipped), seat-mounted side
(Thorax) airbags (if equipped), and front seat belt preten-
sioners as required for each type of impact.
The ORC monitors the readiness of the electronic parts of
the system whenever the ignition switch is in the START
or RUN positions. These include all of the items listed
above except the steering wheel and column, instrument
panel, and passenger knee bolsters. If the key is in the OFF position, in the ACC position, or not in the ignition,
the airbags are not on and will not inflate.
The ORC contains a backup power supply system that
will deploy the airbags even if the battery loses power or
it becomes disconnected prior to deployment.
Also, the ORC turns on the Airbag Warning
Light in the instrument panel for 6 to 8 seconds
for a self-check when the ignition is first turned
on. After the self-check, the Airbag Warning
Light will turn off. If the ORC detects a malfunction in
any part of the system, it turns on the Airbag Warning
Light either momentarily or continuously. A single chime
will sound if the light comes on again after initial start
up.
It also includes diagnostics that will illuminate the instru-
ment cluster Airbag Warning Light if a malfunction is
noted. The diagnostics also record the nature of the
malfunction. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59
2
