2008 Citroen C3 Owner's Manual

2
11
57
II
E L E C T R O N I C G E A R B O X S Y S T E MG E N E R A L
The Electronic Gearbox System gives you the choice of two driving modes:Automatic mode.
Manual mode with two control possibilities: The controls under the steering wheel 1 and the selection lever 2 on the central console.
Selection lever for Electronic gearbox operating mode:Automatic operation with the gear lever 2 in position A.
Remark: Instant manual mode activates whenever you action one of the controls under the steering wheel 1.
Manual operation with the gear lever 2 in position M.

58
II
E L E C T R O N I C G E A R B O X S Y S T E MG E N E R A L
Starting the vehicleApply the brake pedal. The lever should be in position N. Switching on the ignition will in any case return you to position N (neutral).
Check the gear engaged on the instrument panel.
As required, select 1 gear or reverse gear (the engine must be at idle).Release the handbrake.
Lift your foot from the brake pedal and accelerate.

59
II
E L E C T R O N I C G E A R B O X S Y S T E MG E N E R A L
Vehicle stationary, engine running
If the vehicle is stationary for a long time with the engine running, then the gearbox changes automatically to neutral.
Stopping the engine
Before switching the engine off, you must choose:To leave the vehicle in neutral; for that, place the lever in position N.To leave the vehicle with a gear engaged (1st or 2nd or Rse); for that, place the gear lever in the respective position. In this case, the vehicle cannot be moved.
In all cases it is essential to apply the parking brake.
It is possible within a limited time to re-engage a gear, even if the engine is switched off.
Before any operation in the engine compartment, check that the gearbox is in neutral and that the parking brake is applied.
Acceleration
The accelerator pedal may have an end-of-travel switch. If so, to obtain extra acceleration you can action this switch by pressing the pedal hard down.
Starting on a gradient
If starting on a gradient, accelerate gradually while releasing the handbrake.
If you have had to stop on a gradient, you are recommended no t to use the accelerator to maintain the vehicle’s position.

60
II
E L E C T R O N I C G E A R B O X S Y S T E MA U T O M A T I C M O D E
To select automatic mode
Place the selection lever in posi-tion A.
"AUTO" displays on the instrument panel to confi rm the selection.
The gearbox then operates in auto-active mode, without intervention on your part.
It constantly selects the gear best adapted to the following parameters:Style of driving.
Road profi le.Vehicle load.
Instant manual mode
Even in automatic mode, if you touch the controls under the steering wheel "+" or "-" you immediately change gear.
The symbol "AUTO" remains lit on the instrument panel.
In the absence of any further action, automatic mode reactivates to cope with the prevailing driving conditions.
Cancellation of automatic mode
Move the gear lever from position A to select a different position.
The symbol "AUTO" disappears from the instrument panel.

-+

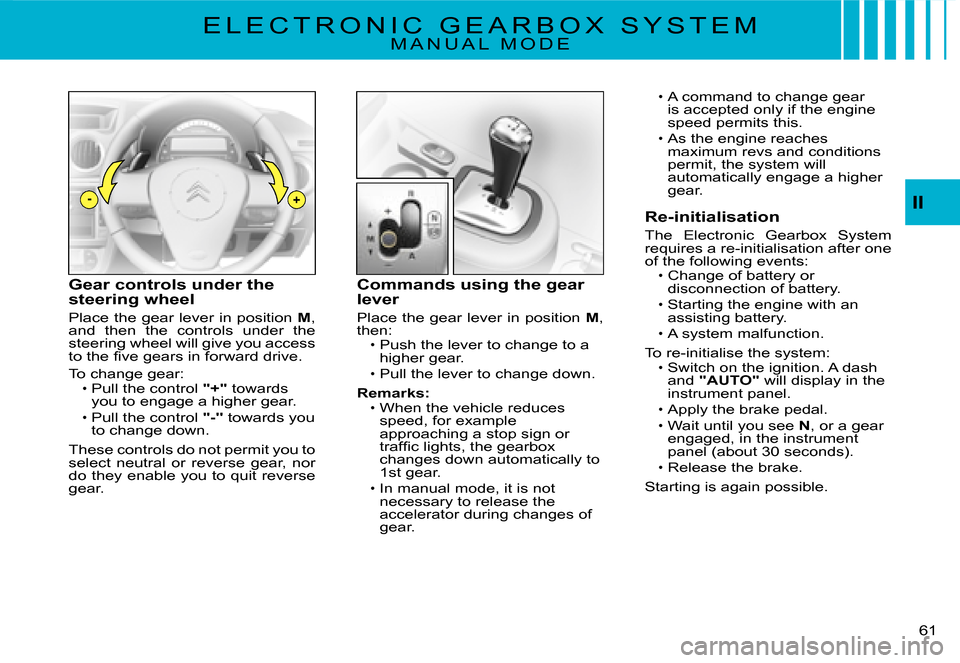

61
II
E L E C T R O N I C G E A R B O X S Y S T E MM A N U A L M O D E
Gear controls under the steering wheel
Place the gear lever in position M, and then the controls under the steering wheel will give you access to the fi ve gears in forward drive.
To change gear:Pull the control "+" towards you to engage a higher gear.Pull the control "-" towards you to change down.
These controls do not permit you to select neutral or reverse gear, nor do they enable you to quit reverse gear.

62
II
Your vehicle may be equipped with a "Stop & Start" system, in association with an Electronic Gearbox System; this shuts down the engine during stopping phases (red lights, traffi c jams, temporary halts, etc.).
During these phases, your vehicle uses no fuel, emits no pollut ants and is completely silent.
The engine restarts instantly when you want to move forward ag ain.
Functioning of the "Stop & Start" system:
If you brake to stop your vehicle, the engine shuts down just before the vehicle comes to a complete halt; the green "ECO" warning lamp lights up in the instrument panel. The en gine remains shut down for as long as you keep your foot, even lightly, on the brake pedal.
As you release the brake pedal, the engine restarts automaticall y and instantly. The green "ECO" warning lamp goes out. You can then accelerate to move forward again.
S T O P & S T A R T

63
II
S T O P & S T A R T
Situations where the engine does not shut down:
Before shutting down the engine, the system automatically and instantly checks that a certain number of conditions touching on safety, cabin comfort or engine protection are met .
For example, the engine will not shut down, or it will restart by itself:Within the few minutes following fi rst starting (engine col d).
If the temperature in the passenger compartment is insuffi cient:In conditions of extreme outside temperatures (lower than -10°C, higher than +30°C), provided the air conditioning is operating.More generally, if the ambient conditions and the temperature programmed for the air conditioning make it necessary for the engine to be running in order to produce either warm or cold air.If you have activated windscreen demisting/deicing.In the event of a prolonged stop on a steep incline, in order to maintain the vehicle's braking capability.
After you have engaged reverse gear, engine shutdown is suspend ed for approx. fi fteen seconds.

A
64
II
Deactivation of the "Stop & Start" system:
You can if you wish deactivate the "Stop & Start" system, by pressing the "ECO OFF" button located on the left hand side on the central panel.
The warning lamp on the button then comes on, and your vehi cle functions like an ordinary vehicle.
You can reactivate the system with another press on the "ECO OFF" button: The warning lamp on the button goes out.Note: The "Stop & Start" system reactivates automatically each time you restart the vehicle.
Batteries
To operate correctly, the system requires a specifi c battery and also a small additional battery which is situated under one of the front seats.
For a change of battery, consult a CITROËN dealer.
Remark:
If there is a malfunction of the "Stop & Start" system, the "ECO" wa rning lamp fl ashes briefl y, accompanied by an audible alert. The "ECO OFF" warning lamp lights up.
Contact a CITROËN dealer.
If the engine is in shutdown mode, it can restart at any moment.
Before taking any action under the bonnet, it is imperativ e to switch off the ignition.
Before leaving the vehicle, it is also essential to switch off the ignition.
S T O P & S T A R T
