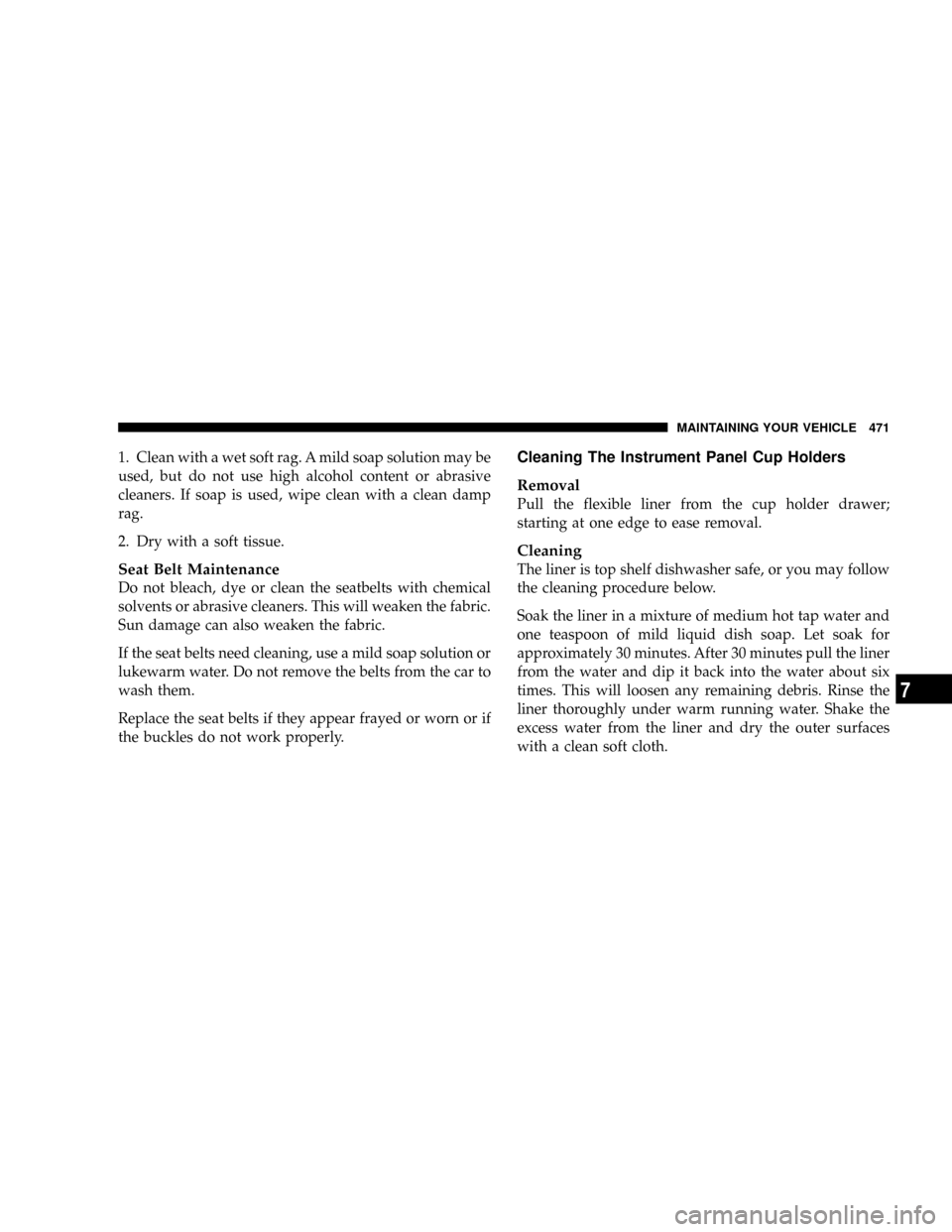

1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye or clean the seatbelts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the seat belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.
Replace the seat belts if they appear frayed or worn or if
the buckles do not work properly.
Cleaning The Instrument Panel Cup Holders
Removal
Pull the flexible liner from the cup holder drawer;
starting at one edge to ease removal.
Cleaning
The liner is top shelf dishwasher safe, or you may follow
the cleaning procedure below.
Soak the liner in a mixture of medium hot tap water and
one teaspoon of mild liquid dish soap. Let soak for
approximately 30 minutes. After 30 minutes pull the liner
from the water and dip it back into the water about six
times. This will loosen any remaining debris. Rinse the
liner thoroughly under warm running water. Shake the
excess water from the liner and dry the outer surfaces
with a clean soft cloth.
MAINTAINING YOUR VEHICLE 471
7

Installation
Place the liner into the cupholder drawer and press the
liner into place so that the retention tabs seat into the
corresponding openings in the drawer.
FUSES/TOTALLY INTEGRATED POWER MODULE
(TIPM)

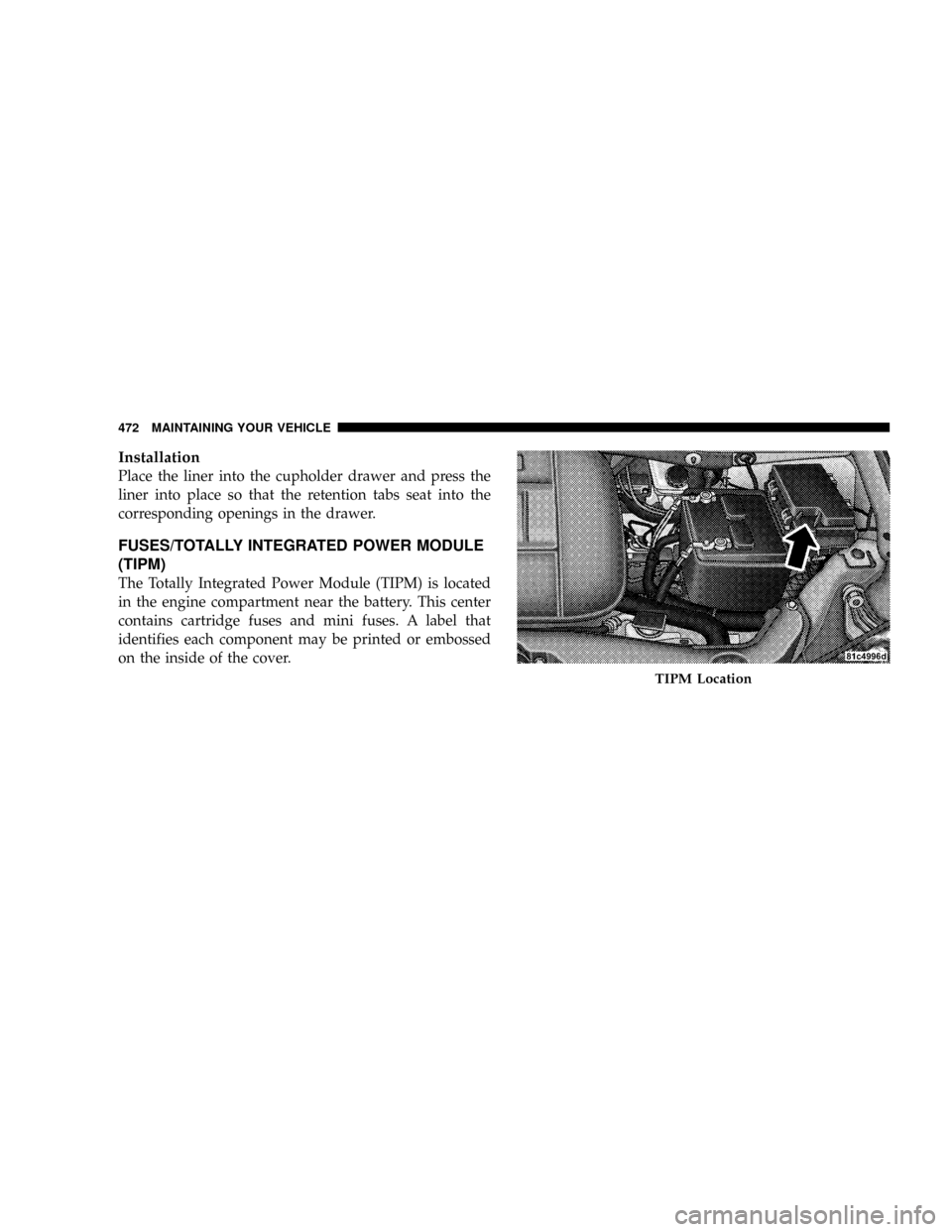

The Totally Integrated Power Module (TIPM) is located
in the engine compartment near the battery. This center
contains cartridge fuses and mini fuses. A label that
identifies each component may be printed or embossed
on the inside of the cover.
TIPM Location
472 MAINTAINING YOUR VEHICLE

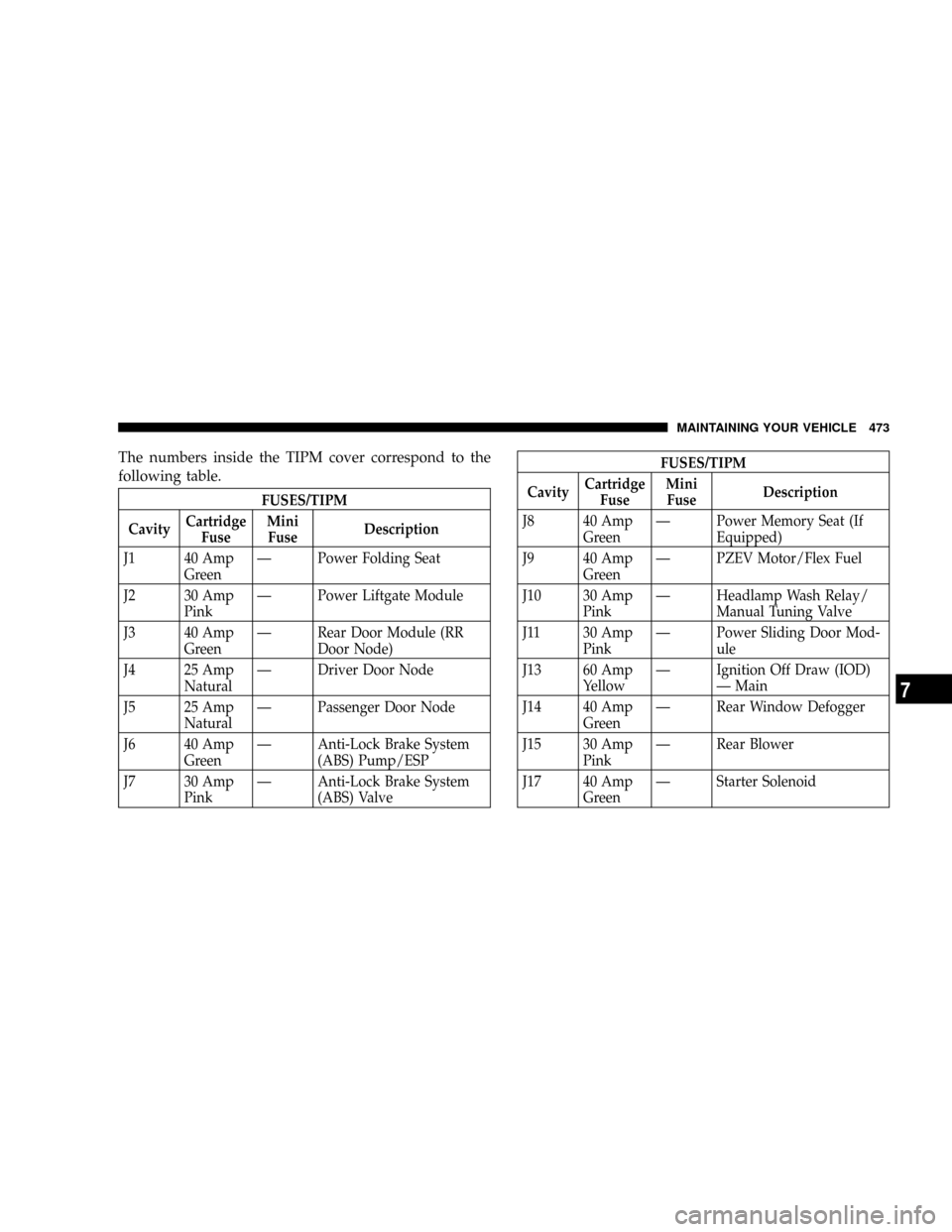

The numbers inside the TIPM cover correspond to the
following table.
FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
J1 40 Amp
GreenÐ Power Folding Seat
J2 30 Amp
PinkÐ Power Liftgate Module
J3 40 Amp
GreenÐ Rear Door Module (RR
Door Node)
J4 25 Amp
NaturalÐ Driver Door Node
J5 25 Amp
NaturalÐ Passenger Door Node
J6 40 Amp
GreenÐ Anti-Lock Brake System
(ABS) Pump/ESP
J7 30 Amp
PinkÐ Anti-Lock Brake System
(ABS) Valve
FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
J8 40 Amp
GreenÐ Power Memory Seat (If
Equipped)
J9 40 Amp
GreenÐ PZEV Motor/Flex Fuel
J10 30 Amp
PinkÐ Headlamp Wash Relay/
Manual Tuning Valve
J11 30 Amp
PinkÐ Power Sliding Door Mod-
ule
J13 60 Amp
YellowÐ Ignition Off Draw (IOD)
Ð Main
J14 40 Amp
GreenÐ Rear Window Defogger
J15 30 Amp
PinkÐ Rear Blower
J17 40 Amp
GreenÐ Starter Solenoid
MAINTAINING YOUR VEHICLE 473
7

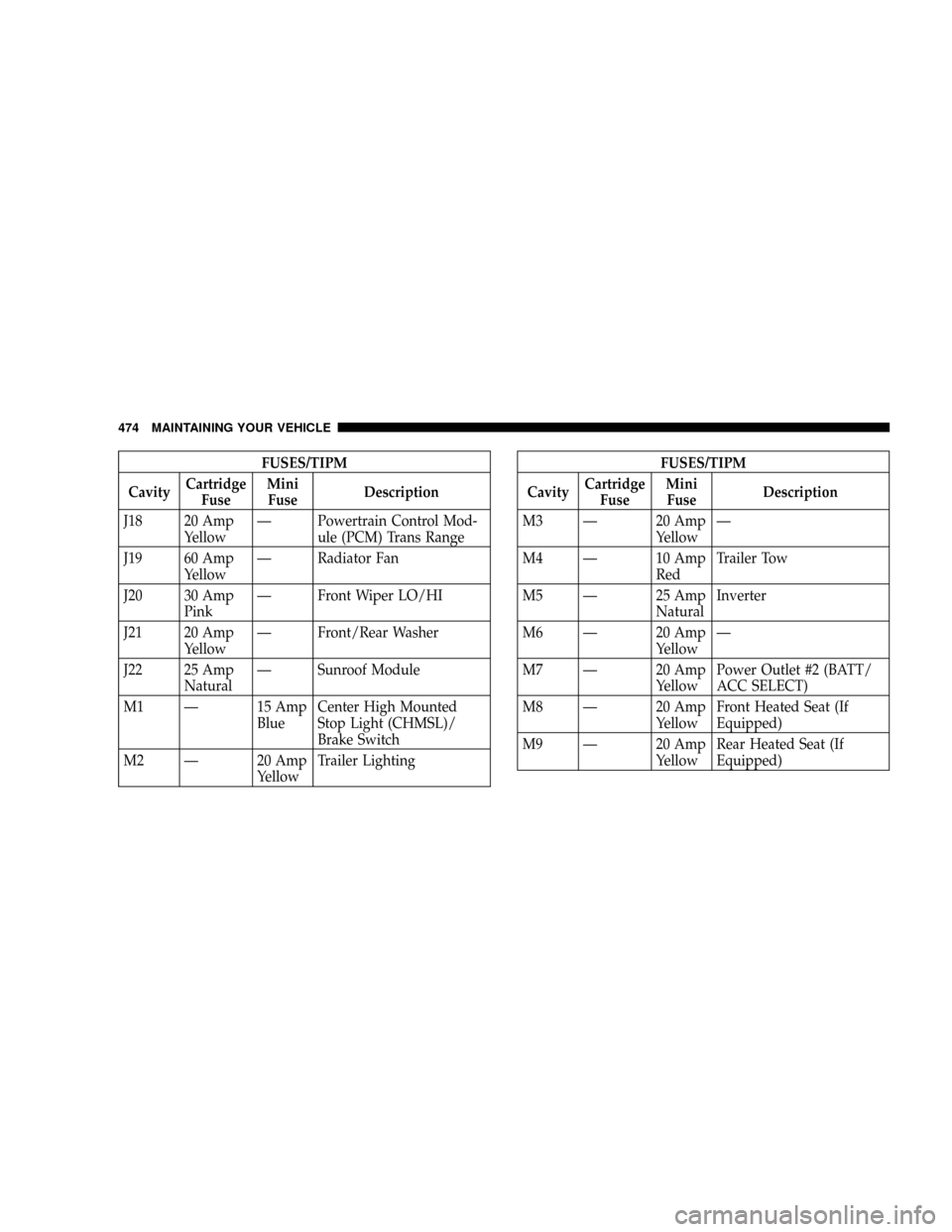

FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
J18 20 Amp
YellowÐ Powertrain Control Mod-
ule (PCM) Trans Range
J19 60 Amp
YellowÐ Radiator Fan
J20 30 Amp
PinkÐ Front Wiper LO/HI
J21 20 Amp
YellowÐ Front/Rear Washer
J22 25 Amp
NaturalÐ Sunroof Module
M1 Ð 15 Amp
BlueCenter High Mounted
Stop Light (CHMSL)/
Brake Switch
M2 Ð 20 Amp
YellowTrailer LightingFUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
M3 Ð 20 Amp
YellowÐ
M4 Ð 10 Amp
RedTrailer Tow
M5 Ð 25 Amp
NaturalInverter
M6 Ð 20 Amp
YellowÐ
M7 Ð 20 Amp
YellowPower Outlet #2 (BATT/
ACC SELECT)
M8 Ð 20 Amp
YellowFront Heated Seat (If
Equipped)
M9 Ð 20 Amp
YellowRear Heated Seat (If
Equipped)
474 MAINTAINING YOUR VEHICLE

FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
M10 Ð 20 Amp
YellowIgnition Off Draw Ð Ve-
hicle Entertainment Sys-
tem (IOD-VES), Satellite
Digital Audio Receiver
(SDARS), DVD, Hands-
Free Module (HFM), Uni-
versal Garage Door
Opener (UGDO), Vanity
Lamp (VANITY LP)
M11 Ð 10 Amp
Red(Ignition Off Draw) IOD-
HVAC/ATC, MW SENSR,
Underhood Lamp (UH
LMP)
M12 Ð 30 Amp
GreenAmplifier (AMP)FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
M13 Ð 20 Amp
YellowIgnition Off DrawÐ
Cabin Compartment Node
(IOD-CCN), Wireless Con-
trol Module (WCM), SI-
REN, Clock Module (CLK
MOD), Multi-Function
Control Switch (MULTI-
FCTN SW)
M14 Ð 20 Amp
YellowTrailer Tow (Export Only)
MAINTAINING YOUR VEHICLE 475
7

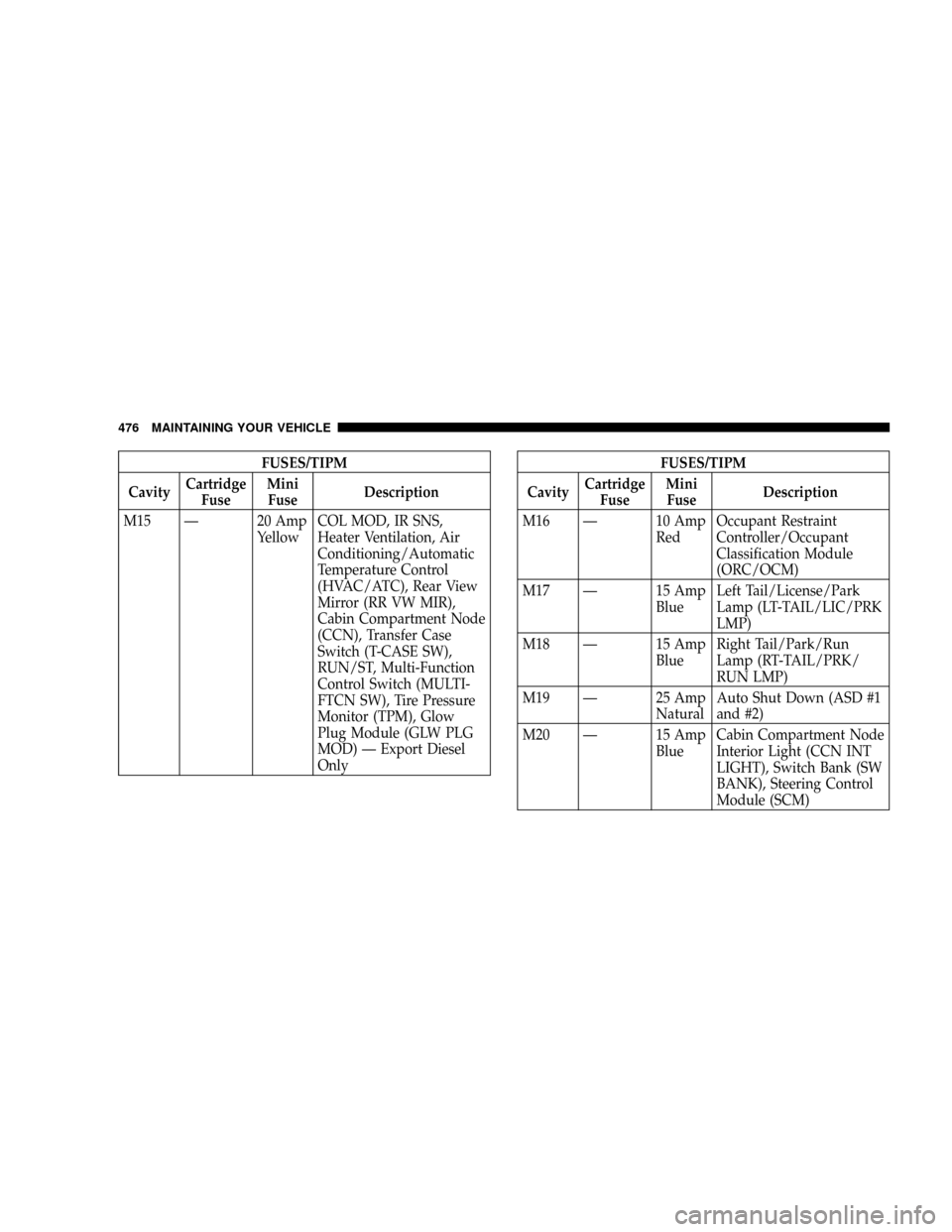

FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
M15 Ð 20 Amp
YellowCOL MOD, IR SNS,
Heater Ventilation, Air
Conditioning/Automatic
Temperature Control
(HVAC/ATC), Rear View
Mirror (RR VW MIR),
Cabin Compartment Node
(CCN), Transfer Case
Switch (T-CASE SW),
RUN/ST, Multi-Function
Control Switch (MULTI-
FTCN SW), Tire Pressure
Monitor (TPM), Glow
Plug Module (GLW PLG
MOD) Ð Export Diesel
OnlyFUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
M16 Ð 10 Amp
RedOccupant Restraint
Controller/Occupant
Classification Module
(ORC/OCM)
M17 Ð 15 Amp
BlueLeft Tail/License/Park
Lamp (LT-TAIL/LIC/PRK
LMP)
M18 Ð 15 Amp
BlueRight Tail/Park/Run
Lamp (RT-TAIL/PRK/
RUN LMP)
M19 Ð 25 Amp
NaturalAuto Shut Down (ASD #1
and #2)
M20 Ð 15 Amp
BlueCabin Compartment Node
Interior Light (CCN INT
LIGHT), Switch Bank (SW
BANK), Steering Control
Module (SCM)
476 MAINTAINING YOUR VEHICLE

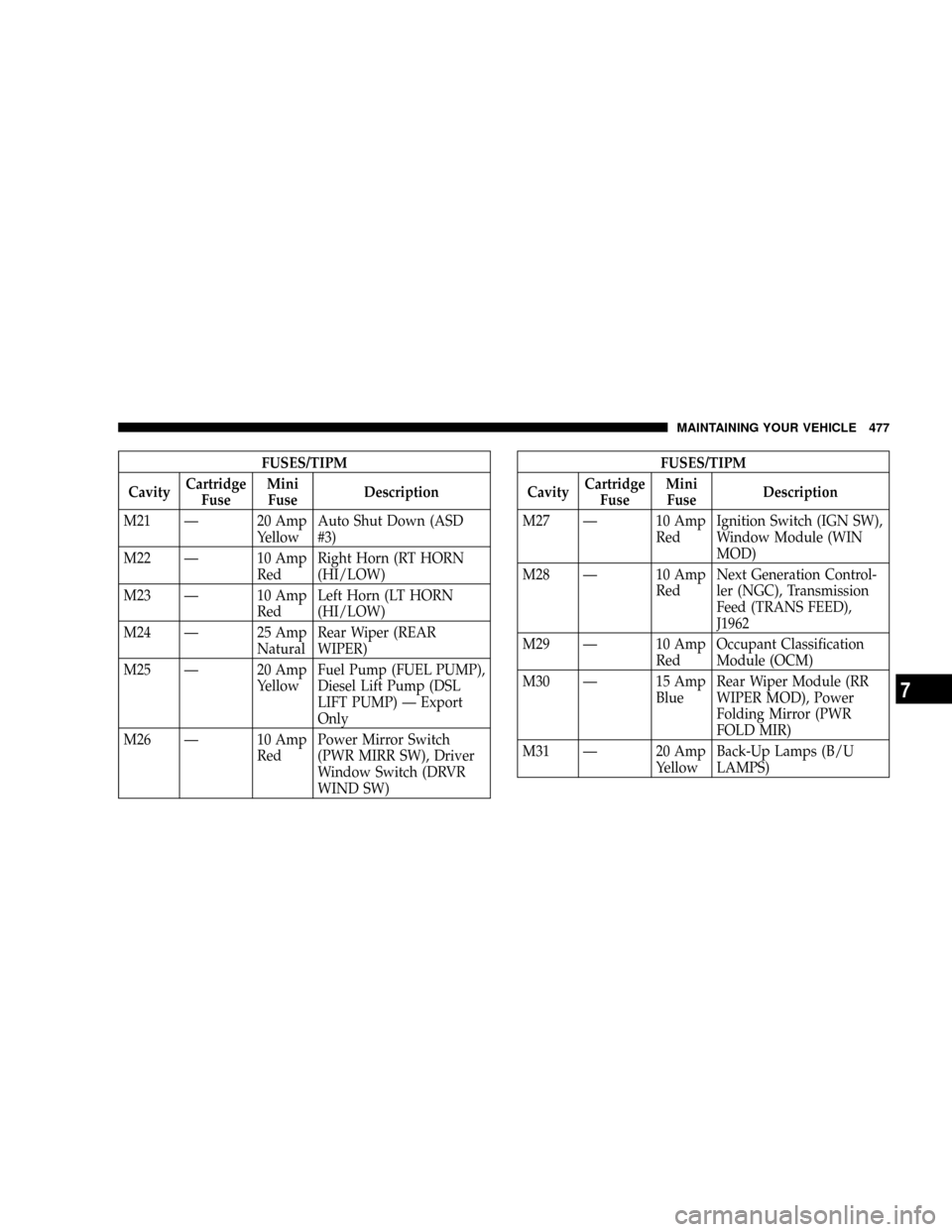

FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
M21 Ð 20 Amp
YellowAuto Shut Down (ASD
#3)
M22 Ð 10 Amp
RedRight Horn (RT HORN
(HI/LOW)
M23 Ð 10 Amp
RedLeft Horn (LT HORN
(HI/LOW)
M24 Ð 25 Amp
NaturalRear Wiper (REAR
WIPER)
M25 Ð 20 Amp
YellowFuel Pump (FUEL PUMP),
Diesel Lift Pump (DSL
LIFT PUMP) Ð Export
Only
M26 Ð 10 Amp
RedPower Mirror Switch
(PWR MIRR SW), Driver
Window Switch (DRVR
WIND SW)FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
M27 Ð 10 Amp
RedIgnition Switch (IGN SW),
Window Module (WIN
MOD)
M28 Ð 10 Amp
RedNext Generation Control-
ler (NGC), Transmission
Feed (TRANS FEED),
J1962
M29 Ð 10 Amp
RedOccupant Classification
Module (OCM)
M30 Ð 15 Amp
BlueRear Wiper Module (RR
WIPER MOD), Power
Folding Mirror (PWR
FOLD MIR)
M31 Ð 20 Amp
YellowBack-Up Lamps (B/U
LAMPS)
MAINTAINING YOUR VEHICLE 477
7

FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
M32 Ð 10 Amp
RedOccupant Restraint Con-
troller (ORC), TT EU-
ROPE
M33 Ð 10 Amp
RedNext Generation Control-
ler (NGC), Global Power-
train Engine Controller
(GPEC)
M34 Ð 10 Amp
RedPark Assist (PRK ASST),
Heater Ventilation, Air
Conditioning Module
(HVAC MOD), Headlamp
Wash (HDLP WASH),
Compass (COMPAS)
M35 Ð 10 Amp
RedHeated Mirrors
M36 Ð 20 Amp
YellowPower Outlet #3 (BATT)FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
M37 Ð 10 Amp
RedAnti-Lock Brake System
(ABS), Electronic Stability
Program (ESP), Stop
Lamp Switch (STP LP
SW), Fuel Pump Rly Hi
Control
M38 Ð 25 Amp
NaturalLock/Unlock Motors
(LOCK/UNLOCK MTRS)
