2008 CHRYSLER TOWN AND COUNTRY Owners Manual

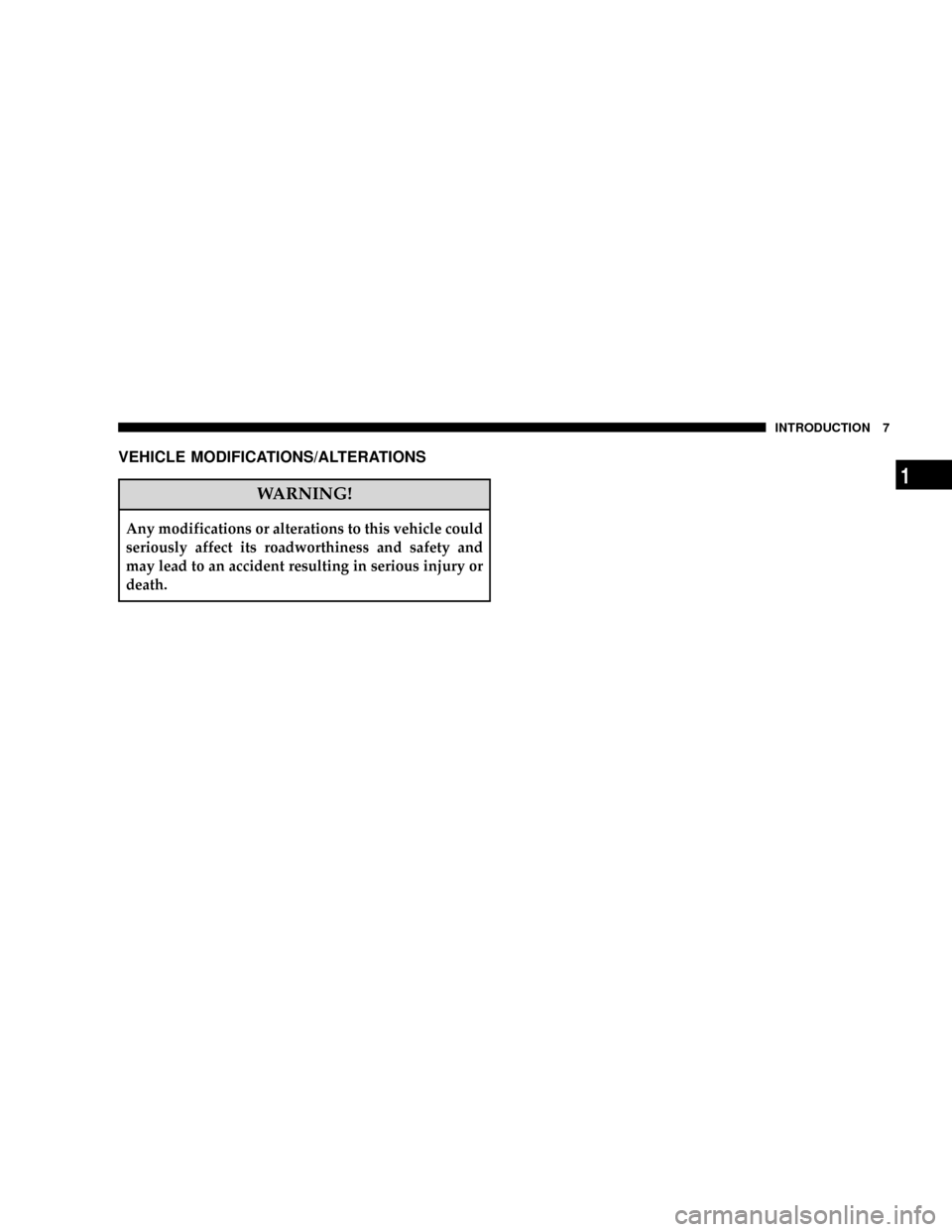

VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to an accident resulting in serious injury or
death.
INTRODUCTION 7
1

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
mA Word About Your Keys..................12
NWireless Ignition Node (WIN).............12
mSentry KeytImmobilizer System.............15
NReplacement Keys......................16
mSecurity Alarm System Ð If Equipped.........18
NRearming Of The System.................18
mIlluminated Entry System Ð If Equipped.......20
mRemote Keyless Entry (RKE) Ð If Equipped.....21
NUsing The RKE Transmitter...............21mRemote Starting System Ð If Equipped........27
NHow To Use Remote Start................28
mDoor Locks............................31
NManual Door Locks.....................31
NPower Door Locks Ð If Equipped..........32
mWindows.............................36
NPower Vent Windows Ð If Equipped........36
NPower Windows.......................36
2

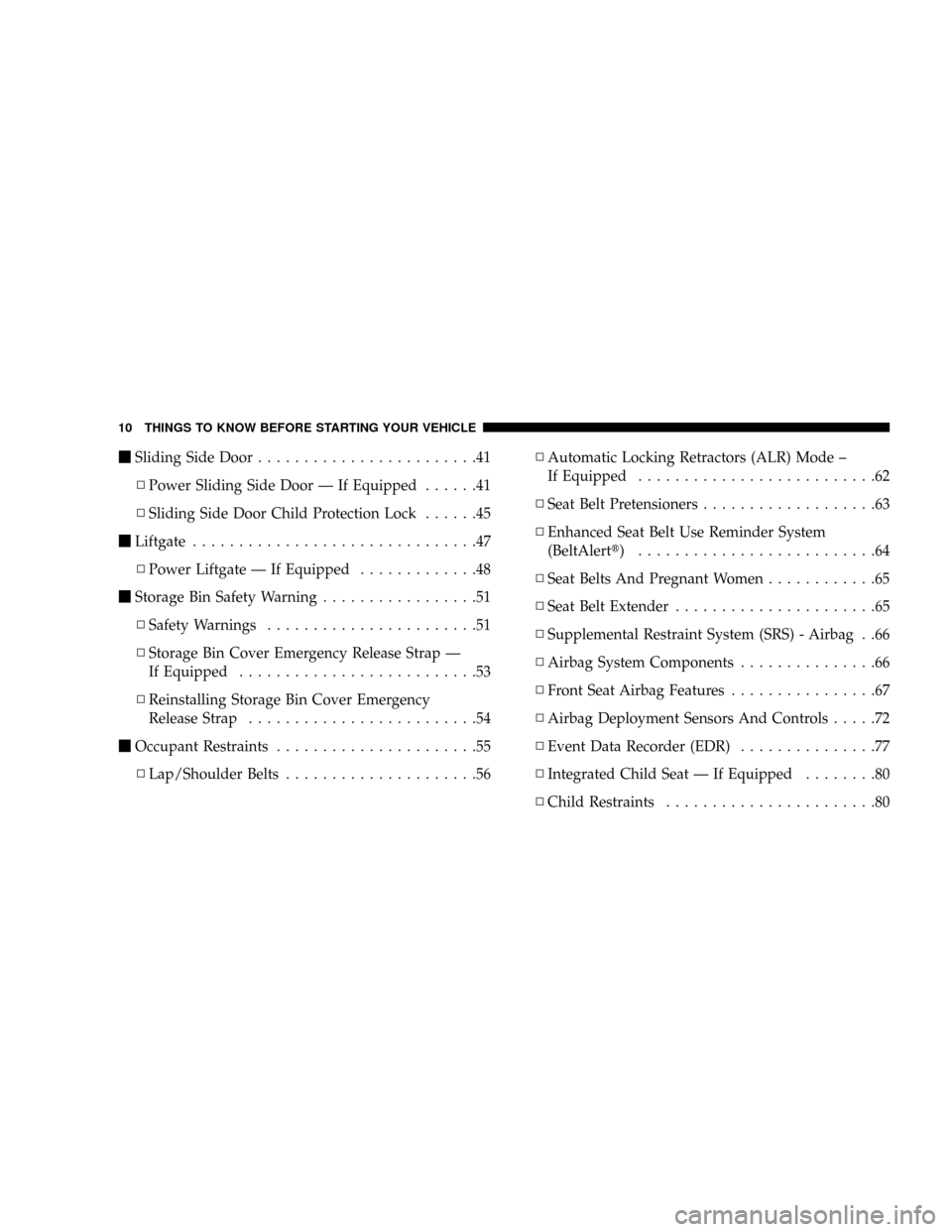

mSliding Side Door........................41
NPower Sliding Side Door Ð If Equipped......41
NSliding Side Door Child Protection Lock......45
mLiftgate...............................47
NPower Liftgate Ð If Equipped.............48
mStorage Bin Safety Warning.................51
NSafety Warnings.......................51
NStorage Bin Cover Emergency Release Strap Ð
If Equipped..........................53
NReinstalling Storage Bin Cover Emergency
Release Strap.........................54
mOccupant Restraints......................55
NLap/Shoulder Belts.....................56NAutomatic Locking Retractors (ALR) Mode ±
If Equipped..........................62
NSeat Belt Pretensioners...................63
NEnhanced Seat Belt Use Reminder System
(BeltAlertt) ..........................64
NSeat Belts And Pregnant Women............65
NSeat Belt Extender......................65
NSupplemental Restraint System (SRS) - Airbag . .66
NAirbag System Components...............66
NFront Seat Airbag Features................67
NAirbag Deployment Sensors And Controls.....72
NEvent Data Recorder (EDR)...............77
NIntegrated Child Seat Ð If Equipped........80
NChild Restraints.......................80
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

mRear Seat Delete Feature
(Commercial Vehicles Only) Ð If Equipped.....89
N
Restraining Infants And Small Children With
Seat Delete Feature (Commercial Vehicles Only)
..90
mEngine Break-In Recommendations...........92mSafety Tips............................93
NSafety Checks You Should Make Inside
The Vehicle..........................93
NPeriodic Safety Checks You Should Make
Outside The Vehicle....................94
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Remote Keyless Entry (RKE) transmitter
with integrated ignition Key and a Wireless Ignition
Node (WIN) with integral ignition switch. You can insert
the double-sided key into the ignition switch with either
side up.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three of
which are detented and one spring-loaded. The detented
positions are OFF, ACC, and ON. The START position is
a spring-loaded momentary contact position. When re-
leased from the START position, the switch automatically
returns to the detented ON position.
WIN Ignition Positions
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Integrated Ignition Key
The integrated ignition key operates the ignition switch.
It also contains the Remote Keyless Entry (RKE) trans-
mitter and a valet key, which stores in the rear of the
transmitter.
The valet key allows for entry into the vehicle should the
battery in the vehicle or the transmitter go dead. The
valet key is also for locking the glove box. You can keep
the valet key with you when valet parking.
To remove the valet key from the transmitter, slide the
mechanical latch at the top of the transmitter sideways
with your thumb and then pull the key out with your
other hand.NOTE:You can insert the double-sided valet key into
the lock cylinder with either side up.
Valet Key Removal
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

Tip Start Feature
1. Do not press the accelerator pedal during this process.
2. Insert the integrated ignition key into the ignition
switch.
3. Turn the ignition switch to the START position and
release it as soon as the starter engages.
The starter motor will continue to run and will disengage
automatically when the engine begins running.
Ignition Key Removal
Place the gear selector lever in PARK. Turn the ignition
key to the OFF position and then remove the key.
NOTE:Power Window switches will also remain active
for up to 90 seconds after the ignition switch has been
turned OFF, depending upon the accessory delay setting.
Opening the front door will cancel this feature.
WARNING!
NEVER leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don't leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all doors
when leaving the vehicle unattended.
