2008 CHEVROLET EQUINOX Owners Manual

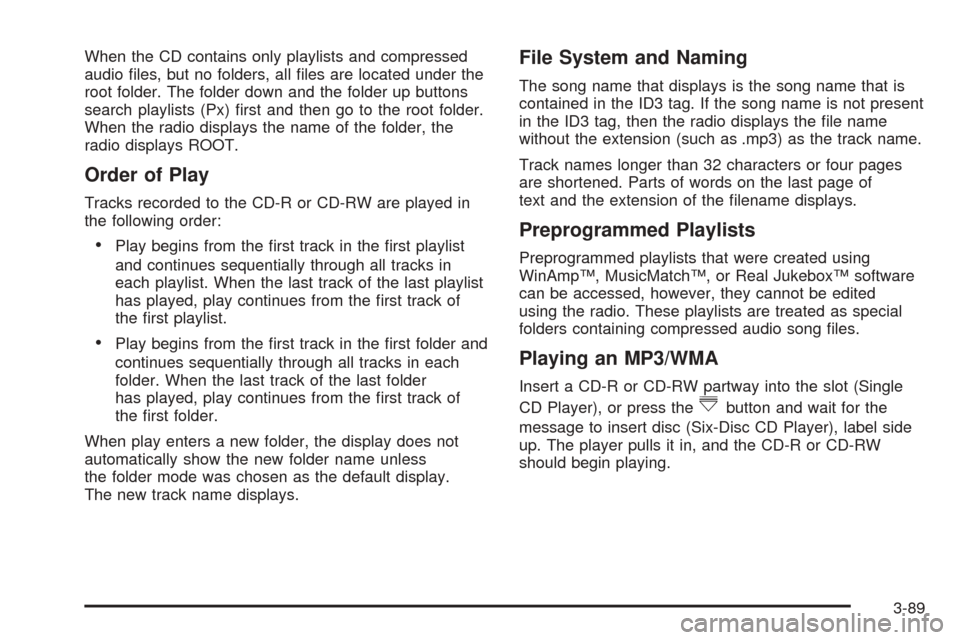

When the CD contains only playlists and compressed
audio les, but no folders, all les are located under the
root folder. The folder down and the folder up buttons
search playlists (Px) rst and then go to the root folder.
When the radio displays the name of the folder, the
radio displays ROOT.
Order of Play
Tracks recorded to the CD-R or CD-RW are played in
the following order:
Play begins from the rst track in the rst playlist
and continues sequentially through all tracks in
each playlist. When the last track of the last playlist
has played, play continues from the rst track of
the rst playlist.
Play begins from the rst track in the rst folder and
continues sequentially through all tracks in each
folder. When the last track of the last folder
has played, play continues from the rst track of
the rst folder.
When play enters a new folder, the display does not
automatically show the new folder name unless
the folder mode was chosen as the default display.
The new track name displays.
File System and Naming
The song name that displays is the song name that is
contained in the ID3 tag. If the song name is not present
in the ID3 tag, then the radio displays the le name
without the extension (such as .mp3) as the track name.
Track names longer than 32 characters or four pages
are shortened. Parts of words on the last page of
text and the extension of the lename displays.
Preprogrammed Playlists
Preprogrammed playlists that were created using
WinAmp™, MusicMatch™, or Real Jukebox™ software
can be accessed, however, they cannot be edited
using the radio. These playlists are treated as special
folders containing compressed audio song les.
Playing an MP3/WMA
Insert a CD-R or CD-RW partway into the slot (Single
CD Player), or press the
^button and wait for the
message to insert disc (Six-Disc CD Player), label side
up. The player pulls it in, and the CD-R or CD-RW
should begin playing.
3-89

If the ignition or radio is turned off with a CD-R or
CD-RW in the player, it stays in the player. When the
ignition or radio is turned on, the CD-R or CD-RW starts
to play where it stopped, if it was the last selected
audio source.
As each new track starts to play, the track number and
song title displays.
ZEJECT:Press this button to eject CD-R(s) or
CD-RW(s). To eject the CD-R or CD-RW that is currently
playing, press and release this button. A beep sounds
and Ejecting Disc displays. Once the disc is ejected,
Remove Disc displays. The CD-R or CD-RW can
be removed. If the CD-R is not removed, after several
seconds, the CD-R or CD-RW automatically pulls
back into the player and begins playing.
For the Six-Disc CD player, press and hold this button
for two seconds to eject all discs.
f(Tune):Turn this knob to select MP3/WMA les
on the CD-R or CD-RW currently playing.
©SEEK¨:Press the left SEEK arrow to go to
the start of the current MP3/WMA le, if more than
ten seconds have played. Press the right SEEK arrow
to go to the next MP3/WMA le. If either SEEK arrow
is held or pressed multiple times, the player continues
moving backward or forward through MP3/WMA les
on the CD.
Sc(Previous Folder):Press the pushbutton
positioned under the Folder label to go to the rst
track in the previous folder.
cT(Next Folder):Press the pushbutton positioned
under the Folder label to go to the rst track in the
next folder.
sREV (Reverse):Press and hold this button to
reverse playback quickly within an MP3/WMA le.
Sound is heard at a reduced volume. Release this
button to resume playing the le. The elapsed time
of the le displays.
\FWD (Fast Forward):Press and hold this button
to advance playback quickly within an MP3/WMA
le. Sound is heard at a reduced volume. Release
this button to resume playing the le. The elapsed
time of the le displays.
3-90

RDM (Random):With the random setting, MP3 les
on the CD-R can be listened to in random, rather than
sequential order, on one CD-R/CD-RW or all discs
in a six-disc CD player. To use random, do one of
the following:
1. To play MP3/WMA les from the CD-R or CD-RW
in random order, press the pushbutton positioned
under the RDM label until Random Current
Disc displays. Press the same pushbutton again
to turn off random play.
2. To play songs from all CDs loaded in a six-disc
CD player in random order, press the pushbutton
positioned under the RDM label until Randomize
All Discs displays. Press the same pushbutton again
to turn off random play.
h(Music Navigator):Use the music navigator
feature to play MP3 les on the CD-R or CD-RW
in order by artist or album. Press the pushbutton
located below the music navigator label. The player
scans the disc to sort the les by artist and album ID3
tag information. It can take several minutes to scan
the disc depending on the number of MP3/WMA les
recorded to the CD-R or CD-RW. The radio can
begin playing while it is scanning the disc in the
background. When the scan is nished, the CD-R
or CD-RW begins playing again.Once the disc has been scanned, the player defaults to
playing MP3/WMA les in order by artist. The current
artist playing is shown on the second line of the
display between the arrows. Once all songs by that
artist are played, the player moves to the next artist
in alphabetical order on the CD-R or CD-RW and begins
playing MP3 les by that artist. If you want to listen to
MP3/WMA les by another artist, press the pushbutton
located below either arrow button. The CD goes to
the next or previous artist in alphabetical order. Continue
pressing either button until the desired artist displays.
To change from playback by artist to playback by album,
press the pushbutton located below the Sort By label.
From the sort screen, push one of the buttons below
the album button. Press the pushbutton below the back
label to return to the main music navigator screen.
Now the album name is displayed on the second line
between the arrows and songs from the current
album begins to play. Once all songs from that album
are played, the player moves to the next album in
alphabetical order on the CD-R/CD-RW and begin
playing MP3/WMA les from that album.
To exit music navigator mode, press the pushbutton
below the Back label to return to normal MP3/WMA
playback.
3-91

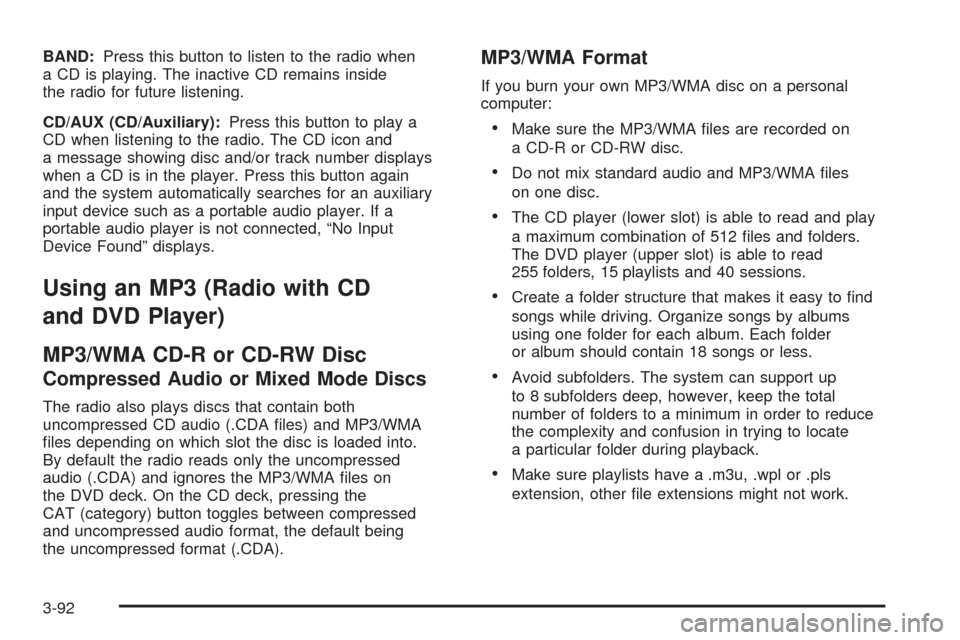

BAND:Press this button to listen to the radio when
a CD is playing. The inactive CD remains inside
the radio for future listening.
CD/AUX (CD/Auxiliary):Press this button to play a
CD when listening to the radio. The CD icon and
a message showing disc and/or track number displays
when a CD is in the player. Press this button again
and the system automatically searches for an auxiliary
input device such as a portable audio player. If a
portable audio player is not connected, “No Input
Device Found” displays.
Using an MP3 (Radio with CD
and DVD Player)
MP3/WMA CD-R or CD-RW Disc
Compressed Audio or Mixed Mode Discs
The radio also plays discs that contain both
uncompressed CD audio (.CDA les) and MP3/WMA
les depending on which slot the disc is loaded into.
By default the radio reads only the uncompressed
audio (.CDA) and ignores the MP3/WMA les on
the DVD deck. On the CD deck, pressing the
CAT (category) button toggles between compressed
and uncompressed audio format, the default being
the uncompressed format (.CDA).
MP3/WMA Format
If you burn your own MP3/WMA disc on a personal
computer:
Make sure the MP3/WMA les are recorded on
a CD-R or CD-RW disc.
Do not mix standard audio and MP3/WMA les
on one disc.
The CD player (lower slot) is able to read and play
a maximum combination of 512 les and folders.
The DVD player (upper slot) is able to read
255 folders, 15 playlists and 40 sessions.
Create a folder structure that makes it easy to nd
songs while driving. Organize songs by albums
using one folder for each album. Each folder
or album should contain 18 songs or less.
Avoid subfolders. The system can support up
to 8 subfolders deep, however, keep the total
number of folders to a minimum in order to reduce
the complexity and confusion in trying to locate
a particular folder during playback.
Make sure playlists have a .m3u, .wpl or .pls
extension, other le extensions might not work.
3-92

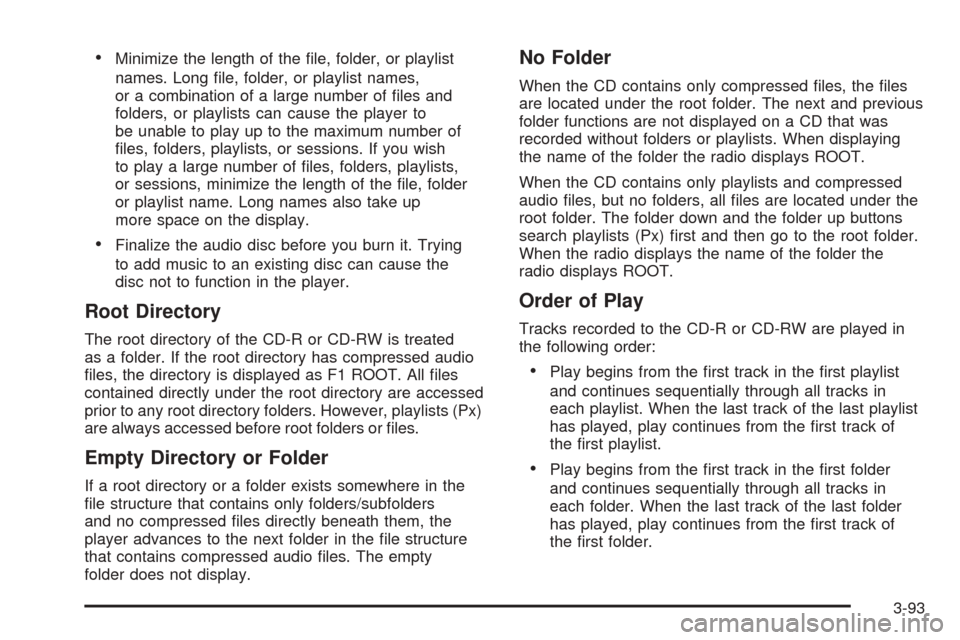

Minimize the length of the le, folder, or playlist
names. Long le, folder, or playlist names,
or a combination of a large number of les and
folders, or playlists can cause the player to
be unable to play up to the maximum number of
les, folders, playlists, or sessions. If you wish
to play a large number of les, folders, playlists,
or sessions, minimize the length of the le, folder
or playlist name. Long names also take up
more space on the display.
Finalize the audio disc before you burn it. Trying
to add music to an existing disc can cause the
disc not to function in the player.
Root Directory
The root directory of the CD-R or CD-RW is treated
as a folder. If the root directory has compressed audio
les, the directory is displayed as F1 ROOT. All les
contained directly under the root directory are accessed
prior to any root directory folders. However, playlists (Px)
are always accessed before root folders or les.
Empty Directory or Folder
If a root directory or a folder exists somewhere in the
le structure that contains only folders/subfolders
and no compressed les directly beneath them, the
player advances to the next folder in the le structure
that contains compressed audio les. The empty
folder does not display.
No Folder
When the CD contains only compressed les, the les
are located under the root folder. The next and previous
folder functions are not displayed on a CD that was
recorded without folders or playlists. When displaying
the name of the folder the radio displays ROOT.
When the CD contains only playlists and compressed
audio les, but no folders, all les are located under the
root folder. The folder down and the folder up buttons
search playlists (Px) rst and then go to the root folder.
When the radio displays the name of the folder the
radio displays ROOT.
Order of Play
Tracks recorded to the CD-R or CD-RW are played in
the following order:
Play begins from the rst track in the rst playlist
and continues sequentially through all tracks in
each playlist. When the last track of the last playlist
has played, play continues from the rst track of
the rst playlist.
Play begins from the rst track in the rst folder
and continues sequentially through all tracks in
each folder. When the last track of the last folder
has played, play continues from the rst track of
the rst folder.
3-93

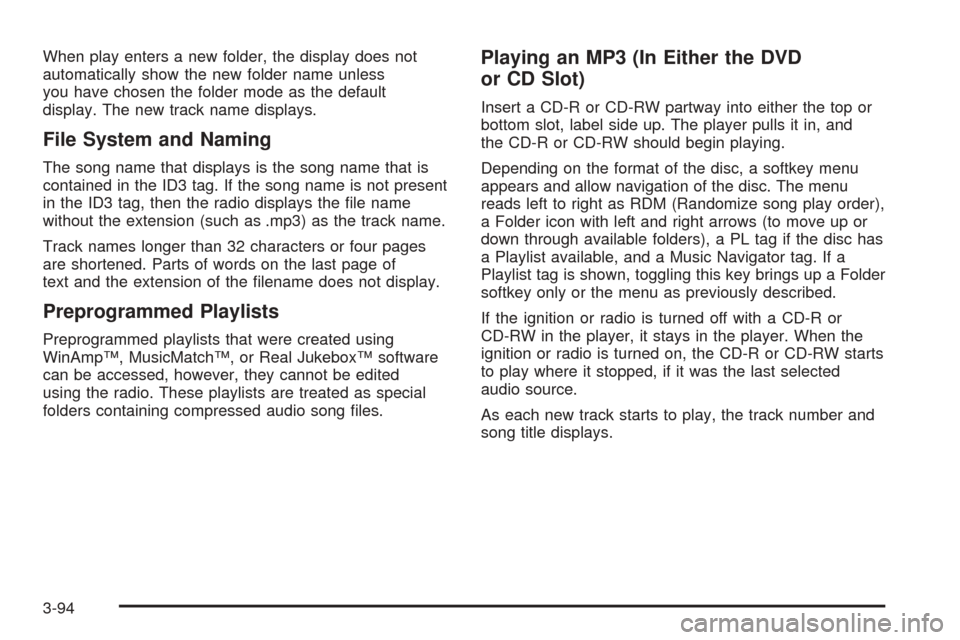

When play enters a new folder, the display does not
automatically show the new folder name unless
you have chosen the folder mode as the default
display. The new track name displays.
File System and Naming
The song name that displays is the song name that is
contained in the ID3 tag. If the song name is not present
in the ID3 tag, then the radio displays the le name
without the extension (such as .mp3) as the track name.
Track names longer than 32 characters or four pages
are shortened. Parts of words on the last page of
text and the extension of the lename does not display.
Preprogrammed Playlists
Preprogrammed playlists that were created using
WinAmp™, MusicMatch™, or Real Jukebox™ software
can be accessed, however, they cannot be edited
using the radio. These playlists are treated as special
folders containing compressed audio song les.
Playing an MP3 (In Either the DVD
or CD Slot)
Insert a CD-R or CD-RW partway into either the top or
bottom slot, label side up. The player pulls it in, and
the CD-R or CD-RW should begin playing.
Depending on the format of the disc, a softkey menu
appears and allow navigation of the disc. The menu
reads left to right as RDM (Randomize song play order),
a Folder icon with left and right arrows (to move up or
down through available folders), a PL tag if the disc has
a Playlist available, and a Music Navigator tag. If a
Playlist tag is shown, toggling this key brings up a Folder
softkey only or the menu as previously described.
If the ignition or radio is turned off with a CD-R or
CD-RW in the player, it stays in the player. When the
ignition or radio is turned on, the CD-R or CD-RW starts
to play where it stopped, if it was the last selected
audio source.
As each new track starts to play, the track number and
song title displays.
3-94

ZCD (Eject):Press and release this button to eject
the CD-R or CD-RW that is currently playing in the
bottom slot. A beep sounds and Ejecting Disc displays.
Once the disc is ejected, Remove Disc displays.
The CD-R or CD-RW can be removed. If the CD-R or
CD-RW is not removed, after several seconds, the CD-R
or CD-RW automatically pulls back into the player.
If loading and reading of a CD cannot be completed,
such as unknown format, etc., and the disc fails to eject,
press and hold this button for more than ve seconds
to force the disc to eject.
ZDVD (Eject):Press and release this button to
eject the CD-R or CD-RW that is currently playing in
the top slot. A beep sounds and Ejecting Disc displays.
Once the disc is ejected, Remove Disc displays. The
CD-R or CD-RW can be removed. If the CD-R or
CD-RW is not removed, after several seconds, the CD-R
or CD-RW automatically pulls back into the player. If
loading and reading of a CD cannot be completed, such
as unknown format, etc., and the disc fails to eject,
press and hold this button for more than ve seconds to
force the disc to eject.
f(Tune):Turn this knob to select MP3/WMA les on
the CD-R or CD-RW currently playing.
©SEEK¨:Press the left SEEK arrow to go to
the start of the current MP3/WMA le, if more than
ve seconds have played. If less than ve seconds have
played, the previous MP3/WMA le plays. Press the
right SEEK arrow to go to the next MP3/WMA le.
If either SEEK arrow is held, or pressed multiple times,
the player continues moving backward or forward
through the MP3/WMA les on the CD.
Sc(Previous Folder):Press the pushbutton
positioned under the Folder label to go to the rst track
in the previous folder.
cT(Next Folder):Press the pushbutton positioned
under the Folder label to go to the rst track in the
next folder.
sREV (Reverse):Press and hold this button to
reverse playback quickly within an MP3/WMA le.
Sound is heard at a reduced volume. Release this
button to resume playing the le. The elapsed time of
the le displays.
\FWD (Fast Forward):Press and hold this button
to advance playback quickly within an MP3/WMA
le. Sound is heard at a reduced volume. Release this
button to resume playing the le. The elapsed time
of the le displays.
3-95

RDM (Random):With the random setting, MP3/WMA
les on the CD-R or CD-RW can be played in random,
rather than sequential order. To play MP3/WMA
les from the CD-R or CD-RW you are listening to
in random order, press the pushbutton positioned
under the RDM label until Random Current Disc
displays. Press the same pushbutton again to turn off
random play.
h(Music Navigator):Use the music navigator
feature to play MP3/WMA les on the CD-R or CD-RW
in order by artist or album. Press the pushbutton
located below the music navigator label. The player
scans the disc to sort the les by artist and album ID3
tag information. It can take several minutes to scan
the disc depending on the number of MP3/WMA les
recorded to the CD-R or CD-RW.
To cancel music navigator while the player is scanning,
press the pushbutton located below the music
navigator label or eject the disc.
The radio could begin playing while it is scanning the
disc in the background. When the scan is nished,
the CD-R or CD-RW begins playing again.Once the disc has been scanned, the player defaults to
playing MP3/WMA les in order by artist. The current
artist playing is shown on the second line of the
display between the arrows. If you want to listen to
MP3/WMA les by another artist, press the pushbutton
located below either arrow button. You will go to the
next or previous artist in alphabetical order. Continue
pressing either button until the desired artist is
displayed.
To change from playback by artist to playback by
album, press the pushbutton located below the
Sort By label. From the sort screen, push one of the
buttons below the album button. Press the pushbutton
below the back label to return to the main music
navigator screen. The album name displays on the
second line between the arrows and songs from
the current album begins to play. Once all songs from
that album are played, the player moves to the next
album in alphabetical order on the CD-R/CD-RW
and begins playing MP3/WMA les from that album.
To exit music navigator mode, press the pushbutton
below the Back label to return to normal MP3/WMA
playback.
3-96
