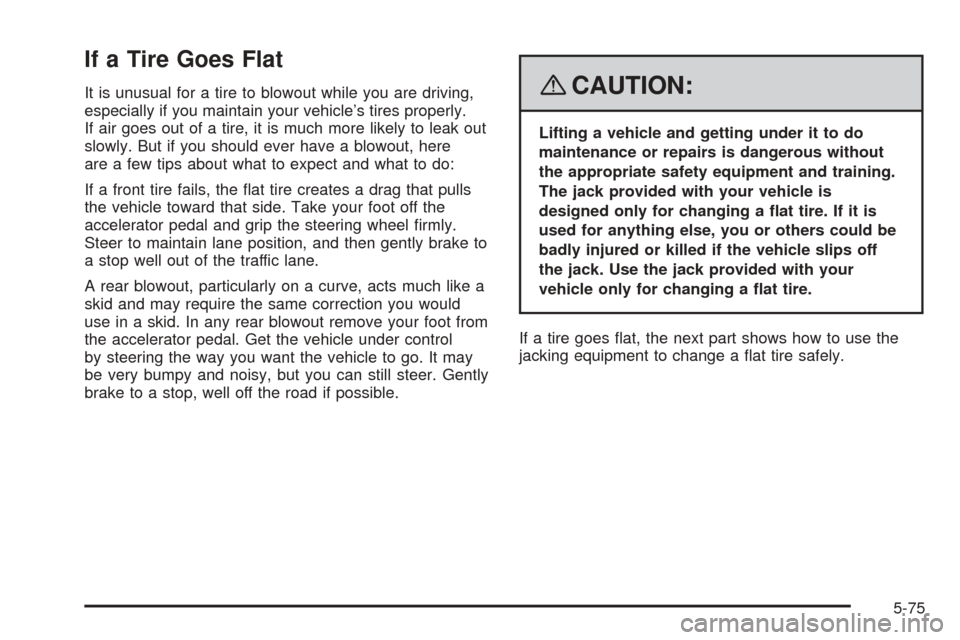

If a Tire Goes Flat
It is unusual for a tire to blowout while you are driving,
especially if you maintain your vehicle’s tires properly.
If air goes out of a tire, it is much more likely to leak out
slowly. But if you should ever have a blowout, here
are a few tips about what to expect and what to do:
If a front tire fails, the at tire creates a drag that pulls
the vehicle toward that side. Take your foot off the
accelerator pedal and grip the steering wheel rmly.
Steer to maintain lane position, and then gently brake to
a stop well out of the traffic lane.
A rear blowout, particularly on a curve, acts much like a
skid and may require the same correction you would
use in a skid. In any rear blowout remove your foot from
the accelerator pedal. Get the vehicle under control
by steering the way you want the vehicle to go. It may
be very bumpy and noisy, but you can still steer. Gently
brake to a stop, well off the road if possible.{CAUTION:
Lifting a vehicle and getting under it to do
maintenance or repairs is dangerous without
the appropriate safety equipment and training.
The jack provided with your vehicle is
designed only for changing a at tire. If it is
used for anything else, you or others could be
badly injured or killed if the vehicle slips off
the jack. Use the jack provided with your
vehicle only for changing a at tire.
If a tire goes at, the next part shows how to use the
jacking equipment to change a at tire safely.
5-75

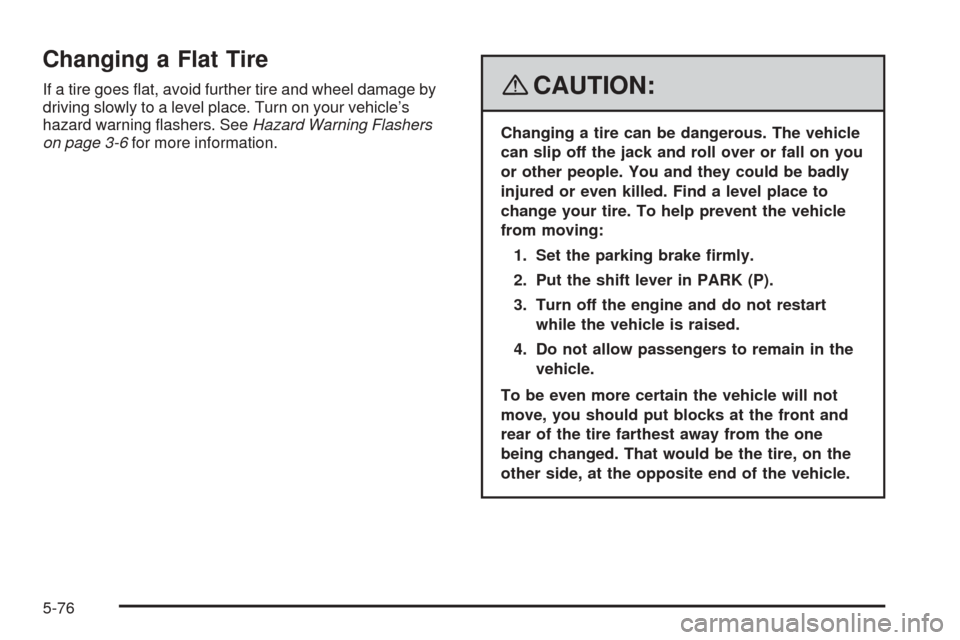

Changing a Flat Tire
If a tire goes at, avoid further tire and wheel damage by
driving slowly to a level place. Turn on your vehicle’s
hazard warning ashers. SeeHazard Warning Flashers
on page 3-6for more information.{CAUTION:
Changing a tire can be dangerous. The vehicle
can slip off the jack and roll over or fall on you
or other people. You and they could be badly
injured or even killed. Find a level place to
change your tire. To help prevent the vehicle
from moving:
1. Set the parking brake rmly.
2. Put the shift lever in PARK (P).
3. Turn off the engine and do not restart
while the vehicle is raised.
4. Do not allow passengers to remain in the
vehicle.
To be even more certain the vehicle will not
move, you should put blocks at the front and
rear of the tire farthest away from the one
being changed. That would be the tire, on the
other side, at the opposite end of the vehicle.
5-76

When your vehicle has a at tire, use the following
example as a guide to assist you in the placement of
wheel blocks.
The following information tells you how to use the jack
and change a tire.Removing the Spare Tire and Tools
If your vehicle has the rear compartment storage
panel/cover, you will have to remove it to access the
load oor. SeeRear Compartment Storage Panel/Cover
on page 2-45for more information.
To access the spare tire and tools:
1. Lift the load oor up and pull it out of the vehicle
and set it aside.
5-77

2. Remove the nut retaining the spare tire.
3. Remove the compact spare tire. SeeCompact
Spare Tire on page 5-88for more information.
4. Locate the jack and wheel wrench, which are
located on the driver’s side of the rear cargo area,
behind an access door. Pull out the access door to
reach them.5. Remove the wing-bolt
holding the jack and
then remove it.
6. Remove the hook and loop fastener straps holding
the bag containing the wheel wrench. Remove the
wheel wrench from the bag.
7. Extend the socket portion of the wrench from the
handle.
5-78

Removing the Flat Tire and
Installing the Spare Tire
Take off the wheel cover or center cap, if the vehicle
has one, to reach the wheel bolts.
1. Do a safety check before proceeding. See
Changing a Flat Tire on page 5-76for more
information.
2. Loosen all ve plastic
caps by turning the
wheel wrench
counterclockwise. Do
not try to remove
plastic caps from the
cover or center cap.
3. Pull the cover or center cap away from the wheel.
Store the wheel cover in the cargo area until you
have the at tire repaired or replaced.
4. Use the wheel wrench to loosen all the wheel nuts.
Do not remove them yet.5. Attach the wheel wrench to the jack bolt head and
turn the wheel wrench clockwise. That will raise the
lift head a little.
6. Place the jack near the at tire.
Notice:Make sure that the jack lift head is in the
correct position or you may damage your vehicle.
The repairs would not be covered by your warranty.
5-79

7. Find the arrow on the plastic lower body panel.
Position the jack head under the metal jacking
ange and not the plastic lower body panel.With the jack head positioned correctly on the metal
jacking ange, it should look like this underneath
the vehicle.
Do not lift the vehicle using the plastic lower body
panel.
8. Put the compact spare tire near you.
5-80

{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get
under a vehicle when it is supported only
by a jack.
{CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal
injury and vehicle damage, be sure to t the
jack lift head into the proper location before
raising the vehicle.
{CAUTION:
Lifting a vehicle and getting under it to do
maintenance or repairs is dangerous without
the appropriate safety equipment and training.
The jack provided with your vehicle is
designed only for changing a at tire. If it is
used for anything else, you or others could be
badly injured or killed if the vehicle slips off the
jack. Use the jack provided with your vehicle
only for changing a at tire.
5-81

9. Raise the vehicle by turning the jack handle
clockwise. Raise the vehicle far enough off the
ground so there is enough room for the road tire to
clear the ground.10. Remove all of the
wheel nuts.
11. Remove the at tire.
5-82
