2008 CADILLAC ESCALADE ESV Owners Manual

Engine Exhaust
{ CAUTION: Engine exhaust can kill. It contains the gas
carbon monoxide (CO), which you cannot see or
smell. It can cause unconsciousness and death.
You might have exhaust coming in if:
The exhaust system sounds strange or
different.
Your vehicle gets rusty underneath.
Your vehicle was damaged in a collision.
Your vehicle was damaged when driving
over high points on the road or over road
debris.
CAUTION: (Continued) CAUTION: (Continued)
Repairs were not done correctly.
Your vehicle or the exhaust system has
been modied improperly.
If you ever suspect exhaust is coming into
your vehicle:
Drive it only with all the windows down to
blow out any CO; and
Have your vehicle xed immediately.
2-39

Running the Engine While Parked It is better not to park with the engine running. But if you
ever have to, here are some things to know.
{ CAUTION: Idling the engine with the climate control
system off could allow dangerous exhaust into
your vehicle. See the earlier caution under
Engine Exhaust on page 2-39 .
Also, idling in a closed-in place can let deadly
carbon monoxide (CO) into your vehicle even if
the climate control fan is at the highest setting.
One place this can happen is a garage.
Exhaust — with CO — can come in easily.
NEVER park in a garage with the engine
running.
Another closed-in place can be a blizzard. See
Winter Driving on page 4-30 . { CAUTION: It can be dangerous to get out of your vehicle
if the shift lever is not fully in PARK (P) with
the parking brake rmly set. Your vehicle can
roll. Do not leave your vehicle when the engine
is running unless you have to. If you have left
the engine running, the vehicle can move
suddenly. You or others could be injured. To
be sure your vehicle will not move, even when
you are on fairly level ground, always set the
parking brake and move the shift lever to
PARK (P).
Follow the proper steps to be sure your vehicle will not
move. See Shifting Into PARK (P) on page 2-36 .
If you are pulling a trailer, see Towing a Trailer on
page 4-44 .
2-40

Mirrors Automatic Dimming Rearview Mirror
with Intellibeam ®
, OnStar ®
,
Compass, and Temperature Display Your vehicle may have an automatic dimming rearview
mirror with Intellibeam ®
, OnStar ®
, compass and
temperature display. For more information on OnStar ®
,
see OnStar ®
System on page 2-50 . For more
information on Intellibeam ®
, see “Intellibeam ®
Intelligent
High-Beam Headlamp Control System” under Exterior
Lamps on page 3-16 .
The mirror includes an eight-point compass display in
the upper right corner of the mirror face. When on,
the compass automatically calibrates as the vehicle is
driven. Outside temperature is also shown in the display.
Automatic Dimming Your vehicle has an inside automatic dimming rearview
mirror. The automatic dimming feature is activated
whenever the vehicle is turned on and dims only during
nighttime driving. Compass Operation AUTO
3 : Press and hold the “auto highbeam” button
for about three seconds to turn the
compass/temperature display on or off.
When the ignition and the display features are on, the
display will show two character boxes for about two
seconds. After two seconds, the mirror will display the
compass heading and temperature.
Compass Calibration If after two seconds the display does not show the
correct direction, (N for North for example), there may
be a strong magnetic eld interfering with the compass.
Such interference may be caused by a magnetic
antenna mount, magnetic note pad holder, or a similar
magnetic item.
The compass can be placed in calibration mode
manually by pressing and holding the “auto highbeam”
button for about nine seconds until CAL is shown in
the compass display.
The mirror can then be calibrated by driving the vehicle
in circles at 5 mph (8 km/h) or less until the display
reads the correct direction.
2-41

Compass Variance The mirror is set to zone eight upon leaving the factory.
It will be necessary to adjust the compass to
compensate for compass variance if the vehicle is
driven outside zone eight. Under certain circumstances,
such as a long distance, cross-country trip, it will be
necessary to adjust the compass variance.
Compass variance is the difference between earth’s
magnetic north and true geographic north. If the mirror
is not adjusted to account for zone changes, the
compass could give false readings.
To adjust for zone changes:
1. Find your current location and variance zone
number on the zone map that follows.
2. Press and hold the “auto highbeam” button about
six seconds until a zone number appears in the
display.
3. Once the zone number appears in the display,
press the “auto highbeam” button quickly until
you reach the correct zone number. Stop pressing
the button and the mirror will return to normal
operation. If C appears in the compass window, the
compass needs calibration. See “Compass
Calibration” listed previously.
2-42

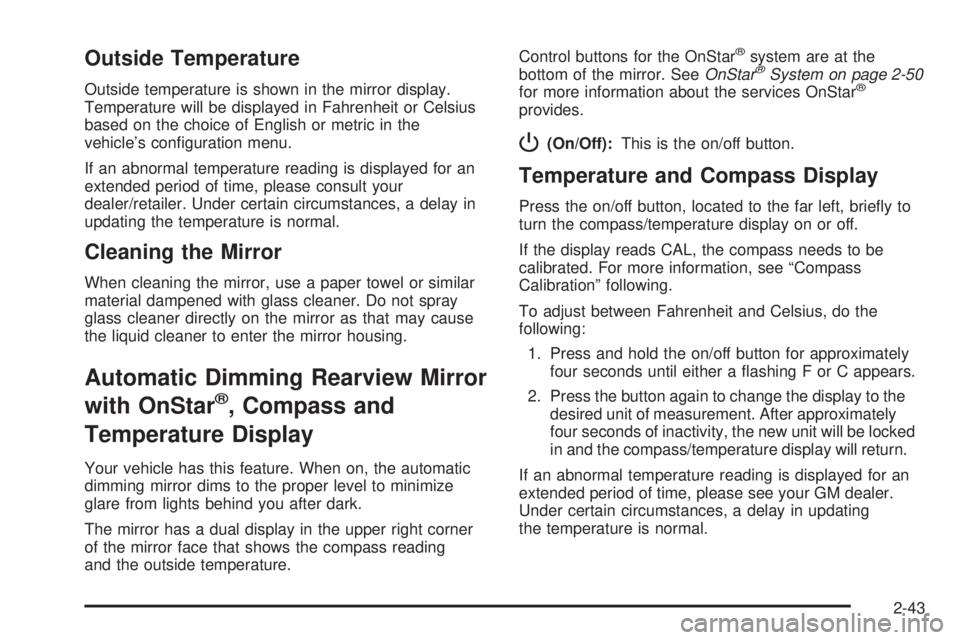

Outside Temperature Outside temperature is shown in the mirror display.
Temperature will be displayed in Fahrenheit or Celsius
based on the choice of English or metric in the
vehicle’s conguration menu.
If an abnormal temperature reading is displayed for an
extended period of time, please consult your
dealer/retailer. Under certain circumstances, a delay in
updating the temperature is normal.
Cleaning the Mirror When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as that may cause
the liquid cleaner to enter the mirror housing.
Automatic Dimming Rearview Mirror
with OnStar ®
, Compass and
Temperature Display Your vehicle has this feature. When on, the automatic
dimming mirror dims to the proper level to minimize
glare from lights behind you after dark.
The mirror has a dual display in the upper right corner
of the mirror face that shows the compass reading
and the outside temperature. Control buttons for the OnStar ®
system are at the
bottom of the mirror. See OnStar ®
System on page 2-50
for more information about the services OnStar ®
provides.
P (On/Off): This is the on/off button.
Temperature and Compass Display Press the on/off button, located to the far left, briey to
turn the compass/temperature display on or off.
If the display reads CAL, the compass needs to be
calibrated. For more information, see “Compass
Calibration” following.
To adjust between Fahrenheit and Celsius, do the
following:
1. Press and hold the on/off button for approximately
four seconds until either a ashing F or C appears.
2. Press the button again to change the display to the
desired unit of measurement. After approximately
four seconds of inactivity, the new unit will be locked
in and the compass/temperature display will return.
If an abnormal temperature reading is displayed for an
extended period of time, please see your GM dealer.
Under certain circumstances, a delay in updating
the temperature is normal.
2-43

Automatic Dimming Mirror Operation The automatic dimming mirror function is turned
on automatically each time the ignition is started. To
operate the automatic dimming mirror, do the following:
1. Make sure the green indicator light, located to the left
of the on/off button, is lit. If it is not, press and hold
the on/off button for approximately six seconds until
the green light comes on, indicating that the mirror is
in automatic dimming mode.
2. Turn off the automatic dimming mirror function by
pressing and holding the on/off button for
approximately six seconds, until the green indicator
light turns off.
Compass Variance The mirror is set in zone eight upon leaving the factory.
It will be necessary to adjust the compass to
compensate for compass variance if the vehicle is
outside of zone eight. Under certain circumstances, as
during a long distance cross-country trip, it will be
necessary to adjust for compass variance. Compass
variance is the difference between earth’s magnetic
north and true geographic north. If not adjusted
to account for compass variance, the compass could
give false readings. To adjust for compass variance, do the following:
1. Find your current location and variance zone
number on the following zone map.
2. Press and hold the on/off button until a Z and a
zone number appears in the display. The compass
is now in zone mode.
3. Keep pressing the on/off button until the desired
zone number appears in the display. Release the
button. After approximately four seconds of
inactivity, the new zone number will be locked in
and the compass/temperature display will return.
4. Calibrate the compass as described next.
2-44

Compass Calibration The compass may need calibration if one of the
following occurs:
After approximately ve seconds, the display does
not show a compass heading, N for North, for
example, there may be a strong magnetic eld
interfering with the compass. Such interference may
be caused by a magnetic antenna mount, magnetic
note pad holder, or a similar magnetic item.
The compass does not display the correct heading
and the compass zone variance is set correctly.
In order to calibrate, CAL must be displayed in the
mirror compass windows. If CAL is not displayed, push
the on/off button for approximately 12 seconds or
until CAL is displayed.
The compass can be calibrated by driving the vehicle in
circles at 5 mph (8 km/h) or less until the display
reads a direction.
Cleaning the Mirror When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as that may cause
the liquid cleaner to enter the mirror housing. Outside Power Foldaway Mirrors If your vehicle is equipped
with outside power
foldaway mirrors, the
controls are located on the
driver’s door armrest.
Press (A) to select the driver’s side mirror. Then
press the arrows located on the four-way control
pad to adjust the mirror. Press (A) again to deselect
the mirror.
Press (B) to select the passenger’s side mirror.
Then press the arrows located on the four-way
control pad to adjust the mirror. Press (B) again to
deselect the mirror.
2-45

Press (C) to fold the mirrors out to the driving
position.
Press (D) to fold the mirrors in to the folded
position.
If the mirrors are accidentally folded/unfolded manually,
they may shake or utter at normal driving speeds
and may not stay in the unfolded position. If this
happens, you will need to reset the mirrors. See
“Resetting the Power Foldaway Mirrors” next.
Resetting the Power Foldaway Mirrors You will need to reset the power foldaway mirrors if the
following occurs:
The mirrors are accidentally obstructed while
folding.
They are accidentally manually folded/unfolded.
The mirrors will not stay in the unfolded position.
The mirrors shake and utter at normal driving
speeds.
To reset the power foldaway mirrors, fold and unfold
them one time using the mirror controls. This will reset
them to their normal position.
This mirror has the following features. Automatic Dimming The driver’s outside mirror will adjust for the glare of the
headlamps behind you. See Automatic Dimming
Rearview Mirror with OnStar ®
, Compass and
Temperature Display on page 2-43 .
Park Tilt Mirrors If your vehicle has the memory package, the outside
mirrors are able to perform the park tilt function. This
feature may be useful in allowing the driver to view the
curb when parallel parking. This feature will cause the
passenger’s and/or driver’s mirror to tilt to a preselected
position when the vehicle is in REVERSE (R).
The passenger’s and/or driver’s mirror will return to its
original position when the vehicle is shifted out of
REVERSE (R), or the ignition is turned off or to
OFF/LOCK.
This feature can be turned on or off through the Driver
Information Center (DIC). See DIC Vehicle
Customization on page 3-61 .
2-46
