2008 CADILLAC ESCALADE ESV service schedule

Seats and Restraint Systems ........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
.............................................. 1-10
Safety Belts
............................................. 1-29
Child Restraints
....................................... 1-50
Airbag System
......................................... 1-76
Restraint System Check
............................ 1-92
Features and Controls ..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
...................................... 2-10
Windows
................................................. 2-18
Theft-Deterrent Systems
............................ 2-20
Starting and Operating Your Vehicle
........... 2-24
Mirrors
.................................................... 2-41
Object Detection Systems
.......................... 2-48
OnStar ®
System
...................................... 2-50
Universal Home Remote System
................ 2-53
Storage Areas
......................................... 2-60
Sunroof
.................................................. 2-64
Instrument Panel ............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
...................................... 3-26
Warning Lights, Gages, and Indicators
........ 3-33
Driver Information Center (DIC)
.................. 3-48
Audio System(s)
....................................... 3-70 Driving Your Vehicle ....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
................................................... 4-41
Service and Appearance Care .......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
............... 5-10
All-Wheel Drive
........................................ 5-45
Rear Axle
............................................... 5-46
Front Axle
............................................... 5-47
Headlamp Aiming
..................................... 5-48
Bulb Replacement
.................................... 5-51
Windshield Wiper Blade Replacement
......... 5-54
Tires
...................................................... 5-56
Appearance Care
..................................... 5-98
Vehicle Identication
............................... 5-107
Electrical System
.................................... 5-108
Capacities and Specications
................... 5-115
Maintenance Schedule ..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance Information .................... 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
........................... 7-13
Vehicle Data Recording and Privacy
........... 7-15
Index ................................................................ 12008 Cadillac Escalade/Escalade ESV Owner Manual
M

Restraint System Check Checking the Restraint Systems Safety Belts Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors
and anchorages are working properly.
Look for any other loose or damaged safety belt system
parts. If you see anything that might keep a safety
belt system from doing its job, have it repaired. Torn or
frayed safety belts may not protect you in a crash.
They can rip apart under impact forces. If a belt is torn
or frayed, get a new one right away.
Make sure the safety belt reminder light is working. See
Safety Belt Reminders on page 3-35 for more
information.
Keep safety belts clean and dry. See Care of Safety
Belts on page 5-101 . Airbags The airbag system does not need regularly scheduled
maintenance or replacement. Make sure the airbag
readiness light is working. See Airbag Readiness Light
on page 3-36 for more information.
Notice: If an airbag covering is damaged, opened,
or broken, the airbag may not work properly. Do
not open or break the airbag coverings. If there are
any opened or broken airbag covers, have the
airbag covering and/or airbag module replaced. For
the location of the airbag modules, see What
Makes an Airbag Inflate? on page 1-83 . See your
dealer/retailer for service.
1-92

Oil Pressure Light
{ CAUTION: Do not keep driving if the oil pressure is low. If
you do, your engine can become so hot that it
catches re. You or others could be burned.
Check your oil as soon as possible and have
your vehicle serviced.
Notice: Lack of proper engine oil maintenance may
damage the engine. The repairs would not be covered
by your warranty. Always follow the maintenance
schedule in this manual for changing engine oil.
This light will come on
briey when you start your
engine. If it does not,
have your vehicle serviced. When the light comes on and stays on, it means that oil
is not owing through your engine properly. You
could be low on oil and you might have some other
system problem.
Security Light For information regarding
this light and the vehicle’s
security system, see
Content Theft-Deterrent on
page 2-21 .
Fog Lamp Light The fog lamp light will
come on when the fog
lamps are in use.
The light will go out when the fog lamps are turned off.
See Fog Lamps on page 3-21 for more information.
3-46

Driving in Water
{ CAUTION: Driving through rushing water can be
dangerous. Deep water can sweep your
vehicle downstream and you and your
passengers could drown. If it is only shallow
water, it can still wash away the ground from
under your tires, and you could lose traction
and roll the vehicle over. Do not drive through
rushing water.
Heavy rain can mean ash ooding, and ood waters
demand extreme caution.
Find out how deep the water is before you drive through
it. If it is deep enough to cover the wheel hubs, axles,
or exhaust pipe, do not try it — you probably will not get
through. Also, water that deep can damage the axle
and other vehicle parts. If the water is not too deep, drive slowly through it. At
faster speeds, water splashes on the ignition system
and your vehicle can stall. Stalling can also occur if
you get the tailpipe under water. And, as long as
the tailpipe is under water, you will never be able to
start the engine. When you go through water, remember
that when the brakes get wet, it may take you longer
to stop.
See Driving in Rain and on Wet Roads on page 4-27
for more information on driving through water.
After Off-Road Driving Remove any brush or debris that has collected on
the underbody, chassis, or under the hood. These
accumulations can be a re hazard.
After operation in mud or sand, have the brake linings
cleaned and checked. These substances can cause
glazing and uneven braking. Check the body structure,
steering, suspension, wheels, tires, and exhaust
system for damage. Also, check the fuel lines and
cooling system for any leakage.
Your vehicle will require more frequent service due to
off-road use. Refer to the Maintenance Schedule
for additional information.
4-25

Parking on Hills
{ CAUTION: You really should not park your vehicle, with a
trailer attached, on a hill. If something goes
wrong, your rig could start to move. People
can be injured, and both your vehicle and the
trailer can be damaged.
But if you ever have to park your rig on a hill, here’s
how to do it:
1. Apply your regular brakes, but don’t shift into
PARK (P) yet.
2. Have someone place chocks under the trailer
wheels.
3. When the wheel chocks are in place, release the
regular brakes until the chocks absorb the load.
4. Reapply the regular brakes. Then apply your
parking brake and shift into PARK (P).
5. Release the regular brakes. When You Are Ready to Leave After
Parking on a Hill 1. Apply your regular brakes and hold the pedal down
while you:
start your engine,
shift into a gear, and
release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store the
chocks.
Maintenance When Trailer Towing Your vehicle will need service more often when you’re
pulling a trailer. See the Maintenance Schedule for more
on this. Things that are especially important in trailer
operation are automatic transmission uid (don’t overll),
engine oil, axle lubricant, belts, cooling system and
brake system. Each of these is covered in this manual,
and the Index will help you nd them quickly. If
you’re trailering, it’s a good idea to review these sections
before you start your trip.
Check periodically to see that all hitch nuts and bolts
are tight.
4-55

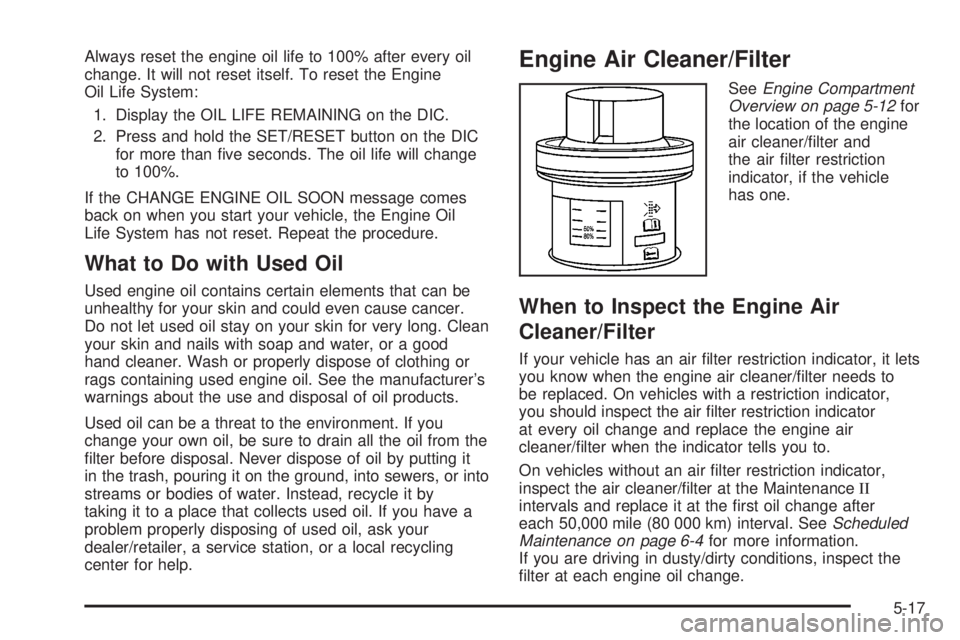

Always reset the engine oil life to 100% after every oil
change. It will not reset itself. To reset the Engine
Oil Life System:
1. Display the OIL LIFE REMAINING on the DIC.
2. Press and hold the SET/RESET button on the DIC
for more than ve seconds. The oil life will change
to 100%.
If the CHANGE ENGINE OIL SOON message comes
back on when you start your vehicle, the Engine Oil
Life System has not reset. Repeat the procedure.
What to Do with Used Oil Used engine oil contains certain elements that can be
unhealthy for your skin and could even cause cancer.
Do not let used oil stay on your skin for very long. Clean
your skin and nails with soap and water, or a good
hand cleaner. Wash or properly dispose of clothing or
rags containing used engine oil. See the manufacturer’s
warnings about the use and disposal of oil products.
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil from the
lter before disposal. Never dispose of oil by putting it
in the trash, pouring it on the ground, into sewers, or into
streams or bodies of water. Instead, recycle it by
taking it to a place that collects used oil. If you have a
problem properly disposing of used oil, ask your
dealer/retailer, a service station, or a local recycling
center for help. Engine Air Cleaner/Filter See Engine Compartment
Overview on page 5-12 for
the location of the engine
air cleaner/lter and
the air lter restriction
indicator, if the vehicle
has one.
When to Inspect the Engine Air
Cleaner/Filter If your vehicle has an air lter restriction indicator, it lets
you know when the engine air cleaner/lter needs to
be replaced. On vehicles with a restriction indicator,
you should inspect the air lter restriction indicator
at every oil change and replace the engine air
cleaner/lter when the indicator tells you to.
On vehicles without an air lter restriction indicator,
inspect the air cleaner/lter at the Maintenance II
intervals and replace it at the rst oil change after
each 50,000 mile (80 000 km) interval. See Scheduled
Maintenance on page 6-4 for more information.
If you are driving in dusty/dirty conditions, inspect the
lter at each engine oil change.
5-17

Automatic Transmission Fluid When to Check and Change Automatic
Transmission Fluid It is usually not necessary to check the transmission
uid level. The only reason for uid loss is a
transmission leak or overheating the transmission. If you
suspect a small leak, then use the following checking
procedures to check the uid level. However, if there
is a large leak, then it may be necessary to have
the vehicle towed to a dealer/retailer service department
and have it repaired before driving the vehicle further.
Notice: Use of the incorrect automatic transmission
uid may damage your vehicle, and the damages
may not be covered by your warranty. Always
use the automatic transmission uid listed in
Recommended Fluids and Lubricants on page 6-13 .
Change the uid and lter at the intervals listed in
the Maintenance Schedule. See Scheduled Maintenance
on page 6-4 . Be sure to use the transmission uid
listed in Recommended Fluids and Lubricants on
page 6-13 . How to Check Automatic
Transmission Fluid Notice: Too much or too little uid can damage
your transmission. Too much can mean that some
of the uid could come out and fall on hot engine
parts or exhaust system parts, starting a re.
Too little uid could cause the transmission to
overheat. Be sure to get an accurate reading if you
check your transmission uid.
Before checking the uid level, prepare your vehicle
as follows:
1. Start the engine and park your vehicle on a level
surface. Keep the engine running.
2. Apply the parking brake and place the shift lever
in PARK (P).
3. With your foot on the brake pedal, move the shift
lever through each gear range, pausing for about
three seconds in each range. Then, move the
shift lever back to PARK (P).
5-20

Maintenance Schedule ..................................... .6-2
Introduction .................................................. .6-2
Maintenance Requirements ............................. .6-2
Your Vehicle and the Environment ................... .6-2
Using the Maintenance Schedule ..................... .6-2
Scheduled Maintenance .................................. .6-4
Additional Required Services ........................... .6-6
Maintenance Footnotes .................................. .6-7 Owner Checks and Services ........................... .6-9
At Each Fuel Fill ........................................... .6-9
At Least Once a Month ................................ .6-10
At Least Once a Year .................................. .6-10
Recommended Fluids and Lubricants .............. .6-13
Maintenance Replacement Parts .................... .6-15
Engine Drive Belt Routing ............................. .6-16
Maintenance Record .................................... .6-17
Section 6 Maintenance Schedule
6-1
