Bluetooth car telephone kit29
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
– Enter the PIN for handsfree mode on the mobile phone
within about 30 seconds. The factory default for the PIN
for handsfree mode is 1234. A mobile phone symbol

page 28, fig. 20 will appear in the status line of the
MMI display when the mobile phone has successfully
bonded.
The external car aerial is not used. The handset* cannot be used.
Note
•Audi does not recommend using a mobile telephone with Hands-
Free Profile.
•You should change the PIN for handsfree mode to prevent other
users from connecting to your car telephone kit
page 96.
•For up-to-date information on mobile phones with the Hands-
Free Profile, please ask an Audi dealer or specialist retailer.
Applies to vehicles: with Bluetooth car telephone kit

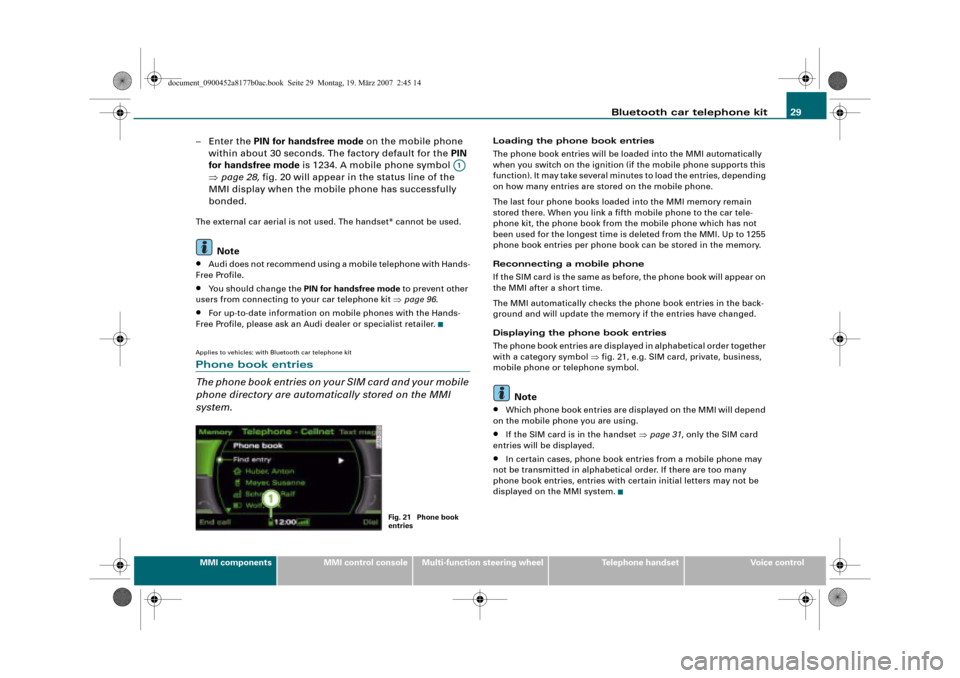

Phone book entries
The phone book entries on your SIM card and your mobile
phone directory are automatically stored on the MMI
system.
Loading the phone book entries
The phone book entries will be loaded into the MMI automatically
when you switch on the ignition (if the mobile phone supports this
function). It may take several minutes to load the entries, depending
on how many entries are stored on the mobile phone.
The last four phone books loaded into the MMI memory remain
stored there. When you link a fifth mobile phone to the car tele-
phone kit, the phone book from the mobile phone which has not
been used for the longest time is deleted from the MMI. Up to 1255
phone book entries per phone book can be stored in the memory.
Reconnecting a mobile phone
If the SIM card is the same as before, the phone book will appear on
the MMI after a short time.
The MMI automatically checks the phone book entries in the back-
ground and will update the memory if the entries have changed.
Displaying the phone book entries
The phone book entries are displayed in alphabetical order together
with a category symbol
fig. 21, e.g. SIM card, private, business,
mobile phone or telephone symbol.
Note
•Which phone book entries are displayed on the MMI will depend
on the mobile phone you are using.
•If the SIM card is in the handset
page 31, only the SIM card
entries will be displayed.
•In certain cases, phone book entries from a mobile phone may
not be transmitted in alphabetical order. If there are too many
phone book entries, entries with certain initial letters may not be
displayed on the MMI system.
A1
Fig. 21 Phone book
entries











Handset for the Bluetooth car telephone kit31
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control Do not let the handset fall and avoid shaking and knocking as much
as possible.
Care and cleaning
Use a cloth dampened with a mild detergent to clean the unit.
Do not use solvents or other harsh chemicals.
Caution
Do not expose the handset to strong sunlight.
Setting up
Applies to vehicles: with handset for the car telephone kit

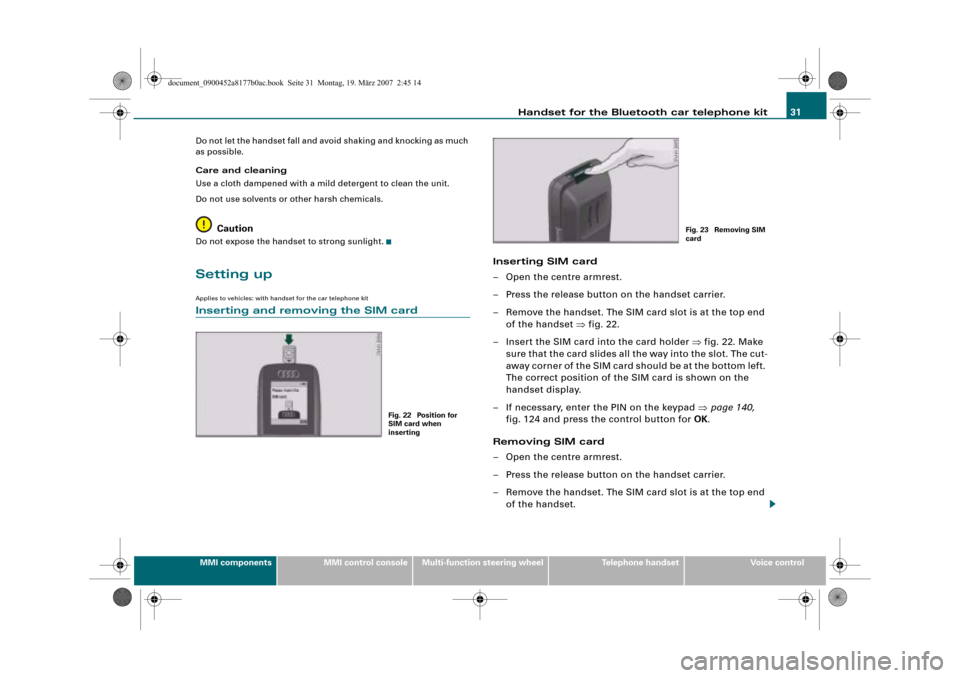

Inserting and removing the SIM card
Inserting SIM card
– Open the centre armrest.
– Press the release button on the handset carrier.
– Remove the handset. The SIM card slot is at the top end
of the handset
fig. 22.
– Insert the SIM card into the card holder
fig. 22. Make
sure that the card slides all the way into the slot. The cut-
away corner of the SIM card should be at the bottom left.
The correct position of the SIM card is shown on the
handset display.
– If necessary, enter the PIN on the keypad
page 140,
fig. 124 and press the control button for OK.
Removing SIM card
– Open the centre armrest.
– Press the release button on the handset carrier.
– Remove the handset. The SIM card slot is at the top end
of the handset.
Fig. 22 Position for
SIM card when
inserting
Fig. 23 Removing SIM
card










Handset for the Bluetooth car telephone kit 32
– Press the SIM card holder down with the SIM card still in
it and then let go of the holder again
page 31, fig. 23.
The SIM card will be released.
– Remove the SIM card from the SIM card holder.
If the SIM card is inserted improperly, or if it is damaged or not
compatible, the message Please insert the SIM card
page 31,
fig. 22 will appear on the display. Remove the SIM card and insert it
properly or replace it with another SIM card.
The PIN (Personal Identification Number) protects your SIM card
against unauthorised use. You receive the PIN code from your
mobile network service provider together with the SIM card.
If you enter the wrong PIN code three times
4) in a row, your SIM card
will be blocked and a message will appear in the display.
The PUK (Personal Unblocking Key) is used to unblock a SIM card
which has been blocked. You receive the PUK from your mobile
network service provider together with the SIM card.
WARNING
Always keep the SIM card out of reach of young children; it is rela-
tively small and could possibly be swallowed.
Caution
•The handset and the SIM card can be damaged if care is not
taken.
−Please do not use force when sliding the SIM card into the slot.
−When inserting the SIM card, make sure it is in the correct
position.
•There are many different telephone SIM cards available on the
market, so it cannot be guaranteed that every card will function properly. The old type of SIM card (5V technology) can no longer be
used. If you have this type of SIM card, please contact your mobile
network service provider to obtain a replacement (with 3V tech-
nology). Never attempt to operate your telephone with an incompat-
ible SIM card, as this can cause damage to the card or your tele-
phone.
•The SIM card contacts can be easily damaged by scratches or
bending. For this reason, handle the SIM card with care.
Note
•When using a twin card please follow the recommendations of
your provider. Otherwise, you may experience connection problems
and callers may not be able to reach you.
•You can also enter the PIN and PUK using the MMI
page 88.
•If you are using a twin card in the handset, you should activate
the PIN query
page 98. The SIM card in the vehicle is then only
activated when you enter the PIN.
Applies to vehicles: with handset for the car telephone kit
Charging and changing the battery
Inside the handset is a rechargeable lithium ion battery.
4)The total number of times you can enter the PIN code may vary depending
on your type of SIM card
Fig. 24 Opening the
battery cover











Basic operation 38

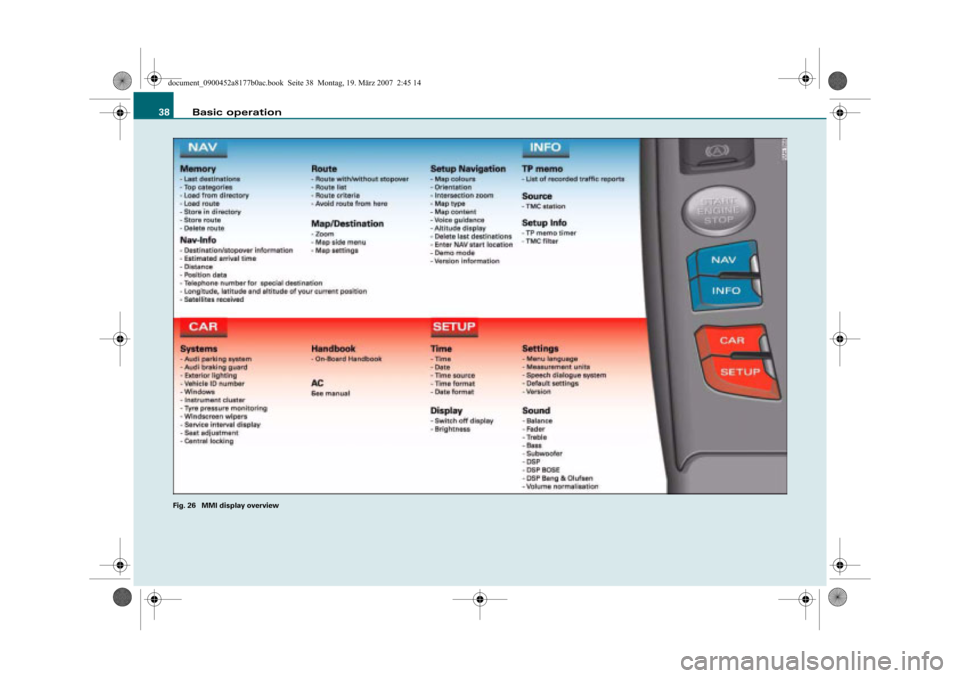

Fig. 26 MMI display overview










Basic operation39

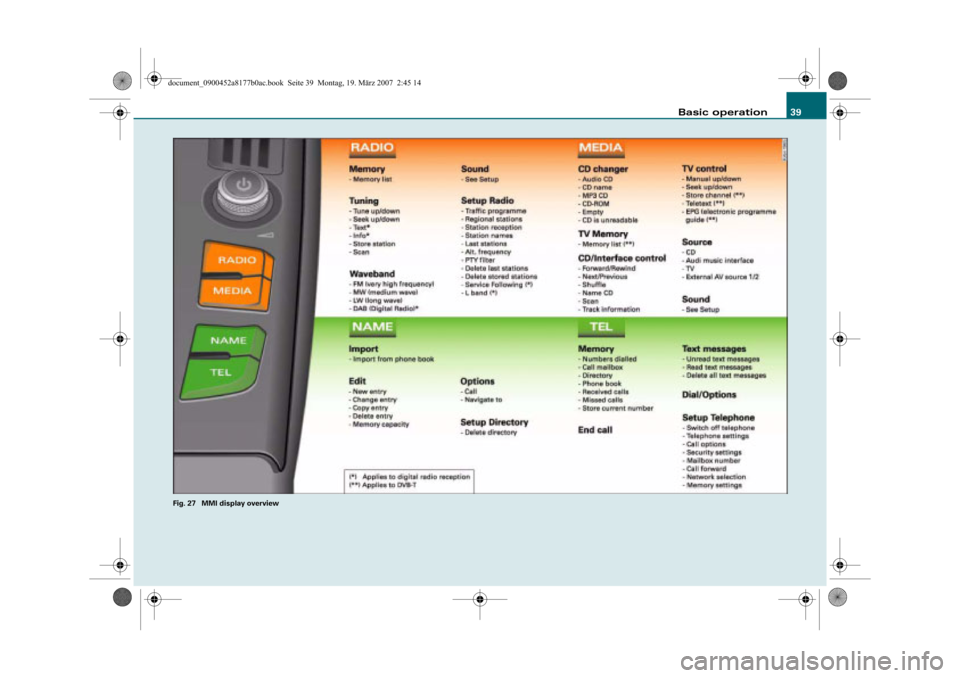

Fig. 27 MMI display overview










Basic operation41
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
How to use the controls
You can operate the functions of the MMI system by
pressing and turning the buttons on the MMI control
console.
Fig. 29 Buttons on MMI control console
Function selector buttons
Press one of the function selector buttons to activate the function
shown on the button. For example, simply press the button
to switch the system to the radio mode.
Use the button to call up additional settings for the current
function. Rotary pushbutton
To select a menu option in the MMI display, turn the rotary push-
button in the required direction and then press it.
Control buttons
To activate a function indicated in one of the four corners of the
display, press the corresponding control button for that corner of
the display. For instance, the top right control button corresponds
with the top right corner of the display
fig. 29.
RETURN button
Press the button to cancel an entry that has not yet been
confirmed or to return to the previous menu level.
Arrow buttons
Press the or button to go to the next or go back to the previous
radio station or TV* channel in the list.
Press the button to select the next track of a CD or iPod
5) (if an
iPod is being used). Press the button within the first ten seconds
of a track to go back to the previous track. After the first ten seconds,
you can press this button to go back to the start of the track that is
currently playing.
When in the CD, MP3 or interface mode, press and hold the
button to activate the fast reverse function, or press the button to
activate the fast forward function.
A1
RADIO
SETUP
5)Still under development at the time of printing.
A2
A3
A4
RETURN
A5
<>
><
<>










Basic operation 42
MMI display
“Standard” menus
After pressing a function selector button
page 41, a menu will
appear in the MMI display.
Fig. 30 Setup Naviga-
tion
Fig. 31 Radio
submenu
LegendSymbol /
MarkingExplanation
Heading
Selected mode (e.g. radio
fig. 31).
Display in Setup menu: Setup menu in
the selected mode (e.g. Setup Naviga-
tion
fig. 30).
In vehicles with a telephone* the net-
work provider and, if applicable, the
roaming symbol
 will be shown.
TMC symbolsReception of TMC traffic messages

page 121.
Arrows
pointing
up/downIndicate further menu options
(next/previous page).
CursorPoints to the item selected in a menu.
Selected
optionA selected item is highlighted in white.
Selection boxSelection possibilities for selected
item.
ArrowIndicates more selection or setting
possibilities.
Temperature
display*Selected temperature setting in vehi-
cles with automatic air conditioner*.
Signal
strength indi-
cator*Quality of mobile phone connection,
or
PIN: Entering PIN
page 88
PUK: Entering PUK
page 88
SIM: Inserting SIM card
Envelope*
Unread text message
page 100.
Crossed-out envelope: No more text
messages can be received (SIM card
memory is full)
page 100.
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10











Basic operation43
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
Speller
Use the speller to enter addresses, a navigation destina-
tion or a telephone number.
Some functions in the directory, telephone* or navigation* mode
require you to enter letters or numbers. In the MMI display the
speller for numbers
fig. 32 or letters
fig. 33 will appear.
While entering the numbers/letters, you can switch from numbers
to letters and vice versa as desired by turning the rotary pushbutton
to 0..9
fig. 33 or A..Z
fig. 32 and then pressing the rotary
pushbutton.
All symbols for entering letters and numbers are explained in the
following table:
TP symbolReception of traffic reports
page 58.
Corners of
display
Indicates the functions that can be
selected.
Use control buttons to select func-
tions. The top right corner of the dis-
play corresponds to the top right
control button.
SubtitlesInforms you of a selected option (e.g.
current radio station).
Function
wheelIs operated by turning and pressing
the rotary pushbutton.
Crossed-out
loudspeaker
symbolCurrent audio source is muted.
Time
Telephone
symbol*Missed calls*
page 91, fig. 85.
LegendSymbol /
MarkingExplanation
A11
A12
A13
A14
A15
A16
A17
Fig. 32 Speller for
numbers: Entering
phone numbers
Fig. 33 Speller for
letters: Finding a direc-
tory entry
A11A5
