Media drives17
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
Disconnecting the iPod connector
– Release the connector by pressing both knobs
page 16, fig. 9.
– Carefully pull the connector out of the iPod .
When it is connected, the iPod can be put away in the storage bay
page 15, fig. 5.
The iPod battery is charged via the adapter cable when the iPod is
connected to the Audi music interface and the ignition is switched
on.
The following iPods can be connected to the iPod adapter cable:
•iPod Mini (versions 1.3.0, 1.4.0 and 1.4.1)
•iPod nano 1G - First Generation (versions 1.1, 1.1.1 and 1.3)
•iPod 5G - Fifth Generation Video (version 1.1.2)
•iPod 4G - Fourth Generation (version 3.1.1)
Other versions cannot be used with the iPod adapter cable. You can
connect these devices as portable players using the optional
adapter cable with 3.5 mm jack plug* page 18.
Any problems with the iPod will also affect the operation of the MMI.
In this case, please reset your iPod (see operating instructions)
The following iPod control functions are not supported by the MMI:
•Star rating for music tracks
•Jump to a specific place in a track
•Add tracks to the “on-the-go” playlist
•Display the “compilations” folder. Similarly, tracks marked “part
of a compilation” are not included in the artist list if the compilation
function was activated in the iPod.
Note
•For more information on operating the iPod via the MMI, please
refer to the sections starting on page 63.
•Please refer to the iPod operating instructions for important
information on how to use your iPod.
•We recommend that you update the iPod software to the latest
status.
•Your Audi dealership will be able to provide the latest informa-
tion on the Audi music interface.
Applies to vehicles: with Audi music interface and USB/mini USB adapter cable - under
development at the time of printing
Connecting a portable player via a USB/mini
USB adapter cable
Different USB memory devices can be connected to the
Audi music interface via a USB/mini USB adapter cable.
When connected, the memory devices can be put away in the
storage bay page 15, fig. 5.
The Audi music interface supports USB memory devices belonging
to the “USB Device Subclass 1, 2 and 6”. The manufacturer will
provide you with information on the “USB Device Subclass” of a USB
memory device.
The following USB memory devices are supported:
•USB sticks
•Single card readers
•Multiple card readers (first card slot used)
•USB MP3 players that do not require special driver software
•External USB flash memory
•External USB hard drives (HDD) - 1", 1.8", 2.5" drives with a max.
starting/continuous current of 800 mA
For information on how to operate the USB memory device via the
MMI, please refer to sections starting on page 63.
MP3/ WMA files must meet the following specifications:
A1
A2
Page 20 of 193
Media drives 18
Please note that music files are copyright-protected.
Note
•You can shorten the process of scanning for music files on the
connected USB memory device by creating a central folder for
music files and playlists and positioning it as the first item (alpha-
betically) on the memory device.
•Do not use USB extension cables or adapters as these impair the
functionality.
•The Audi music interface does not support DRM-protected files.
•In view of the variety of USB memory devices and the difference
in memory capacities, the functionality may be restricted in the case
of some memory devices.
•For up-to-date information please see the internet, e.g.
“www.audi.com”.
•An iPod shuffle cannot be used with the USB/mini USB adapter
cable.
Applies to vehicles: with Audi music interface and 3.5 mm jack plug/adapter cable - under
development at the time of printing
Connecting a portable player via an adapter
cable (with 3.5 mm jack plug)
You can connect your portable player (e.g. MP3 player) to
the Audi music interface using the adapter cable with
3.5 mm jack plug.
– Connect the 3.5 mm jack plug to the earphone connec-
tion of your portable player. The audio source is then
played through the sound system of your vehicle.
If the Audi music interface is already selected as the source
page 63, fig. 54, you may hear some brief interference (a noise
often occurring on home stereo systems) when you connect or
disconnect the 3.5 mm jack plug. To avoid this interference, you can
either activate the mute function page 45 or another audio
source (radio page 54, CD page 63) before connecting and
disconnecting the portable player.
Note
We recommend setting the output level of the portable player to
about 70 percent of maximum. You can adjust the volume level (for
instance to match the radio volume) via the Input level function
page 70.
MP3 filesWMA files
FormatMPEG-1, MPEG-2
MPEG-2.5Version 7, 8 and 9
StandardISO 9660 Level 1 and 2
File systemFAT16, FAT32
File namesDisplay of file names may be restricted by MMI
screen.
Bit rates8 to 320 kbit/s and vari-
able bit rate64 to 320 kbit/s and vari-
able bit rate
No. of filesMax. 500 files per directory
(function restricted with more than 500 files)
Structure of
foldersMax. 7 subfolders
PlaylistsMax. 119 playlists, no more than 1000 entries per
playlist
Playlist
formatsM3U, PLS, B4S
ID3 tags/
WMA tagsVersion 1, 1.1, 2.2, 2.3
and 2.4,
max. 30 charactersVersion 7, 8 and 9,
max. 30 characters
Page 24 of 193
Phone pre-installation 22
Applies to vehicles: with phone pre-installation
Bluetooth™
Bluetooth enables a wireless connection between a
mobile phone and the MMI system.
The mobile phone 3) must be bonded to the on-board phone
system in the vehicle (only has to be done once). This proce-
dure involves various steps, depending on the mobile
phone you are using. After you switch on the ignition, you
have 5 minutes to connect your mobile phone to the on-
board phone system (while the vehicle is stationary).
– Make sure that no other mobile phone is connected to
the on-board phone system via Bluetooth.
– Switch on the ignition and the MMI (if not already acti-
vated).
– Select the appropriate menu option on your mobile
phone to search for Bluetooth compatible devices
(phone pre-installation).– Connect the mobile phone to the on-board phone
system. Your on-board phone system will use the name
“Audi UHV” when it connects with the mobile phone.
– Enter the PIN for handsfree mode (“1234”) on the on-
board phone system within 30 seconds.
– Wait until your mobile phone indicates that it has
bonded. The Bluetooth symbol fig. 14 will appear
on the MMI display.
You should change the PIN for handsfree mode to prevent unauthor-
ised use of your mobile phone page 101.
Up to four mobile phones
You can bond up to four mobile phones to the on-board phone
system. However, it is only possible to activate one connection at a
time. If you bond a fifth mobile phone to the on-board phone
system, the system will delete the device which has not been used
for the longest time in conjunction with the on-board phone system.
Connecting and disconnecting
A mobile phone which has been bonded to the on-board phone
system and is ready to operate will be connected automatically
when you switch on the ignition. On some mobile phones you have
to confirm the connection.
The Bluetooth connection is terminated when the key is removed
from the ignition lock.
Range
The Bluetooth connection between the mobile phone and the on-
board phone system is restricted to the interior of the vehicle. The
connection can be susceptible to interference caused by other elec-
tronic devices or obstacles between the devices. For example, the
transmission quality may be affected if you keep your mobile phone
in your jacket pocket.
3)Please make sure that the mobile phone you are bonding supports the
Hands-Free Profile.
Fig. 14 Bluetooth
symbol
A1
Page 25 of 193
Phone pre-installation23
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
Note
•If you use mobile phones in the vehicle this can generate electro-
magnetic fields.
−For this reason, you should always operate mobile phones
with an external aerial. This also applies to mobile phones used
in Bluetooth mode. The external aerial directs the electromag-
netic fields to the exterior, which reduces the field strength in the
vehicle interior.
−If retrofitting an external aerial, please ensure that it is
installed correctly.
•For more information on how to bond your mobile phone, please
refer to the mobile phone operating instructions.
•For up-to-date information on the phone pre-installation, please
ask an Audi dealer or specialist retailer.
Applies to vehicles: with phone pre-installation
Phone book entries
The phone book entries on your SIM card and your mobile
phone directory are automatically stored in the on-board
phone system.
Loading the phone book entries
The phone book entries will be loaded into the on-board phone
system automatically when you switch on the ignition (if the mobile
phone supports this function). It may take several minutes to load
the entries, depending on how many entries are stored on the
mobile phone.
The last four phone books loaded into the on-board phone system
remain stored there. When you link a fifth mobile phone to the on-
board phone system, the phone book from the mobile phone which
has not been used for the longest time is deleted from the on-board
system. Up to 1000 phone book entries per phone book can be
stored in the memory.
Using the mobile phone again later
If the SIM card is identical, the phone book entries are already
stored in the on-board phone system. You can use the phone book
almost immediately.
The system automatically checks the phone book entries in the
background and will update the memory if the entries have
changed.
Displaying the phone book entries
The phone book entries are displayed in alphabetical order together
with a category symbol fig. 15, e.g. SIM card, private, business,
mobile phone or telephone symbol.
Note
•Which phone book entries are displayed on the MMI will depend
on the mobile phone you are using.
•In certain cases, phone book entries from a mobile phone may
not be transmitted in alphabetical order. If more than 1000 phone
book entries exist, entries with certain initial letters may not appear
on the MMI.
Fig. 15 Finding an
entry in the phone
book
Page 27 of 193
Bluetooth car telephone kit25
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control −To lessen the risk of interference you should use the ear
opposite to the pacemaker.
−Never carry the handset* in a chest pocket.
−If you suspect interference, switch the handset* off immedi-
ately.
•The handset* may interfere with the function of hearing aids in
certain circumstances. If necessary, contact the manufacturer of
your hearing aid to find an alternative solution.
•If you use other health related devices, please contact the
manufacturer before using the handset* to find out if the device is
adequately protected against radiation.
•Airbags are released with extreme force. Never place the
handset* within the area of inflation of an airbag. You will put
yourself and others at risk.
•When using the telephone, please note page 9, “Notes on
traffic safety”.
Caution
•Please heed laws regulating the use of telephones in vehicles.
•You must switch off the telephone system in areas where the use
of mobile telephones is prohibited. Please observe all relevant
caution notices and regulations.
•Switch off the car telephone kit page 26, the handset*
page 140 and any other mobile phones in all areas where there
may be a risk of explosion. Remember that these areas may not
always be adequately marked. Such places are filling stations, fuel
and chemical storage facilities or transport vehicles and other
places where fumes, chemicals (e.g. from leaking propane or fuel
vapours in vehicles or buildings) or large quantities of dust particles
(e.g. from flour, wood or metal) could accumulate in the air. This
warning also applies to all other places where you would normally
switch off your engine.
•The car telephone kit and handset may be installed, serviced and
repaired only by an Audi workshop or other qualified workshop.
Note
•If you use mobile phones in the vehicle this can generate electro-
magnetic fields.
−For this reason, you should always operate mobile phones
with an external aerial. This also applies to mobile phones used
in Bluetooth mode. The external aerial directs the electromag-
netic fields to the exterior, which reduces the field strength in the
vehicle interior.
−If retrofitting an external aerial, please ensure that it is
installed correctly.
Setting up
Applies to vehicles: with Bluetooth car telephone kit
Introduction
Range of a Bluetooth connection
The maximum range of the Bluetooth connection is limited to the
interior of the vehicle. The connection can be susceptible to inter-
ference caused by obstacles or other electronic devices.
Bonding Bluetooth devices
No other mobile phone may be connected to the car telephone kit
during the bonding process. Before bonding a mobile phone, make
sure it is not connected to any other Bluetooth device (such as a
notebook computer or headset, etc.). Watch the display on your
mobile phone and follow any instructions.
You can bond up to four mobile phones to the car telephone kit,
however only one connection is active at a time. If you bond a fifth
mobile phone to the car telephone kit, the system will cancel the
WARNING (continued)

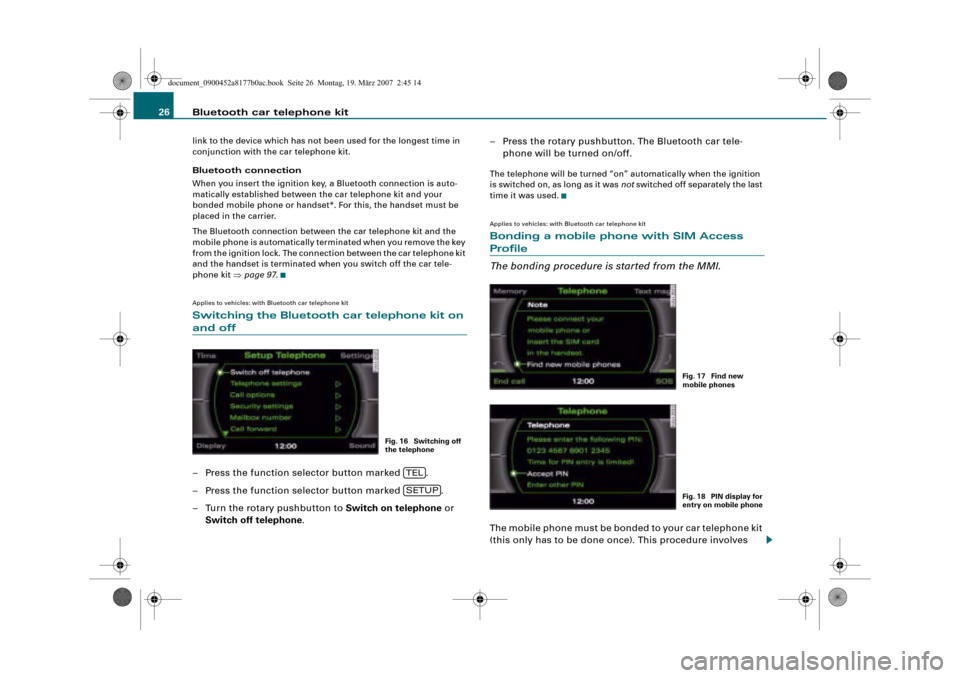

Page 28 of 193
Bluetooth car telephone kit 26
link to the device which has not been used for the longest time in
conjunction with the car telephone kit.
Bluetooth connection
When you insert the ignition key, a Bluetooth connection is auto-
matically established between the car telephone kit and your
bonded mobile phone or handset*. For this, the handset must be
placed in the carrier.
The Bluetooth connection between the car telephone kit and the
mobile phone is automatically terminated when you remove the key
from the ignition lock. The connection between the car telephone kit
and the handset is terminated when you switch off the car tele-
phone kit page 97.
Applies to vehicles: with Bluetooth car telephone kit
Switching the Bluetooth car telephone kit on
and off
– Press the function selector button marked .
– Press the function selector button marked .
– Turn the rotary pushbutton to Switch on telephone or
Switch off telephone.– Press the rotary pushbutton. The Bluetooth car tele-
phone will be turned on/off.
The telephone will be turned “on” automatically when the ignition
is switched on, as long as it was not switched off separately the last
time it was used.
Applies to vehicles: with Bluetooth car telephone kit
Bonding a mobile phone with SIM Access
Profile
The bonding procedure is started from the MMI.
The mobile phone must be bonded to your car telephone kit
(this only has to be done once). This procedure involves
Fig. 16 Switching off
the telephone
TEL
SETUP
Fig. 17 Find new
mobile phones
Fig. 18 PIN display for
entry on mobile phone
!

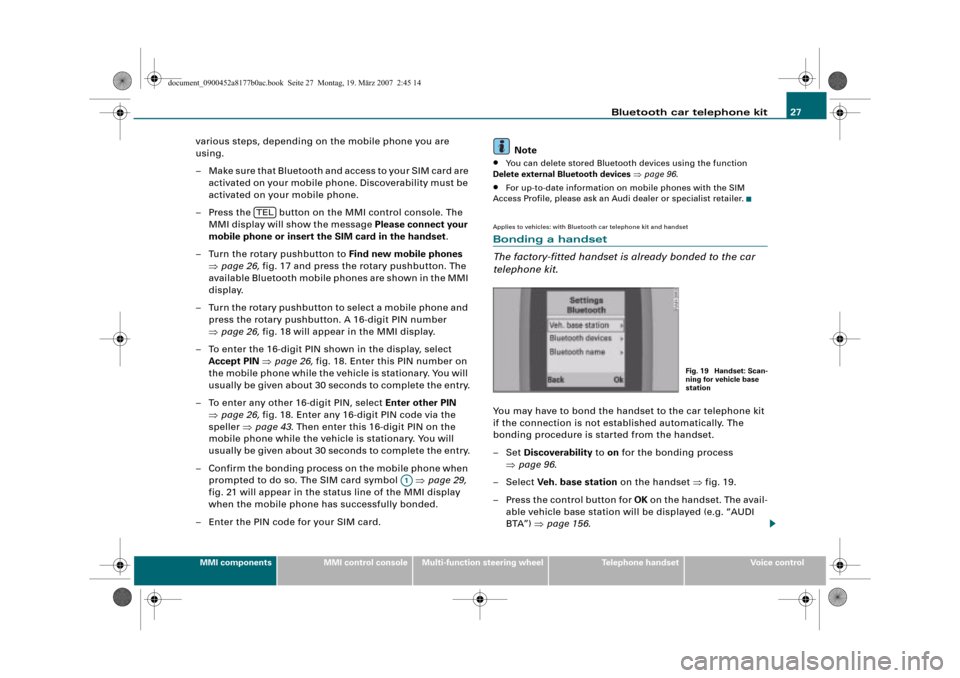

Page 29 of 193
Bluetooth car telephone kit27
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
various steps, depending on the mobile phone you are
using.
– Make sure that Bluetooth and access to your SIM card are
activated on your mobile phone. Discoverability must be
activated on your mobile phone.
– Press the button on the MMI control console. The
MMI display will show the message Please connect your
mobile phone or insert the SIM card in the handset.
– Turn the rotary pushbutton to Find new mobile phones
page 26, fig. 17 and press the rotary pushbutton. The
available Bluetooth mobile phones are shown in the MMI
display.
– Turn the rotary pushbutton to select a mobile phone and
press the rotary pushbutton. A 16-digit PIN number
page 26, fig. 18 will appear in the MMI display.
– To enter the 16-digit PIN shown in the display, select
Accept PIN page 26, fig. 18. Enter this PIN number on
the mobile phone while the vehicle is stationary. You will
usually be given about 30 seconds to complete the entry.
– To enter any other 16-digit PIN, select Enter other PIN
page 26, fig. 18. Enter any 16-digit PIN code via the
speller page 43. Then enter this 16-digit PIN on the
mobile phone while the vehicle is stationary. You will
usually be given about 30 seconds to complete the entry.
– Confirm the bonding process on the mobile phone when
prompted to do so. The SIM card symbol page 29,
fig. 21 will appear in the status line of the MMI display
when the mobile phone has successfully bonded.
– Enter the PIN code for your SIM card.Note
•You can delete stored Bluetooth devices using the function
Delete external Bluetooth devices page 96.
•For up-to-date information on mobile phones with the SIM
Access Profile, please ask an Audi dealer or specialist retailer.
Applies to vehicles: with Bluetooth car telephone kit and handset
Bonding a handset
The factory-fitted handset is already bonded to the car
telephone kit.
You may have to bond the handset to the car telephone kit
if the connection is not established automatically. The
bonding procedure is started from the handset.
–Set Discoverability to on for the bonding process
page 96.
– Select Veh. base station on the handset fig. 19.
– Press the control button for OK on the handset. The avail-
able vehicle base station will be displayed (e.g. “AUDI
BTA”) page 156.
TEL
A1
Fig. 19 Handset: Scan-
ning for vehicle base
station

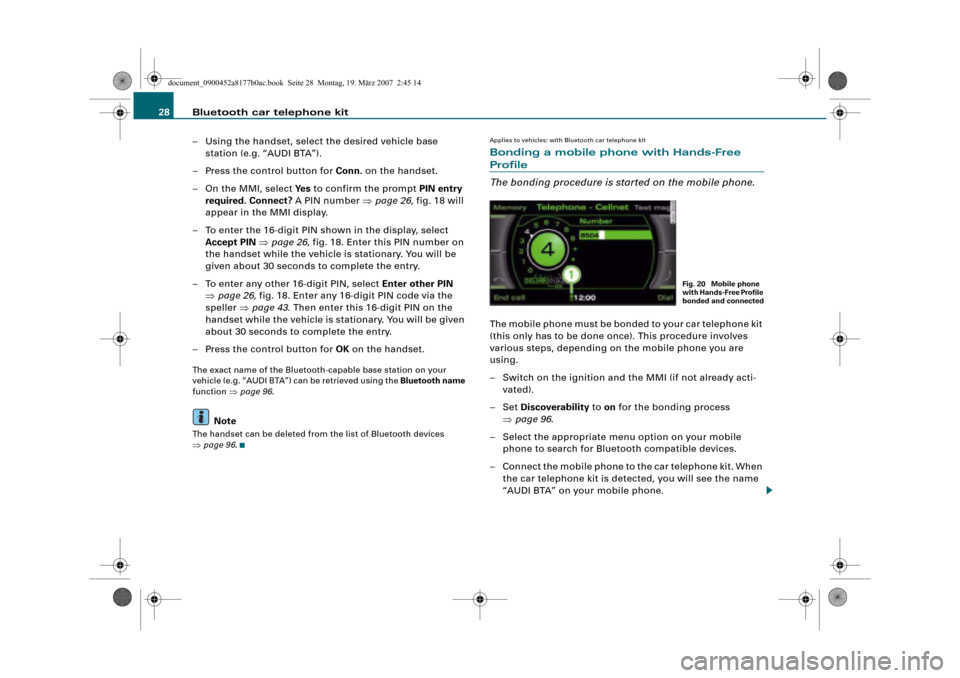

Page 30 of 193
Bluetooth car telephone kit 28
– Using the handset, select the desired vehicle base
station (e.g. “AUDI BTA”).
– Press the control button for Conn. on the handset.
–On the MMI, select Ye s to confirm the prompt PIN entry
required. Connect? A PIN number page 26, fig. 18 will
appear in the MMI display.
– To enter the 16-digit PIN shown in the display, select
Accept PIN page 26, fig. 18. Enter this PIN number on
the handset while the vehicle is stationary. You will be
given about 30 seconds to complete the entry.
– To enter any other 16-digit PIN, select Enter other PIN
page 26, fig. 18. Enter any 16-digit PIN code via the
speller page 43. Then enter this 16-digit PIN on the
handset while the vehicle is stationary. You will be given
about 30 seconds to complete the entry.
– Press the control button for OK on the handset.
The exact name of the Bluetooth-capable base station on your
vehicle (e.g. “AUDI BTA”) can be retrieved using the Bluetooth name
function page 96.
Note
The handset can be deleted from the list of Bluetooth devices
page 96.
Applies to vehicles: with Bluetooth car telephone kit
Bonding a mobile phone with Hands-Free
Profile
The bonding procedure is started on the mobile phone.
The mobile phone must be bonded to your car telephone kit
(this only has to be done once). This procedure involves
various steps, depending on the mobile phone you are
using.
– Switch on the ignition and the MMI (if not already acti-
vated).
–Set Discoverability to on for the bonding process
page 96.
– Select the appropriate menu option on your mobile
phone to search for Bluetooth compatible devices.
– Connect the mobile phone to the car telephone kit. When
the car telephone kit is detected, you will see the name
“AUDI BTA” on your mobile phone.
Fig. 20 Mobile phone
with Hands-Free Profile
bonded and connected
