Audi music interface
Applies to vehicles: with Audi music interface - under development at the time of printing
Introduction
Various portable players can be connected to the Audi
music interface.
Connection on Audi music interface
Storage bayCover cap
Connector plug for Audi music interface
Adapter cable* (e.g. iPod adapter cable*)
Sliding storage tray
iPod connector on iPod adapter cable*
iPod
iPod adapter cable*
Stereo adapter cable with 3.5 mm jack plug*
Mini USB adapter cable*
USB adapter cable*
The Audi music interface is located in the glove box. You can
connect your portable player (e.g. MP3 player) to the Audi music
interface using special adapter cables*. The adapter cables* are
available from Audi dealers or specialist retailers.
Caution
Very high or very low temperatures (a common occurrence in a car's
interior) can cause damage to the portable player and/or impair its
performance.
•Please do not leave your portable player in the vehicle in case of
extreme temperatures.
Applies to vehicles: with Audi music interface and adapter cable - under development at the
time of printing
Connecting an adapter cable to the Audi
music interface
– Open the glove box.
–Open the cover cap fig. 5.
– Connect the adapter cable to the Audi music interface
fig. 5.
Fig. 5 Audi music
interface with iPod
adapter cable and iPod
Fig. 6 Audi music
interface: Adapter
cable
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A3
Media drives 16
Caution
Handle the adapter cable with care. Make sure the cable does not
become pinched or trapped.
Applies to vehicles: with Audi music interface and adapter cable - under development at the
time of printing

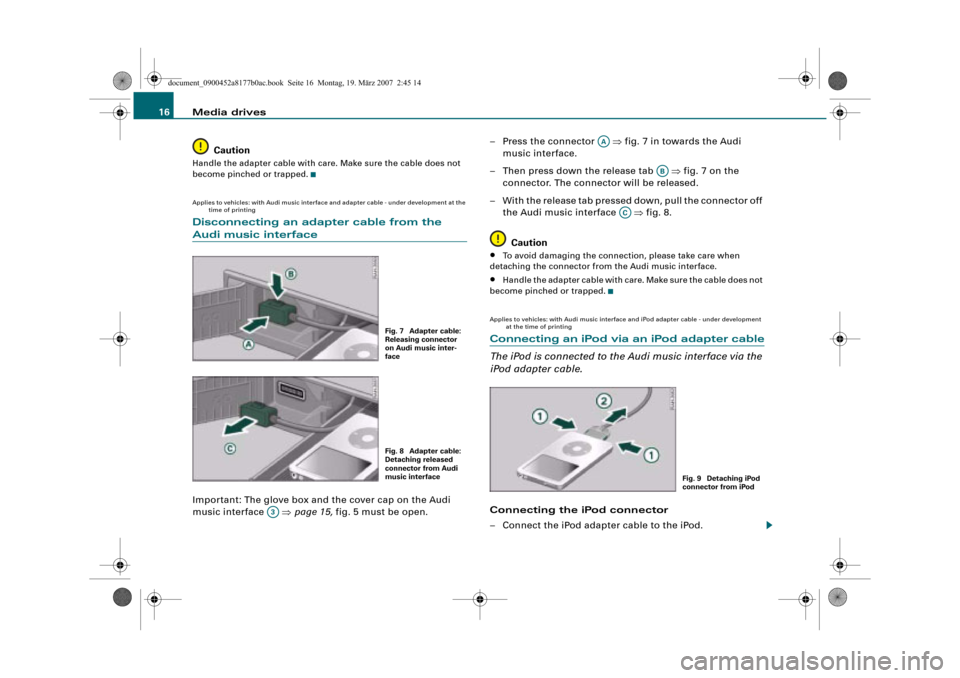

Disconnecting an adapter cable from the
Audi music interface
Important: The glove box and the cover cap on the Audi
music interface page 15, fig. 5 must be open.– Press the connector fig. 7 in towards the Audi
music interface.
– Then press down the release tab fig. 7 on the
connector. The connector will be released.
– With the release tab pressed down, pull the connector off
the Audi music interface fig. 8.
Caution
•To avoid damaging the connection, please take care when
detaching the connector from the Audi music interface.
•Handle the adapter cable with care. Make sure the cable does not
become pinched or trapped.
Applies to vehicles: with Audi music interface and iPod adapter cable - under development
at the time of printing
Connecting an iPod via an iPod adapter cable
The iPod is connected to the Audi music interface via the
iPod adapter cable.
Connecting the iPod connector
– Connect the iPod adapter cable to the iPod.
Fig. 7 Adapter cable:
Releasing connector
on Audi music inter-
face
Fig. 8 Adapter cable:
Detaching released
connector from Audi
music interface
A3
AA
AB
AC
Fig. 9 Detaching iPod
connector from iPod
!
