2008 Acura MDX Owner's Manual

When you press the DISP button
while a DVD is playing, the current
status of title, chapter, elapsed time,
angle, subtitle, audio, and sound
characteristics, with the personal
surround logo are displayed. To
return to the DVD video screen,
press the DISP button again.
If you do not press the DISP button,
the screen returns to the DVD video
screen af ter several seconds.When you press the MENU
SCROLL button while a DVD is
playing, the DVD Menu appears.
ThemenuoptionsareTOPMENU,
MENU, PLAY MODE, SEARCH,
and NumInput.
To go to your selected menu, use the
or button to highlight the
icon and press the ENT button. To
return to the DVD video screen,
select EXIT. When you select ‘‘TOP MENU’’, the
screen changes to the DVD’s title
menu. This menu also appears when
you press the MENU SCROLL
button while a DVD is not playing.
To go back to play, press the
RETURN button.
Top Menu
CONT INUED
DISP Button MENU SCROLL Button
Rear Entertainment System
Features
245
\f—\f—\fy\fy
()-
\fy\f\fy
2008 MDX

ÛÝ
Menu Play Mode
When you select ‘‘MENU’’ with the
or button, the screen
changes to the DVD’s title menu. When you select ‘‘PLAY MODE’’
with the or button, you
can change the DVD’s Audio,
Subtitle or Angle setting.To change the Audio setting,
highlight ‘‘Audio’’ f rom the play
mode menu with the or
button and press the ENT
button. A submenu of the dubbed
language appears. You can select
another language by pressing the or button. The sound
characteristics (Dolby Digital,
LPCM, MPEG Audio, dts) recorded
with the selected language is also
displayed next to the language.
‘‘Audio’’
Rear Entertainment System
246
\f—\f—\fy\f\fy
()-
\fy\f
y
2008 MDX

ÝÛÝ
Û ÝÛ
CONT INUED
‘‘Subtitle’’
To change the DVD’s subtitle,
highlight ‘‘Subtitle’’ f rom the play
mode menu with the or
button and press the ENT
button. You can see the available
subtitles with the or button. Press the ENT button
when your desired subtitle is
highlighted.
The selectable languages vary f rom
DVD to DVD, and this f eature may
notbeavailableonsomeDVDs.
Press the RETURN button or cursor
back with the or button to
go back to the top of the Play Mode
menu. Press the RETURN button
again to exit completely.
Af ter selecting your desired subtitle,
press the RETURN button or cursor
back with the or button to
go back to the top of the Play Mode
menu. Press the RETURN button
again to exit completely.
Rear Entertainment System
Features
247
\f—\f—\fy\f
y
()-
\fy\fy
2008 MDX

ÝÛ
Û
Ý
‘‘Angle’’
When you highlight ‘‘Search’’ with
the or button, the ‘‘Jump
to chapter and title number input’’
message appears. To select
‘‘Chapter’’ or ‘‘Title’’ search, press
the ENT button.
Search
If there are no multiple angles
available on the DVD, you cannot
change f rom ‘‘Angle 1’’.
Press the RETURN button or cursor
back with the or button to
go back to the top of the Play Mode
menu.
Press the RETURN button again to
exit completely.
To change the view angle, highlight
‘‘Angle’’ f rom the play mode menu
with the or button and
press the ENT button. You can see
the available angle options with the or button. Press the ENT
button when your desired subtitle is
highlighted.
Rear Entertainment System
248
\f—\f—\fy\fy
()-
\fy\fy
2008 MDX

Û
Ý
CONT INUED

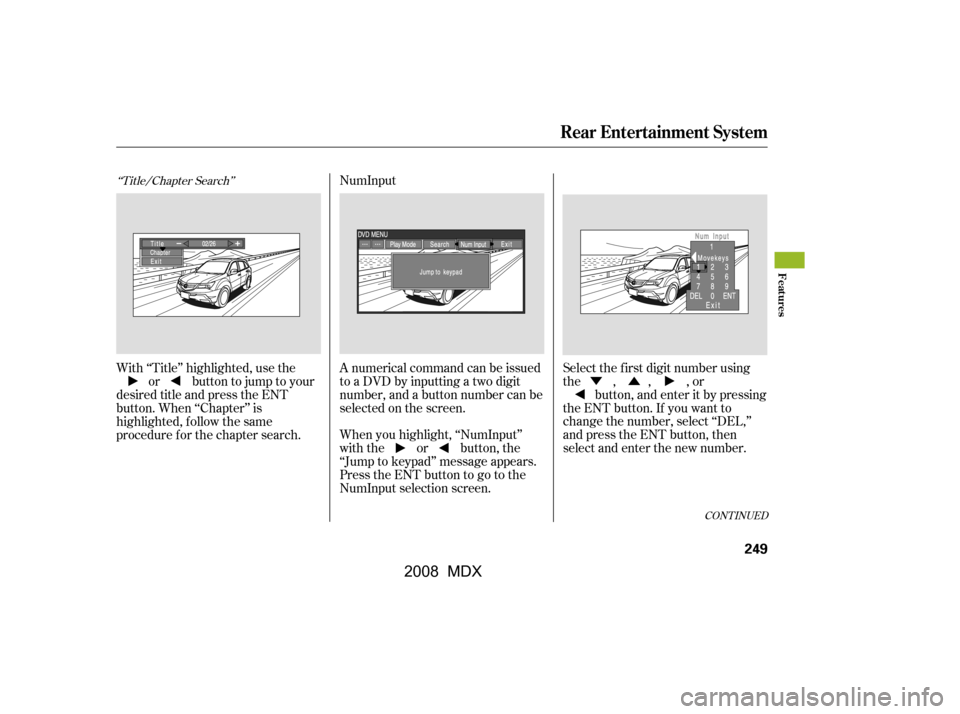

‘‘Title/Chapter Search’’
With ‘‘Title’’ highlighted, use the
or buttontojumptoyour
desired title and press the ENT
button. When ‘‘Chapter’’ is
highlighted, f ollow the same
procedure f or the chapter search. A numerical command can be issued
to a DVD by inputting a two digit
number, and a button number can be
selected on the screen.
Select the f irst digit number using
the , , , or
button, and enter it by pressing
the ENT button. If you want to
change the number, select ‘‘DEL,’’
and press the ENT button, then
select and enter the new number.
When you highlight, ‘‘NumInput’’
with the or button, the
‘‘Jump to keypad’’ message appears.
PresstheENTbuttontogotothe
NumInput selection screen.
NumInput
Rear Entertainment System
Features
249
\f—\f—\fy\f\fy
()-
\fy\fy
2008 MDX

ÝÛ
Select and enter the second digit
number the same way. The cursor
will automatically move to the ‘‘ENT’’
icon when you press the ENT button.
Press the ENT button to enter the
number command. To go back to the
DVD screen, press the RETURN
button or select EXIT and press the
ENT button.
When you press the SETUP button
while a DVD is playing, the setup
menu appears. The menu options are
DISP ADUSTMENT, ASPECT
RATIO, and PERSONAL
SURROUND.
To change a setup, use the orbutton to highlight your
selection and press the ENT button.
To return to the DVD video screen,
select EXIT. To adjust the display, highlight ‘‘Disp
Adjust’’ f rom the setup menu with
the or button and press
the ENT button. You can adjust
these display settings:
Brightness
Contrast
Black Level
Tint
Color
Disp Adjust
Rear Entertainment System
SETUP Button
250
\f—\f—\fy\fy
()-
\fy\fy
2008 MDX

ÝÛ
Û
Ý
CONT INUED
Select the quality you want to adjust
by pressing the or button.
Adjust the setting by pressing the
or button. When you are
f inished with your adjustment,
cursor back to the top of the setup
menu, or press the RETURN button
to exit. If you want to set the display to the
def ault setting, select ‘‘Reset’’ by
pressing the or button, and,
then pressing the ENT button.
The display changes as shown above.
Select ‘‘Yes,’’ and press the ENT
button. You will see the message
‘‘Def ault display settings applied’’ on
the display f or 5 seconds.
Rear Entertainment System
Features
251
\f—\f—\fy\fy
()-
\fy\fy
2008 MDX

Select the ‘‘Aspect Ratio’’ by pressing
the or button, then press
the ENT button.The selected setting will be
highlighted in blue f or one second,
and the screen returns to the play
mode in the selected setting.
The selectable setting menu is
displayed, and the current setting is
highlighted in blue.
You can set the screen mode to
these settings:
Normal
Wide
Zoom
Full
Select the desired setting by
pressing the or button,
then press the ENT button.
Aspect Ratio
Rear Entertainment System
252
\f—\f—\fy\fy
()-
\fy\fy
2008 MDX
