Page 36 of 153
40
Steering wheel controls
DIRECTION INDICATORS
(green flashing)
"Motorway" function
P r e s s t h e c o n t r o l u p o r d o w n t o fl a s h
the corresponding direction indicator
three times. LIGHTING CONTROL
Left : downwards passing the
point of resistance.
Right : upwards passing the
point of resistance. Front and rear lights
Selection is by turning ring
A . Lights off
Automatic lights
Side lights
Dipped beam (green)
Main beam (blue)
Dipped beam/main beam change
Pull the stalk fully towards you.
Lights-on buzzer
When the ignition is switched off, when
the driver’s door is opened, a buzzer
sounds if you have left your lights on.
Checking by means of the indicator
lights on the instrument panel is
described in the "Instruments and
controls" section of chapter 2.
Page 37 of 153
40
Steering wheel controls
DIRECTION INDICATORS
(green flashing)
"Motorway" function
P r e s s t h e c o n t r o l u p o r d o w n t o fl a s h
the corresponding direction indicator
three times. LIGHTING CONTROL
Left : downwards passing the
point of resistance.
Right : upwards passing the
point of resistance. Front and rear lights
Selection is by turning ring
A . Lights off
Automatic lights
Side lights
Dipped beam (green)
Main beam (blue)
Dipped beam/main beam change
Pull the stalk fully towards you.
Lights-on buzzer
When the ignition is switched off, when
the driver’s door is opened, a buzzer
sounds if you have left your lights on.
Checking by means of the indicator
lights on the instrument panel is
described in the "Instruments and
controls" section of chapter 2.
Page 38 of 153
41
Steering wheel controls
ERGONOMICS and COMFORT
3
Daytime lights
Depending on the country in which
the vehicle is sold, the vehicle may
be equipped with daytime lights. The
dipped headlamps come on when the
vehicle is started.
Rear fog lamps (amber, 2nd
rotation of the ring forwards).
Front fog lamps (green, 1st
rotation of the ring forwards).
Front and rear fog lamps
Rotate ring
B forwards to switch on and
rearwards to switch off. The status is
c o n fi r m e d b y t h e l i g h t o n t h e i n s t r u m e n t
panel.
These operate with the side lights and
the dipped beam headlamps.
Do not forget to switch them off
when they are no longer needed.
Automatic switching on of the lights
switches off the rear fog lamps, but the
front fog lamps remain on. This warning light comes on
on the instrument panel.
The instruments and controls
(instrument panel, display, air
conditioning control panel, ...)
are only lit on switching to the automatic
switching on of the lights mode or when
the lights are switched on manually.
To switch off the front and rear fog
lamps, turn the ring rearwards twice
in succession.
In clear weather or in rain, both day
and night, rear fog lamps dazzle and
are prohibited. Automatic switching on of the lights
In foggy weather or in snow,
the brightness sensor can detect
s u f fi c i e n t l i g h t . A s a c o n s e q u e n c e ,
the lights will not come on automatically.
If necessary, you must switch on the
dipped headlamps manually.
Do not cover the brightness
sensor located on the windscreen,
behind the mirror. It is used for
the automatic switching on of the lights
and for the automatic wipers.
Activation
Turn the ring to the AUTO position.
The activation of this function is
accompanied by a message on the
display.
Deactivation
Turn the ring forwards or rearwards.
The deactivation of this function is
accompanied by a message on the
display.
The function is deactivated temporarily
when you use the manual lights stalk. The side lights
and dipped beam
headlamps switch
on automatically if
the light is poor, or
during operation of the windscreen
wipers. They switch off as soon as the
light becomes bright enough or the
windscreen wipers stop.
This function is not compatible with the
daytime lights.
Page 39 of 153
42
Steering wheel controls
If the brightness sensor
does not function
correctly , the lights come on
accompanied by the service
warning light, an audible
signal and a message on the display.
Consult a PEUGEOT dealer.
Follow-me-home lighting
The temporary maintaining of the
dipped headlamps lighting, with the
ignition off, makes the driver’s exit
easier when the light is poor.
HEADLAMP BEAM
Depending on the load in your vehicle,
the beam setting must be adjusted.
0 - No load.
1 - Partial load.
2 - Average load.
3 - Maximum authorised load.
Manual operation
- W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps within one minute after
switching off the ignition.
The follow-me-home lighting switches
off automatically after a set time.
Automatic operation
R e f e r t o t h e " D i s p l a y fl o w c h a r t "
section of chapter 4. Activate the function via the
" V e h i c l e c o n fi g " m e n u .
Initial setting is position 0.
Page 40 of 153
42
Steering wheel controls
If the brightness sensor
does not function
correctly , the lights come on
accompanied by the service
warning light, an audible
signal and a message on the display.
Consult a PEUGEOT dealer.
Follow-me-home lighting
The temporary maintaining of the
dipped headlamps lighting, with the
ignition off, makes the driver’s exit
easier when the light is poor.
HEADLAMP BEAM
Depending on the load in your vehicle,
the beam setting must be adjusted.
0 - No load.
1 - Partial load.
2 - Average load.
3 - Maximum authorised load.
Manual operation
- W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps within one minute after
switching off the ignition.
The follow-me-home lighting switches
off automatically after a set time.
Automatic operation
R e f e r t o t h e " D i s p l a y fl o w c h a r t "
section of chapter 4. Activate the function via the
" V e h i c l e c o n fi g " m e n u .
Initial setting is position 0.
Page 63 of 153
64
Practical information
Automatic switching on/off
The front courtesy light comes on when
the key is removed from the ignition,
when the vehicle is unlocked, when
one of the front doors is opened and for
location of the vehicle using the remote
control.
It switches off gradually after the
ignition is switched on and when the
vehicle is locked. Cab: comes on when one of
the front doors is opened.
These are switched on and off
by means of a manual switch,
with the ignition on.
Load space: comes on when
one of the rear doors
is opened.
If the doors remain open for
a few minutes, the courtesy
lights are switched off.
Permanently off.
Permanently on, ignition on. Front courtesy light
COURTESY LIGHTS
Rear courtesy light Front individual reading ligh
ts
Page 91 of 153
1
2
3
3
2
3
3
2
3
3
2
3
3
2
3
3
1
2
3
3
2
3
3
1
2
3
3
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
1
2
2
123
23
08
A
2
3
3
2
3
3
91
RADIO-CD
REV WIPE ACT
active
inactive LANGUAGES
FRANCAIS
ITALIANO
NEDERLANDS
PORTUGUES
PORTUGUES-BRASIL
DEUTSCH
ENGLISH
ESPANOL
PARKING ASSIST
active
inactive
OPTIONS
DISPLAY FLOW CHART monochrome A
MAIN FUNCTION
* The parameters vary according to vehicle.
REG MODE
active
inactive
RDS SEARCH
active
inactive
CHOICE A Choice A1 Choice A2 CHOICE B...
INTROSCAN
active
inactive
CD REPEAT
active
inactive
AUTO LIGHTS
active
inactive
GUIDE LAMPS
active
inactive
VEHICLE CONFIG *
RANDOM PLAY
active
inactive ABANDON/CONSULT LIST OF FAULTS
functions activated (or not)
warning messages
DISPLAY ADJUST
YEAR
MONTH
DAY
HOUR
MINUTES
12 H/24 H MODE
UNITS
TEMPERATURE: °CELSIUS / °FAHRENHEIT
FUEL CONSUMPTION: KM/L - L/100 - MPG

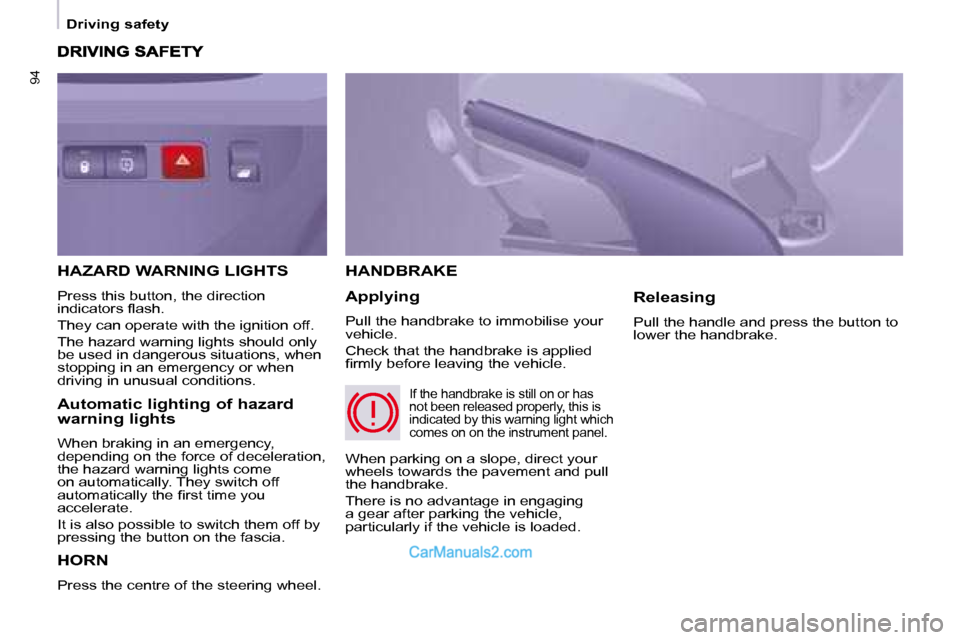

Page 94 of 153
94
Driving safety
HORN
Press the centre of the steering wheel.
HANDBRAKE
Applying
Pull the handbrake to immobilise your
vehicle.
Check that the handbrake is applied
fi r m l y b e f o r e l e a v i n g t h e v e h i c l e . Releasing
Pull the handle and press the button to
lower the handbrake.
HAZARD WARNING LIGHTS
Press this button, the direction
i n d i c a t o r s fl a s h .
They can operate with the ignition off.
The hazard warning lights should only
be used in dangerous situations, when
stopping in an emergency or when
driving in unusual conditions.
When parking on a slope, direct your
wheels towards the pavement and pull
the handbrake.
There is no advantage in engaging
a gear after parking the vehicle,
particularly if the vehicle is loaded.
If the handbrake is still on or has
not been released properly, this is
indicated by this warning light which
comes on on the instrument panel. Automatic lighting of hazard
warning lights
When braking in an emergency,
depending on the force of deceleration,
the hazard warning lights come
on automatically. They switch off
a u t o m a t i c a l l y t h e fi r s t t i m e y o u
accelerate.
It is also possible to switch them off by
pressing the button on the fascia.
