Page 9 of 153
3
3
3
3
5
13
1
FAMILIARISATION
Interior
LOAD SPACE
Stowing rings
We recommend that the load is
i m m o b i l i s e d b y s e c u r i n g i t fi r m l y u s i n g
t h e s t o w i n g r i n g s o n t h e fl o o r a n d t h a t
heavy objects are placed at the front
(towards the cab). Torch
Incorporated in the wall, this lights
the boot and can be removed when
changing a wheel, ...
68
70 65
Partitions
69
69
R e m o v a b l e fl a p
This can be removed to
permit the loading of long
objects.
Interior rack Maximum loads
Overhead storage compartment: 5kg.
Retractable seat, in the seat back folded
onto seat cushion position: 50 kg.
Transverse roof bars: 75 kg.
Interior rack: 10 kg per bar.
Roof rack: 120 kg.
Page 54 of 153
56

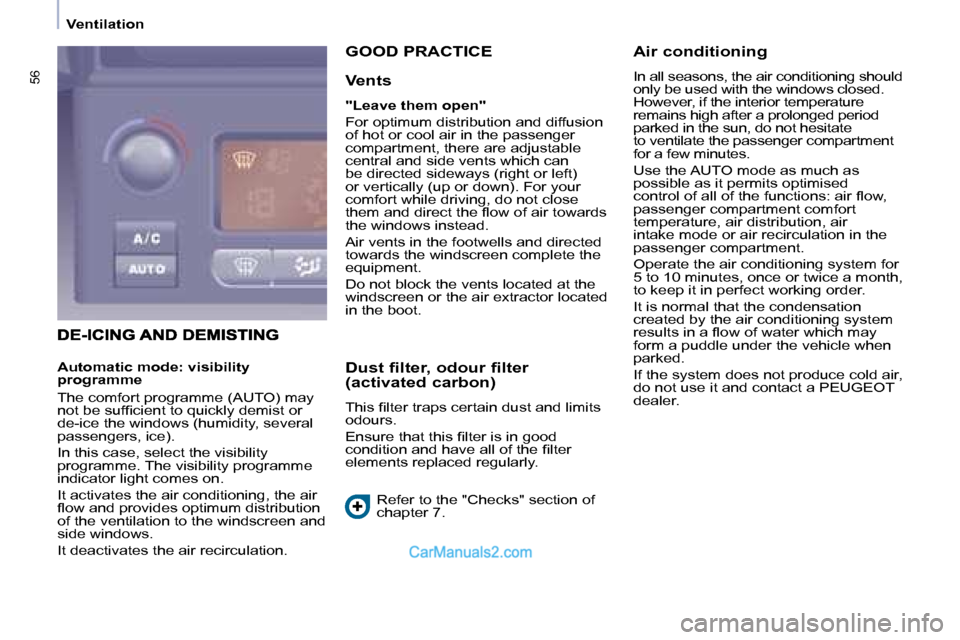

Ventilation
GOOD PRACTICE
Vents
"Leave them open"
For optimum distribution and diffusion
of hot or cool air in the passenger
compartment, there are adjustable
central and side vents which can
be directed sideways (right or left)
or vertically (up or down). For your
comfort while driving, do not close
t h e m a n d d i r e c t t h e fl o w o f a i r t o w a r d s
the windows instead.
Air vents in the footwells and directed
towards the windscreen complete the
equipment.
Do not block the vents located at the
windscreen or the air extractor located
in the boot.
Dust filter, odour filter
(activated carbon)
T h i s fi l t e r t r a p s c e r t a i n d u s t a n d l i m i t s
odours.
E n s u r e t h a t t h i s fi l t e r i s i n g o o d
c o n d i t i o n a n d h a v e a l l o f t h e fi l t e r
elements replaced regularly.
Refer to the "Checks" section of
chapter 7. Air conditioning
In all seasons, the air conditioning should
only be used with the windows closed.
However, if the interior temperature
remains high after a prolonged period
parked in the sun, do not hesitate
to ventilate the passenger compartment
for a few minutes.
Use the AUTO mode as much as
possible as it permits optimised
c o n t r o l o f a l l o f t h e f u n c t i o n s : a i r fl o w ,
passenger compartment comfort
temperature, air distribution, air
intake mode or air recirculation in the
passenger compartment.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
It is normal that the condensation
created by the air conditioning system
r e s u l t s i n a fl o w o f w a t e r w h i c h m a y
form a puddle under the vehicle when
parked.
If the system does not produce cold air,
do not use it and contact a PEUGEOT
dealer.
Automatic mode: visibility
programme
The comfort programme (AUTO) may
n o t b e s u f fi c i e n t t o q u i c k l y d e m i s t o r
de-ice the windows (humidity, several
passengers, ice).
In this case, select the visibility
programme. The visibility programme
indicator light comes on.
It activates the air conditioning, the air
fl o w a n d p r o v i d e s o p t i m u m d i s t r i b u t i o n
of the ventilation to the windscreen and
side windows.
It deactivates the air recirculation.
Page 64 of 153
65
33
Practical information

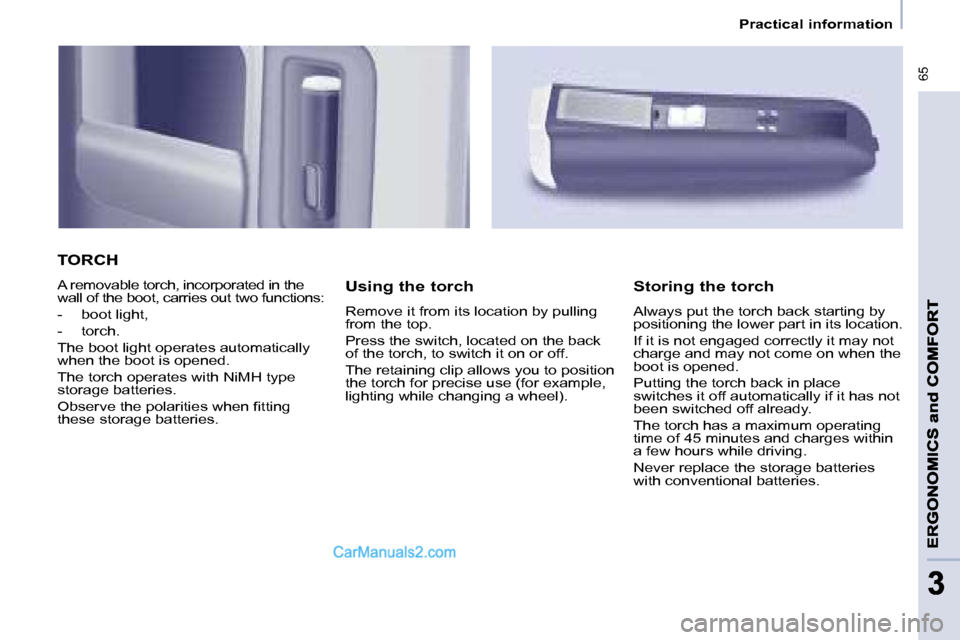

TORCH
A removable torch, incorporated in the
wall of the boot, carries out two functions:
- boot light,
- torch.
The boot light operates automatically
when the boot is opened.
The torch operates with NiMH type
storage batteries.
O b s e r v e t h e p o l a r i t i e s w h e n fi t t i n g
these storage batteries. Using the torch
Remove it from its location by pulling
from the top.
Press the switch, located on the back
of the torch, to switch it on or off.
The retaining clip allows you to position
the torch for precise use (for example,
lighting while changing a wheel).
Storing the torch
Always put the torch back starting by
positioning the lower part in its location.
If it is not engaged correctly it may not
charge and may not come on when the
boot is opened.
Putting the torch back in place
switches it off automatically if it has not
been switched off already.
The torch has a maximum operating
time of 45 minutes and charges within
a few hours while driving.
Never replace the storage batteries
with conventional batteries.
Page 80 of 153
80
02 DISPLAY AND MENU A
RADIO: RDS search, REG mode. CD: introscan, random play, repeat.
VEHICLE CONFIGURATION: activation/deactivation of the equipment.
DISPLAY ADJUST: year, month, day, hour, minute, 12 or 24 hour mode.
> GENERAL MENU > DISPLAY A
This displays the following information, via the audio equipment control pad: - the time, - the date, - t h e e x t e r i o r t e m p e r a t u r e ( t h i s fl a s h e s i f t h e r e i s a r i s k o f i c e ) , - the audio source displays (radio, CD, ...), - the accesses check (doors, boot, ...), - the warning messages or information messages d isplayed temporarily, can be cleared by pressing the "ESC" button, - the trip computer,
OPTIONS: equipment status diagnostics.
Press the MENU button then OK.
LANGUAGES.
UNITS: temperature (°C or °F), fuel consumption (l/100, mpg or km/l).
Page 81 of 153
NRJ
8
02
81
DISPLAY AND MENU C
AUDIO FUNCTION: radio, CD, options.
PERSONALISATION-CONFIGURATION: vehicle parameters, display, languages.
TELEPHONE: hands-free kit, matching, management of a call.
> GENERAL MENU > DISPLAY C
This displays the following information, via the a udio equipment control pad: - the time, - the date, - t h e e x t e r i o r t e m p e r a t u r e ( t h i s fl a s h e s i f t h e r e i s a r i s k o f i c e ) , - the audio source displays (radio, CD, ...), - the accesses check (doors, boot, ...), - the warning messages (e.g.: "Antipollution fau lt") or information messages (e.g.: "Auto lighting activated") displaye d temporarily, can be cleared by pressing the "ESC" button, - the trip computer, - the location of a faulty wheel, - the detection of a rear obstacle. TRIP COMPUTER: distance entering, warnings, status of functions.
