2008.5 Citroen C8 Owner's Manual

180
Child safety
"ISOFIX" MOUNTINGS
These seats are fi tted with ISOFIX
mountings.
These are two rings located between
the seat back and the seat cushion .
The ISOFIX child seats are fi tted with
two locks which are secured easily on
these rings.
This ISOFIX mounting system
guarantees reliable, safe and fast
fi tting of the child seat in your vehicle.

SAFETY
181
Child safety
5

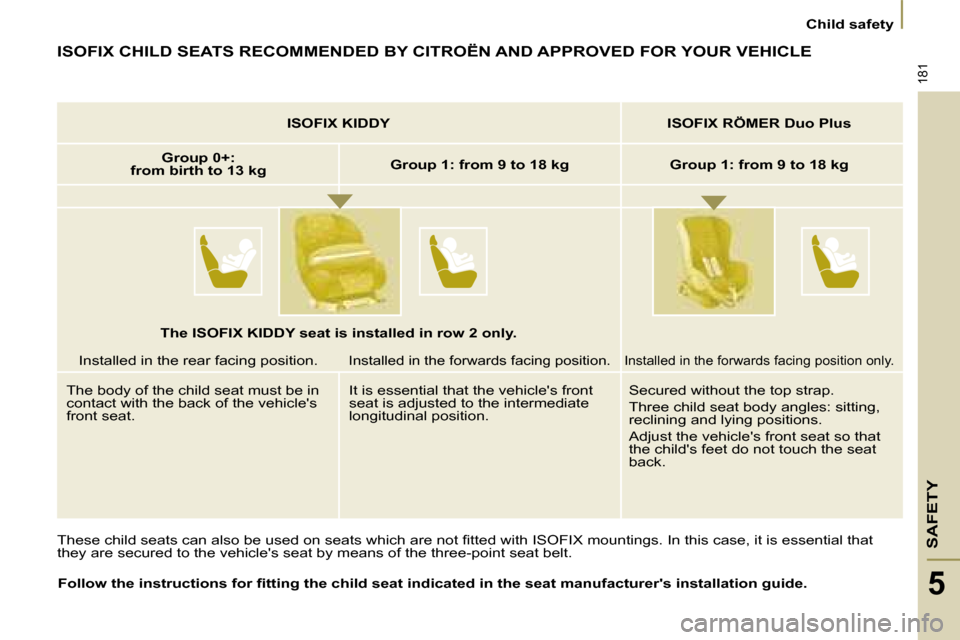

ISOFIX CHILD SEATS RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE
These child seats can also be used on seats which are not fi tted with ISOFIX mountings. In this case, it is essential that
they are secured to the vehicle's seat by means of the three-poi nt seat belt.
Follow the instructions for fi tting the child seat indicate d in the seat manufacturer's installation guide.

ISOFIX KIDDY
ISOFIX RÖMER Duo Plus

Group 0+:
from birth to 13 kg
Group 1: from 9 to 18 kg Group 1: from 9 to 18 kg
Installed in the rear facing position.
Installed in the forwards facing position. Installed in the forwards facing position only.
The body of the child seat must be in
contact with the back of the vehicle's
front seat. It is essential that the vehicle's front
seat is adjusted to the intermediate
longitudinal position. Secured without the top strap.
Three child seat body angles: sitting,
reclining and lying positions.
Adjust the vehicle's front seat so that
the child's feet do not touch the seat
back.

The ISOFIX KIDDY seat is installed in row 2 only.

182
Child safety
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats wh ich are

secured using a three point seat belt :
INSTALLING CHILD SEATS
ATTACHED USING THE SEAT
BELT
In accordance with the European
regulation (Directive 2000/3), the
table presented on the following page
indicates the options for installing child
seats secured using a seat belt and
universally approved in accordance
with the weight of the child and the
seat in the vehicle.

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg

L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position


Groups 1, 2 and 3: from 9 to 36 kg

L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), CITROËN recommends use of the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start"
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the
booster is used on its own.

SAFETY
183
Child safety
5

a
: Group 0: from birth to 10 kg.

b
: consult the legislation in force in your country before instal ling your child on this seat.

U
: seat suitable for the installation of a child sea t secured using a seat belt and universally approve d, "rear facing"
and/or "forward facing".

L-
: only the child seats indicated can be installed on the sea t concerned (according to country).

X
: seat not suitable for the installation of a child seat o f the weight group indicated.


Seat
Weight of the child and indicative age

Under 13 kg (groups 0 ( a ) and 0+)
Up to approx 1 year

From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( b )
U U U U
Side seats of
row 2
U U U U
Centre seat
of row 2
U U U U
Side seats
of row 2, placed
in row 3
L1 L2 L2, L3, L4 L2, L3, L4
Centre seat
of row 2, placed
in row 3
U U U U
3 - seat bench seat,
placed in row 3
L1 L2 L2, L3, L4 L2, L3, L4

X L2 L2, L3, L4 L2, L3, L4

184
Child safety
ADVICE ON CHILD SEATS
Otherwise, the child would risk being
seriously injured or killed if the air bag
were to infl ate.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses
keeping the
slack in relation to the child's body to a
minimum , even for short journeys.
To protect young children from the
rays of the sun, fi t side blinds to
the rear windows.
CHILD MONITORING MIRROR
This mirror enables the driver or front
passenger to observe all the rear
seats.
Fitted on its own ball joint and able to
retract into its housing in the roof, it
provides a panoramic view of the rear
interior of the vehicle.
For optimum installation of the "forward
facing" child seat, ensure that the back
of the child seat is in contact with the
back of the vehicle's seat and that the
head restraint does not cause any
discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat. Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a
booster seat which has a back, fi tted
with a seat belt guide at shoulder level.
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.

184
Child safety
ADVICE ON CHILD SEATS
Otherwise, the child would risk being
seriously injured or killed if the air bag
were to infl ate.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses
keeping the
slack in relation to the child's body to a
minimum , even for short journeys.
To protect young children from the
rays of the sun, fi t side blinds to
the rear windows.
CHILD MONITORING MIRROR
This mirror enables the driver or front
passenger to observe all the rear
seats.
Fitted on its own ball joint and able to
retract into its housing in the roof, it
provides a panoramic view of the rear
interior of the vehicle.
For optimum installation of the "forward
facing" child seat, ensure that the back
of the child seat is in contact with the
back of the vehicle's seat and that the
head restraint does not cause any
discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat. Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a
booster seat which has a back, fi tted
with a seat belt guide at shoulder level.
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.

185
Towing a trailer
ACCESSORIES
6
TOWING A TRAILER, CARAVAN, BOAT, ETC...
Refer to the administrative
documents (V5, ...) or to the Petrol
or Diesel "Dimensions, weights
and towed loads" section of
chapter 9.
Distribution of loads: distribute the
load in the trailer so that the heaviest
loads are as close as possible to the
axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.
Cooling: towing a trailer on a slope
increases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.

Dimension A = 0.96 m
Driving advice
A towed vehicle must free wheel:
gearbox in neutral.

186
Towing a trailer
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake
gradually. Please contact a CITROËN dealer fi rst
for further information.
Automatic adjustment
For vehicles with Xenon bulbs, and if
the change in load makes it necessary,
this system automatically corrects the
height of the beam after approximately
2 minutes. The driver is then assured
of having optimum lighting and not
causing a nuisance to other road
users.

In certain cases of particularly
arduous use (towing the
maximum load up a steep slope
in high temperatures), the engine
automatically limits its power.
In this case, cutting off the air
conditioning allows the engine power
to be recovered, and therefore the
towing speed to be signifi cantly
increased (approximately 12 mph
[20 km/h] more). Sequential control
of the gearbox may also become
unavailable. Lighting
Bicycle carrier If you fi t a bicycle carrier on
the tailgate, deactivate the
rear wiper from the display’s
confi guration menu.
Refer to the "Identifi cation
features" section of chapter 9. Refer to the "Steering wheel
controls" section of chapter 3.
When using a trailer connection,
you must add a fuse. Refer to
the "Changing a fuse" section of
chapter 8.

If the coolant temperature warning light
comes on, stop the vehicle and switch
off the engine as soon as possible.

Tyres: check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pressure.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.

Towbar
We recommend the use of original
CITROËN towbars, which have been
tested for endurance from the design
stage of your vehicle.
Towing equipment must be fi tted in
accordance with the manufacturer’s
instructions, with particular attention to
the towing capacities of your vehicle,
the load towed, the nose weight and
the electrical connection. As this fi tting
should be carried out by a professional,
we recommend that you entrust the
fi tting of this equipment to a CITROËN
dealer .
In accordance with the general
instructions referred to above, we draw
your attention to the risk connected
with fi tting a towbar or other electrical
accessory which is not recommended
by the CITROËN network . Fitting such
equipment could result in a failure of
your vehicle’s electronic system. Manual adjustment
Adjust your headlamps so as not to
dazzle other road users. Check the
electrical signalling of the trailer.
